Headlight leveling switch .................................................................................. page 5-53
Dashboard illumination knob ............................................................................ page 5-36
Lighting control/Turn signal .............................................................................. page 5-51
Instrument cluster .............................................................................................. page 5-32
SRS air bags ...................................................................................................... page 2-41
Cruise control switches ...................................................................................... page 5-19
Wiper and washer lever ..................................................................................... page 5-55
Hazard warning flasher switch .......................................................................... page 5-61
Information display ............................................................................................ page 6-55
Audio system ..................................................................................................... page 6-17
Glove box .......................................................................................................... page 6-63
Center console ................................................................................................... page 6-63
Parking brake ....................................................................................................... page 5-5
Cup holder ......................................................................................................... page 6-61
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Lighter ............................................................................................................... page 6-60
Rear window defroster switch ........................................................................... page 5-60
Ashtray ............................................................................................................... page 6-61
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-31
Audio control switches ...................................................................................... page 6-45
Remote fuel-filler lid release ............................................................................. page 3-21
Hood release handle .......................................................................................... page 3-22
Outside mirror switch ........................................................................................ page 3-31
Interior lights ..................................................................................................... page 6-52
Sunvisor ............................................................................................................. page 6-52
Rearview mirror ................................................................................................. page 3-32
Vanity mirror ...................................................................................................... page 6-52
Front seat ............................................................................................................. page 2-2
Seat belt ............................................................................................................. page 2-10
Rear seat .............................................................................................................. page 2-5
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda3_8V66-EA-06F_Edition3 Page9
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (101,1)
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lIf the security indicator light comes
on and stays on when the ignition
switch is turned to the ON position,
the engine will not start.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the security indicator
light. If it is flashing, remove the
ignition key and wait 2 seconds or
more, then reinsert it and try starting
the engine again. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.
Knowing Your Mazda
Security System
3-27
Mazda3_8V66-EA-06F_Edition3 Page101
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (123,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................ 5-4
Manual Transaxle Operation ..................................................... 5-9
Automatic Transaxle Controls ................................................. 5-11
Power Steering ........................................................................ 5-18
Cruise Control
í...................................................................... 5-19
Traction Control System (TCS)í........................................... 5-22
Dynamic Stability Control (DSC)í........................................ 5-23
Tire Pressure Monitoring Systemí......................................... 5-25
Instrument Cluster and Indicators ............................................ 5-32
Meters and Gauges .................................................................. 5-32
Warning/Indicator Lights and Beep Sounds ............................ 5-37
Warning/Indicator Lights ........................................................ 5-37
Beep Sounds ........................................................................... 5-49
Switches and Controls ................................................................ 5-51
Lighting Control ..................................................................... 5-51
Turn and Lane-Change Signals ............................................... 5-54
Fog Lights
í............................................................................ 5-55
Windshield Wipers and Washer .............................................. 5-55
Rear Window Wiper and Washer (5 Door) ............................. 5-59
Rear Window Defroster ........................................................... 5-60
Horn ........................................................................................ 5-61
Hazard Warning Flasher .......................................................... 5-61
5-1íSome models.
Mazda3_8V66-EA-06F_Edition3 Page123
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (136,1)
NOTE
lIf you change to manual shift mode
when the vehicle is stopped, the gear
will shift to M1.
lIf you shift up once when the vehicle
is stopped and the gear is at M1, the
gear will shift to M2. M2 is helpful
for starting on slippery surfaces.
l(2.3-liter engine model)
If you change to manual shift mode
without depressing the accelerator
pedal when driving in D range, 5th
gear, the gear will shift to M4.
Indicators
Shift position indicator
In manual shift mode, the“M”of the shift
position indicator in the instrument panel
illuminates.
Gear position indicator
The numeral for the selected gear
illuminates.
Shift position
indicator
Gear position indicator
NOTE
lIf the gears cannot be shifted down
when driving at higher speeds, the
gear position indicator will flash
twice to signal that the gears cannot
be shifted down.
lIf the automatic transaxle fluid (ATF)
temperature becomes too high, there
is the possibility that the transaxle
will switch to automatic shift mode,
canceling manual shift mode and
turning off the gear position indicator
illumination. This is a normal
function to protect the AT. After the
ATF temperature has decreased, the
gear position indicator illumination
turns back on and driving in manual
shift mode is restored.
Shifting
Manually Shifting up
(M1→M2→M3→M4→M5
*)
To shift up to a higher gear, tap the shift
lever back (
) once.
* 2.3-liter engine model
5-14
Driving Your Mazda
Starting and Driving
Mazda3_8V66-EA-06F_Edition3 Page136
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (147,1)
Press the switch again to turn the TCS/
DSC back on. The DSC OFF indicator
light will go out.
NOTE
lWhen DSC is on and you attempt to
free the vehicle when it is stuck, or
drive it out of freshly fallen snow,
the TCS (part of the DSC system)
will activate. Depressing the
accelerator will not increase engine
power and freeing the vehicle may
be difficult.
When this happens, turn off the TCS/
DSC.
lIf the TCS/DSC is off when the
engine is turned off, it automatically
activates when the ignition switch is
turned on.
lLeaving the TCS/DSC on will
provide the best stability.
Tire Pressure Monitoring
System
í
The tire pressure monitoring system
(TPMS) monitors the pressure for each
tire.
If tire pressure is too low in one or more
tires, the system will inform the driver via
the warning light in the instrument panel
and by the warning beep sound.
The tire pressure sensors installed on each
wheel send tire pressure data by radio
signal to the receiver unit in the vehicle.
Tire pressure sensors
NOTE
When the ambient temperature is low
due to seasonal changes, tire
temperatures are also lower. If the tire
temperature lowers, the air pressure
lowers as well, and the TPMS warning
light illuminates more frequently.
Inspect the tire pressure dailybefore
driving, and check the tire pressures
monthly with a tire pressure gauge.
When checking the tire pressures, use
of a digital tire pressure gauge is
recommended.
Driving Your Mazda
Starting and Driving
5-25íSome models. Mazda3_8V66-EA-06F_Edition3 Page147
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (152,1)
When changing tires yourself
If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, turn the
ignition switch to the ON position, then
turn it back to the ACC or LOCK
position.
2. Wait for about 15 minutes.
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.
NOTE
If the vehicle is driven within about 15
minutes of changing tires, the tire
pressure monitoring system warning
light will flash because the sensor ID
signal code would not have been
registered. If this happens, park the
vehicle for about 15 minutes, after
which the sensor ID signal code will
register upon driving the vehicle for 10
minutes.
Replacing tires and wheels
CAUTION
lWhen replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.
lThe wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installations are possible.
lThe tire pressure sensor is removed
from the old wheel and installed to the
new one.
lThe same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.
lA new tire pressure sensor is installed
to a new wheel.
5-30
Driving Your Mazda
Starting and Driving
Mazda3_8V66-EA-06F_Edition3 Page152
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (160,1)

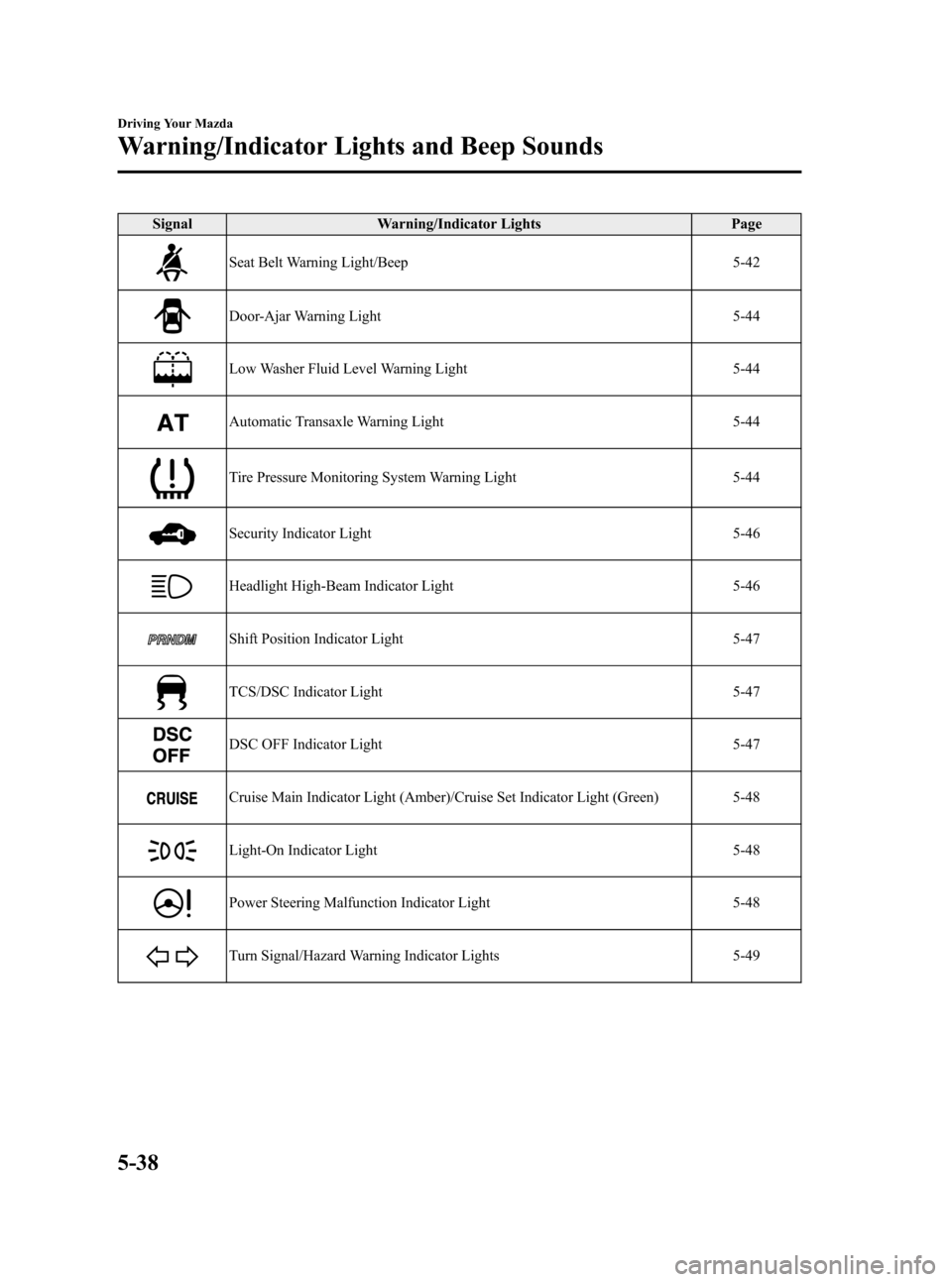

Signal Warning/Indicator Lights Page
Seat Belt Warning Light/Beep 5-42
Door-Ajar Warning Light 5-44
Low Washer Fluid Level Warning Light 5-44
Automatic Transaxle Warning Light 5-44
Tire Pressure Monitoring System Warning Light 5-44
Security Indicator Light 5-46
Headlight High-Beam Indicator Light 5-46
Shift Position Indicator Light 5-47
TCS/DSC Indicator Light 5-47
DSC OFF Indicator Light 5-47
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-48
Light-On Indicator Light 5-48
Power Steering Malfunction Indicator Light 5-48
Turn Signal/Hazard Warning Indicator Lights 5-49
5-38
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8V66-EA-06F_Edition3 Page160
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (164,1)

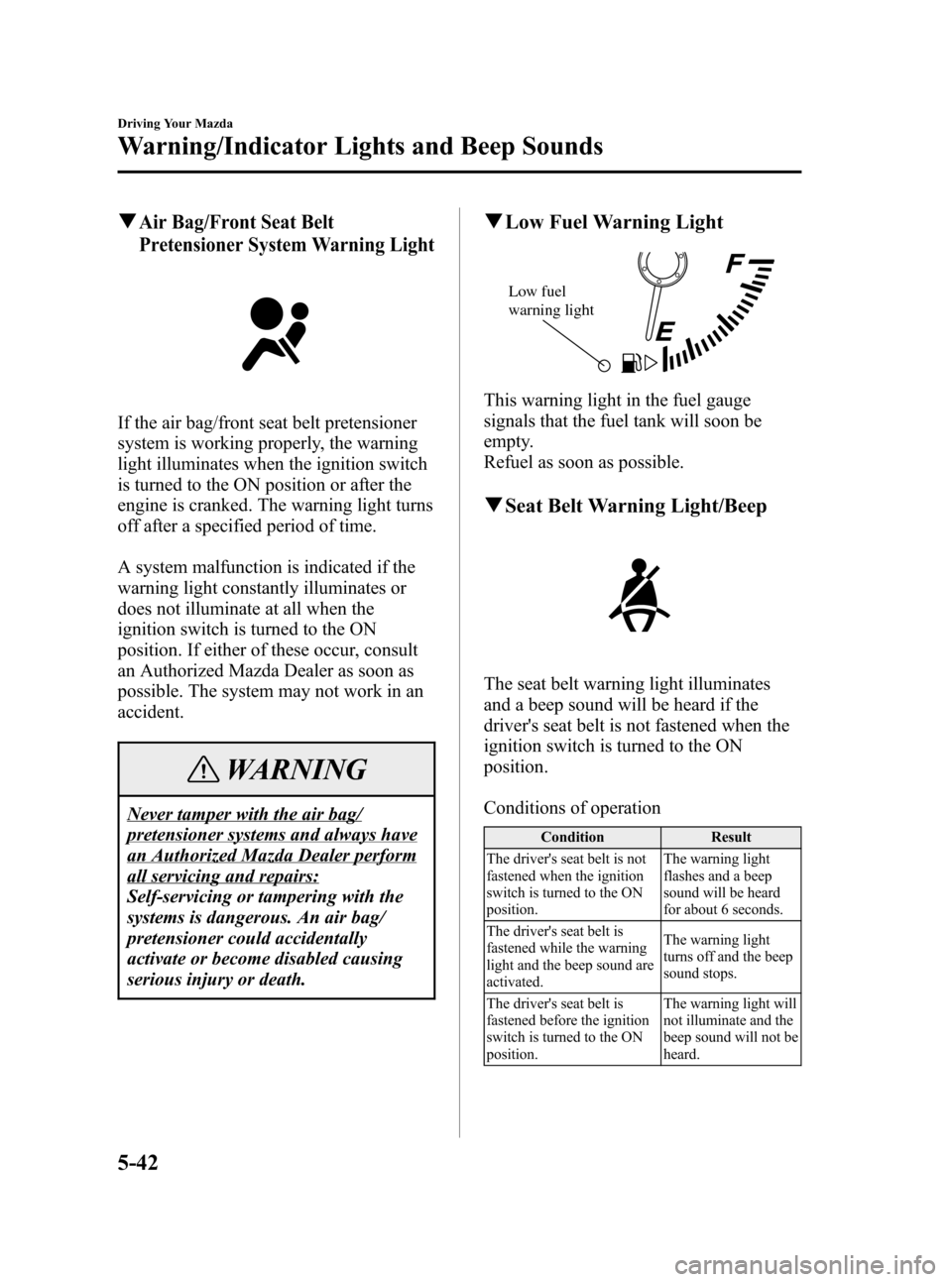

qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly illuminates or
does not illuminate at all when the
ignition switch is turned to the ON
position. If either of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qLow Fuel Warning Light
Low fuel
warning light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Refuel as soon as possible.
qSeat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
Condition Result
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position.The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated.The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position.The warning light will
not illuminate and the
beep sound will not be
heard.
5-42
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8V66-EA-06F_Edition3 Page164
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (169,1)
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transaxle)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
qTCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-24).
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47íSome models. Mazda3_8V66-EA-06F_Edition3 Page169
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (171,1)
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-54).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-61).
NOTE
If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, one of the turn signal bulbs
may be burned out.
Beep Sounds
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in both the air
bag/front seat belt pretensioner system
and the warning light, a warning beep
sound will be heard for about 1 minute.
After that, the one-minute beep will be
repeated every 30 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system will
not deploy and this could result in
death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-49
Mazda3_8V66-EA-06F_Edition3 Page171
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F
