engine MAZDA MODEL 3 HATCHBACK 2008 (in English) Owners Manual

Black plate (348,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
9-16
Customer Information and Reporting Safety Defects
Warranty
Mazda3_8X41-EA-07F_Edition2 Page348
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (370,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not taw a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
9-38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda3_8X41-EA-07F_Edition2 Page370
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (381,1)

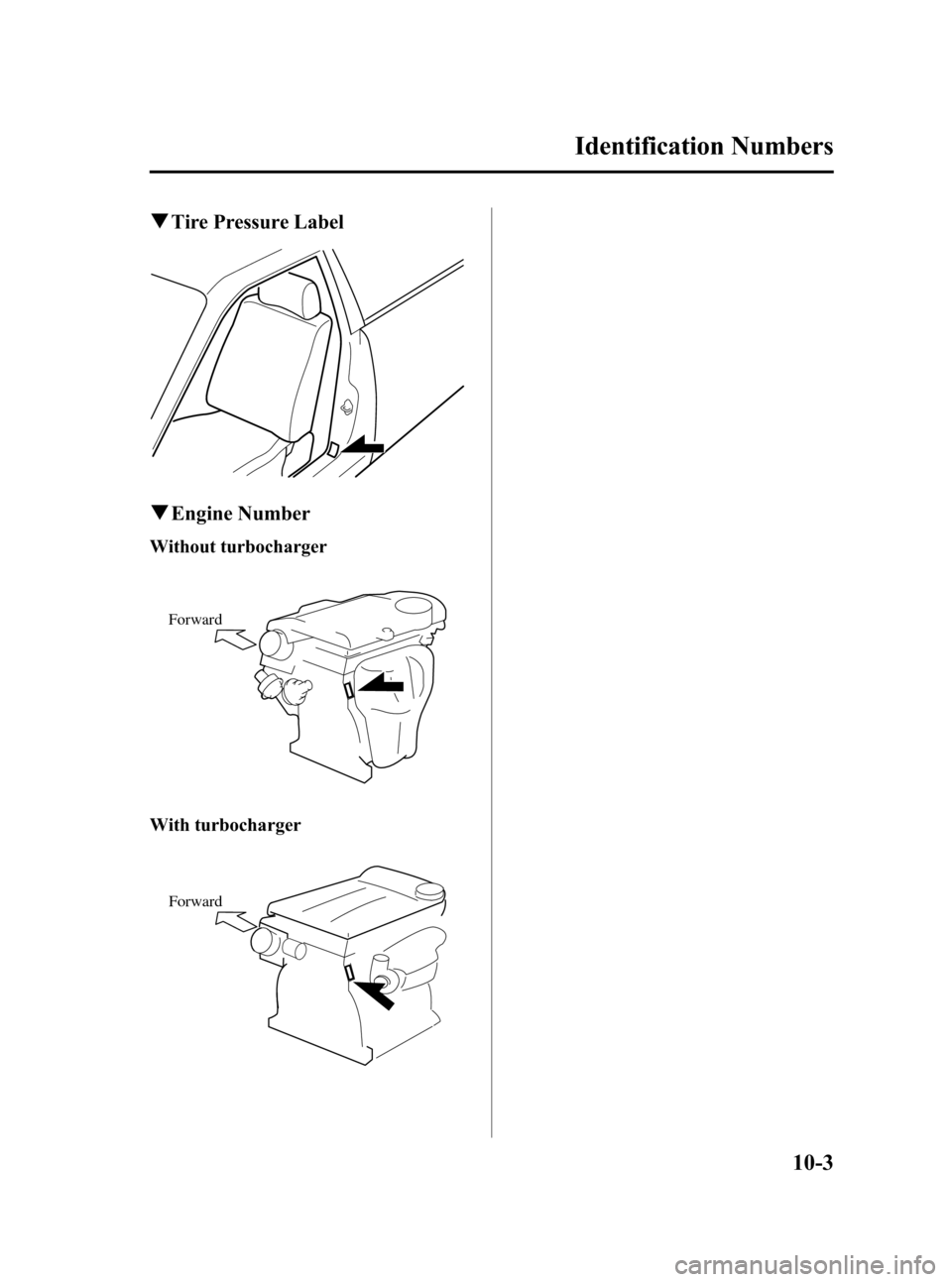

qTire Pressure Label
qEngine Number
Without turbocharger
Forward
With turbocharger
Forward
Identification Numbers
10-3
Mazda3_8X41-EA-07F_Edition2 Page381
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (382,1)
Specifications
qEngine
ItemSpecification
Without turbocharger
With turbocharger
2.0-liter engine 2.3-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke87.5 × 83.1 mm
(3.44 × 3.27 in)87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement1,999 ml
(1,999 cc, 122.0 cu in)2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 10.0 9.7 9.5
qElectrical System
Item Classification
BatteryWithout
turbocharger2.0-liter engine 12V-40AH/5HR, 12V-52AH/5HR
2.3-liter engine12V-40AH/5HR, 12V-52AH/5HR,
12V-55AH/5HR
With turbocharger 12V-48AH/5HR, 12V-55AH/5HR
Spark-plug numberWithout turbocharger LFG1 18 110
*1, L3Y2 18 110
With turbocharger L3K9 18 110A*1, L3Y3 18 110
Spark-plug gapWithout turbocharger 1.25―1.35 mm (0.050―0.053 in)
With turbocharger 0.70―0.8 mm (0.028―0.031 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oilWithout turbochargerAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10°CAPI Service GL-4 or GL-5
SAE 80W-90
With turbochargerAPI Service GL-4
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8X41-EA-07F_Edition2 Page382
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (383,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWithout turbochargerWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
With turbochargerWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oilWithout turbocharger 2.87 L (3.03 US qt, 2.53 Imp qt)
With turbocharger 2.5 L (2.6 US qt, 2.2 Imp qt)
Automatic transaxle fluid4-speed transaxle 7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank55.0 L
(14.5 US gal, 12.1 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
ItemModel
4 Door 5 Door
Overall lengthWithout
turbochargerSTANDARD TYPE 4,505 mm (177.4 in)―
SPORTY TYPE 4,510 mm (177.6 in) 4,490 mm (176.8 in)
With turbocharger―4,490 mm (176.8 in)
Overall widthWithout
turbochargerWithout side molding 1,745 mm (68.7 in) 1,745 mm (68.7 in)
With side molding 1,755 mm (69.1 in) 1,755 mm (69.1 in)
With turbocharger―1,765 mm (69.5 in)
Overall height 1,465 mm (57.7 in) 1,465 mm (57.7 in)
Front treadWithout turbocharger 1,530 mm (60.2 in) 1,530 mm (60.2 in)
With turbocharger―1,535 mm (60.4 in)
Rear treadWithout turbocharger 1,515 mm (59.6 in) 1,515 mm (59.6 in)
With turbocharger―1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in) 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8X41-EA-07F_Edition2 Page383
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (384,1)
qWeights
4 Door
2.0-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,719 kg (3,790 lbs) 1,733 kg (3,821 lbs)
GAWR (Gross Axle Weight Rating)Front 919 kg (2,026 lbs) 983 kg (2,068 lbs)
Rear 800 kg (1,764 lbs) 795 kg (1,753 lbs)
2.3-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,792 kg (3,951 lbs)
GAWR (Gross Axle Weight Rating)Front 955 kg (2,105 lbs) 981 kg (2,163 lbs)
Rear 812 kg (1,790 lbs) 811 kg (1,788 lbs)
5 Door
Without turbocharger
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,783 kg (3,931 lbs) 1,811 kg (3,993 lbs)
GAWR (Gross Axle Weight Rating)Front 957 kg (2,110 lbs) 983 kg (2,167 lbs)
Rear 829 kg (1,828 lbs) 828 kg (1,825 lbs)
With turbocharger
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,866 kg (4,114 lbs)
GAWR (Gross Axle Weight Rating)Front 1,055 kg (2,326 lbs)
Rear 811 kg (1,788 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
10-6
Specifications
Mazda3_8X41-EA-07F_Edition2 Page384
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (388,1)
A
Accessory Socket .............................. 6-64
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-40
Ambient Temperature Display .......... 6-54
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7
Warning light ............................... 5-8
Appearance Care ............................... 8-58
Ashtray .............................................. 6-58
Audio System ................................... 6-15
Audio control switch .................. 6-44
Audio set .................................... 6-27
Auxiliary Input ........................... 6-46
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-49
Automatic Transaxle
Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
Battery
Emergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds
Ignition key reminder ................. 5-49
Lights-on reminder ..................... 5-49
Tire inflation pressure warning
beep ............................................ 5-49
Beeps
Seat belt warning beep Sounds ... 5-49
B
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-60
Brake/Clutch
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-61
Cargo Sub-Compartment .................. 6-61
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-17
Center Console .................................. 6-61
Child Restraint
Child restraint precautions ......... 2-25
Installing child-restraint
systems ....................................... 2-29
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-10
Cigarette Lighter ............................... 6-58
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-54
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-59
11-2
Index
Mazda3_8X41-EA-07F_Edition2 Page388
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (389,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-35
Daytime Running Lights ................... 5-53
Defroster
Rear window .............................. 5-58
Dimensions ....................................... 10-5
Door Locks ......................................... 3-8
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-12
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-24
DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-4
E
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-21
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-34
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher
Hazard warning .......................... 5-60
Headlights .................................. 5-50
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-62
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-54
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel
Filler lid and cap ........................ 3-20
Gauge ......................................... 5-35
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-50
Panel description ........................ 8-53
Replacement ............................... 8-50
Index
11-3
Mazda3_8X41-EA-07F_Edition2 Page389
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (391,1)
M
Manual Transaxle Operation ............... 5-9
Recommendations for shifting.... 5-10
Map Lights ........................................ 6-51
Mirrors
Outside mirrors .......................... 3-29
Rearview mirror ......................... 3-30
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-23
O
Odometer and Trip Meter .................. 5-33
Outside Mirrors ................................. 3-29
Overhead Lights ................................ 6-51
Overheating ....................................... 7-14
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-58
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks .............................. 3-9
Power Steering .................................. 5-18
Fluid ........................................... 8-24
Power steering malfunction indicator
light ............................................ 5-18
Power Windows ................................ 3-18
Push-Starting ..................................... 7-20
R
Rear Door Child Safety Locks .......... 3-10
Rear Seat ............................................. 2-5
Rear Window Defroster .................... 5-58
Rear Window Washer ....................... 5-58
Rear Window Wiper .......................... 5-58
Rearview Mirror ................................ 3-30
R
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 9-15
Rocking the Vehicle ............................ 4-9
S
Safety Defects, Reporting ................. 9-42
Seat Belt System
Automatic locking ...................... 2-13
Belt minder ................................. 2-23
Center-rear lap/shoulder ............. 2-19
Emergency locking .................... 2-12
Except center-rear position ......... 2-14
Extender ..................................... 2-21
Pregnant women ........................ 2-12
Pretensioner and load limiting .... 2-16
Seat belt precautions .................. 2-10
Warning light/beep ..................... 2-23
Seats
Front seat ...................................... 2-2
Rear seat ....................................... 2-5
Seat warmer .................................. 2-5
Security System
Immobilizer system .................... 3-25
Theft-deterrent system ............... 3-27
Service Publications .......................... 9-44
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-33
SRS Air Bags
How the Air Bags Work ............. 2-47
Supplemental restraint systems
precautions ................................. 2-40
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-29
Horn ........................................... 5-59
Index
11-5
Mazda3_8X41-EA-07F_Edition2 Page391
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (392,1)
S
Storage Compartments ...................... 6-60
Cargo securing loops .................. 6-61
Cargo sub-compartment ............. 6-61
Center console ............................ 6-61
Flexible Floor Board .................. 6-62
Glove box ................................... 6-60
Sunshade ........................................... 3-24
Sunvisors .......................................... 6-50
T
Tachometer ........................................ 5-34
Temporary Spare Tire ....................... 8-37
Theft-Deterrent System ..................... 3-27
Tiedown
Hook .......................................... 7-22
Tire Information ................................ 9-22
Tire Pressure Monitoring System ...... 5-26
System error activation .............. 5-30
Tire pressure monitoring system
warning light .............................. 5-28
Tires and wheels ......................... 5-30
Tires
Inflation pressure ........................ 8-35
Replacement ............................... 8-36
Rotation ...................................... 8-36
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-8
Flat Tire ........................................ 7-3
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-20
Tool ..................................................... 7-3
T
Towing
Description ................................. 7-21
Emergency towing ..................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-23
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-33
Trunk Lid .......................................... 3-14
Inside trunk release lever ............ 3-16
Trunk Light ....................................... 3-15
Turn and Lane-Change Signals ......... 5-53
V
Vanity Mirrors ................................... 6-50
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-37
ABS ............................................ 5-39
Air bag system ........................... 5-41
Automatic transaxle ................... 5-44
Brake system .............................. 5-39
Charging system ......................... 5-40
Check engine .............................. 5-41
Door-ajar .................................... 5-43
Engine oil pressure ..................... 5-40
Front seat belt pretensioner
system ........................................ 5-41
Low fuel ..................................... 5-42
Low washer fluid level ............... 5-43
Seat belt ...................................... 5-42
Tire pressure monitoring
system ........................................ 5-44
Warranty ............................................ 9-12
11-6
Index
Mazda3_8X41-EA-07F_Edition2 Page392
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F
