Trunk lid ............................................................................................................ page 3-14
Antenna ............................................................................................................. page 6-16
Rear window defroster ....................................................................................... page 5-60
Power window ................................................................................................... page 3-18
Tires ................................................................................................................... page 8-35
Fuel-filler lid ...................................................................................................... page 3-20
Light bulbs ......................................................................................................... page 8-39
Hood .................................................................................................................. page 3-22
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-24
Child safety lock ................................................................................................ page 3-11
Door lock ............................................................................................................. page 3-9
Outside mirror .................................................................................................... page 3-30
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
Mazda3_8Z87-EA-08F_Edition1 Page11
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (12,1)

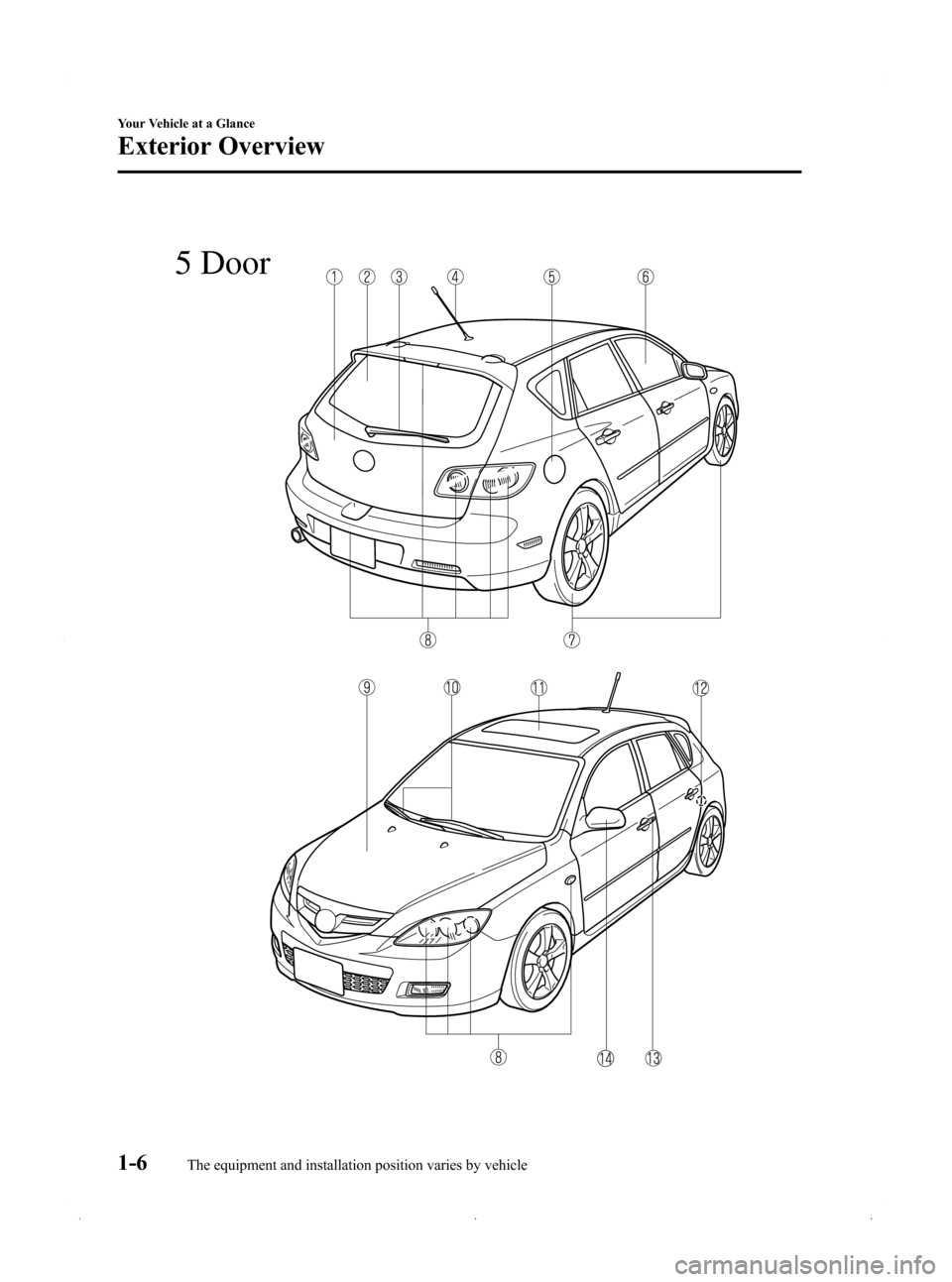

5 Door
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda3_8Z87-EA-08F_Edition1 Page12
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (13,1)

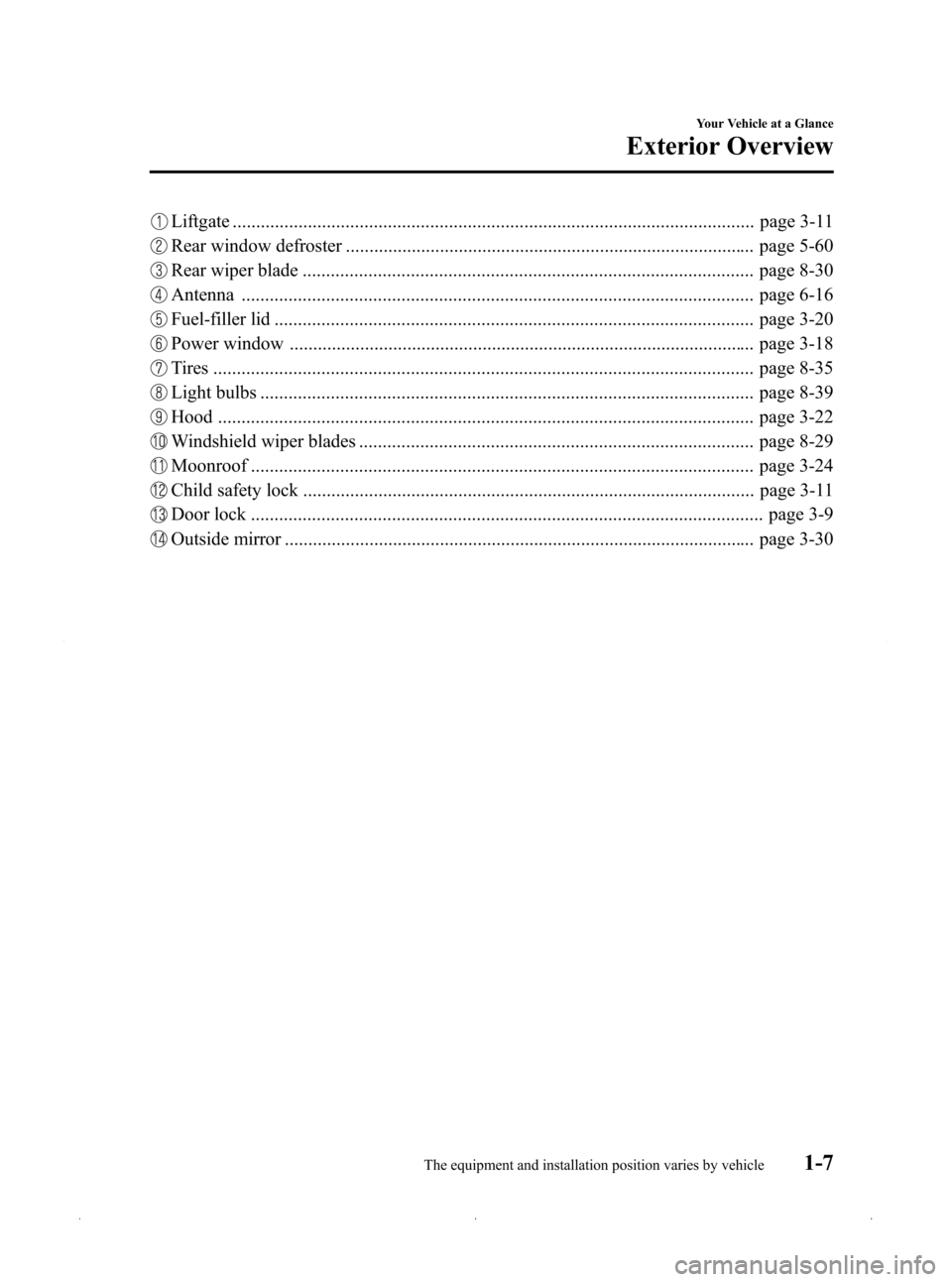

Liftgate ............................................................................................................... page 3-11
Rear window defroster ....................................................................................... page 5-60
Rear wiper blade ................................................................................................ page 8-30
Antenna ............................................................................................................. page 6-16
Fuel-filler lid ...................................................................................................... page 3-20
Power window ................................................................................................... page 3-18
Tires ................................................................................................................... page 8-35
Light bulbs ......................................................................................................... page 8-39
Hood .................................................................................................................. page 3-22
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-24
Child safety lock ................................................................................................ page 3-11
Door lock ............................................................................................................. page 3-9
Outside mirror .................................................................................................... page 3-30
Your Vehicle at a Glance
Exterior Overview
1-7The equipment and installation position varies by vehicle
Mazda3_8Z87-EA-08F_Edition1 Page13
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (14,1)
1-8
Mazda3_8Z87-EA-08F_Edition1 Page14
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (15,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-4
Rear Seat ................................................................................... 2-7
Head Restraints
í.................................................................... 2-10
Seat Warmerí......................................................................... 2-11
Seat Belt Systems ........................................................................ 2-13 Seat Belt Precautions .............................................................. 2-13
Seat Belt (Except Center-Rear Position) ................................. 2-17
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-19
Center-Rear Position Seat Belt (3-Point Type) ....................... 2-21
Seat Belt Extender ................................................................... 2-24
Seat Belt Warning Light/Beep ................................................ 2-25
Child Restraint ............................................................................ 2-27 Child Restraint Precautions ..................................................... 2-27
Installing Child-Restraint Systems .......................................... 2-31
LATCH Child-Restraint Systems ............................................ 2-37
SRS Air Bags ............................................................................... 2-42 Supplemental Restraint Systems (SRS) Precautions ............... 2-42
Supplemental Restraint System Components ......................... 2-46
How the Air Bags Work .......................................................... 2-48
2-1íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page15
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (16,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision. Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
Mazda3_8Z87-EA-08F_Edition1 Page16
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (17,1)
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the passenger seat
properly with the seatback upright and
feet on the floor: Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda3_8Z87-EA-08F_Edition1 Page17
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (18,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)í
By moving the seat lever up or down, the
driver's seat bottom height can be
adjusted.
DownUp
q
Lumbar Support Adjustment
(Driver's Seat)í
Move the lever forwards to adjust the
lumbar support as required.
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda3_8Z87-EA-08F_Edition1 Page18
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (19,1)
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
Ø To prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
Ø Do not use the switch to make
more than one adjustment at a
time.
qSeat Slide (Driver's Seat)
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline (Driver's Seat)
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the front passenger seat
properly with the seatback upright and
feet on the floor: Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.
Essential Safety Equipment
Seats
2-5
Mazda3_8Z87-EA-08F_Edition1 Page19
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F

Black plate (20,1)
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
The seat height can be adjusted by
moving the switch up or down.
qLumbar Support Adjustment
(Driver's Seat)
Move the lever forwards to adjust the
lumbar support as required.
2-6
Essential Safety Equipment
Seats
Mazda3_8Z87-EA-08F_Edition1 Page20
Monday, May 19 2008 9:55 AM
Form No.8Z87-EA-08F
