8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-18
Engine Coolant ....................................................................... 8-21
Brake/Clutch Fluid .................................................................. 8-23
Power Steering Fluid ............................................................... 8-24
Automatic Transaxle Fluid (ATF)
í........................................ 8-25
Washer Fluid ........................................................................... 8-27
Body Lubrication .................................................................... 8-28
Wiper Blades ........................................................................... 8-29
Battery ..................................................................................... 8-32
Tires ........................................................................................ 8-35
Light Bulbs ............................................................................. 8-39
Fuses ....................................................................................... 8-50
Appearance Care ........................................................................ 8-58 How to Minimize Environmental Paint Damage .................... 8-58
Exterior Care ........................................................................... 8-60
Interior Care ............................................................................ 8-63
8-1íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page287
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (303,1)
Engine Compartment Overview
Main fuse
Automatic transaxle fluid-level dipstick
(Only for automatic transaxle) Brake/Clutch fluid
reservoir
Engine coolant
reservoir
Engine oil
dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil-filler cap BatteryFuse block
Without turbocharger
Main fuse
Brake/Clutch fluid
reservoir
Engine coolant reservoir
Engine oil dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil-filler cap BatteryFuse block
With turbocharger
Maintenance and Care
Owner Maintenance
8-17
Mazda3_8Z87-EA-08F_Edition1 Page303
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (318,1)
Battery
WARNING
Wash hands after handling the battery and related accessories:Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and reproductive harm.
Read the following precautions carefully before using the battery or inspecting
to ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery
fluid: Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in
eyes, or on the skin or clothing. If this happens, immediately flush your eyes with
water for 15 minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin.
Keep flames and sparks away from open battery cells and do not allow metal
tools to contact the positive (
) or negative () terminal of the battery when
working near a battery. Do not allow the positive (
) terminal to contact the vehicle
body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
8-32
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page318
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (319,1)

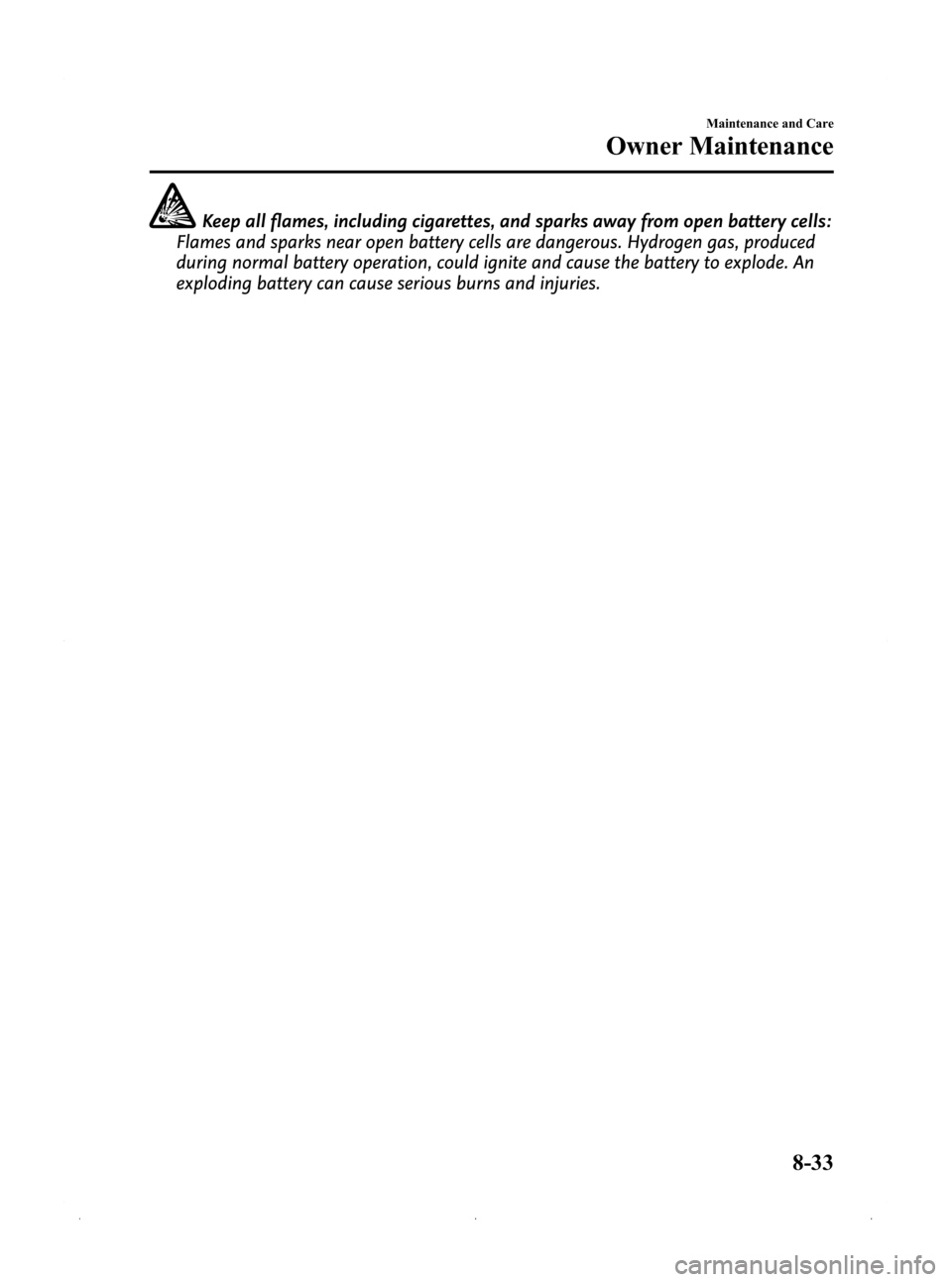

Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Maintenance and Care
Owner Maintenance
8-33
Mazda3_8Z87-EA-08F_Edition1 Page319
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (320,1)
NOTE
Remove the battery cover before performing
battery maintenance.
Battery cover
qBattery Maintenance
To get the best service from a battery:lKeep it securely mounted.lKeep the top clean and dry.lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
qInspecting Electrolyte Level
A low level of electrolyte fluid will cause
the battery to discharge quickly.
Upper level
Lower level
Inspect the electrolyte level at least once a
week. If it's low, remove the caps and add
enough distilled water to bring the level
between the upper and lower level
(illustration).
Don't overfill.
Examine the specific gravity of the
electrolyte with a hydrometer, especially
during cold weather. If it's low, recharge
the battery.
8-34
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page320
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (381,1)
qGlossary of Terms
Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and
the maximum weight the vehicle can carry.
Tire Identification Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and date of
manufacture.
Inflation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.
Seating capacity means the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.
Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items which they replace,
and not previously considered in the curb weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.
Rim is the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-31
Mazda3_8Z87-EA-08F_Edition1 Page381
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (400,1)
Specifications
qEngine
Item Specification
Without turbocharger With turbocharger
2.0-liter engine 2.3-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 83.1 mm
(3.44 × 3.27 in) 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 1,999 ml
(1,999 cc, 122.0 cu in) 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 10.09.79.5
qElectrical System
Item Classification
Battery Without
turbocharger 2.0-liter engine
12V-40AH/5HR, 12V-52AH/5HR
2.3-liter engine 12V-40AH/5HR, 12V-52AH/5HR,
12V-55AH/5HR
With turbocharger 12V-48AH/5HR, 12V-55AH/5HR
Spark-plug number Without turbocharger
LFG1 18 110
*1, L3Y2 18 110
With turbocharger L3K9 18 110A*1, L3Y3 18 110
Spark-plug gap Without turbocharger 1.25
―1.35 mm (0.050 ―0.053 in)
With turbocharger 0.70―0.80 mm (0.028 ―0.031 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oil Without turbochargerAny temperature
API Service GL-4 or GL-5
SAE
75W-90
Above 10°C (50°F) API Service GL-4 or GL-5
SAE
80W-90
With turbocharger API Service
GL-4
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8Z87-EA-08F_Edition1 Page400
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (406,1)
A
Accessory Socket .............................. 6-76
Add-On Non-Genuine Parts and
Accessories ....................................... 9-17
Air Bag Systems ............................... 2-42
Ambient Temperature Display .......... 6-66
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-8
Appearance Care ............................... 8-58
Ashtray .............................................. 6-70
Audio System ................................... 6-16 Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-58
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-61
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Tire inflation pressure warning
beep ............................................ 5-50
Beeps
Seat belt warning beep Sounds ... 5-50
B
Before Starting the Engine .................. 4-6After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-72
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-73
Cargo Sub-Compartment .................. 6-73
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-18
Center Console .................................. 6-73
Child Restraint Child restraint precautions ......... 2-27
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Child Safety Locks for Rear Doors ... 3-11
Cigarette Lighter ............................... 6-70
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-66
Cruise Control ................................... 5-20
Cup Holder ........................................ 6-71
11-2
Index
Mazda3_8Z87-EA-08F_Edition1 Page406
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F
