MAZDA MODEL 3 HATCHBACK 2010 (in English) Owners Manual

Black plate (93,1)
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate, and
opens the trunk lid.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the key slot.
lThe keyless entry system is fully operational
when the push button start is switched off.
The system does not operate if the push
button start is switched to any position
other than off.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Transmitter
Lock button
Unlock button
Trunk button (4 door)
Operation indicator light
Panic button
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button. A beep sound will be
heard once and the hazard warning lights
will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
The system can be set not to sound the
horn.
Refer to Personalization Features on page
10-9.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-17
Mazda3_8AD6-EC-09A_Edition1 Page93
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (94,1)
NOTElA beep sound can be heard for confirmation
when the doors are locked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off. The
volume of the beep sound can be changed.
Refer to Personalization Features on page
10-9.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to the theft-deterrent system on page
3-62.
NOTElAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and two more beep sounds will be heard.NOTE
lA beep sound can be heard for confirmation
when the doors are locked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off. The
volume of the beep sound can be changed.
Refer to Personalization Features on page
10-9.
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-9.
l(Without theft-deterrent system)
The hazard warning lights will flash twice
to indicate that all doors and the liftgate
are unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash
unless the theft deterrent system has been
properly turned off.
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
Refer to the theft-deterrent system on page
3-62.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, All doors
and the liftgate will automatically lock and the
hazard warning light will flash if any of the
following operations are not performed within
about 30 seconds. If your vehicle has a theft-
deterrent system, the hazard warning lights
will flash for confirmation.
lA door or the liftgate/trunk lid is opened.lThe auxiliary key is inserted into the key
slot.
lThe push button start is in any position
except off position.
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8AD6-EC-09A_Edition1 Page94
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (95,1)
Trunk button (4 door)
To open the trunk, press and hold the
trunk button until the trunk lid opens.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
Mazda3_8AD6-EC-09A_Edition1 Page95
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (96,1)
Declaration of Conformity
Keyless entry system
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8AD6-EC-09A_Edition1 Page96
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (97,1)
qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-34).
Starting the engine
The engine can be started with the
auxiliary key, refer to Starting the engine
(page 3-11).
Advanced Key Suspend
Function
If an advanced key is left in the vehicle,
the functions of the advanced key left in
the vehicle are temporarily suspended to
prevent theft of the vehicle.
The following are inoperable:
lStarting the engine using the push
button start.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions temporarily suspended.
lWhile carrying an advanced key which
has had its functions temporarily
suspended, lock the doors using the
advanced keyless system.
l(Manual transaxle)
When carrying another advanced key,
depress the clutch pedal until the KEY
indicator light (green) illuminates.
(Automatic transaxle)
When carrying another advanced key,
depress the brake pedal until the KEY
indicator light (green) illuminates.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-21
Mazda3_8AD6-EC-09A_Edition1 Page97
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (98,1)
Warning Lights and Beep
Sounds
qSystem Malfunction Warning Light
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Starting the engine (page
3-11).
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the push button start has not been
switched off to notify the driver that the
advanced key has been removed. The
KEY warning light (red) will stop flashing
when the advanced key is back inside the
vehicle:
lThe push button start has not been
switched off, the driver's door is open,
and the advanced key is removed from
the vehicle. (A beep sound will be
heard three times.)
However the beep sound will be heard
continuously when the push button
start is switched to ACC and the door
is open due to the activation of the
warning beep sound indicating that the
push button start is not switched off.
lThe push button start has not been
switched off and all the doors are
closed after removing the advanced
key from the vehicle. (A beep sound
will be heard six times. The volume of
the beep sound can be changed.)
Refer to Personalization Features on
page 10-9.
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
3-22
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8AD6-EC-09A_Edition1 Page98
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (99,1)
qRequest Switch Inoperable
Warning Beep
If the request switch for a front door is
pressed under the following conditions
while the advanced key is being carried, a
beep will be heard six times to indicate
that the front doors cannot be locked.
lA door is open (door ajar included).lThe push button start has not been
switched to off.
lThe auxiliary key is inserted into the
key slot.
qAdvanced Key Battery Dead
Warning
When the push button start is pressed off
from ON, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Personalization Features on page
10-9.
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the push button start will not
switch to ACC even if it is switched from
off.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-luggage
compartment/trunk Warning Beep
If the advanced key is left in the luggage/
trunk compartment with all doors locked
and the liftgate/trunk lid closed, a beep
sound is heard for about 10 seconds to
remind the driver the advanced key has
been left in the luggage/trunk
compartment. If this happens, open the
liftgate/trunk lid by pressing the electric
liftgate/trunk lid opener and remove the
advanced key. An advanced key removed
from the luggage compartment/trunk may
not function because its functions may
have been temporarily suspended. To
restore the advanced key function,
perform the applicable procedure (page
3-21).
The system can be set not to open the
trunk.
Refer to Personalization Features on page
10-9.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-23
Mazda3_8AD6-EC-09A_Edition1 Page99
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (100,1)
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and all the doors are locked using a
separate advanced key, a beep sound is
heard for about 10 seconds to remind the
driver that the advanced key has been left
in the vehicle cabin. If this happens, the
doors lock but the functions of the
advanced key left in the vehicle cabin
may be temporarily suspended. Perform
the following procedure to restore the
functions of the advanced key (page
3-21).
The volume of the beep sound can be
changed.
Refer to Personalization Features on page
10-9.
NOTE
The warning beep does not sound while the
trunk is open. The warning beep sounds after
the trunk is closed.
qAuxiliary Key Removed Warning
Beep
If the auxiliary key is removed under the
following conditions while it is in use and
in the ACC or ON position, the warning
beep sounds three times.
lThe advanced key is not in the vehicle.lThe battery for the advanced key is
dead.
3-24
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8AD6-EC-09A_Edition1 Page100
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (101,1)

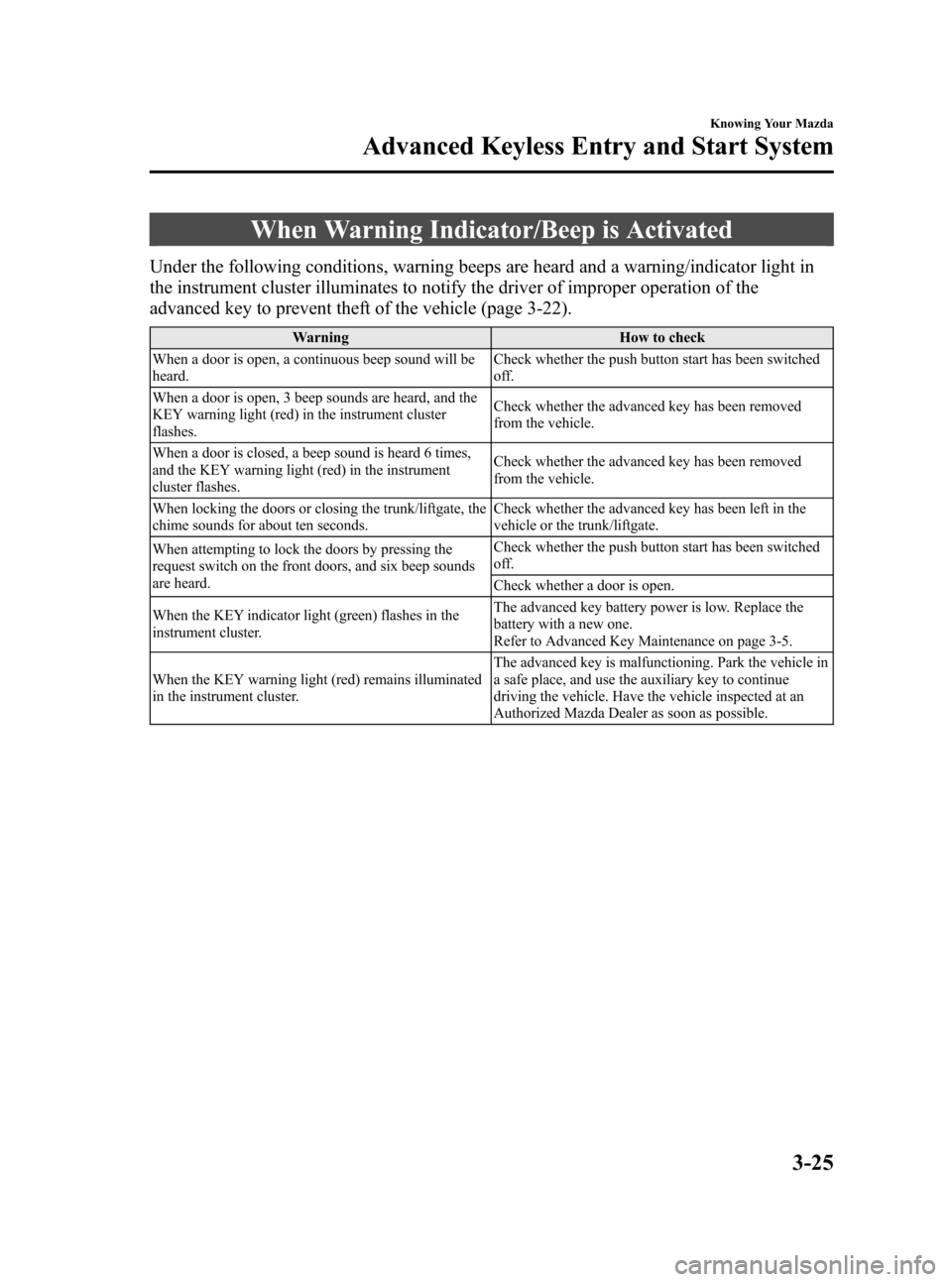

When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-22).
Warning How to check
When a door is open, a continuous beep sound will be
heard.Check whether the push button start has been switched
off.
When a door is open, 3 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes.Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes.Check whether the advanced key has been removed
from the vehicle.
When locking the doors or closing the trunk/liftgate, the
chime sounds for about ten seconds.Check whether the advanced key has been left in the
vehicle or the trunk/liftgate.
When attempting to lock the doors by pressing the
request switch on the front doors, and six beep sounds
are heard.Check whether the push button start has been switched
off.
Check whether a door is open.
When the KEY indicator light (green) flashes in the
instrument cluster.The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster.The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-25
Mazda3_8AD6-EC-09A_Edition1 Page101
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (102,1)
Keys
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-58) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-62)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
lWrite down the code number and keep it in
a separate, safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
lSome types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.
Key ring
3-26
Knowing Your Mazda
Doors and Locks
Mazda3_8AD6-EC-09A_Edition1 Page102
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A
