display MAZDA MODEL 3 HATCHBACK 2012 Owners Manual (in English)

Black plate (9,1)
Interior Equipment (View B)
Audio control switches ...................................................................................... page 6-56
SRS air bags ...................................................................................................... page 2-44
Multi information display .................................................................................. page 6-99
Navigation system (if equipped) .......................................... Refer to the separate manual
Audio system ..................................................................................................... page 6-17
Information display ............................................................................................ page 6-97
Hazard warning flasher switch .......................................................................... page 5-76
Climate control system ........................................................................................ page 6-2
Parking brake ....................................................................................................... page 5-6
Accessory socket ............................................................................................. page 6-114
MT shift lever .................................................................................................... page 5-10
AT shift lever ...................................................................................................... page 5-13
Push button start ................................................................................................ page 3-12
Cruise control switches ...................................................................................... page 5-22
Hood release handle .......................................................................................... page 3-49
Your Vehicle at a Glance
Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda3_8BY7-EC-11F_Edition1 Page9
Friday, June 17 2011 2:54 PM
Form No.8BY7-EC-11F

Black plate (62,1)
Do not modify the suspension:Modifying the vehicle suspension is dangerous. If the vehicle's height or the
suspension is modified, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Do not modify a front door or leave any damage unrepaired. Always have an
Authorized Mazda Dealer inspect a damaged front door: Modifying a front door or leaving any damage unrepaired is dangerous. Each front
door has a side crash sensor as a component of the supplemental restraint system. If
holes are drilled in a front door, a door speaker is left removed, or a damaged door is
left unrepaired, the sensor could be adversely affected causing it to not detect the
pressure of an impact correctly during a side collision. If a sensor does not detect a
side impact correctly, the side and curtain air bags and the front seat belt
pretensioner may not operate normally which could result in serious injury to
occupants.
Do not modify the supplemental restraint system: Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Do not make
any modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electrical equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of front
seats. It is important to protect the air bag wiring and connections to assure that the
bags do not accidentally deploy, the driver seat slide position sensor and front
passenger seat weight sensors are not damaged and that the seats retain an
undamaged air bag connection.
NOTE
lWhen an air bag deploys, a loud inflation noise can be heard and some smoke will be released.
Neither is likely to cause injury, however, the texture of the air bags may cause light skin injuries
on body parts not covered with clothing through friction.
lShould you sell your Mazda, we urge you to tell the new owner of its air bag systems and that
familiarization with all instructions about them, from the Owner's Manual, is important.
lOn some models, a highly-visible label is displayed which warns against the use of rear-facing
child-restraint systems on the front passenger seat.
2-48
Essential Safety Equipment
SRS Air Bags
Mazda3_8BY7-EC-11F_Edition1 Page62
Friday, June 17 2011 2:54 PM
Form No.8BY7-EC-11F

Black plate (205,1)

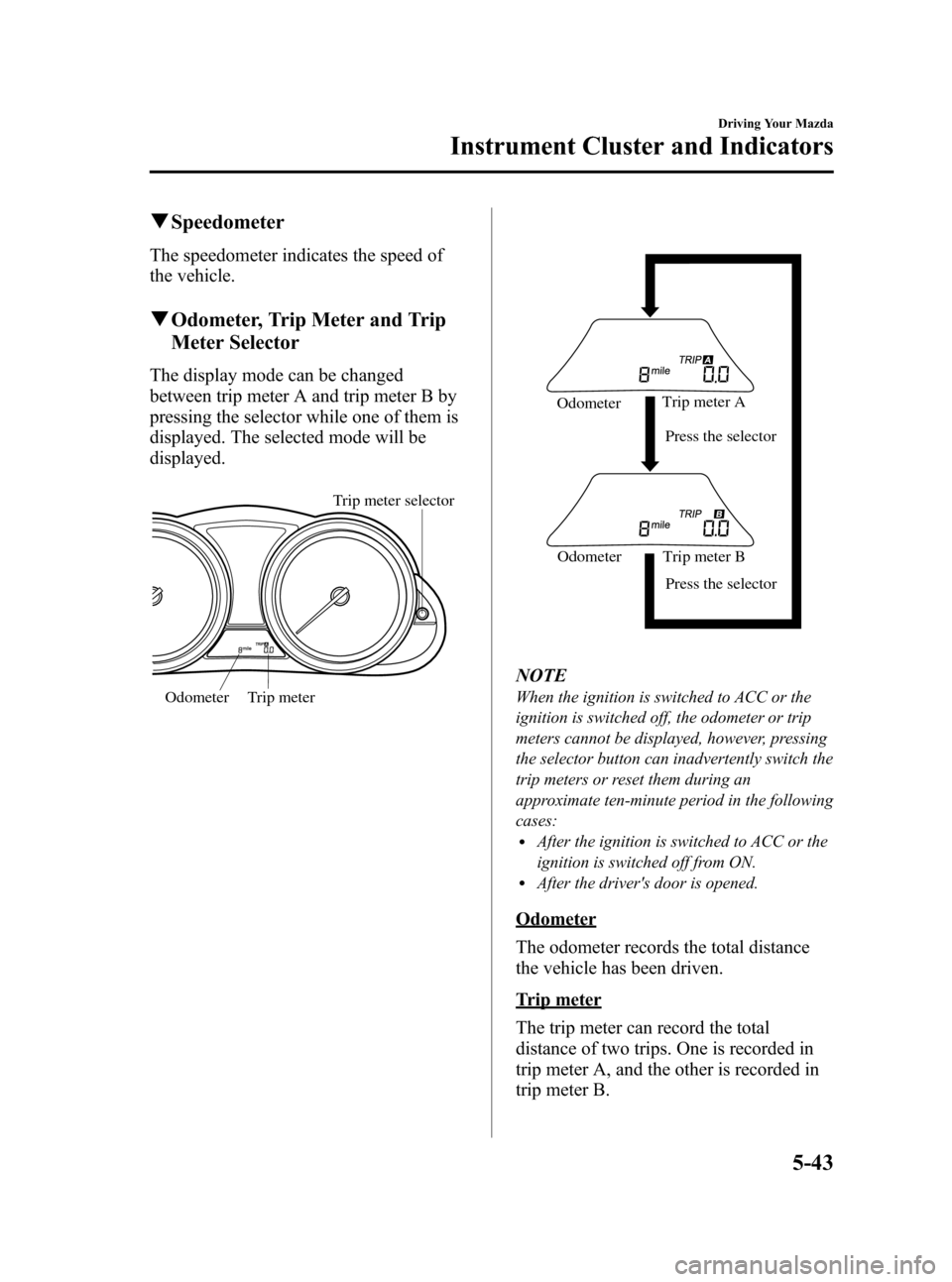

qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Trip meter
Trip meter selector
Odometer
Trip meter B
Press the selector
Press the selector
Trip meter A
Odometer
Odometer
NOTE
When the ignition is switched to ACC or the
ignition is switched off, the odometer or trip
meters cannot be displayed, however, pressing
the selector button can inadvertently switch the
trip meters or reset them during an
approximate ten-minute period in the following
cases:
lAfter the ignition is switched to ACC or the
ignition is switched off from ON.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
Driving Your Mazda
Instrument Cluster and Indicators
5-43
Mazda3_8BY7-EC-11F_Edition1 Page205
Friday, June 17 2011 2:55 PM
Form No.8BY7-EC-11F

Black plate (206,1)
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
SKYACTIV-G 2.0, MZR 2.0
MZR 2.5
MZR 2.3 DISI Turbo
Red zone
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
q
Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full.
Full
1/4 Full
5-44
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8BY7-EC-11F_Edition1 Page206
Friday, June 17 2011 2:55 PM
Form No.8BY7-EC-11F

Black plate (207,1)
If the gauge indicates that the fuel level is
near E, refuel as soon as possible.
NOTE
lAfter refueling, it may require some time for
the indicator to stabilize. In addition, the
indicator may deviate while driving on a
slope or curve since the fuel moves in the
tank.
lThe direction of the arrow () indicates
that the fuel-filler lid is on the right side of
the vehicle.
qBoost Gauge (MZR 2.3 DISI Turbo)
The turbo's charging pressure is displayed
while driving.
Boost GaugeSelector
Odometer/Trip meter
NOTE
Display of the turbo's charging pressure can
be switched off using the following operation.
1. Switch the ignition ON and press the selector six times within five seconds.
ON is displayed in the odometer/trip meter.
If the selector is pressed while ON is
displayed, OFF is displayed.
2. Press the selector for 1 second or longer while OFF is displayed.
To turn the display on, press the selector as in
Step 2 until ON is displayed, then press the
selector again for 1 second or longer while
ON is displayed.
q Dashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
Driving Your Mazda
Instrument Cluster and Indicators
5-45
Mazda3_8BY7-EC-11F_Edition1 Page207
Friday, June 17 2011 2:55 PM
Form No.8BY7-EC-11F

Black plate (208,1)
Bright
Dim
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the illumination dimmer is cancelled, the
instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again. Press the dashboard illumination
knob to activate the illumination dimmer.
5-46
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8BY7-EC-11F_Edition1 Page208
Friday, June 17 2011 2:55 PM
Form No.8BY7-EC-11F

Black plate (221,1)
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:lThe high-beam headlights are on.lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transaxle)
This indicates the selected shift position.
Gear position indicator
In manual mode, the “M ”of the shift
position indicator illuminates and the
numeral for the selected gear displays in
the gear position indicator.
qLow Engine Coolant Temperature
Indicator Light (Blue)
When the ignition is switched ON, the
light illuminates momentarily and then
turns off.
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
NOTE
If the low engine coolant temperature indicator
light remains illuminated after the engine has
been sufficiently warmed up, the temperature
sensor could have a malfunction. Consult an
Authorized Mazda Dealer.
q TCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-59íSome models.
Mazda3_8BY7-EC-11F_Edition1 Page221
Friday, June 17 2011 2:55 PM
Form No.8BY7-EC-11F

Black plate (239,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System .......................... 6-2 Operating Tips .................................... 6-2
Vent Operation .................................... 6-3
Types of the Climate Control
System ................................................. 6-5
Manual Type
í.................................... 6-6

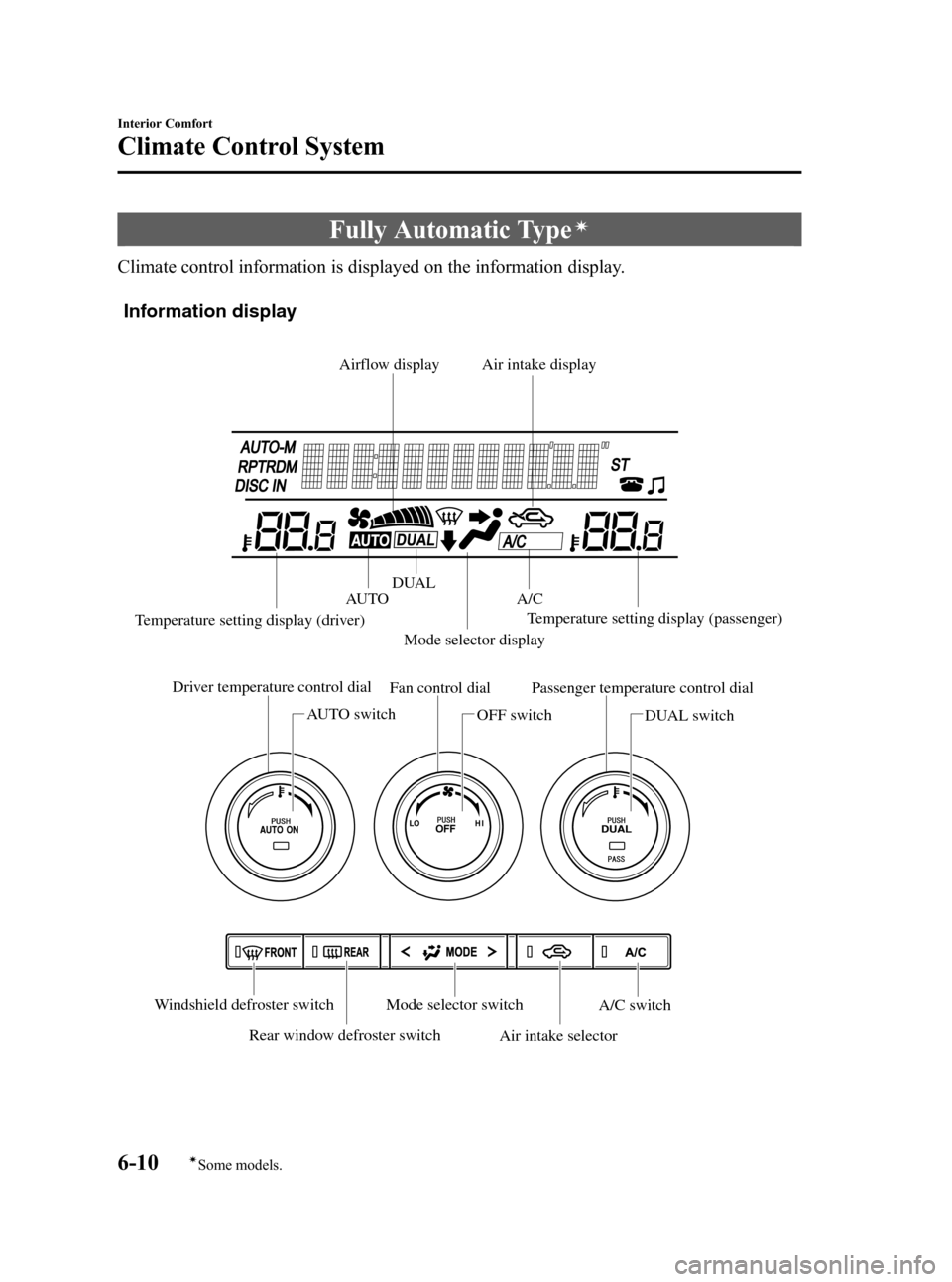

Fully Automatic Typeí.................... 6-10
Audio System ......................................... 6-16 Antenna ............................................. 6-16
Operating Tips for Audio System ..... 6-17
Audio Set .......................................... 6-27
Audio Control Switch Operation
í.... 6-56
AUX Mode (Auxiliary input) ........... 6-59
Safety Certification ........................... 6-61
Bluetooth Audio ..................................... 6-62 Bluetooth Audio
í............................. 6-62
Bluetooth Hands-Free ........................... 6-72 Bluetooth Hands-Free
í.................... 6-72
Basic Bluetooth Hands-Free
Operation .......................................... 6-76
Convenient Use of the Hands-Free
System ............................................... 6-81
Hands-Free Setting ............................ 6-87
When Bluetooth Hands-Free Cannot be
Used .................................................. 6-93
Safety Certification ........................... 6-94
Mazda Bluetooth Hands-Free Customer
Service .............................................. 6-94 Interior Equipment ............................... 6-95
Sunvisors ........................................... 6-95
Interior Lights ................................... 6-95
Information Display .......................... 6-97
Multi Information Display
í............. 6-99
Cup Holder ...................................... 6-109
Bottle Holder ................................... 6-110
Storage Compartments .................... 6-111
Accessory Sockets ........................... 6-114
6-1íSome models.
Mazda3_8BY7-EC-11F_Edition1 Page239
Friday, June 17 2011 2:56 PM
Form No.8BY7-EC-11F

Black plate (248,1)
Fully Automatic Typeí
Climate control information is displayed on the information display.
Information display
A/C
Temperature setting display (driver) Temperature setting display (passenger)
Mode selector display
DUAL
AU TO Air intake display
Airflow display
A/C switch
AUTO switch
Driver temperature control dial
Windshield defroster switch Fan control dial Passenger temperature control dial
Mode selector switch Air intake selector
OFF switch
DUAL switch
Rear window defroster switch
6-10
Interior Comfort
íSome models.
Climate Control System
Mazda3_8BY7-EC-11F_Edition1 Page248
Friday, June 17 2011 2:56 PM
Form No.8BY7-EC-11F

Black plate (249,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lIf any of the following dials or switches are
operated while in AUTO control, the AUTO
switch indicator turns off.
lMode selector switchlFan control diallWindshield defroster switch
The functions for dials and switches other
than those operated in the above continue
to operate in AUTO control.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot
Cold
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
Interior Comfort
Climate Control System
6-11
Mazda3_8BY7-EC-11F_Edition1 Page249
Friday, June 17 2011 2:56 PM
Form No.8BY7-EC-11F
