5–81
Interior Features
Bluetooth®
8. Say: [Beep] “Yes” or “No”
9. If “Yes”, go to Step 10. If “No”, the
procedure returns to Step 5.
10. Prompt: “XXXXX... (Ex. Device B)
selected.”
NOTE



y When the selected device connection is
completed, the
or symbol is
displayed.



y Some Bluetooth ® audio devices need a
certain amount of time before the
or
symbol is displayed.


y Device (Music player) selection can
also be done by operating the panel
button.
Deleting a device
Registered devices (Mobile phone) can be
deleted individually or collectively.
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confi rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:
Pair, Edit, Delete, List, or Set Pairing
Code.”
NOTE
A registered device (Mobile phone) can be
deleted using the registration list.
6. Say: [Beep] “Delete” 7. Prompt: “Please say the name of
the device you would like to delete.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device
B), XXXXX... (Ex. device C), or all.
Which device please?”
8. Say: [Beep] “X” (Say the number of
the device to be deleted.)
NOTE
Say “All” to delete all devices (Mobile
phone).
9. Prompt: “Deleting XXXXX... (Ex.
device B...) (Registered device tag). Is
this correct?”
10. Say: [Beep] “Yes”
11. Prompt: “Deleted”
Registered device editing
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confi rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:
Pair, Edit, Delete, List, or Set Pairing
Code.”
6. Say: [Beep] “Edit”
7. Prompt: “Please say the name of the
device you would like to edit. Available
devices are XXXXX... (Ex. device A),
XXXXX... (Ex. device B), XXXXX...
(Ex. device C). Which device please?”
8. Say: [Beep] “X” (Say the number of
the device to be edited.)
9. Prompt: “New name please?”
10. Say: [Beep] “XXXXX... (Ex. Device
C)” (Speak a “device tag” an arbitrary
name for the device.)
/C\FCA&('#*A'FKVKQPKPFD

5–82
Interior Features
Bluetooth®
11. Prompt: “XXXXX... (Ex. device C)
(Device tag), is this correct?”
12. Say: [Beep] “Yes”
13. Prompt: “New name saved.”
Bluetooth
® Audio Preparation
Bluetooth
® audio device set-up
Bluetooth
® audio programming, changes,
deletions, and display of programmed
device information can be performed.
1. The mode changes as follows each time
the menu button (
) is pressed.
Select “ BT SETUP ”.
*
*
2. Turn the audio control dial and select a
desired mode.
Display Mode Function
PAIR
DEVICE Pairing
program
mode Bluetooth
® audio
device programming
LINK
CHANGE Link change
mode Changing link to
Bluetooth
® audio
device
PAIR
DELETE Pairing
deletion
mode Deleting link to
Bluetooth
® audio
device
DEVICE
INFO Device
information
display mode Displaying vehicle's
Bluetooth
® unit
information
3. Press the audio control dial to
determine the mode.
Bluetooth
® audio device programming
Any Bluetooth
® audio device must be
programmed to the vehicle's Bluetooth ®
unit before it can be listened to over the
vehicle's speakers.
A maximum of seven devices including
Bluetooth
® audio devices and hands-free
mobile phones can be programmed to one
vehicle.
/C\FCA&('#*A'FKVKQPKPFD

5–83
Interior Features
Bluetooth®
NOTE



y If a Bluetooth ® device has already
been programmed to the vehicle as a
hands-free mobile phone, it does not
need to be programmed again when
using the device as a Bluetooth
® audio
device. Conversely, it does not need to
be programmed again as a hands-free
mobile phone if it has already been
programmed as a Bluetooth
® audio
device.



y Device registration can also be done
using voice recognition.
Concerning the operation of a Bluetooth
®
audio device itself, refer to its instruction
manual.
Some Bluetooth
® audio devices have PIN
codes (four digits). Refer to the audio
device's instruction manual because the
programming procedure differs depending
on whether it has a PIN code or not.
Programming a Bluetooth
® audio device
which has a four-digit PIN code
1. Using the audio control dial, select
the pairing program mode “ PAIR
DEVICE ” in the “ BT SETUP ” mode.
(Refer to “Bluetooth
® audio device set-
up” for details.)
2. Press the audio control dial to
determine the mode. After “ ENTER
PIN ” is displayed on the audio display
for three seconds, “ PIN 0000 ” is
displayed and the PIN code can be
input. 3. Input the PIN code of your Bluetooth
®
audio device by pressing channel preset
buttons 1 to 4 while “ PIN 0000 ” is
displayed.
Press channel preset button 1 to input
the fi rst digit, 2 for the second, 3 for the
third, and 4 for the forth. For example,
if the PIN code were “4213” press
channel preset button 1 four times (1,
2, 3, 4), button 2 twice (1, 2), button
3 once (1), and button 4 three times
(1, 2, 3). If the “ PIN 0000 ” display
disappears before fi nishing the PIN
code input, repeat the procedure from
Step 1.
NOTE
Some devices accept only a particular
pairing code (Usually, “0000” or
“1234”).
If pairing cannot be completed, refer to the
owner's manual of your mobile device, and
try those numbers if necessary.
4. Press the audio control dial while
the input PIN code is displayed.
“ PAIRING ” fl ashes on the audio
display.
5. Operate the Bluetooth
® audio device
and set it to the program mode while
“ PAIRING ” is fl ashing.
6. When the programming is completed,
and “ PAIR SUCCESS ” are displayed
after about 10-30 seconds, after which
“ PAIR SUCCESS ” continues to be
displayed for three seconds, and then
the unit returns to the normal display.
/C\FCA&('#*A'FKVKQPKPFD

5–84
Interior Features
Bluetooth®
NOTE



y Some Bluetooth ® audio devices need a
certain amount of time before the
symbol is displayed.


y If the programming failed, “ Err ”
fl ashes for three seconds .



y Programming cannot be performed
while the vehicle is moving. If you
attempt to perform programming
while the vehicle is moving, “ PAIR
DISABLE ” is displayed .




y If seven Bluetooth ® audio devices
have already been programmed to
the vehicle, programming cannot be
performed and “ MEMORY FULL ”
is displayed. Delete one programmed
device to program another one.
Programming a Bluetooth
® audio device
which does not have a four-digit PIN
code
1. Using the audio control dial, select
the pairing program mode “ PAIR
DEVICE ” in the “ BT SETUP ” mode.
(Refer to “Bluetooth
® audio set up” for
details.)
2. Press the audio control dial to
determine the mode. After “ ENTER
PIN ” is displayed on the audio display
for three seconds, “ PIN 0000 ” is
displayed and the PIN code can be
input.
3. Press the audio control dial while “ PIN
0000 ” is displayed. “ PAIRING ” fl ashes
on the audio display.
4. Operate the Bluetooth
® audio device
and set it to the program mode while
“ PAIRING ” is fl ashing.
5. As the Bluetooth
® audio device
requires a PIN code, input “0000”. 6. When the programming is completed,
and “ PAIR SUCCESS ” are displayed
after about 10-30 seconds, after which
“ PAIR SUCCESS ” continues to be
displayed for three seconds, and then
the unit returns to the normal display.
NOTE



y If pairing cannot be completed, try
“1234” instead. Refer to the owner's
manual of your mobile device for the
right PIN code.



y Some Bluetooth ® audio devices need a
certain amount of time before the
symbol is displayed.


y If the programming failed, “ Err ”
fl ashes for three seconds.



y Programming cannot be performed
while the vehicle is moving. If you
attempt to perform programming
while the vehicle is moving, “ PAIR
DISABLE” is displayed .



y If seven Bluetooth ® audio devices
have already been programmed to
the vehicle, programming cannot be
performed and “ MEMORY FULL ”
is displayed. Delete one programmed
device to program another one.
Device selection
If several devices have been programmed,
the Bluetooth
® unit links the device last
programmed. If you would like to link
a different programmed device, it is
necessary to change the link. The order
of device priority after the link has been
changed is maintained even when the
ignition is switched off.
1. Using the audio control dial, select the
link change mode “ LINK CHANGE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
/C\FCA&('#*A'FKVKQPKPFD

5–85
Interior Features
Bluetooth®
2. Press the audio control dial to
determine the mode.
3. The name of the currently linked
Bluetooth
® audio device is displayed.
If no Bluetooth ® audio device is
currently linked, the name of the fi rst
device among the programmed devices
is displayed.
4. Turn the audio control dial to select the
name of the device you would like to
link.
Device name 1
Device name 2
Device name 3
Device name 4
Device name 5
Device name 6
Device name 7
5. Press the audio control dial to select the
device you would like to link. The
symbol disappears, and “ PAIRING ”
fl ashes in the audio display.
NOTE
When “ GO BACK ” is selected and the
audio control dial is pressed, the display
returns to “ LINK CHANGE ”. 6. If the link to the desired device is
successful, the
symbol is displayed
again, together with “ LINK
CHANGED ”. “ LINK CHANGED ” is
displayed for three seconds, then it
returns to the normal display.
NOTE



y Some Bluetooth ® audio devices need a
certain amount of time before the
symbol is displayed.


y If a hands-free type mobile phone has
been the most recently programmed
device, the Bluetooth
® unit links this
device. If you would like to use a
Bluetooth
® audio type device which
has been previously programmed to
the Bluetooth
® unit, the link must be
changed to this device.



y If an error occurs while trying to link
a device, “ Err ” fl ashes in the audio
display for three seconds, and the
display returns to “ LINK CHANGE ”.
If this occurs, check the programming
status of the Bluetooth
® audio device
and the location of the device in the
vehicle (not in the trunk or a metal-type
box), and then try the link operation
again.



y Device selection can also be done using
voice recognition.
How to confi rm the device currently
linked
Switch to the link-change mode. (Refer to
“Changing the link to a Bluetooth
® audio
device”)
The device name displayed fi rst is the
device which is currently linked.
/C\FCA&('#*A'FKVKQPKPFD

5–86
Interior Features
Bluetooth®
Deleting a device
1. Using the audio control dial, select the
pairing delete mode “ PAIR DELETE ”
in the “ BT SETUP ”mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to
determine the mode.
3. The name of the fi rst device among the
programmed devices is displayed.
4. Rotate the audio control dial and select
the name of the programmed device
you would like to delete.
Device name 1
Device name 2
Device name 3
Device name 4
Device name 5
Device name 6
Device name 7
NOTE
Only the names of programmed devices
can be displayed. If only one device is
programmed, only the name for this device
is displayed.
5. If a selection other than “ GO BACK ”
is made and the audio control dial is
pressed, “ SURE ? NO ” is displayed.
6. Rotate the audio control dial clockwise
and switch the display to “ SURE ?
YES ”.
NOTE
The display changes as follows depending
on whether the audio control dial is
rotated clockwise or counterclockwise.
-Clockwise: “ SURE ? YES ” displayed
-Counterclockwise: “ SURE ? NO ”
displayed
7. Press the audio control dial to delete
the selected device.
NOTE
Select “ GO BACK ” and press the audio
control dial to return to the “ PAIR
DELETE ” display.
8. “ PAIR DELETED ” is displayed for
three seconds after the deletion is
completed, and then it returns to the
normal display.
NOTE
If an error occurs while trying to delete
the programmed device, “ Err ” fl ashes
in the display for three seconds and the
display returns to “ LINK DELETE ”.
Bluetooth
® audio device information
display
1. Using the audio control dial, select the
pair device information display mode
“DEVICE INFO” in the “BT SETUP”
mode. (Refer to “Bluetooth
® audio
device set-up” for details.)
2. Press the audio control dial to
determine the mode.
3. The name of the Bluetooth
® unit device
is displayed.
/C\FCA&('#*A'FKVKQPKPFD

5–87
Interior Features
Bluetooth®
4. Rotate the audio control dial to select
the information for the Bluetooth ® unit
which you would like to view.
Device name
BT address
NOTE
When “ GO BACK ” is selected and the
audio control dial is pressed, the display
returns to “ DEVICE INFO ”.
Available Language (Type A)
The available languages are English,
Spanish, and Canadian French. If the
language setting is changed, all of the
voice guidance and voice input commands
are done in the selected language.
NOTE



y If the language setting is changed,
device registration is maintained.



y Phonebook records are not cleared,
but each language has a separate
phonebook. Therefore, entries created
in one language will need to be re-
entered in the phonebook of the new
language.



y Do these steps before you start driving.
These less used functions are too
distracting to undertake while driving
until you are fully familiar with the
system. (Method 1)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confi rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Language”
5. Prompt: “Select a language: English,
French, or Spanish.”
6. Say: [Beep] “French” (Speak the
desired language: “English”, “French”
or “Spanish”)
NOTE
Other language settings can also be made
while in the current setting by saying
the name of the language in the native
pronunciation.
7. Prompt: “French (Desired language)
selected. Is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “French (Desired language)
selected” (Spoken in the newly selected
language).
(Method 2)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “French” (Say the desired
language: “English”, “French” or
“Spanish”). (Change the desired
language by saying the language
name.)
NOTE
Other language settings can also be made
while in the current setting by saying
the name of the language in the native
pronunciation.
/C\FCA&('#*A'FKVKQPKPFD

5–91
Interior Features
Bluetooth®
6. Say: [Beep] “0123456789” (Say
the voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
7. Prompt: “Speaker enrollment is
complete.”
NOTE
If an error occurred in the voice
recognition learning, re-learning can be
done by pressing the talk button with a
short press.
Voice recognition re-learning
If voice recognition learning has already
been done.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Voice training”
3. Prompt: “Enrollment is enabled/
disabled. Would you like to disable/
enable or retrain?”
4. Say: [Beep] “Retrain”
5. Prompt: “This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the talk
button when you are ready to begin.
Press the hang-up button to cancel at
any time.”
6. Press the talk button with a short press.
7. The voice guidance reads out the voice
input command number (refer to the
voice input command list for voice
recognition learning). (Ex. “Please read
phrase 1”)
8. Say: [Beep] “0123456789” (Say
the voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
9. Prompt: “Speaker enrollment is
complete.”
NOTE
If an error occurred in the voice
recognition learning, re-learning can be
done by pressing the talk button with a
short press.
Voice input command list for voice
recognition learning
When reading out, the following points
must be observed:



y Read out the numbers one at a time
correctly and naturally.
  (For example, “1234” must be read out
“one, two, three, four” not “twelve,
thirty four”.)



y Do not read out parentheses. “(” and
hyphens “-” are used for separating
numbers in a phone number.
Ex. “(888) 555-1212” must be spoken
“Eight, eight, eight, fi ve, fi ve, fi ve, one,
two, one, two.”
Phrase Command
1 0123456789
2 (888) 555-1212
3 Call
4 Dial
5 Setup
6 Cancel
7 Continue
8 Help
NOTE



y The applicable phrase appears in the
audio display.



y After user voice registration is
completed, voice guidance “Speaker
enrollment is complete” is announced.
/C\FCA&('#*A'FKVKQPKPFD

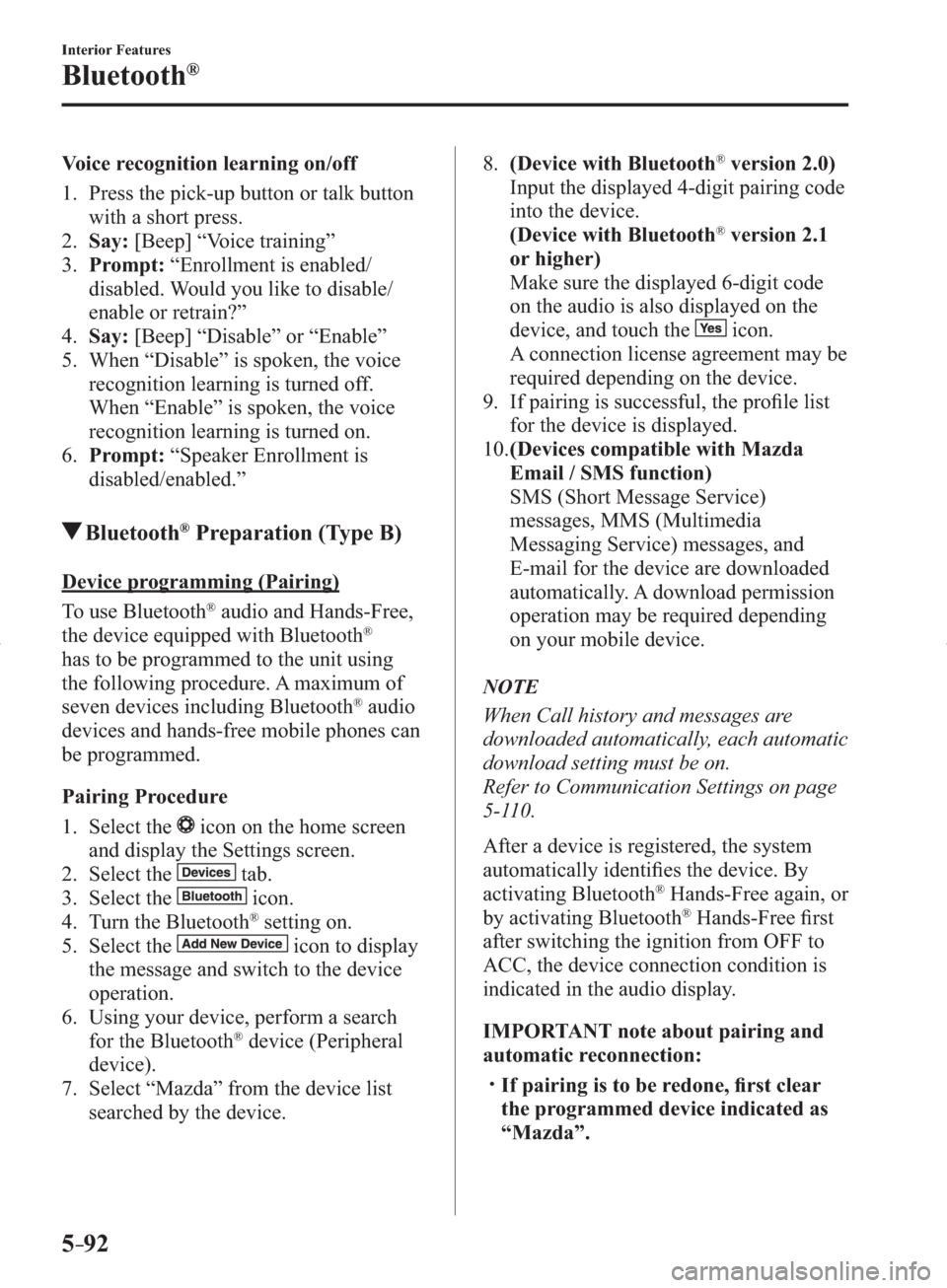

5–92
Interior Features
Bluetooth®
Voice recognition learning on/off
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Voice training”
3. Prompt: “Enrollment is enabled/
disabled. Would you like to disable/
enable or retrain?”
4. Say: [Beep] “Disable” or “Enable”
5. When “Disable” is spoken, the voice
recognition learning is turned off.
When “Enable” is spoken, the voice
recognition learning is turned on.
6. Prompt: “Speaker Enrollment is
disabled/enabled.”
Bluetooth ® Preparation (Type B)
Device programming (Pairing)
To use Bluetooth
® audio and Hands-Free,
the device equipped with Bluetooth ®
has to be programmed to the unit using
the following procedure. A maximum of
seven devices including Bluetooth
® audio
devices and hands-free mobile phones can
be programmed.
Pairing Procedure
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select the
icon.
4. Turn the Bluetooth ® setting on.
5. Select the
icon to display
the message and switch to the device
operation.
6. Using your device, perform a search
for the Bluetooth
® device (Peripheral
device).
7. Select “Mazda” from the device list
searched by the device. 8. (Device with Bluetooth
® version 2.0)
Input the displayed 4-digit pairing code
into the device.
(Device with Bluetooth
® version 2.1
or higher)
Make sure the displayed 6-digit code
on the audio is also displayed on the
device, and touch the
icon.
A connection license agreement may be
required depending on the device.
9. If pairing is successful, the profi le list
for the device is displayed.
10. (Devices compatible with Mazda
Email / SMS function)
SMS (Short Message Service)
messages, MMS (Multimedia
Messaging Service) messages, and
E-mail for the device are downloaded
automatically. A download permission
operation may be required depending
on your mobile device.
NOTE
When Call history and messages are
downloaded automatically, each automatic
download setting must be on.
Refer to Communication Settings on page
5-110 .
After a device is registered, the system
automatically identifi es the device. By
activating Bluetooth
® Hands-Free again, or
by activating Bluetooth ® Hands-Free fi rst
after switching the ignition from OFF to
ACC, the device connection condition is
indicated in the audio display.
IMPORTANT note about pairing and
automatic reconnection:





yIf pairing is to be redone, fi rst clear
the programmed device indicated as
“Mazda”.
/C\FCA&('#*A'FKVKQPKPFD

5–93
Interior Features
Bluetooth®



y When you update the operating
system of your mobile device (such
as Windows/Android/iOS) the pairing
information may be invalidated.
Therefore, the device may need to be
reprogrammed to the hands-free unit.



y Before you pair your device, make sure
that Bluetooth ® is “ON”, both on your
phone and on the vehicle.
Device selection
If several devices have been programmed,
the Bluetooth
® unit links the device last
programmed. If you would like to link
a different programmed device, it is
necessary to change the link. The order
of device priority after the link has been
changed is maintained even when the
ignition is switched off.
Connecting other devices
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select the
icon.
4. Turn the Bluetooth ® setting on.
5. Select the name of the device you
would like to connect.
6.
icon selection
Connects both devices as hands-free
and Bluetooth
® audio.
icon selection
Connects as a hands-free device.
icon selection
Connects as Bluetooth ® audio.
When the connection is completed, the
profi le list for the device is displayed.
Select the
icon to display the device list
screen and display the
or icon in the
newly connected device.
Disconnecting a device
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select the
icon.
4. Turn the Bluetooth ® setting on.
5. Select the device name which is
currently connected.
6. Select the
icon.
Deleting a device
Selecting and deleting devices
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select the
icon.
4. Turn the Bluetooth ® setting on.
5. Select the device name which you
would like to delete.
6. Select the
icon.
7. Select the
icon.
Deleting all devices
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select the
icon.
4. Select the
icon.
5. Select the
icon.
6. Select the
icon.
Changing PIN code
PIN code (4 digits) can be changed.
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select the
icon.
4. Select the
icon.
5. Select the
icon.
6. Input the new PIN code to be set.
7. Select the
icon.
/C\FCA&('#*A'FKVKQPKPFD
