MAZDA MODEL 3 HATCHBACK 2014 Owners Manual (in English)

*Some models.4–46
When Driving
Switches and Controls
Manual type
The headlight leveling switch is used
to adjust the angle of the headlights
manually.
Select the proper headlight angle from the
following chart.
Front seat
Rear
seat Load Switch
Position
Driver Passenger
× — — — 0
× × — — 0
× × × — 2
× × × × 2.5
(Between
2 and 3)
× — — × 3.5
(Between
3 and 4)
× : Y e s
—: No
Adaptive Front Lighting System
(AFS)*
The adaptive front lighting system (AFS)
automatically adjusts the headlight beams
to the left or right in conjunction with the
operation of the steering wheel after the
headlights have been turned on.
AFS OFF Indicator Light
When illuminated
This indicator light illuminates briefl y
when the ignition is switched ON, and
then turns off. Pressing the AFS OFF
switch cancels the AFS function and
illuminates the indicator light.
When fl ashing
The indicator light fl ashes continuously if
the system is malfunctioning. Consult an
Authorized Mazda Dealer.
NOTE



y Even if the AFS is not operating due to
some malfunction, the normal headlight
function is still operable.



y If there is a malfunction with the
headlight auto-leveling function, the
indicator light fl ashes.
/C\FCA&('#*A'FKVKQPKPFD

4–47
When Driving
Switches and Controls

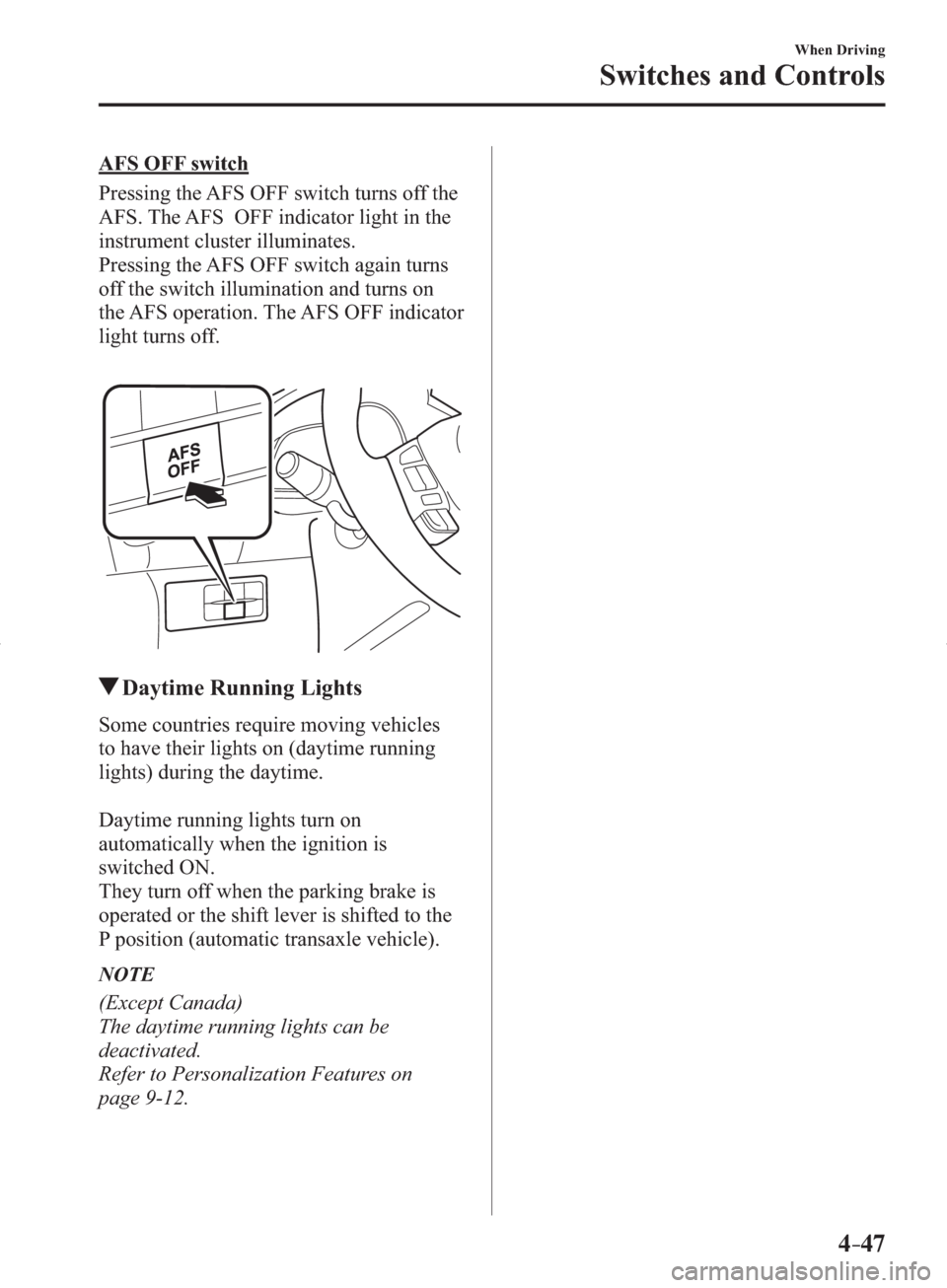

AFS OFF switch
Pressing the AFS OFF switch turns off the
AFS. The AFS OFF indicator light in the
instrument cluster illuminates.
Pressing the AFS OFF switch again turns
off the switch illumination and turns on
the AFS operation. The AFS OFF indicator
light turns off.
Daytime Running Lights
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.
Daytime running lights turn on
automatically when the ignition is
switched ON.
They turn off when the parking brake is
operated or the shift lever is shifted to the
P position (automatic transaxle vehicle).
NOTE
(Except Canada)
The daytime running lights can be
deactivated.
Refer to Personalization Features on
page 9-12 .
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–48
When Driving
Switches and Controls
High Beam Control System (HBC) *
The High Beam Control System (HBC) determines the conditions in front of the vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch
the headlights between high and low beams.
Refer to Warning/Indicator Lights on page 4-21 .
While driving the vehicle at a speed of about 30 km/h (18 mph), the headlights are switched
to high beams when there are no vehicles in front of your vehicle or approaching in the
opposite direction.
The system switches the headlights to low beams when one of the following occurs:



y The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.



y The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and
towns.



y The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC) The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light fl ashes when the system has a malfunction.
Refer to Warning Lights on page 4-22 .
CAUTION
Do not adjust the vehicle height, modify the headlight units, or remove the camera,
otherwise the system will not operate normally.
/C\FCA&('#*A'FKVKQPKPFD

4–49
When Driving
Switches and Controls
NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffi c
conditions.



y When there are sources of light in the area such as street lamps, illuminated signboards,
and traffi c signals.




y When there are refl ective objects in the surrounding area such as refl ective plates and
signs.



y When visibility is reduced under rain, snow and foggy conditions.



y When driving on roads with sharp curves or hilly terrain.



y When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.



y When there is suffi cient darkness such as at dawn or dusk.



y When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.



y When visibility is reduced due to a vehicle in front of you spraying water from its tires
onto your windshield.
/C\FCA&('#*A'FKVKQPKPFD

4–50
When Driving
Switches and Controls
To Operate the System
The High Beam Control System (HBC)
operates to switch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position. At the same time,
the High Beam Control System (HBC)
indicator light (green) in the instrument
cluster illuminates.
The High Beam Control System (HBC)
determines that it is dark based on the
brightness of the surrounding area.
NOTE



y When the vehicle speed is 30 km/h
(18 mph) or higher, the headlights
automatically switch to high beams
when there are no vehicles in front of
your vehicle or approaching in the
opposite direction.
  When the vehicle speed is less than
about 20 km/h (12 mph), the High
Beam Control System (HBC) switches
the headlights to low beams.



y The low beams may not switch to high
beams when cornering.



y Operation of the High Beam Control
System (HBC) function can be disabled.
Refer to Personalization Features on
page 9-12 .
Manual Switching
Switching to low beams
Shift the lever to the low beam position.
The High Beam Control System (HBC)
indicator light (Green) turns off.
Switching to high beams
Turn the headlight switch to the
position.
The High Beam Control System (HBC)
indicator light (Green) turns off and the
is illuminated.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–51
When Driving
Switches and Controls
Fog Lights *
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
Fog light switch
The headlight switch must be in the
position before turning on the fog lights.
The fog light indicator light in the
instrument cluster illuminates while the
fog light are on.
To turn the fog lights off, rotate the fog
light switch to the
position or turn the
headlight switch to the
or
position.
NOTE



y The fog lights will turn off when the
headlights are set at high beams.



y(With auto-light control)
 If the fog light switch is in the
position and the headlight switch is in
the
position, the fog lights will
turn on when the headlights, the
exterior lights and dashboard
illumination turn on.
Turn and Lane-Change
Signals
The ignition must be switched ON to use
the turn and lane-change signals.
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to fl ash
after a turn, manually return the lever to its
original position.
Right turn
Left turn Right lane change
Left lane changeOFF
The turn signal indicators (green) in the
instrument cluster fl ash according to the
operation of the turn signal lever to show
which signal is working.
Right turn
Left turn Right lane change
Left lane changeOFF
/C\FCA&('#*A'FKVKQPKPFD

4–52
When Driving
Switches and Controls
NOTE



y If an indicator light stays on without
fl ashing or if it fl ashes abnormally, one
of the turn signal bulbs may be burned
out.



y A personalized function is available
to change the turn indicator sound
volume. (page 9-12 )
Lane-Change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicator fl ashes— and hold it there. It will
return to the off position when released.
Three-Flash Turn Signal
To signal a lane change, operate the turn
signal lever up or down slightly and
release. After releasing the lever, the turn
signal indicator fl ashes three times.
NOTE
The three-fl ash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-12 .
Windshield Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windshield washer fl uid or
plain water in the reservoir:
Using radiator antifreeze as washer
fl uid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
aff ect your visibility, and could result in
an accident.

Only use windshield washer fl uid mixed
with anti-freeze protection in freezing
weather conditions:
Using windshield washer fl uid without
anti-freeze protection in freezing
weather conditions is dangerous as
it could freeze on the windshield and
block your vision which could cause
an accident. In addition, make sure
the windshield is suffi ciently warmed
using the defroster before spraying the
washer fl uid.
/C\FCA&('#*A'FKVKQPKPFD

4–53
When Driving
Switches and Controls
NOTE
Because heavy ice and snow can jam the
wiper blades, the wiper motor is protected
from motor breakdown, overheating
and possible fi re by a circuit breaker.
This mechanism will automatically stop
operation of the blades, but only for about
5 minutes.
If this happens, turn off the wiper switch
and park off the right-of-way, and remove
the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they do not resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road and
park off the right-of-way. Wait until the
weather clears before trying to drive with
the wipers inoperative.
Windshield Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch
Position Wiper operation
MIST Single wipe cycle (mist)
INT Intermittent
LO Low speed
HI High speed
With auto-wiper control
Switch
Position Wiper operation
MIST Single wipe cycle (mist)
AUTO Auto control
LO Low speed
HI High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ringFast
Slow
/C\FCA&('#*A'FKVKQPKPFD

4–54
When Driving
Switches and Controls
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the amount
of rainfall on the windshield and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher sensitivity
(faster response) or rotate it upward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Center
position
CAUTION



¾ Do not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain sensor
will not operate correctly.





¾ When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:



¾ If the windshield above the rain
sensor is touched or wiped with a
cloth.



¾ If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
  Keep hands and scrapers clear of the
windshield when the wiper lever is in
the AUTO position and the ignition
is switched ON as fi ngers could be
pinched or the wipers and wiper blades
damaged when the wipers activate
automatically.
  If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
/C\FCA&('#*A'FKVKQPKPFD

4–55
When Driving
Switches and Controls
NOTE



y Switching the auto-wiper lever from the
to the position while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.



y The auto-wiper control may not operate
when the rain sensor temperature is
about -10 °C (14 °F) or lower, or about
85 °C (185 °F) or higher.



y If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and the auto-wiper control
may not operate properly.



y If dirt or foreign matter (such as ice or
matter containing salt water) adheres
to the windshield above the rain sensor,
or if the windshield is iced, it could
cause the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the auto-
wiper control will stop operation. In
this case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the
ice, dirt or foreign matter by hand to
restore the auto-wiper operation.



y If the auto-wiper lever is left in the
position, the wipers could
operate automatically from the effect of
strong light sources, electromagnetic
waves, or infrared light because the
rain sensor uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the
position other
than when driving the vehicle under
rainy conditions.



y The auto-wiper control functions can
be turned off. Refer to Personalization
Features on page 9-12 .
Windshield Washer
Pull the lever toward you and hold it to
spray washer fl uid.
Washer OFF
NOTE
With the wiper lever in the or
intermittent position/
position, the
wipers will operate continuously until the
lever is released.
If the washer does not work, inspect the
fl uid level (page 6-31 ). If the fl uid level
is normal, consult an Authorized Mazda
Dealer.
/C\FCA&('#*A'FKVKQPKPFD
