Page 196 of 585
4–71
When Driving
Brake
WARNING
Do not rely completely on Hill Launch
Assist (HLA):
Hill Launch Assist (HLA) is an auxiliary
device for accelerating from a stop
on a slope. The system only operates
for about two seconds and therefore,
relying only on the system, when
accelerating from a stop is dangerous
because the vehicle may move (roll)
unexpectedly and cause an accident.
The vehicle could roll depending on
the vehicle's load or if it is towing
something. In addition, for vehicles
with a manual transaxle, the vehicle
could still roll depending on how the
clutch pedal or the accelerator pedal is
operated.
Always confi rm the safety around the
vehicle before starting to drive the
vehicle.
NOTE
y Hill Launch Assist (HLA) does not
operate on a gentle slope. In addition,
the gradient of the slope on which the
system will operate changes depending
on the vehicle's load.
y Hill Launch Assist (HLA) does not
operate if the parking brake is applied,
the vehicle has not stopped completely,
or the clutch pedal is released.
y While Hill Launch Assist (HLA) is
operating, the brake pedal may feel
stiff and vibrate, however, this does not
indicate a malfunction.
y Hill Launch Assist (HLA) does not
operate while the TCS/DSC indicator
light is illuminated.
Refer to Warning/Indicator Lights on
page 4-21 .
y Hill Launch Assist (HLA) does not
turn off even if the DSC OFF switch is
pressed to turn off the TCS/DSC.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 198 of 585
4–73
When Driving
Brake
Do not rely completely on the Smart City Brake Support (SCBS) system:
¾ The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
¾ The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to 2-wheeled vehicles or
pedestrians.
¾ The laser sensor for the Smart City Brake Support (SCBS) system is installed near the
rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.
¾
Do not apply stickers to the surface of the windshield near the laser sensor
(including transparent stickers). Otherwise, the laser sensor may not be able to
detect vehicles or obstructions ahead which could result in an accident.
¾
Do not disassemble the laser sensor.
¾
If cracks or damage caused by fl ying gravel or debris is visible near the laser sensor,
stop using the Smart City Brake Support (SCBS) system immediately and have your
vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues to be
driven with cracks or scratch marks left on the windshield near the laser sensor, the
system may operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-78 .
¾
When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles or obstructions ahead. This will result in the Smart City Brake Support
(SCBS) system not operating normally or mistakenly operating, which could cause a
serious accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed. See the next page on how to turn
off the Smart City Brake Support (SCBS).
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page 4-78 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 200 of 585
*Some models.4–75
When Driving
Brake
y Under the following conditions, the Smart City Brake Support (SCBS) system may not
operate normally.
y Heavy luggage is loaded in the luggage compartment or on the rear seat.
y When there is the possibility of partial contact with a vehicle or obstruction ahead.
y When driving on continuously curving roads, entering and exiting curves, and unstable
driving due to a vehicle accident or breakdown in a driving lane.
y Elongated luggage or cargo is loaded onto installed roof rails and covers the laser
sensor.
y Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
y When towing a malfunctioning vehicle.
y In the following cases, the laser sensor may inadvertently determine that there is a
vehicle ahead and the Smart City Brake Support (SCBS) system may operate.
y Objects on the road at the entrance to a curve.
y Vehicles passing in the opposite lane while making a curve.
y Metal objects, bumps, or protruding objects on the road.
y When passing through a toll gate.
y When passing under a vinyl curtain or fl ag.
y Plastic objects such as pylons.
y Two-wheeled vehicles, pedestrians, animals or standing trees.
y If the vehicle is driven with some of the tires having signifi cant wear, the system may not
operate correctly. If the tires are returned to a normal state and the Smart City Brake
Support (SCBS) indicator light still illuminates, have your vehicle inspected by an
Authorized Mazda Dealer.
y When the system operates, the user is notifi ed by the fl ashing warning light and the active
driving display * .
y The indicator light turns on when the system has a malfunction.
Refer to Warning Lights on page 4-22 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 217 of 585
4–92
When Driving
Mazda Radar Cruise Control (MRCC)
Do not use the Mazda Radar Cruise Control (MRCC) system in the following locations.
Otherwise, it could lead to an accident:
¾ Roads with sharp curves and where vehicle traffi c is heavy and there is insuffi cient
space between vehicles. Roads where frequent and repetitive acceleration and
deceleration occur (Driving under these conditions using the Mazda Radar Cruise
Control (MRCC) system is not possible).
¾ When entering and exiting interchanges, service areas, and parking areas of highways
(If you exit a highway while headway control is in use, the vehicle ahead will no longer
be tracked and your vehicle may accelerate to the set speed).
¾ Slippery roads such as ice or snow-bound roads (The tires could spin causing you to
lose vehicle control).
¾ Long descending slopes (to maintain distance between vehicles, the system
automatically and continuously applies the brakes which could result in the loss of
brake power).
For the purposes of safety, switch the Mazda Radar Cruise Control (MRCC) system off
when it is not being used.
CAUTION
If the vehicle is towed or you are towing something, switch the Mazda Radar Cruise
Control (MRCC) system off to prevent an incorrect operation.
NOTE
y The Mazda Radar Cruise Control (MRCC) system operates when all of the following
conditions are met.
y The vehicle speed is about 30 km/h (19 mph) to 145 km/h (90 mph).
y The Mazda Radar Cruise Control (MRCC) system is turned on.
y The parking brake is not applied.
y The Forward Obstruction Warning (FOW) indicator light (amber) does not illuminate.
y The Dynamic Stability Control (DSC) is operating normally.
(Manual transaxle)
y The shift lever is in a position other than reverse (R) or neutral (N).
y The clutch pedal is not depressed.
(Automatic transaxle)
y The selector lever is in the drive (D) position or manual (M) position (manual mode).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 235 of 585
4–110
When Driving
Blind Spot Monitoring (BSM) System
NOTE
y The Blind Spot Monitoring (BSM) does not operate when the vehicle speed is lower than
about 10 km/h (6.2 mph).
y The detection area of the Blind Spot Monitoring (BSM) has been determined based on
the lane width of general freeways. Therefore on a road with a narrower lane width, the
system may detect vehicles on a lane next to the adjacent lane and operate the warning
light/beep. On a road with wider lane width, the system may not detect vehicles on the
adjacent lane and may not operate the warning light/beep.
y Under the following conditions, the system may be unable to detect vehicles, or detection
may be delayed.
y The vehicle accelerates from a standing-start with a vehicle alongside.
y A vehicle moves from a lane two lanes over to the adjacent lane.
y The difference in vehicle speed between your vehicle and another vehicle is larger
when passing or being passed, and the vehicle passes the detection area within a short
period of time.
y On a steep incline, or when there is a difference in height between lanes.
y Immediately after the system has been activated by pressing the Blind Spot Monitoring
(BSM) OFF switch again after it has been turned off (Blind Spot Monitoring (BSM)
OFF indicator light in instrument cluster illuminates) by pressing the switch.
y (Automatic transaxle vehicles)
The shift lever is shifted to the R position, or directly after being shifted from the R
position.
y The system may not operate normally when towing a trailer. Turn off the system by
operating the Blind Spot Monitoring (BSM) OFF switch when towing a trailer.
y The system switches to the Rear Cross Traffi c Alert function when the shift lever (Manual
transaxle) or the selector lever (Automatic transaxle) is shifted to the R position.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 276 of 585
5–19
Interior Features
Audio System
Multipath noise
Since FM signals can be refl ected by
obstructions, it is possible to receive both
the direct signal and the refl ected signal
at the same time. This causes a slight
delay in reception and may be heard as a
broken sound or a distortion. This problem
may also be encountered when in close
proximity to the transmitter.
Reflected wave
Direct
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas
is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz Station 1
88.1 MHz
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 346 of 585
5–89
Interior Features
Bluetooth®
y It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
y Do not speak too slow or too loud.
y Speak clearly, without pausing between
words or numbers.
y Close the windows and/or the moonroof
to reduce loud noises from outside
the vehicle, or turn down the airfl ow
of the air-conditioning system while
Bluetooth
® Hands-Free is being used.
y Make sure the vents are not directing air
up towards the microphone.
NOTE
If the voice recognition performance is not
satisfactory.
Refer to Voice Recognition Learning
Function (Speaker Enrollment) (Type A)
on page 5-90 .
Refer to Troubleshooting (Type A/Type B)
on page 5-129 .
Security Setting (Type A)
If a passcode is set, the system cannot be
activated unless the passcode is input.
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.
Passcode setting
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confi rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Passcode”
5. Prompt: “Passcode is disabled. Would
you like to enable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Please say a 4-digit
passcode. Remember this passcode. It
will be required to use this system.”
8. Say: [Beep] “XXXX” (Say a desired
4-digit passcode, “PCode”.)
9. Prompt: “Passcode XXXX (Passcode,
PCode). Is this correct?”
10. Say: [Beep] “Yes”
11. Prompt: “Passcode is enabled.”
Using Bluetooth
® Hands-Free with a
passcode
1. Press the pick-up button or talk button
with a short press.
2. Prompt: “Hands-Free system is
locked. State the passcode to continue.”
3. Say: [Beep] “XXXX” (Say the set
passcode “PCode”.)
4. If the correct passcode is input, voice
guidance “XXXXXX... (Ex. “Mary's
device”) (Device tag) is connected” is
announced.
If the passcode is incorrect, voice
guidance “XXXX (4-digit passcode,
Pcode) incorrect passcode, please try
again” is announced.
Canceling the passcode
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confi rmation prompts,
language, passcode, select phone or
select music player.”
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 352 of 585
*Some models.5–95
Interior Features
Bluetooth®
y Dialects or different wording other
than hands-free prompts cannot be
recognized by voice recognition. Speak
in the wording specifi ed by the voice
commands.
y It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
y Close the windows and/or the moonroof
to reduce loud noises from outside
the vehicle, or turn down the airfl ow
of the air-conditioning system while
Bluetooth
® Hands-Free is being used.
y Make sure the vents are not directing air
up towards the microphone.
NOTE
If the voice recognition performance is not
satisfactory.
Refer to Troubleshooting (Type A/Type B)
on page 5-129 .
Bluetooth ® Hands-Free
(Type A)
*
Making a Call
Phonebook Usage
Telephone calls can be made by saying
the name of a person (voice tag) whose
phone number has been registered in
Bluetooth
® Hands-Free in advance. Refer
to Phonebook registration.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Call”
3. Prompt: “Name please.”
4. Say: [Beep] “XXXXX... (Ex. “John's
phone”)” (Say a voice tag registered in
the phonebook.)
5. Prompt: “Calling XXXXX... (Ex.
“John's phone”) XXXX (Ex. “at
home”). Is this correct?” (Voice tag and
phone number location registered in
phonebook).
6. Say: [Beep] “Yes”
7. Prompt: “Dialing”
NOTE
The “Call” command and the voice tag
can be combined.
Ex. In Step 2, say, “Call John's phone”,
then, Steps 3 and 4 can be skipped.
Phonebook registration
Phone numbers can be registered to the
Bluetooth
® Hands-Free phonebook.
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 396 of 585
*Some models.5–139
Interior Features

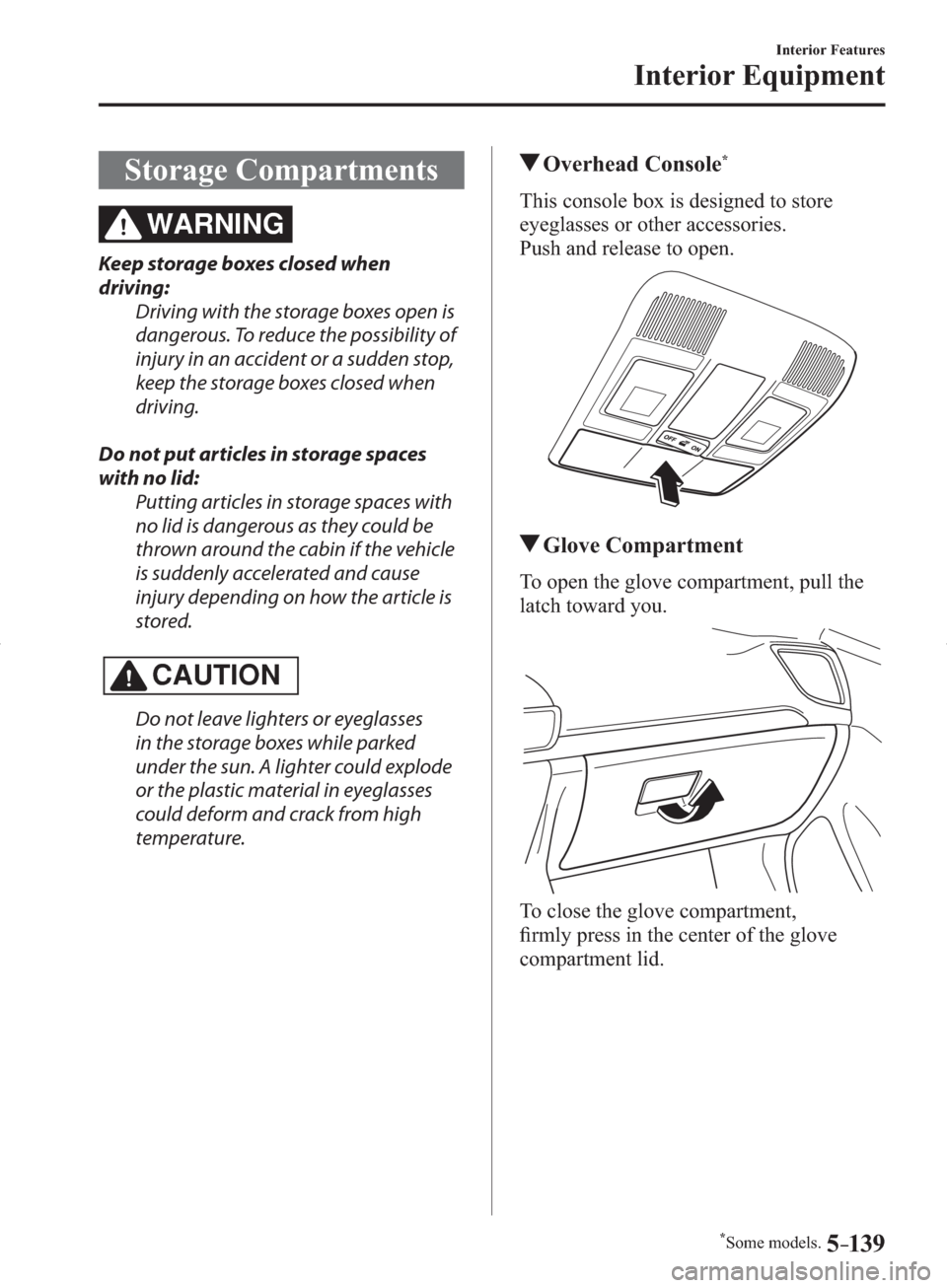

Interior Equipment
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
Overhead Console *
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment,
fi rmly press in the center of the glove
compartment lid.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 466 of 585
*Some models.6–69
Maintenance and Care
Appearance Care
Interior Care
WARNING
Do not spray water in the cabin:
Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fi re.
Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They will damage and discolor
the dashboard. If these solutions get on the
dashboard, wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
Instrument panel top (soft pad)
y Extremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean towel
dampened in a mild detergent to remove
soiling.
y If the soft pad surface is rubbed harshly,
it could result in the surface being
damaged leaving white scratch marks.
Cleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
*
Remove dust and sand fi rst using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
NOTE
y Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
y To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
y Sand and dust on the seat surface may
damage the overcoat of the genuine
leather surfaces and accelerate wear.
y Greasy soiling on genuine leather may
cause molding and stains.
y Rubbing hard with a stiff brush or cloth
may cause damage.
y Do not wipe the leather using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, or gasoline.
Otherwise, it may cause discoloration
or stains.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
