Essential Safety Equipment
SRS Air Bags
Front Passenger Occupant Classifi cation System *
First, please read "Supplemental Restraint System (SRS) Precautions" (page 2-40 ) carefully.
Front Passenger Seat Weight Sensor
Your vehicle is equipped with a front passenger seat weight sensors as a part of the
supplemental restraint system. These sensors are located under both of the front passenger
seat rails. These sensors determine the total seated weight on the front passenger seat and
monitor the seat belt buckle for the front passenger seat. The SAS unit is designed to prevent
the front passenger front and side air bags and seat belt pretensioner system from deploying
if the front passenger air bag deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the front passenger air bag,
the system deactivates the front passenger front and side air bags and also the seat
belt pretensioner system when the front passenger air bag deactivation indicator light
illuminates. Refer to the following table for the front passenger air bag deactivation
indicator light illumination conditions.
This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the following table.
The air bag/front seat belt pretensioner system warning light fl ashes and the front passenger
air bag deactivation indicator light illuminates if the sensors have a possible malfunction.
If this happens, the front passenger front and side air bags and seat belt pretensioner system
will not deploy.
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air bags
and seat belt pretensioner will not deploy during a collision.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 68 of 585
2–57
Essential Safety Equipment
SRS Air Bags
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front/passenger air bag deactivation indicator light illuminates or is off under the
following conditions:
Condition detected by
the front passenger
occupant classifi cation
system Front passenger air bag
deactivation indicator light Front passenger front
and side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
Child or child-restraint
system
*1 On Deactivated Deactivated
Adult
*2 Off Ready Ready
*1 If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending
on the child's physique.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child depending
on the person's physique.
The curtain air bag is ready for infl ating regardless of the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not allow
a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as
possible. The system may not work properly in an accident.
WARNING
Do not decrease the total seated weight on the front passenger seat:
When an adult or large child sits on the front passenger seat, decreasing the total seated
weight on the front passenger seat required for air bag deployment is dangerous. The
front passenger seat weight sensors will detect the reduced total seated weight condition
and the front passenger front and side air bags and seat belt pretensioner system will
not deploy during an accident. The front passenger will not have the supplementary
protection of the air bag, which could result in serious injury. Decreasing the total seated
weight on the front passenger seat could result in an air bag not deploying under the
following conditions, for example:
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 69 of 585
2–58
Essential Safety Equipment
SRS Air Bags

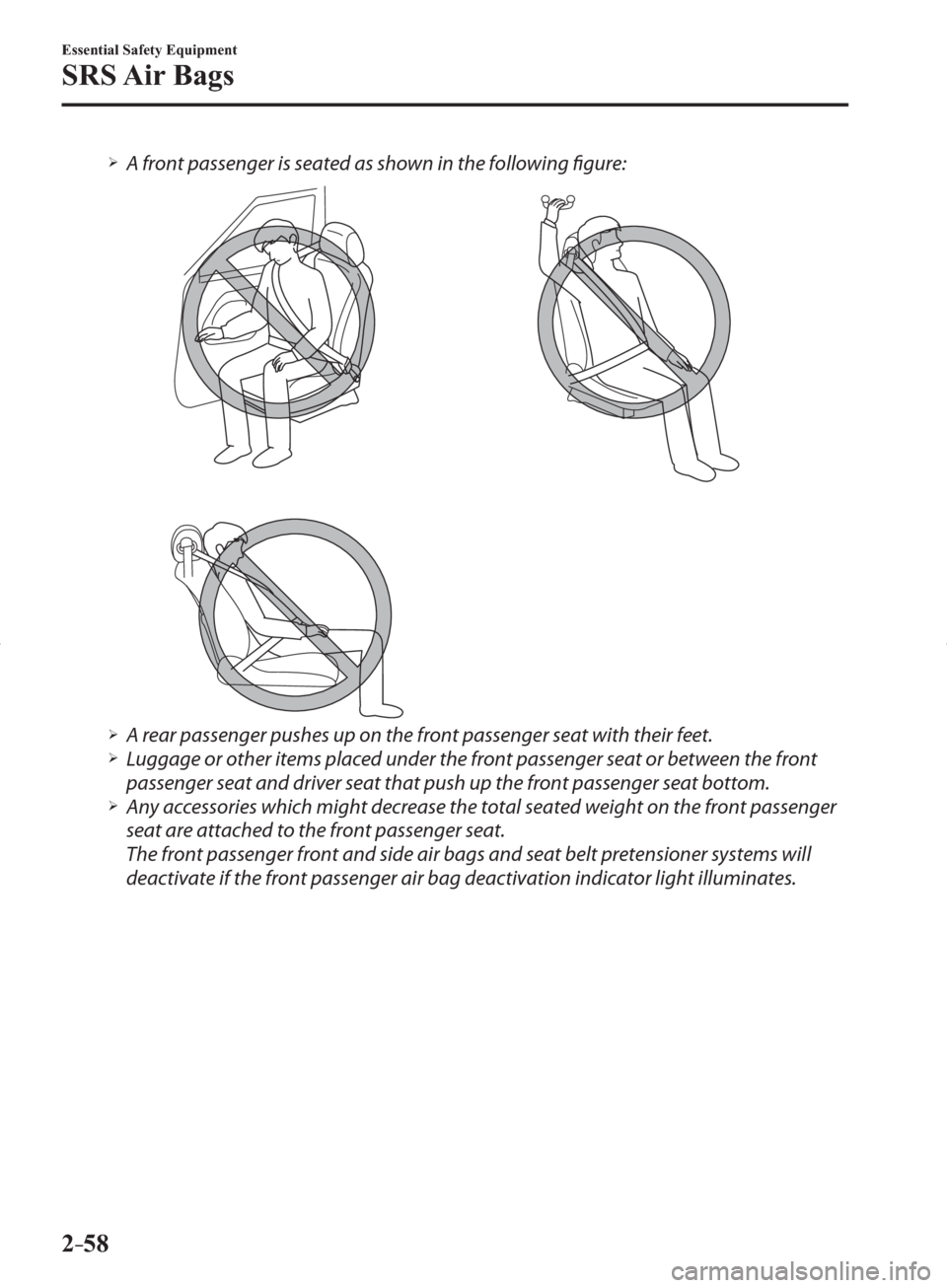

¾ A front passenger is seated as shown in the following fi gure:
¾ A rear passenger pushes up on the front passenger seat with their feet.
¾ Luggage or other items placed under the front passenger seat or between the front
passenger seat and driver seat that push up the front passenger seat bottom.
¾ Any accessories which might decrease the total seated weight on the front passenger
seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light illuminates.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 71 of 585
2–60
Essential Safety Equipment
SRS Air Bags
NOTE
y The system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
y The front passenger air bag deactivation indicator light may illuminate repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
y The front passenger air bag deactivation indicator light may illuminate for 10 seconds if
the total seated weight on the front passenger seat changes.
y The air bag/front seat belt pretensioner system warning light might illuminate if the front
passenger seat receives a severe impact.
y If the front passenger air bag deactivation indicator light does not illuminate after
installing a child-restraint system on the front passenger seat, fi rst, re-install your child-
restraint system according to the procedure in this owner's manual. Then, if the front
passenger air bag deactivation indicator light still does not illuminate, install the child-
restraint system on the rear seat and consult an Authorized Mazda Dealer as soon as
possible.
y If the front passenger air bag deactivation indicator light illuminates when an adult is
seated in the front passenger seat, have the passenger re-adjust their posture by sitting
with their feet on the fl oor, and then re-fastening the seat belt. If the front passenger air
bag deactivation indicator light still illuminates, move the passenger to the rear seat.
If sitting in the rear seat is not possible, slide the front passenger seat as far back as
possible. Consult an Authorized Mazda Dealer as soon as possible.
Driver and Front Passenger Buckle Switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 72 of 585
2–61
Essential Safety Equipment
SRS Air Bags
Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:
y Crash sensors, and diagnostic module (SAS unit)
y Front air bag sensors
y Air bag modules
y Side crash sensors
y Air bag/Front seat belt pretensioner system warning light
y Front seat belt pretensioners
y Related wiring
(With Front Passenger Occupant Classifi cation System)
y Front passenger air bag deactivation indicator light
y Front passenger seat weight sensors
y Front passenger seat weight sensor control module
y Front passenger seat belt buckle switches
The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D

Page 75 of 585
3–2
Before Driving
Keys
Keys
WARNING
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not fi nd or play with
them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may fi nd these keys to
be an interesting toy to play with and
could cause the power windows or
other controls to operate, or even make
the vehicle move.
CAUTION
¾ Because the key (transmitter) uses
low-intensity radio waves, it may not
function correctly under the following
conditions:
¾ The key is carried with
communication devices such as
cellular phones.
¾ The key contacts or is covered by a
metal object.
¾ The key is near electronic devices such
as personal computers.
¾ Non-Mazda genuine electronic
equipment is installed in the vehicle.
¾ There is equipment which discharges
radio waves near the vehicle.
¾ The key (transmitter) may consume
battery power excessively if it receives
high-intensity radio waves. Do not place
the key near electronic devices such as
televisions or personal computers.
¾ To avoid damage to the key
(transmitter), DO NOT:
¾ Drop the key.
¾ Get the key wet.
¾ Disassemble the key.
¾ Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
¾ Expose the key to any kind of
magnetic fi eld.
¾ Place heavy objects on the key.
¾ Put the key in an ultrasonic cleaner.
¾ Put any magnetized objects close to
the key.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 76 of 585
3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorized Mazda Dealer and have
your code number ready.
NOTE
The driver must carry the key to ensure the
system functions properly.
Operation indicator light
Auxiliary key Transmitter
Key code number plate
Pull out the auxiliary key from the key
(transmitter).
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate/trunk lid, and opens the trunk
lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
y KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-21 .
y Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-37 .
y Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-37 .
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 77 of 585
3–4
Before Driving
Keys
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifi cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
NOTE
y The keyless entry system operation may
vary due to local conditions.
y The keyless entry system is fully
operational (door/liftgate/trunk lid
lock/unlock) when the push button
start is switched off. The system does
not operate if the push button start is
switched to any position other than off.
y If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be dead. To install a new battery,
refer to Replace Electrical Battery
(page 6-39 ).
y Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer when
additional keys are required.
Transmitter
NOTE
y (With theft-deterrent system)
The hazard warning lights fl ash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on
page 3-43
y
(With the advanced keyless function)
A beep sound can be heard for
confi rmation when the doors and
liftgate/trunk lid are locked/unlocked
using the key. If you prefer, the beep
sound can be turned off.
The volume of the beep sound can also
be changed.
Refer to Personalization Features on
page 9-12
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate/trunk
lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate/
trunk lid lock and the beep sound
activates at the currently set volume.
(If the beep sound is currently set
to not activate, it will not activate.)
The setting changes each time the
LOCK button on the key is pressed
and the beep sound activates at the
set volume. (If the beep sound has
been set to not activate, it will not
activate.)
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 78 of 585
3–5
Before Driving
Keys
4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate/trunk lid.
y Not operating the key for 10
seconds.
y Pressing any button except the
LOCK button on the key.
y Pressing a request switch.
The operation indicator light fl ashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate/trunk
lid, press the lock button and the hazard
warning lights will fl ash once.
(With the advanced keyless function)
A beep sound will be heard once.
To confi rm that all doors and the liftgate/
trunk lid have been locked, press the lock
button again within 5 seconds. If they are
closed and locked, the horn will sound.
NOTE
y The doors and the liftgate/trunk lid can
be locked by pressing the lock button
while any other door or the liftgate/
trunk lid is open. The hazard warning
lights will not fl ash.
When the lock button is pressed while
any door is open and then the door is
closed, all the doors and the liftgate/
trunk lid are locked.
y Confi rm that all doors and the liftgate/
trunk lid are locked visually or audibly
by use of the double click.
y Make sure all doors and the liftgate/
trunk lid are locked after pressing the
button.
y (With theft-deterrent system)
When the doors are locked by pressing
the lock button on the key while the
theft-deterrent system is armed, the
hazard warning lights will fl ash once to
indicate that the system is armed.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will fl ash twice.
(With the advanced keyless function)
A beep sound will be heard twice.
To unlock all doors and the liftgate/trunk
lid, press the unlock button again within
3 seconds and two more beep sounds will
be heard.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 79 of 585
3–6
Before Driving
Keys
NOTE
y The system can be set to unlock all
doors by performing a single operation.
Refer to Personalization Features on
page 9-12 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate/trunk
lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer. The sound of
the doors locking/unlocking can be
heard.
After this, the system switches the
setting each time the UNLOCK
button is pressed (the sound of the
doors locking/unlocking can be
heard).
4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate/trunk lid.
y Not operating the key for 10
seconds.
y Pressing any button except the
UNLOCK button on the key.
y Pressing a request switch.
y (Auto re-lock function)
After unlocking with the key, all
doors and the liftgate/trunk lid will
automatically lock if any of the
following operations are not performed
within about 60 seconds. If your
vehicle has a theft-deterrent system,
the hazard warning lights will fl ash for
confi rmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on
page 9-12 .
y A door or the liftgate/trunk lid is
opened.
y The push button start is switched to
any position other than off.
y (With theft-deterrent system)
When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is
turned off, the hazard warning lights
will fl ash twice to indicate that the
system is turned off.
Trunk button (4–door)
To open the trunk lid, press and hold the
trunk button until the trunk lid opens.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
