Page 360 of 585
5–103
Interior Features
Bluetooth®
Call back Function
This voice command makes a call to the
last person who called you.
1. Press the talk button with a short press.
2. Say: [Beep] “Call back”
Favorites Contacts
A maximum of 50 contacts can be
registered. It will take less time to make a
call after registering the telephone number.
In addition, you do not have to look for the
person you want to call in the phonebook.
Registering to your favorites
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
favorites list.
3. Select the
icon.
4. Select the
icon.
5. Select the contact.
NOTE
If the battery is disconnected, your
favorites list will not be deleted.
Making a call from your favorites
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
favorites list.
3. (Only one phone number is
registered to contact)
Select the contact information you
would like to call. Go to Step 5.
(Multiple phone numbers are
registered to contact)
Select the contact you would like to
call to display the screen indicating the
details for the contact. Go to Step 4.
4. Select the phone number you would
like to call. 5. Select the
icon.
Deleting from your favorites
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
favorites list.
3. Select the
icon.
4. Select the
icon.
5. Select the contact information which
you would like to delete.
6. Select the
icon.
Changing the display order of your
favorites list
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
favorites list.
3. Select the
icon.
4. Select the
icon.
5. The contact can be moved after it is
selected.
6. Move the contact and select the
icon.
Changing contact name of your
favorites
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
favorites list.
3. Select the
icon.
4. Select the contact to display the
keyboard screen.
5. If a new name is input and the
icon
is selected, the contact name is stored.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 361 of 585
5–104
Interior Features
Bluetooth®
NOTE
If the contact is long-pressed when the
favorites list is displayed, the contact
information can be edited (deleted,
moved).
Telephone Number Input
NOTE
Practice this while parked until you are
confi dent you can do it while driving in a
non-taxing road situation. If you are not
completely comfortable, make all calls
from a safe parking position, and only
start driving when you can devote your full
attention to driving.
1. Input the telephone number using the
numerical keypad.
2. Select the
icon to make the call.
Numeral or symbol entry
Use the numerical keypad.
Long-press the
icon to input +.
Select the
icon to delete the currently
input value.
Long-press the
icon to delete all input
values.
Mobile 911 (U.S.A./Canada only)
If the vehicle is involved in a moderate
to severe collision, a call is made
automatically to 911 from the connected
device. The “Mobile 911” setting must be
on.
Refer to Communication Settings on page
5-110 .
CAUTION
¾ Mobile 911 is a secondary function
of the audio entertainment system.
Therefore, the Mobile 911 function
cannot assure that a call will always
be made to 911 in the event that the
vehicle is involved in an accident. Also,
a hands-free device must be paired
and connected. The 911 operator can
verify the vehicle's position information
using the GPS on the hands-free device
if equipped. The 911 operator can verify
the vehicle's position information.
¾ Though the system can be set to not call
911, doing so will defeat the purpose
of the system to immediately contact
rescue personnel to assist you after your
accident. For the safety of the driver and
all passengers, Mazda recommends that
the Mobile 911 system remain activated
so that a call will be made to 911 when
needed.
1. If the vehicle is involved in a moderate
to severe collision, notifi cation of the
call to 911 is made via audio and screen
display. To cancel the call, press the
icon or hang-up
button within 10 seconds.
2. If the
icon or
hang-up button is not pressed within 10
seconds, the call is made to 911
automatically.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 362 of 585
5–105
Interior Features
Bluetooth®
Receiving an Incoming Call
When an incoming call is received, the incoming call notifi cation screen is displayed. The
“Incoming Call Notifi cation” setting must be on.
Refer to Communication Settings on page 5-110 .
To accept the call, press the pick-up button or select the
icon.
To reject the call, press the hang-up button or select the
icon.
The following icons are displayed on the screen during a call. Icons which can be used differ
depending on use conditions.
Icon Function
Displays the Communication menu.
Ends the call.
Transferring a call from hands-free to a mobile phone
Communication between the hands-free unit and a device (Mobile phone) is canceled, and
the line can be switched to the device (Mobile phone) as a standard call.
Transferring a call from a device (mobile phone) to hands-free
Communication between devices (mobile phone) can be switched to Bluetooth ® Hands-
Free.
Mute
The microphone can be muted during a call.
When selected again, the mute is canceled.
A call is made to other person during a call and a 3-way call can be made. Select the contact
from the following to make a call.
: Call History is displayed.
: The phonebook is displayed.
: The dial pad is displayed. Input the phone number.
The device may be unusable depending on the contractual content.
The call on hold is made to make a 3-way call.
The device may be unusable depending on the contractual content.
Switches the call on hold.
DTMF (Dual Tone Multi-Frequency Signal) Transmission
This function is used when transmitting DTMF via the Numerical Keypad. The receiver of
a DTMF transmission is generally a home telephone answering machine or a company's
automated guidance call center.
Input the number using a numerical keypad.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 366 of 585
5–109
Interior Features
Bluetooth®
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
inbox.
3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.
Changing account for displaying
(E-mail only)
1. Select the
icon.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.
Editing preset messages
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon.
3. Select the
icon.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.
NOTE
y Select the icon to change the
language.
y Select the icon to switch between
capitalized and lower-case characters.
y Select the icon to return to the
previous screen without storing the edit.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 392 of 585
5–135
Interior Features
Interior Equipment

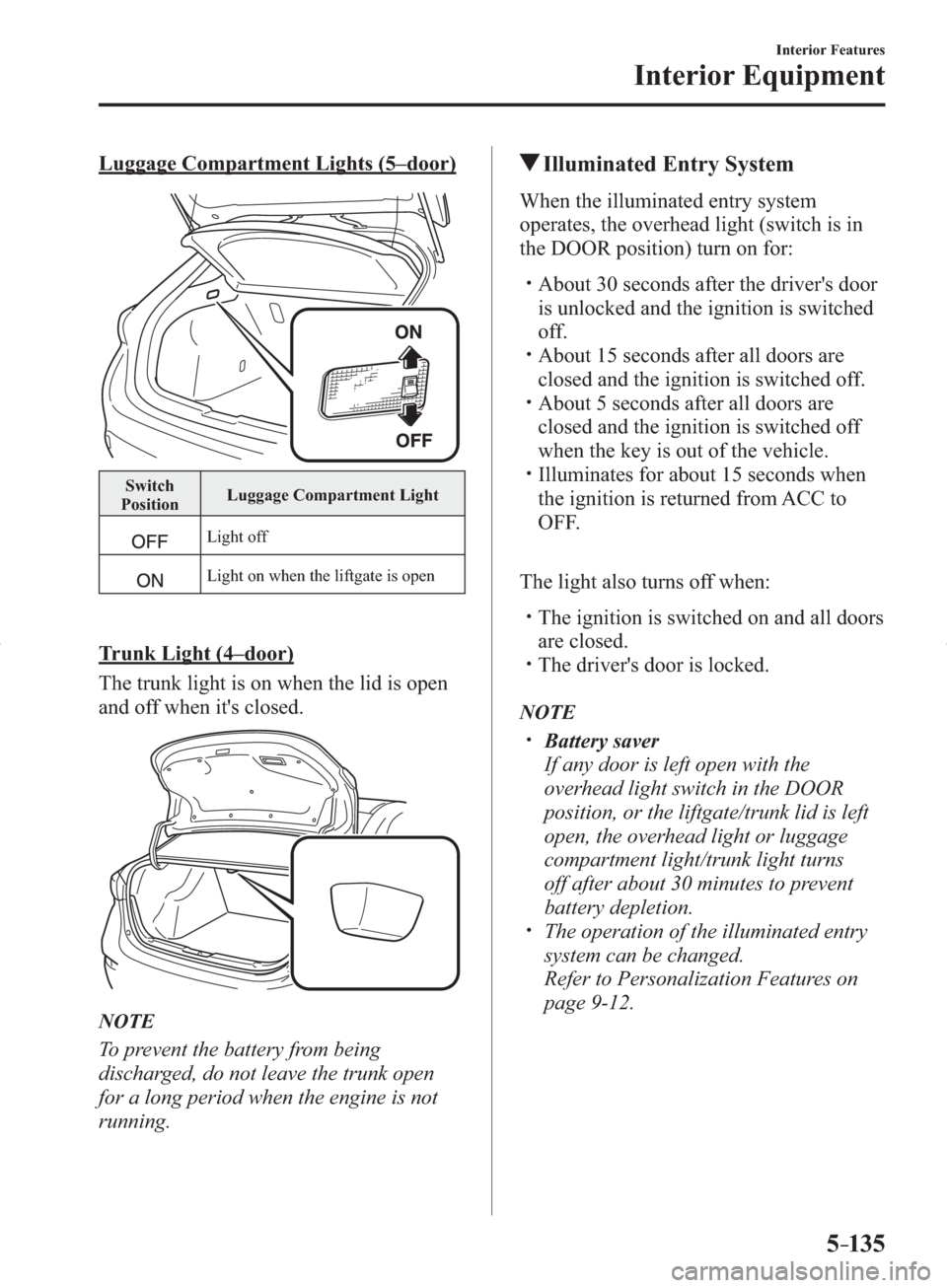

Luggage Compartment Lights (5–door)
Switch
Position Luggage Compartment Light
Light off
Light on when the liftgate is open
Trunk Light (4–door)
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turn on for:
y About 30 seconds after the driver's door
is unlocked and the ignition is switched
off.
y About 15 seconds after all doors are
closed and the ignition is switched off.
y About 5 seconds after all doors are
closed and the ignition is switched off
when the key is out of the vehicle.
y Illuminates for about 15 seconds when
the ignition is returned from ACC to
OFF.
The light also turns off when:
y The ignition is switched on and all doors
are closed.
y The driver's door is locked.
NOTE
y Battery saver
If any door is left open with the
overhead light switch in the DOOR
position, or the liftgate/trunk lid is left
open, the overhead light or luggage
compartment light/trunk light turns
off after about 30 minutes to prevent
battery depletion.
y The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-12 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 436 of 585
6–39
Maintenance and Care
Owner Maintenance
Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not fl ash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
¾ Make sure the battery is installed
correctly. Battery leakage could occur if
it is not installed correctly.
¾ When replacing the battery, be careful
not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.
¾ There is the danger of explosion if the
battery is not correctly replaced.
¾ Dispose of used batteries according to
the following instructions.
¾ Insulate the plus and minus terminals
of the battery using cellophane or
equivalent tape.
¾ Never disassemble.
¾ Never throw the battery into fi re or
water.
¾ Never deform or crush.
¾ Replace only with the same type battery
(CR2025 or equivalent).
The following conditions indicate that the
battery power is low:
y The KEY indicator light (green) fl ashes
in the instrument cluster for about 30
seconds after the engine is turned off.
y The system does not operate and
the operation indicator light on the
transmitter does not fl ash when the
buttons are pressed.
y The system's operational range is
reduced.
Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction below.
Replacing the key battery
1. Pull out the auxiliary key.
2. Insert a small, fl athead screwdriver
into the groove shown in the fi gure and
rotate the screwdriver to open the cover
slightly.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 437 of 585
6–40
Maintenance and Care
Owner Maintenance
3. Insert the small, fl athead screwdriver
into the gap between the cover and
the transmitter, and then rotate the
screwdriver to detach the cover.
4. Remove the battery cap, then remove
the battery.
5. Insert a new battery with the positive
pole facing up, and then cover the
battery with the battery cap.
6. Close the cover.
7. Reinsert the auxiliary key.
CAUTION
¾ Be careful not to allow the rubber ring
shown in the fi gure to be scratched or
damaged.
¾ If the rubber ring detaches, reattach it
before inserting a new battery.
Rubber ring
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 479 of 585
*Some models.7–10
If Trouble Arises
Flat Tire
WARNING
Do not jack up the vehicle higher than is
necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
9. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.
Locking Lug Nuts *
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must use
a special key to unlock them. This key will
attach to the lug wrench and can be stored
with the spare tire. Register them with
the lock manufacturer by fi lling out the
card provided in the glove compartment
and mailing it in the accompanying
envelope. If you lose this key, consult an
Authorized Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 480 of 585
7–11
If Trouble Arises
Flat Tire
To install the antitheft lug nut
1. Place the special key on top of the nut,
and be sure to hold the key square to
it. If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147
(12—14, 80—108)
Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off , resulting in
an accident.
2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the
lug nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off , resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 497 of 585
*Some models.7–28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
Air Bag/Front Seat
Belt Pretensioner
System Warning
Light
A system malfunction is indicated if the warning light constantly fl ashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized
Mazda Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
Tire Pressure
Monitoring System
Warning Light
*
If the tire pressure monitoring system has a malfunction, the tire pressure warning
light fl ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an Authorized Mazda Dealer as soon as
possible.
WARNING
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a fl at, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed
to a place where air may be added and the system monitored again by an Authorized
Mazda Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Have the problem taken care of as soon as possible before it develops into a more
serious situation that could lead to tire failure and a dangerous accident.
(Red)
(Illuminate)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) fl ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
