Page 482 of 585
7–13
If Trouble Arises
Flat Tire
7. Put the fl at tire into the trunk/luggage
compartment on the left and toward the
back.
8. (Split-folding type seat)
Fold the rear seatback forward on the
right side of the rear seat.
9. (Split-folding type seat)
Unlock the rear seatback on the left
side and assure a clearance to pass the
belt.
(One-piece folding type seat)
Unlock the rear seatback and assure a
clearance to pass the belt.
10. Pass the belt through the rear seatback
as shown in the fi gure.
After passing the belt through, return
the rear seatback to the original
position.
(Split-folding type seat)
Belt
(One-piece folding type seat)
Belt
NOTE
Pass the belt underneath the seatbelts.
BeltSeat belt
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 483 of 585
7–14
If Trouble Arises
Flat Tire
11. Pass the buckle through the wheel as
shown in the fi gure and secure it so that
the buckle does not contact the wheel.
(Aluminum wheel)
(Steel wheel)
12. Pass the belt through the buckle, then
pull the belt end to secure the fl at tire.
13. (Split-folding type seat)
Return the rear seatback on the right
side of the rear seatback to its original
position.
14. Remove the tire blocks and store the
tools and jack.
15. Check the infl ation pressure. Refer to
Tires on page 9-10 .
16. Have the fl at tire repaired or replaced
as soon as possible.
NOTE
Do not press the tire pressure monitoring
system set switch after installing the spare
tire. The switch is only to be pressed after
installing the repaired fl at tire or installing
a replacement tire (page 4-21 ).
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could aff ect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling,
store them properly.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 484 of 585
7–15
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative () terminal of the battery.
Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 497 of 585
*Some models.7–28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
Air Bag/Front Seat
Belt Pretensioner
System Warning
Light
A system malfunction is indicated if the warning light constantly fl ashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized
Mazda Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
Tire Pressure
Monitoring System
Warning Light
*
If the tire pressure monitoring system has a malfunction, the tire pressure warning
light fl ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an Authorized Mazda Dealer as soon as
possible.
WARNING
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a fl at, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed
to a place where air may be added and the system monitored again by an Authorized
Mazda Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Have the problem taken care of as soon as possible before it develops into a more
serious situation that could lead to tire failure and a dangerous accident.
(Red)
(Illuminate)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) fl ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10 .
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 500 of 585
7–31
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning Action to be taken
Seat Belt
Warning
Light
With warning light for front passenger's seat
The seat belt warning light illuminates if the driver or front passenger's seat is occupied and the
seat belt is not fastened with the ignition switched ON.
Without warning light for front passenger's seat
The seat belt warning light illuminates if the driver's seat is occupied and the seat belt is not
fastened with the ignition switched ON.
Seat belt reminder
NOTE
Consult an Authorized Mazda Dealer to deactivate or restore the belt reminder. Though the belt
reminder can be deactivated, doing so will defeat the purpose of the system to warn the driver and
the front passenger in the event that their seat belts are not fastened. For the safety of the driver
and front passenger, Mazda recommends not deactivating the belt reminder.
Front seat
If the vehicle is driven with the driver or front passenger's seat belt unfastened, the seat belt
warning light illuminates and a warning beep sounds.
NOTE
Some models do not have the seat belt reminder function for the front passenger's seat.
If the driver or front passenger's seat belt is unfastened (only when the front passenger seat is
occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light
will fl ash and a beep sound will be heard. After a short time, the warning light stops fl ashing, but
remains illuminated, and the beep sound stops.
Until a seat belt is fastened or a given period of time has elapsed, the beep sound will not stop even
if the vehicle speed falls below 20 km/h (12 mph).
NOTE
yThe warning light fl ashes and a beep sound will be heard for about 6 seconds if the driver's seat
belt is not fastened when the ignition is switched ON.
y If a driver or front passenger's seat belt is unfastened after the beep sound turns off (warning light
remains illuminated), and the vehicle speed exceeds 20 km/h (12 mph), the warning light fl ashes
and beep sound activates again.
yPlacing heavy items on the front passenger seat may cause the front passenger seat belt warning
function to operate depending on the weight of the item.
yTo allow the front passenger seat weight sensor to function properly, do not place and sit on
an additional seat cushion on the front passenger seat. The sensor may not function properly
because the additional seat cushion could cause sensor interference.
y When a small child sits on the front passenger seat, it is possible that the warning light will not
operate.
Door-Ajar
Warning
Light The light turns on if any door is not closed
securely. Close the door securely.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 505 of 585
7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Warning Sound is Activated
Lights-On Reminder
The lights-on reminder is operable when
the time setting *1 of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or the ignition is switched off, a
continuous beep sound will be heard when
the driver's door is opened.
*1 If the light switch is left on, the auto
headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-12 .
NOTE
y When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-37 ) overrides
the lights-on reminder.
y A personalized function is available to
change the sound volume for the lights-
on reminder.
Refer to Personalization Features on
page 9-12 .
Air Bag/Front Seat Belt
Pretensioner System Warning
Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and the
warning light illuminates, a warning beep
sound will be heard for about 5 seconds
every minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35
minutes. Have your vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the front
seat belt pretensioner system will not
deploy and this could result in death or
serious injury. Contact an Authorized
Mazda Dealer to have the vehicle
inspected as soon as possible.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 506 of 585
7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the front passenger's seat belt
is not fastened and the vehicle is driven
at a speed faster than about 20 km/h (12
mph), a beep sound will be heard again for
a specifi ed period of time.
NOTE
y Some models do not have the seat
belt warning function for the front
passenger's seat.
y Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function to
operate depending on the weight of the
item.
y To allow the front passenger seat
weight sensor to function properly, do
not place and sit on an additional seat
cushion on the front passenger seat.
The sensor may not function properly
because the additional seat cushion
could cause sensor interference.
y When a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened while
the ignition is switched to ACC, a
continuous beep sound will be heard to
notify the driver that the ignition has not
been switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
Key Removed from Vehicle
Warning Beep
A beep sound will be heard 6 times and
the KEY warning light (red) will fl ash
continuously if the ignition has not been
switched off, all the doors are closed, and
the key is removed from the vehicle. This
is to notify the driver that the key has been
removed from the vehicle and the ignition
has not been switched off.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with a door
open or ajar or the ignition has not been
switched off while the key is being carried,
a beep will be heard for about 2 seconds
to indicate that the doors and the liftgate/
trunk lid cannot be locked.
Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the trunk with all doors
locked and the trunk lid closed, a beep
sound is heard for about 10 seconds to
remind the driver the key has been left in
the trunk. If this happens, open the trunk
lid by pressing the electric trunk lid opener
and remove the key. A key removed from
the trunk may not function because its
functions may have been temporarily
suspended. To restore the key function,
perform the applicable procedure (page
3-8 ).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 531 of 585
8–20
Customer Information and Reporting Safety Defects

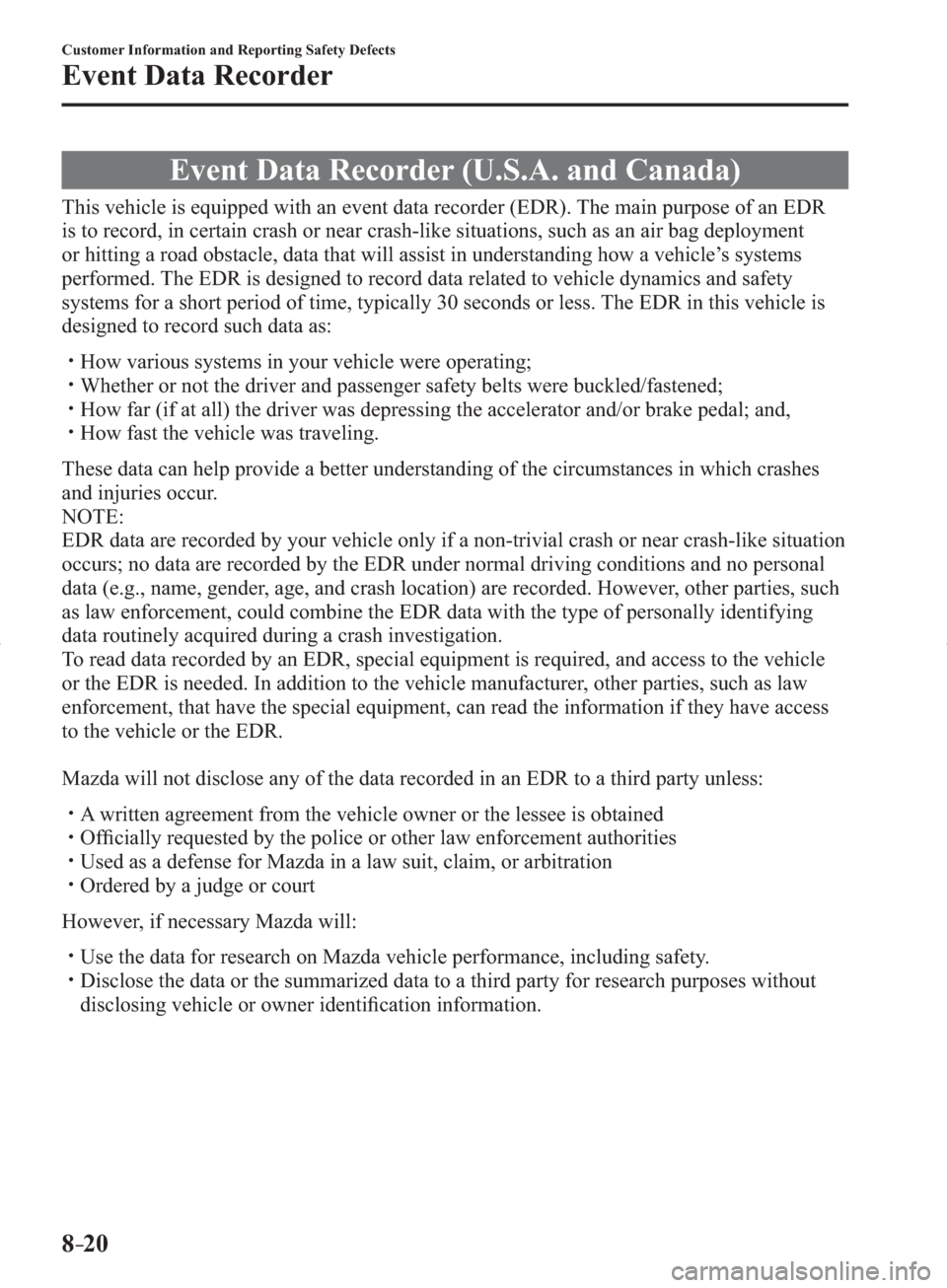

Event Data Recorder
Event Data Recorder (U.S.A. and Canada)
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like situations, such as an air bag deployment
or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
y How various systems in your vehicle were operating;
y Whether or not the driver and passenger safety belts were buckled/fastened;
y How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
y How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which crashes
and injuries occur.
NOTE:
EDR data are recorded by your vehicle only if a non-trivial crash or near crash-like situation
occurs; no data are recorded by the EDR under normal driving conditions and no personal
data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such
as law enforcement, could combine the EDR data with the type of personally identifying
data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle
or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law
enforcement, that have the special equipment, can read the information if they have access
to the vehicle or the EDR.
Mazda will not disclose any of the data recorded in an EDR to a third party unless:
y A written agreement from the vehicle owner or the lessee is obtained
y Offi cially requested by the police or other law enforcement authorities
y Used as a defense for Mazda in a law suit, claim, or arbitration
y Ordered by a judge or court
However, if necessary Mazda will:
y Use the data for research on Mazda vehicle performance, including safety.
y Disclose the data or the summarized data to a third party for research purposes without
disclosing vehicle or owner identifi cation information.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 579 of 585
10–2
Index
A
Accessory Socket .............................. 5-136
Active Driving Display ....................... 4-19
Adaptive Front Lighting System
(AFS).................................................. 4-46
Add-On Non-Genuine Parts and
Accessories ......................................... 8-18
Advanced Key
Advanced keyless entry system ...... 3-9
Advanced Key removed from vehicle
warning beep ....................................... 7-37
Operational range .......................... 3-10
Air Bag/Front Seat Belt Pretensioner
System Warning Beep ......................... 7-36
Air Bag Systems ................................. 2-40
Ambient Temperature Display ............ 4-16
Antilock Brake System (ABS) ............ 4-79
Audio Control Switch
Adjusting the Volume .................... 5-58
Mute Switch .................................. 5-59
Seek Switch ................................... 5-58
Audio System ...................................... 5-16
AUX/USB/iPod mode ................... 5-59
Antenna ......................................... 5-16
Audio Control Switch ................... 5-58
Audio Set (Type A) ....................... 5-26
Audio Set (Type B) ....................... 5-38
Operating Tips for Audio System ... 5-17
Satellite Radio ............................... 5-48
Automatic Transaxle ........................... 4-30
Active Adaptive Shift (AAS) ........ 4-32
Direct Mode .................................. 4-39
Driving tips.................................... 4-40
Manual shift mode......................... 4-33
Shift-lock system ........................... 4-32
Shift position indication ................ 4-31
Warning light ................................. 4-31
B
Battery ................................................. 6-37
Maintenance .................................. 6-38
Specifi cations .................................. 9-4
Battery runs out ................................... 7-15
Jump-Starting ................................ 7-15
Blind Spot Monitoring (BSM)
System ............................................... 4-108
BSM OFF switch......................... 4-114
BSM warning light ...................... 4-113
Blind Spot Monitoring (BSM) .... 4-109
Care of radar sensors ................... 4-114
Blind Spot Monitoring (BSM) System
warning beep ....................................... 7-38
Blind Spot Monitoring (BSM) system
Rear Cross Traffi c Alert (RCTA) ... 4-111
Bluetooth® ........................................... 5-75
Bluetooth® Audio (Type A) ......... 5-114
Bluetooth® Audio (Type B) ......... 5-116
Bluetooth® Hands-Free (Type A) ... 5-95
Bluetooth® Hands-Free (Type B) ... 5-102
Troubleshooting .......................... 5-129
Body Lubrication ................................ 6-32
Bottle Holder ..................................... 5-138
Brakes
Brakes assist .................................. 4-70
Foot brake...................................... 4-68
Pad wear indicator ......................... 4-69
Parking brake ................................ 4-69
Warning light ................................. 4-69
Break-In .............................................. 3-45
C
Capacities .............................................. 9-5
Carbon Monoxide ............................... 3-29
Cell Phones ......................................... 8-19
Center Console .................................. 5-140
Child Restraint
Child-restraint precautions ............ 2-22
Installing child-restraint systems... 2-28
LATCH child-restraint systems ..... 2-36
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 582 of 585
10–5
Index
Interior Care ........................................ 6-69
Cleaning the Lap/Shoulder Belt
Webbing ........................................ 6-71
Cleaning the Upholstery and Interior
Trim ............................................... 6-70
Cleaning the Window Interiors ..... 6-71
Dashboard Precautions .................. 6-69
Maintenance of the Active Driving
Display .......................................... 6-71
Interior Lights ................................... 5-134
Luggage Compartment Light ...... 5-134
Map Lights .................................. 5-134
Overhead Lights .......................... 5-134
J
Jack ....................................................... 7-4
Jump-Starting ...................................... 7-15
K
Key Suspend Function .......................... 3-8
Key left-in-luggage compartment
warning beep (With the advanced keyless
function) .............................................. 7-37
Key left-in-vehicle warning beep (With
the advanced keyless function) ........... 7-38
Keyless Entry System ........................... 3-3
Keys ...................................................... 3-2
Key suspend function ...................... 3-8
Transmitter ...................................... 3-4
L
Label Information ................................. 9-2
Lane-Change Signals .......................... 4-52
Lane Departure Warning System
(LDWS) ............................................. 4-119
Canceling the system................... 4-123
LDWS warning ........................... 4-124
When the system operates ........... 4-122
Lane departure warning system (LDWS)
warning sound ..................................... 7-38 Liftgate ................................................ 3-21
Light Bulbs
Replacement .................................. 6-45
Specifi cations .................................. 9-9
Lighting Control.................................. 4-41
Lights-on reminder .............................. 7-36
Lubricant Quality .................................. 9-4
Luggage Compartment Light ............ 5-134
M
Maintenance
Information ...................................... 6-2
Scheduled ........................................ 6-4
Maintenance Monitor .......................... 6-20
Manual Transaxle Operation ............... 4-27
Recommendations for shifting ...... 4-29
Map Lights ........................................ 5-134
Mazda Radar Cruise Control (MRCC) ... 4-91
Close Proximity Warning .............. 4-94
Display Indication ......................... 4-94
Radar Sensor Handling ................. 4-99
Setting the System ......................... 4-95
Shift-up/Shift-down Request
Display .......................................... 4-99
Mazda Radar Cruise Control (MRCC)
System warnings ................................. 7-39
Meters and Gauges .............................. 4-12
Mirror Defroster .................................. 4-57
Mirrors
Outside mirrors.............................. 3-33
Rearview mirror ............................ 3-34
Money-Saving Suggestions ................ 3-45
Moonroof ............................................ 3-39
O
Odometer and Trip Meter .................... 4-13
Outside Mirrors ................................... 3-33
Outside Temperature Display .............. 4-16
Over Rev. buzzer ................................. 7-39
Overhead Console ............................. 5-139
Overhead Lights ................................ 5-134
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
