When Liftgate/Trunk LidCannot be Opened
▼When Liftgate/Trunk Lid Cannot be
Opened
If the battery is dead
, the liftgate/trunk lid
cannot be unlocked and opened.
In this case, the liftgate/trunk lid can be
unlocked by taking care of the dead
battery situation.
Refer to Jump-Star ting on page 7-17.
If the liftgate/trunk lid cannot be unlocked
even if the dead battery situation has been
resolved, the electrical system may have a
malfunction.
In this case, the liftgate/trunk lid can be
opened using the following procedure as
an emergency measure.
(5–door)
1. Wrap the end of a flathead screwdriver in a cloth and remove the cover on the
interior surface of the liftgate using it.
2. Turn the lever to the right to unlock the
liftgate.
(4–door)
1. Open the cover.
2.(With theft-prevention cover)
Open the cap.
If Trouble Arises
When Liftgate/Trunk Lid Cannot be Opened
7-46
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

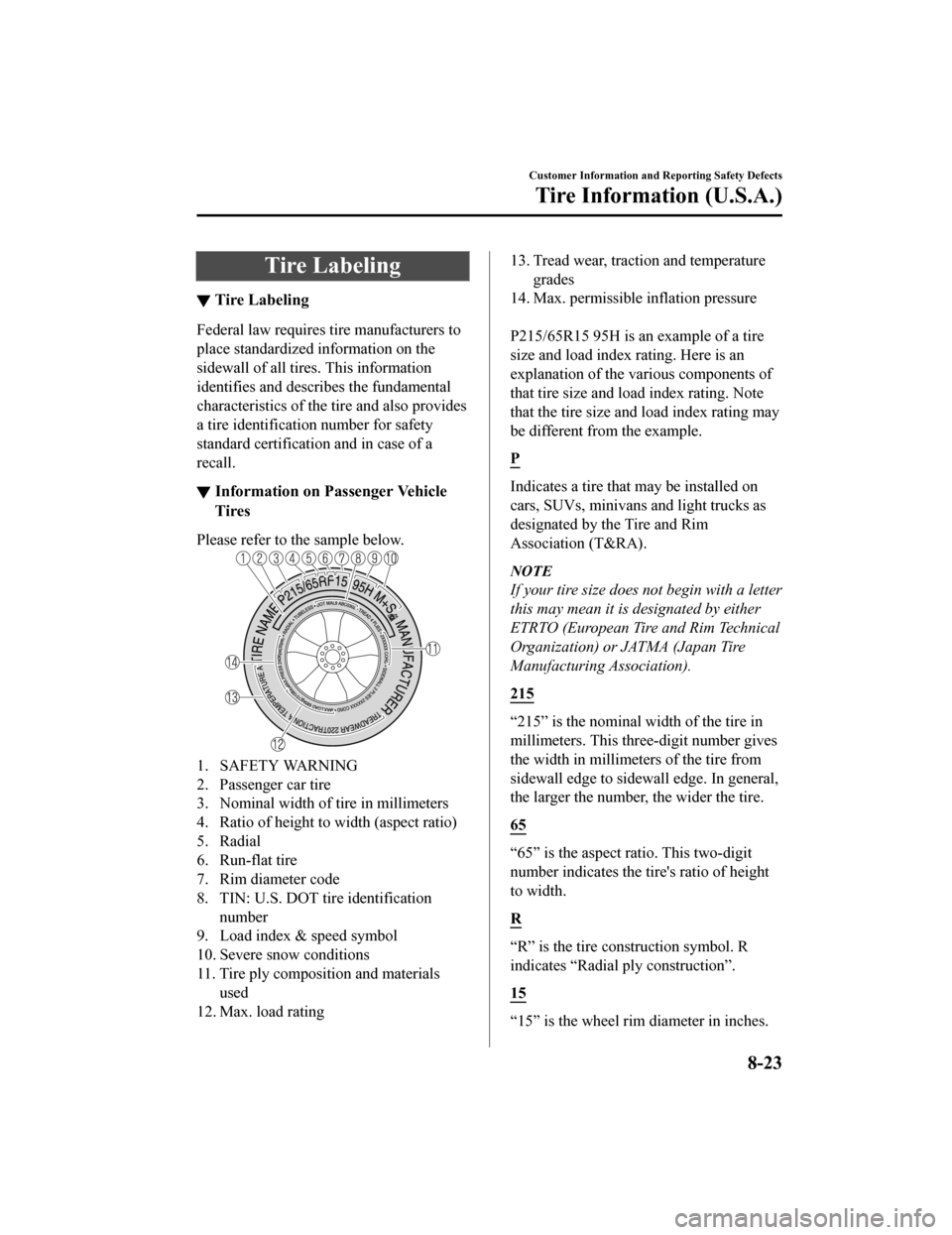

Tire Labeling
▼Tire Labeling
Federal law requires tire manufacturers to
place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamental
characteristics of the tire and also provides
a tire identification number for safety
standard certification and in case of a
recall.
▼Information on Passenger Vehicle
Tires
Please refer to the sample below.
1. SAFETY WARNING
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Run-flat tire
7. Rim diameter code
8. TIN: U.S. DOT tir
e identification
number
9. Load index & speed symbol
10. Severe snow conditions
11. Tire ply composition and materials used
12. Max. load rating
13. Tread wear, traction and temperature grades
14. Max. permissible inflation pressure

P215/65R15 95H is an example of a tire
size and load index rating. Here is an
explanation of the various components of
that tire size and load index rating. Note
that the tire size and load index rating may
be different from the example.
P
Indicates a tire that may be installed on
cars, SUVs, minivans and light trucks as
designated by the Tire and Rim
Association (T&RA).
NOTE
If your tire size does not begin with a letter
this may mean it is designated by either
ETRTO (European Tire and Rim Technical
Organization) or JATMA (Japan Tire
Manufacturing Association).
215
“215” is the nominal w idth of the tire in
millimeters. This three-digit number gives
the width in millimeters of the tire from
sidewall edge to sidewall edge. In general,
the larger the number, the wider the tire.
65
“65” is the aspect ratio. This two-digit
number indicates the tire's ratio of height
to width.
R
“R” is the tire construction symbol. R
indicates “Radial ply construction”.
15
“15” is the wheel rim diameter in inches.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-23
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-23.
▼Safety Practices
The way you drive has a great deal to do
with your tire mileage and safety. So
cultivate good driving habits for your own
benefit.
Observe posted speed
limits and drive at
speeds that are safe for the existing
weather conditions
Avoid fast starts, stops and turns
Avoid potholes and objects on the road
Do not run over curbs or hit the tire
against the curb when parking
CAUTION
If you feel a sudden vibration or ride
disturbance while driving or you suspect
your tire or vehicle has been damaged,
immediately reduce yo ur speed. Drive with
caution until you can safely pull off the
road. Stop and inspect the tire for damage.
If the tire is under-inflated or damaged,
deflate it, remove the tire and rim and
replace it with your spare tire. If you cannot
detect a cause, have the vehicle towed to
the nearest vehicle or tire dealer to have
the vehicle inspected.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-30
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Interior light
Light bulbCategory
Wa t t ag e UN-R*1
Overhead light (Front)/Map lights
LED*2―
Overhead light (Rear) LED
*2―
Vanity mirror lights
*LED*2―
Trunk light (4-Door) 5 ―
Luggage compartmen t light (5-Door)
LED
*2―
*1 UN-R stands for United Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation press
ure.
Refer to Tire Pressure Label on page 9-2.
Refer to Tire Inflation Pressure on page 6-31.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
205/60R16 92H M+S 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89V M+S 250 kPa (36 psi)250 kPa (36 psi)
Specifications
Specifications
*Some models.9-9
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Cruise Control................................. 4-212Cruise control switc h.................4-212
Cruise standby indication (white)/
cruise set indication (green)...... 4-212
Cup Holder........................................ 5-38
Customer Assistance (Canada)........... 8-6
Customer Assistance (Mexico)......... 8-10
Customer Assistance (Puerto Rico).... 8-9
Customer Assistance (U.S.A.)............ 8-2
Cylinder Deactivation... .................... 4-11
D
Daytime Running Lights................... 4-49
Defogger........... ................................. 4-56
Mirror...........................................4-57
Rear window........... .................... 4-56
Dimensions.......................................... 9-6
Display.............................................. 4-12
Distance & Speed Alert (DSA)....... 4-106 Indication on display................. 4-107
Door Locks........................................ 3-11
Door-ajar Warning Beep................... 7-45
Driver Attention Aler t (DAA).........4-107
Driver Monitoring Cam era..............4-211
Driver Monitoring (DM)................. 4-109
Drive Selection..................................4-79
Driving In Flooded Ar ea...................3-49
Driving on Uneven Road.................. 3-50
Driving Position Memo ry................. 2-10
Driving Tips...................................... 3-44 Automatic transmission............... 4-43
Break-in period............................ 3-44
Driving in flooded a rea............... 3-49
Driving on uneven road...............3-50
Floor mat..................................... 3-46
Hazardous driving.. ..................... 3-45
Overloading............. .................... 3-49
Rocking the vehicle. .................... 3-46
Saving fuel and protection of the
environment................................. 3-44
Winter driving............................. 3-47
Dynamic Stability Control (DSC)..... 4-77 DSC OFF indicator light............. 4-78
DSC OFF switch......................... 4-78
TCS/DSC indicator light............. 4-77
E
Electric Parking Brak e (EPB)........... 4-64
Electric Parking Brake (EPB) Warning
Beep...................................................7-43
Emergency Starting Push-starting................................ 7-20
Starting a flooded engine............ 7-20
Emergency Towing Tiedown hooks........ .................... 7-24
Towing description...................... 7-23
Emission Control System..................3-26
Engine Coolant.........................................6-17
Engine compartment overview.... 6-14
Exhaust gas..................................3-26
Hood release................................ 6-12
Oil................................................ 6-15
Starting...........................................4-5
Essential Information.......................... 6-2
Event Data Recorder......................... 8-19
Excessive Speed Warning................. 7-45
Exterior Care..................................... 6-44 Aluminum wheel maintenance.... 6-49
Bright-metal maint enance........... 6-48
Maintaining the fini sh................. 6-45
Plastic part maintenance.............. 6-49
F
Flasher
Hazard warning........................... 4-58
Headlights.................................... 4-44
Flat Tire
Changing a flat tire........................7-7
Mounting the spare tire............... 7-12
10-3
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Removing a flat tire...................... 7-8
Floor Mat.......................................... 3-46
Fluids Brake/Clutch................................ 6-19
Classification................................. 9-4
Washer......................................... 6-19
Foot Brake.........................................4-63
Forward Sensing Camera (FSC)..... 4-200
Front Camera/Side Cameras/Rear
Camera............................................ 4-210
Front Cross Traffic Alert (FCTA)....4-111
Front Cross Traffic Alert (FCTA)
Warning Beep.................................... 7-44
Front Radar Sensor...... ................... 4-204
Front Side Radar Sensor................. 4-206
Fuel
Filler lid and cap......................... 3-27
Requirements............................... 3-25
Tank capacity.................................9-5
Fuses.................................................. 6-38 Panel description......................... 6-40
Replacement................................ 6-38
G
Gauges............................................... 4-12
Glove Compartment.......................... 5-42
H
Hazardous Driving............................ 3-45
Hazard Warning Flasher....................4-58
HeadlightsComing home light......................4-48
Flashing....................................... 4-47
High-low beam............................ 4-47
Leaving home light..................... 4-48
Leveling....................................... 4-49
Head Restraint................................... 2-17
High Beam Control System
(HBC)................................................ 4-88
High Beam Control System (HBC)
indicator light (green)..................4-89
Hill Launch Assist (HL A)................ 4-73
HomeLink Wireless Control
System............................................... 4-58
Hood Release............. ....................... 6-12
Horn...................................................4-57
I
If a Warning Light Turns On or
Flashes............................................... 7-27
If the Active Driving Display Does Not
Operate.............................................. 7-48
Ignition Not Switched Off (STOP)
Warning Beep.................................... 7-42
Ignition Switch.................................... 4-4
Illuminated Entry System................. 5-36
Immobilizer System..... ..................... 3-40
Inside Trunk Release Lever.............. 3-23
Inspecting Brake/Clutch Fluid
Level.................................................. 6-19
Inspecting Coolant Level.................. 6-17
Inspecting Engine Oil Level............. 6-16
Inspecting Washer Fluid Level......... 6-19
Instrument Cluster............................. 4-12 Average fuel econom y.................4-20
Compass display.......................... 4-21
Current fuel economy. .................4-20
Dashboard illuminati on............... 4-18
Distance-to-empty... .................... 4-20
Engine coolant temperature
gauge............................................4-17
Fuel gauge................................... 4-17
Indication/indicator lights............4-25
i-ACTIVSENSE display..............4-21
Message Display..........................4-22
Message indicated on multi-
information display......................7-38
Multi-information display........... 4-14
Odometer..................................... 4-16
10-4
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Tire rotation................................. 6-32
Uniform tire quality grading system
(UTQGS)..................................... 8-21
Tire Information
Location of the tire label
(placard)....................................... 8-27
Steps for determining the correct load
limit..............................................8-34
Tire labeling.................................8-23
Tire maintenance......................... 8-29
Vehicle loading............................ 8-31
Tire Pressure Monitoring System.... 4-216
Touch Sensor Inoperable Warning Beep
(With the advanced keyless
function)............................................ 7-43
To w i n g
Recreational towing.....................3-51
Trailer towing.............................. 3-51
Towing Description........................... 7-23
Traction Control System (TCS)........ 4-76
TCS/DSC indicator light............. 4-76
Traffic Jam Assist (TJA).................4-137
Close proximity warning........... 4-142
Display indication......................4-141
Setting the system..................... 4-143
Shift-up/shift-down request
display........................................4-150
Stop hold control....................... 4-150
Traffic Sign Recognition System
(TSR)................................................. 4-99
Trouble Battery runs out........................... 7-17
Emergency starting...................... 7-20
Flat tire.......................................... 7-7
Overheating................................. 7-21
Parking in an emergency............... 7-2
When liftgate/tr unk lid cannot be
opened..........................................7-46
Trunk Lid............ .............................. 3-19
Inside trunk release lever............ 3-23When liftgate/tr unk lid cannot be
opened..........................................7-46
Trunk Light....... ................................ 5-35
Turn and Lane-Change Signals......... 4-50
Turn Signals...................................... 4-50
U
Ultrasonic Sensor............................ 4-209
V
Vehicle Information Labels
Chassis number..............................9-2
Engine number.............................. 9-3
Motor vehicle safety standard
label............................................... 9-2
Tire pressure label......................... 9-2
Vehicle emission control information
label............................................... 9-2
Vehicle identification number........9-2
Vehicle Problem Warning Beep........ 7-44
W
Warning Sound is Activated Air bag/front seat belt pretensioner
system warning beep................... 7-41
AUTOHOLD warning beep........ 7-44
Blind Spot Monitoring (BSM)
warning beep............................... 7-44
Brake override warning beep...... 7-43
Collision warning........................ 7-45
Door-ajar warning beep...............7-45
Electric Parking Brake (EPB)
warning beep............................... 7-43
Excessive speed warning.............7-45
Front Cross Traffic Alert (FCTA)
Warning Beep.............................. 7-44
Ignition not switched off (STOP)
warning beep............................... 7-42
10-9
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
