Never use a rear-facing child-restraint
system in the front seat with an air bag
that could deploy:
Rear-facing child-restraint systems on the
front seat are particularly dangerous even
though you may feel assured that a front
passenger air bag will not deploy based on
the fact that the front passenger air bag
deactivation indicator light illuminates.
The child-restraint system can be hit by a
deploying air bag and moved violently
backward resulting in serious injury or
death to the child.
Do not sit too close to the driver and front
passenger air bags:
Sitting too close to the driver and front
passenger air bag modules or placing
hands or feet on them is extremely
dangerous. The driver and front passenger
air bags inflate with great force and speed.
Serious injuries could occur if someone is
too close. The driver should always hold
onto only the rim of the steering wheel. The
front seat passenger should keep both feet
on the floor. Front seat occupants should
adjust their seats as far back as possible
and always sit upright against the
seatbacks with seat belts worn properly.
Sit in the center of the seat and wear seat
belts properly:
Sitting too close to the side air bag modules
or placing hands on them, or sleeping up
against the door or hanging out the
windows is extremely dangerous. The side
and curtain air bags inflate with great force
and speed directly expanding along the
door on the side the car is hit. Serious injury
could occur if someone is sitting too close
to the door or leaning against a window, or
if rear seat occupants grab the sides of the
front seatbacks. Give the side and curtain
air bags room to work by sitting in the
center of the seat while the vehicle is
moving with seat belts worn properly.
Do not attach objects on or around the
area where driver and front passenger air
bags deploy:
Attaching an object to the driver and front
passenger air bag modules or placing
something in front of them is dangerous. In
an accident, an object could interfere with
air bag inflation and injure the occupants.
Do not attach objects on or around the
area where a side air bag deploys:
Attaching objects to the front seat in such a
way as to cover the outboard side of the
seat in any way is dangerous. In an
accident the object could interfere with the
side air bag, which inflates from the
outboard side of the front seats, impeding
the added protection of the side air bag
system or redirecting the air bag in a way
that is dangerous. Furthermore, the bag
could be cut open releasing the gas.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Do not place luggage or other objects
under the front seats:
Placing luggage or other objects under the
front seats is dangerous. The components
essential to the supplemental restraint
system could be damaged, and in the event
of a side collision, the appropriate air bags
may not deploy, which could result in
death or serious injury. To prevent damage
to the components essential to the
supplemental restraint system, do not
place luggage or other objects under the
front seats.
Do not operate a vehicle with damaged air
bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat belt
pretensioner system components must be
replaced after any collision which caused
them to deploy or damage them. Only a
trained Authorized Mazda Dealer can fully
evaluate these systems to see that they will
work in any subsequent accident. Driving
with an expended or damaged air bag or
pretensioner unit will not afford you the
necessary protection in the event of any
subsequent accident which could result in
serious injury or death.
Do not remove interior air bag parts:
Removing any components such as the
front seats, front dashboard, the steering
wheel or parts on the front and rear
window pillars and al ong the roof edge,
containing air bag parts or sensors is
dangerous. These parts contain essential
air bag components. The air bag could
accidentally activate and cause serious
injuries. Always have an Authorized Mazda
Dealer remove these parts.Properly dispose of the air bag system:
Improper disposal of an air bag or a vehicle
with live air bags in it can be extremely
dangerous. Unless all safety procedures are
followed, injury could result. Have an
Authorized Mazda Deal er safely dispose of
the air bag system or scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system modified
to accommodate a person with certain
medical conditions in accordance with a
certified physician, contact an
Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.)” (page
8-2).
When an air bag deploys, a loud
inflation noise can be heard and some
smoke will be released. Neither is likely
to cause injury, however, the texture of
the air bags may cause light skin
injuries on body parts not covered with
clothing through friction.
Should you sell your Mazda, we urge
you to tell the new owner of its air bag
systems and that familiarization with all
instructions about them, from the
Owner's Manual, is important.
Essential Safety Equipment
SRS Air Bags
2-60
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

How the SRS Air BagsWo r k
▼How the SRS Air Bags Work
Your Mazda is equipped with the
following types of SRS air bags. SRS air
bags are designed to work together with
the seat belts to help to reduce injuries
during an accident.
The SRS air bags are designed to provide
further protection for passengers in
addition to the seat belt functions. Be sure
to wear seat belts properly.
▼Front Seat Bel
t Pretensioners
The front seat belt pretensioners are
designed to deploy in moderate or severe
frontal, near frontal collisions.
In addition, the pretensioners operate
when a side collision or a roll-over
accident is detected. The pretensioners
operate differently depending on what
types of air bags are equipped. For more
details about seat belt pretensioner
operation, refer to the SRS Air Bag
Deployment Criteria (page 2-68).
▼Driver Air Bag
The driver's air bag is mounted in the
steering wheel.
When air bag crash sensors detect a frontal
impact of greater than moderate force, the
driver's air bag inflates quickly helping to
reduce injury mainly to the driver's head
or chest caused by directly hitting the
steering wheel.
For more details about air bag
deployment, refer
to "SRS Air Bag
Deployment Criteria" (page 2-68).
(With Front Passenger Occupant
Classification System)
The driver's dual-stag e air bag controls air
bag inflation in two energy stages. During
an impact of moderate severity, the
driver's air bag deploys with lesser energy,
whereas during more severe impacts, it
deploys with more energy.
Essential Safety Equipment
SRS Air Bags
2-64
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Limitations to roll-over detection (With
Front Passenger Occupant
Classification System):
The following illustration is an example of
an accident that may not be detected as a
roll-over accident. Therefore, the front
seat belt pretensioners and curtain air bags
may not deploy.

Pitch end over end
Driver and Front
Passenger Occupant
Classification System
*
▼ Driver and Front Passenger
Occupant Classification System
First, please read "Supplemental Restraint
System (SRS) Precau
tions" (page 2-55)
carefully.
▼ Driver Seat Slide Position Sensor
Your vehicle is equipped with a driver seat
slide position sensor as a part of the
supplemental restrain
t system. The sensor
is located under the driver seat.
The sensor determines whether the driver
seat is fore or aft of a reference position
and sends the seat position to the
diagnostic module (SAS unit).
The SAS unit is designed to control the
deployment of the driver air bag
depending on how close the driver seat is
to the steering wheel.
The air bag/front seat belt pretensioner
system warning light flashes if the sensor
has a possible malfunction (page 2-67).
Essential Safety Equipment
SRS Air Bags
*Some models.2-71
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

WA R N I N G
Never stop the engine when going down a
hill:
Stopping the engine when going down a
hill is dangerous. This causes the loss of
power steering and power brake control,
and may cause damage to the drivetrain.
Any loss of steering or braking control
could cause an accident.
Hazardous Driving
▼Hazardous Driving
WA R N I N G
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear while driving
on slippery surfaces is dangerous. The
sudden change in tire speed could cause
the tires to skid. This could lead to loss of
vehicle control and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
Be cautious and allow extra distance for
braking.
Avoid sudden braking and sudden
maneuvering.
Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-75.
If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
For more traction in
starting on slippery
surfaces such as ice or packed snow, use
sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Before Driving
Driving Tips
3-45
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Power Steering................................. 4-82Power Steering............................4-82
i-ACTIVSENSE............................... 4-83 i-ACTIVSENSE
*........................4-83
Adaptive Front Lighting System
(AFS)
*........................................ 4-88
High Beam Control System
(HBC)
*........................................4-88
Lane Departure Warning System
(LDWS)
*.................................... 4-90
Blind Spot Monitoring (BSM)
*.........
.................................................... 4-94
Traffic Sign Recognition System
(TSR)
*........................................ 4-99
Distance & Speed Alert (DSA)
*........
.................................................. 4-106
Driver Attenti on Alert (DAA)
*..........
.................................................. 4-107
Driver Monitoring (DM)
*.........4-109
Front Cross Traffic Alert
(FCTA)
*.................................... 4-111
Rear Cross Traffic Alert (RCTA)
*.....
.................................................. 4-114
Mazda Radar Cruise Control
(MRCC) (Manual Transmission)
*.....
.................................................. 4-118
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) (Automatic
Transmission)
*.......................... 4-126
Traffic Jam Assist (TJA)
*.........4-137
Lane-keep Assist System (LAS)*......
.................................................. 4-151
Smart Brake Support (SBS)
*.... 4-155
Smart Brake Support [Rear] (SBS-
R)
*............................................ 4-157
Smart Brake Support [Rear
Crossing] (SBS-RC)
*............... 4-161
360° View Monitor
*................. 4-166
Forward Sensing Camera (FSC)
*......
.................................................. 4-200
Front Radar Sensor
*................. 4-204
Front Side Radar Sensor
*......... 4-206
Rear Side Radar Sensor
*.......... 4-208
Rear/Rear corner/Rear Side
Ultrasonic Sensor
*....................4-209
Front Camera/Side Cameras/Rear
Camera
*.................................... 4-210
Driver Monitoring Camera
*......4-211
Cruise Control............................... 4-212 Cruise Control
*.........................4-212
Tire Pressure Monitoring System
(TPMS)........................................... 4-216 Tire Pressure Monitoring System
(TPMS)..................................... 4-216
Rear View Monitor....................... 4-220 Rear View Monitor
*................. 4-220
Parking Sensor System................. 4-235 Parking Sensor System
*........... 4-235
4-2*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Warning Indication/Warning Lights
These lights turn on or flash to
notify the user of the system operation status or a system
malfunction.
Signal Warning Refer to
Brake System Warning Indication/Warning Light*17-27
ABS Warning Indication/Warning Light*1
Electronic Brake
Force Distribu‐ tion SystemWa r n i n g 7-28
ABS warning 7-30
Charging System Warning Indication/Warning Light*17-28
Engine Oil Warning Indication/Warning Light*17-28
High Engine Coolant Temperature Warning Indication 7-29
Power Steering Malfunction Indication/Indicator Light*17-29
Master Warning Indication 7-30
Brake Control System Warning Indication/Warning Light*17-30
Brake Override Warning Indication 7-31
Check Engine Indication/Light*17-31
*Automatic Transmission Warning Indication/Warning Light*17-31
*AWD Warning Indication/Warning Light*17-31
Air Bag/Front Seat Belt Pretensioner System Warning Indication/ Wa r n i n g
Light*17-32
When Driving
Instrument Cluster and Display
*Some models.4-23
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Indications
1. Manual shift mode indication
2. Gear position indication
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
Gear position indication
The numeral for the selected gear
illuminates.

NOTE
If the gears cannot be shifted down
when driving at higher speeds, the gear
position indication will flash twice to
signal that the gears cannot be shifted
down (to protect the transmission).
If the automatic transmission fluid
(ATF) temperature becomes too high,
there is the possibility that the
transmission will switch to automatic
shift mode, canceling manual shift mode
and turning off the gear position
indication illuminati
on. This is a normal
function to protect the AT. After the ATF
temperature has decreased, the gear
position indication illumination turns
back on and driving in manual shift
mode is restored.
▼ Manually Shifting Up
You can shift gears up by operating the
selector lever or
the steering shift
switches
*.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a hig her gear, tap the
selector lever back + once.

Using steering shift switch*
To shift up to a higher gear with the
steering shift switches, pull the UP switch
(+/OFF) towa rd you once with your
fingers.

1. UP switch (+/OFF)
When Driving
Automatic Transmission
*Some models.4-37
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

WA R N I N G
Keep your hands on the steering wheel rim
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
NOTE
When driving slowly, the gears may not
shift up.
Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In addition,
manual shift mode switches to automatic
shift mode while the accelerator pedal is
completely depressed.
This function is canceled while the DSC
is turned off. However, if the vehicle is
continuously driven at a high rpm, the
gears may automatically shift up to
protect the engine.
The steering shift switch can be used
temporarily even if the selector lever is
in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (+/OFF) is
pulled rearward for a sufficient amount
of time.

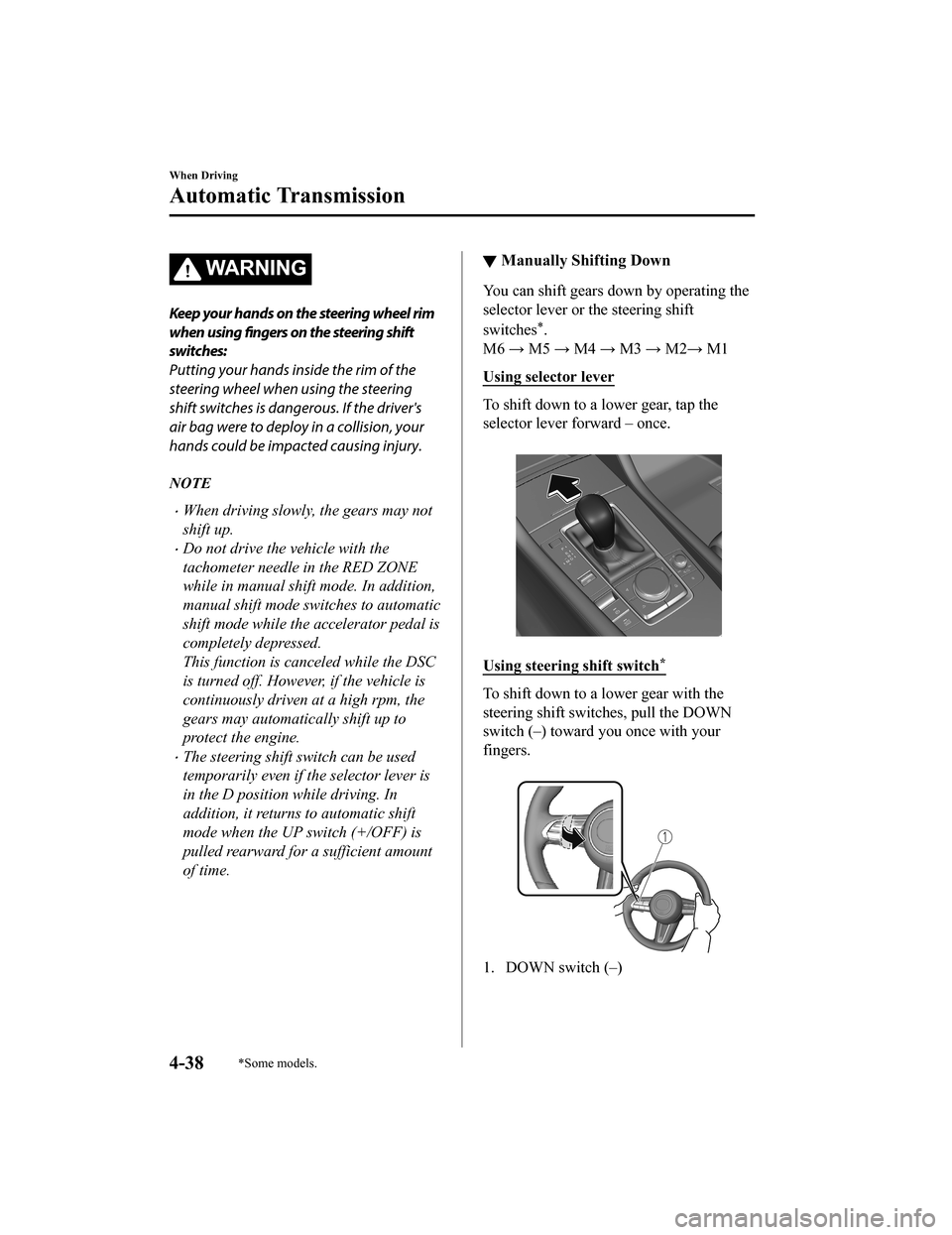

▼ Manually Shifting Down
You can shift gears down by operating the
selector lever or the steering shift
switches
*.
M6 → M5 → M4 → M3 → M2→ M1
Using selector lever
To shift down to a lower gear, tap the
selector lever forward – once.

Using steering shift switch*
To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch (–) to ward you once with your
fingers.

1. DOWN switch (–)
When Driving
Automatic Transmission
4-38*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

WA R N I N G
Do not use engine braking on slippery road
surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Keep your hands on the steering wheel rim
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
NOTE
When driving at high speeds, the gear
may not shift down.
During deceleration, the gear may
automatically shift down depending on
vehicle speed.
When depressing the accelerator fully,
the transmission will shift to a lower
gear, depending on vehicle speed.
However, the gears do not kickdown
while the DSC is turned off.
▼ Second Gear Fixed Mode
When the selector lever is moved back +
while the vehicle speed is about 10 km/h
(6.2 mph) or less, the t
ransmission is set in
the second gear fixed mode. The gear is
fixed in second while in this mode for
easier acceleration from a stop and driving
on slippery roads such as snow-covered
roads.
If the selector lever is moved back + or
forward – while in the second gear fixed
mode, the mode will be canceled.
When Driving
Automatic Transmission
4-39
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
