MAZDA MODEL 3 HATCHBACK 2020 (in English) Owner's Guide

(4–Door)
1. Open the trunk lid and pull the lever ofthe seatback you want to fold down.

2. Open a rear door and fold the rear seatforward.
(5–Door)
Press the push knob to fold down the
seatback.

To return the seatback to its upright
position:
WA R N I N G
When returning a seatback to its upright
position, make sure the 3-point seat belt is
not caught in the seatback and the 3-point
seat belt is not twisted.
If the seat belt is used while it is twisted and
caught in the seatback, the seat belt
cannot function at its full capacity, which
could cause serious injury or death.
When returning a seatback to its upright
position, make sure that it is firmly locked
and the red indication is not visible (5–
Door).
If the red indication is visible behind the
push knob, it means the seatback is not
locked. If the vehicle is driven without the
seatback locked, it could fold down
suddenly and cause an accident.

1. Locked position
2. Unlocked position
3. Red indication
Essential Safety Equipment
Seats
2-15
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

1. Make sure that the seat belt passesthrough the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.
(4–Door)
1. Seat belt guides

(5–Door)
1. Red indication
2. Seat belt guide

2. Press the seatback rearward and lock it in place. After returning the seatback
to its upright position, make sure it is
securely locked.
Essential Safety Equipment
Seats
2-16
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Armrest*
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.

WA R N I N G
Never put your hands and fingers around
the moving parts of the seat and armrest:
Putting your hands and fingers around the
moving parts of the seat and armrest is
dangerous as they could get injured.
Head Restraints
▼Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the rear
center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WA R N I N G
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted:
Driving with the head restraints adjusted
too low or removed is dangerous. With no
support behind your head, your neck could
be seriously injured in a collision.
▼Height Adjustment
Adjust the head restra
int so that the center
is even with the top of the passenger's
ears.

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the
stop-catch release, then push the head
restraint down.
Essential Safety Equipment
Seats
*Some models.2-17
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Front seats

Rear outboard seats

Rear center seat

▼Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the
stop-catch.
WA R N I N G
Always drive with the head restraints
installed when seats are being used and
make sure they are properly installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
After installing a head restraint, try lifting it
to make sure that it does not pull out:
Driving with an unsecured head restraint is
dangerous as the effectiveness of the head
restraint will be compromised which could
cause it to unexpectedly detach from the
seat.
Essential Safety Equipment
Seats
2-18
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

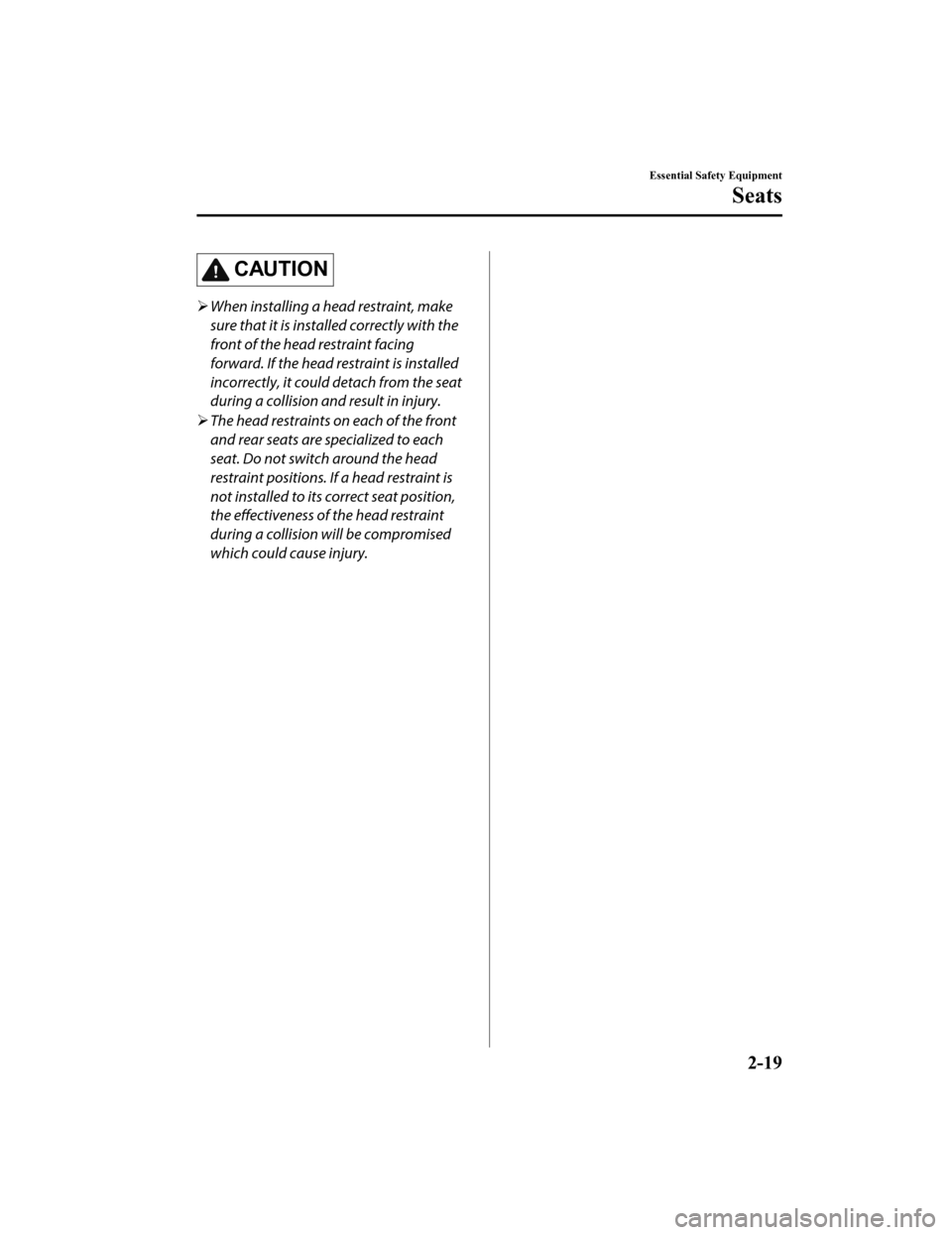

CAUTION
When installing a head restraint, make
sure that it is installed correctly with the
front of the head restraint facing
forward. If the head restraint is installed
incorrectly, it could detach from the seat
during a collision and result in injury.
 The head restraints on each of the front
and rear seats are specialized to each
seat. Do not switch around the head
restraint positions. If a head restraint is
not installed to its correct seat position,
the effectiveness of the head restraint
during a collision will be compromised
which could cause injury.
Essential Safety Equipment
Seats
2-19
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Seat Warmer*
▼Seat Warmer
The front seats can be warmed up while
the engine is running.
While the seat warme
r is operating, the
indicator light in the seat warmer switch
turns on according to t he set temperature.
Manual mode
When the seat warmer switch is pressed,
the seat warmer operates in manual mode.
The set temperature changes as shown in
the figure each time the seat warmer
switch is pressed.
1. OFF
2. High
3. Mid
4. Low
NOTE
If the engine is turned off while the seat
warmer is operating in manual mode, the
seat warmer does not turn on
automatically the next time the engine is
turned on. To turn the seat warmer on,
press the switch again.
Auto mode
The driver and front passenger's seat
warmer can be operated in auto mode
using the following procedure.
1. If “Link Seat & Climate Control Temperatures” has been disabled,
enable it using the following
procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Link Seat & Climate Control Temperatures”.
2. Press the AUTO switch.
While in auto mode, th e seat temperature
is automatically controlled in 4 levels
(High, Mid, Low, and OFF) according to
the conditions in the cabin.
NOTE
If the front passenger’s seat belt is
unfastened, the front passenger’s seat
warmer turns off.
If the seat warmer switch is pressed
during auto mode, the seat warmer on
the side where the switch was pressed
switches to manual mode. To return to
auto mode, press the AUTO switch.
If the engine is turned off while the seat
warmer is operating in auto mode, the
seat warmer operates in auto mode
again the next time the engine is turned
on.

Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-20*Some models.
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

WA R N I N G
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for the following people and could
cause a low-temperature burn.
Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
 Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
Heated Steering Wheel*
▼ Heated Steering Wheel
The grips on the left and right of the
steering wheel can be warmed up when
the ignition is switched ON.
While the heated steering wheel is
operating, the indicator light in the heated
steering wheel sw
itch turns on.
1. Heated steering wheel switch
2. Heating area

Manual mode
The heated steering wheel operates for
about 30 minutes when the heated steering
wheel switch is pressed, and then
automatically turns off.
To turn the heated steering wheel off
manually, press the switch again.
Auto mode
The heated steering wheel can be operated
in auto mode using the following
procedure.
1. If “Link Seat & Climate Control
Temperatures” has been disabled,
enable it using the following
procedure.
a) Select “Settings” from the Mazda
Connect home screen.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
*Some models.2-21
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

b) Select “Vehicle Settings”.
c) Enable “Link Seat & ClimateControl Temperatures”.
2. Press the AUTO switch.
While in auto mode, t he heated steering
wheel automatically o perates/turns off
according to the conditions in the cabin.
NOTE
If the heated steering wheel switch is
pressed during auto mode, the heated
steering wheel switches to manual
mode. To return to auto mode, press the
AUTO switch.
If the ignition is sw itched OFF while the
heated steering wheel is operating in
auto mode, the heated steering wheel
operates in auto mode again the next
time the ignition is switched ON.

CAUTION
The following types of persons should be
careful not to touch the steering wheel.
Otherwise, it could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-22
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Seat Belt Precautions
▼Seat Belt Precautions
Seat belts help to decrease the possibility
of severe injury during accidents and
sudden stops. Mazda recommends that the
driver and all passengers always wear seat
belts.

(Mexico)
All the seats have lap/shoulder belts.
These belts have retractors with inertia
locks that keep them
out of the way when
not in use. The locks allow the belts to
remain comfortable on users, but they will
lock in position du ring a collision.

(Except Mexico)
All of the seat belt retractors are designed
to keep the lap/shoulder belts out of the
way when not in use.
The driver's seat belt has no provisions for
child-restraint systems and has only an
emergency locking mode. The driver may
wear it comfortably, and it will lock during
a collision.
However, the front passenger's seat and all
rear lap/shoulder belt retractors operate in
two modes: emergency locking mode, and
for child-restraint systems, automatic
locking mode. While we recommend you
put all children in the rear seats, if you
must use the front passenger seat for a
child, slide the front passenger seat as far
back as possible and make sure any
child-restraint system is secured properly.
WA R N I N G
Always wear your seat belt and make sure
all occupants are properly restrained:
Not wearing a seat belt is extremely
dangerous. During a collision, occupants
not wearing seat belts could hit someone
or things inside the vehicle or even be
thrown out of the vehicle. They could be
seriously injured or even killed. In the same
collision, occupants wearing seat belts
would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a
collision, the full width of the belt is not
available to absorb the impact. This puts
more force on the bones beneath the belt,
which could cause serious injury or death.
So, if your seat belt is twisted, you must
straighten the seat belt to remove any
twists and to allow the full width of the belt
to be used.
Never use one seat belt on more than one
person at a time:
Using one seat belt for more than one
person at a time is dangerous. A seat belt
used in this way cannot spread the impact
forces properly and the two passengers
could be crushed together and seriously
injured or even killed. Never use one belt for
more than one person at a time and always
operate the vehicle with each occupant
properly restrained.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Do not operate a vehicle with a damaged
seat belt:
Using a damaged seat belt is dangerous.
An accident could damage the belt
webbing of the seat belt in use. A damaged
seat belt cannot provide adequate
protection in a collision. Have an
Authorized Mazda Dealer inspect all seat
belt systems in use during an accident
before they are used again.
Have your seat belts changed immediately
if the pretensioner or load limiter has been
expended:
Always have an Authorized Mazda Dealer
immediately inspect the seat belt
pretensioners and air bags after any
collision. Like the air bags, the seat belt
pretensioners and load limiters will only
function once and must be replaced after
any collision that caused them to deploy. A
seat belt with an expended pretensioner or
load limiter is still better than wearing no
seat belt at all; however, if the seat belt
pretensioners and load limiters are not
replaced, the risk of injury in a collision will
increase.
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder portion of
the seat belt is positioned across your
shoulder and near your neck, but never
under your arm, on your neck, or on your
upper arm.Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too
high is dangerous. In a collision, this would
concentrate the impact force directly on
the abdominal area, causing serious injury.
Wear the lap portion of the belt snugly and
as low as possible.
CAUTION
Belt retraction may become difficult if the
belts and rings are soiled, so try to keep
them clean. For more details about
cleaning the seat belts, refer to "Seat Belt
Maintenance" (page 6-50).

1. Ring

Essential Safety Equipment
Seat Belt Systems
2-24
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
