Repeatedly jerking the steering wheel
left and right while the vehicle is
stopped or moving extremely slowly will
cause the power steering system to go
into protective mode which will make
the steering feel heavy, but this does not
indicate a problem. If this occurs, park
the vehicle safely and wait several
minutes for the system to return to
normal.
▼ ABS Warning Indication/Warning
Light
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes
will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light may
illuminate. If this o ccurs, it is the result
of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate
while the ABS warning light is
illuminated.
▼ Master Warning Indication
The indication displays if the system has a
malfunction.
Check the reason for the indication
displaying on the center display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-27.
▼Brake Control System Warning
Indication/Warning Light
The warning light i
lluminates when the
system has a malfunction. Have your
vehicle inspected at an Authorized Mazda
Dealer.
▼ Electric Parking Brake (EPB)
Indication/Indicator Light
This warning has the following functions:
Parking brake warning/Indicator light
inspection
The light illuminate
s when the parking
brake is applied with the ignition switched
to START or ON. It turns off when the
parking brake is released.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-30
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Display*1*2ContentAction to be taken
Distance & Speed Alert
Operation Canceled Drive
Safely This message is indicated when the Dis‐
tance & Speed Alert (DSA) have been
canceled other than by the driver.
Have your vehicle inspected by an Au‐
thorized Mazda Dealer.
Cruise Control Operation
Canceled. Drive Safely This message is indicated when the
Cruise Control have been canceled other
than by the driver. Have your vehicle inspected by an Au‐
thorized Mazda Dealer.
Emergency Braking Acti‐
vated. Depress Brake Ped‐
al to Hold Stop This message is indicated after the Smart
Brake Support (SBS) brakes operate and
when the Smart Brake Support (SBS) is
canceled.
Depress the brake pedal.
Touch Key Fob to Push
Button Start Switch This message is indicated when the key
battery is weak (battery dead or damaged
key). Touch the key against push button start
to start the engine.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
Depress Brake Pedal to
Start Engine This message is indicated when the push
button start is presse
d without depressing
the brake pedal. Depress the brake pedal and press the
push button start.
Depress Clutch Pedal to
Start Engine This message is indicated when the push
button start is presse
d without depressing
the clutch pedal. Depress the clutch pedal and press the
push button start.
Check Gear Selector Lever
Position This message is indicated when the se‐
lector lever is shifted to the P or R posi‐
tion while driving.
Check the selector lever position.
Close Door and Fasten
Seat Belt This message is indicated when AUTO‐
HOLD is about to operate and a door is
opened or a seat belt is unfastened. When the AUTOHOLD is turned on,
close the doors and fasten seat belts.
Wiper Blades Must Be on
Windshield Before Operat‐
ing This message is indicated when the
windshield wipers are operated with the
wipers raised off the windshield.
Lower the windshield wipers.
Windshield Wiper Range
of Motion Reduced. Re‐
move Obstruction(s) This message is indicated when there is
snow or dirt accumulation on the wind‐
shield and the wiper operation range is
narrowed.
Remove foreign matter from the wind‐
shield.
Ignition Not Switched Off This message is indicated when the driv‐
er’s door is opened without switching the
ignition OFF. Switch the ignition OFF before leaving
the vehicle.
Gear Selector Lever Not in
Park This message is indicated when a door is
opened with the selector lever in a posi‐
tion other than the P position. Shift the selector lever to the P position
before leaving the vehicle.
Excessive Transmission
Temperature. Drive Slowly This message is indicated when the inter‐
nal temperature of the automatic trans‐
mission is high. Drive slowly to redu
ce load on the auto‐
matic transmission.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-39
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-23.
▼Safety Practices
The way you drive has a great deal to do
with your tire mileage and safety. So
cultivate good driving habits for your own
benefit.
Observe posted speed
limits and drive at
speeds that are safe for the existing
weather conditions
Avoid fast starts, stops and turns
Avoid potholes and objects on the road
Do not run over curbs or hit the tire
against the curb when parking
CAUTION
If you feel a sudden vibration or ride
disturbance while driving or you suspect
your tire or vehicle has been damaged,
immediately reduce yo ur speed. Drive with
caution until you can safely pull off the
road. Stop and inspect the tire for damage.
If the tire is under-inflated or damaged,
deflate it, remove the tire and rim and
replace it with your spare tire. If you cannot
detect a cause, have the vehicle towed to
the nearest vehicle or tire dealer to have
the vehicle inspected.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-30
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Outside temperature display........ 4-19
Speedometer................................ 4-12
Tachometer.................................. 4-13
Trip meter.................................... 4-16
Warning indication/warning
lights............................................ 4-23
Interior Care...................................... 6-50
Active driving display
maintenance................................. 6-52
Cleaning the floor mats............... 6-52
Cleaning the window interiors.....6-52
Instrument panel top (Soft pad)
maintenance................................. 6-51
Leather upholstery
maintenance................................. 6-51
Panel maintenance....................... 6-52
Plastic part maintenance.............. 6-51
Seat belt maintenance..................6-50
Upholstery maintenan ce.............. 6-51
Vinyl upholstery maintenance..... 6-50
Interior Lights................................... 5-35 Luggage compartment light.........5-35
Map lights....................................5-35
Overhead lights............................5-35
Trunk light........ ........................... 5-35
i-ACTIVSENSE................................ 4-83 Active safety tec hnology............. 4-83
Adaptive Front Lighting System
(AFS)........................................... 4-88
Blind Spot Monitoring (BSM).....4-94
Camera and sensors..................... 4-84
Distance & Speed Alert
(DSA).........................................4-106
Driver Attention Alert (DAA)... 4-107
Driver monitoring camera......... 4-211
Driver Monitoring ( DM)........... 4-109
Forward Sensing Camera
(FSC)......................................... 4-200
Front camera/side cameras/rear
camera........................................4-210Front Cross Traffic Alert
(FCTA)....................................... 4-111
Front radar sensor......................4-204
Front side radar sensor.............. 4-206
High Beam Control System
(HBC).......................................... 4-88
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system)......................................... 4-85
i-ACTIVSENSE switch...............4-87
Lane Departure Warning System
(LDWS)....................................... 4-90
Lane-keep Assist System
(LAS)......................................... 4-151
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-126
Mazda Radar Cruise Control
(MRCC)..................................... 4-118
Pre-crash safety technology.........4-84
Rear Cross Traffic Alert
(RCTA)...................................... 4-114
Rear side radar sensor............... 4-208
Smart Brake Support (SBS)...... 4-155
Smart Brake Support [Rear Crossing]
(SBS-RC)................................... 4-161
Smart Brake Support [Rear] (SBS-
R)............................................... 4-157
Traffic Jam Assist (TJA)........... 4-137
Traffic Sign Recognition System
(TSR)........................................... 4-99
Ultrasonic sensor....................... 4-209
360°view monitor..... ................. 4-166
i-ACTIV AWD Operation.................4-81
J
Jack...................................................... 7-3
Jump-Starting.................................... 7-17
10-5
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Index
Front passenger's seat.................. 2-13
Front seat....................................... 2-5
Head restraint.............................. 2-17
Rear seat...................................... 2-14
Seat warmer................................. 2-20
Seat Belt System Automatic locking....................... 2-25
Emergency locking...................... 2-25
Extender....................................... 2-30
Pregnant women.......................... 2-25
Seat belt precautions................... 2-23
Seat Belt Warning Beep.................... 7-41
Security System
Immobilizer system..................... 3-40
Theft-deterrent system.................3-42
Shift Position Warning Beep.............7-43
Smart Brake Support (S BS)............ 4-155
Collision warning.... .................. 4-156
Stopping the Smart Brake Support
(SBS) system operation............. 4-157
Smart Brake Support [Rear Crossing]
(SBS-RC)........................................ 4-161
Collision warning.... .................. 4-165
Stopping the Smart Brake Support
[Rear Crossing] (SBS-RC) system
operation.................................... 4-165
Smart Brake Support [Rear] (SBS-
R)..................................................... 4-157
Collision warning.... .................. 4-160
Stopping the Smart Brake Support
[Rear] (SBS-R) system
operation.................................... 4-160
Spare Tire............................................ 7-5
Spare Tire and Tool Storage............... 7-3
Specifications Air conditioner......... ..................... 9-8
Capacities.......................................9-5
Dimensions.................................... 9-6
Electrical system............................9-4
Engine............................................ 9-4
Light bulbs.....................................9-8Lubricant quality........................... 9-4
Tires............................................... 9-9
Weights.......................................... 9-6
SRS Air Bags
Driver and front passenger occupant
classification system.................... 2-71
How the SRS air bags work........ 2-64
Limitations to SRS air bag.......... 2-70
Monitoring................................... 2-76
SRS air bag deployment
criteria.......................................... 2-68
Supplemental restraint system
components.................................. 2-62
Supplemental restraint system (SRS)
precautions................................... 2-55
Starting the Engine..............................4-5
Steering Wheel
Heated steering wheel................. 2-21
Horn............................................. 4-57
Storage Compartments...................... 5-41 Center console............................. 5-42
Glove compartment..................... 5-42
Overhead console........................ 5-42
Storage pocket............................. 5-42
Storage Pocket...................................5-42
Sunshade............................................3-39
Sunvisors........................................... 5-34
T
Theft-Deterrent System..................... 3-42
Three-flash Turn Signal.................... 4-50
Tiedown Hook...................................7-24
Tires................................................... 6-31
Replacing a tire........................... 6-33
Replacing a wheel....................... 6-34
Snow tires.................................... 3-47
Specifications.................................9-9
Temporary spare tire....................6-33
Tire chains................................... 3-48
Tire inflation pressure................. 6-31
10-8
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

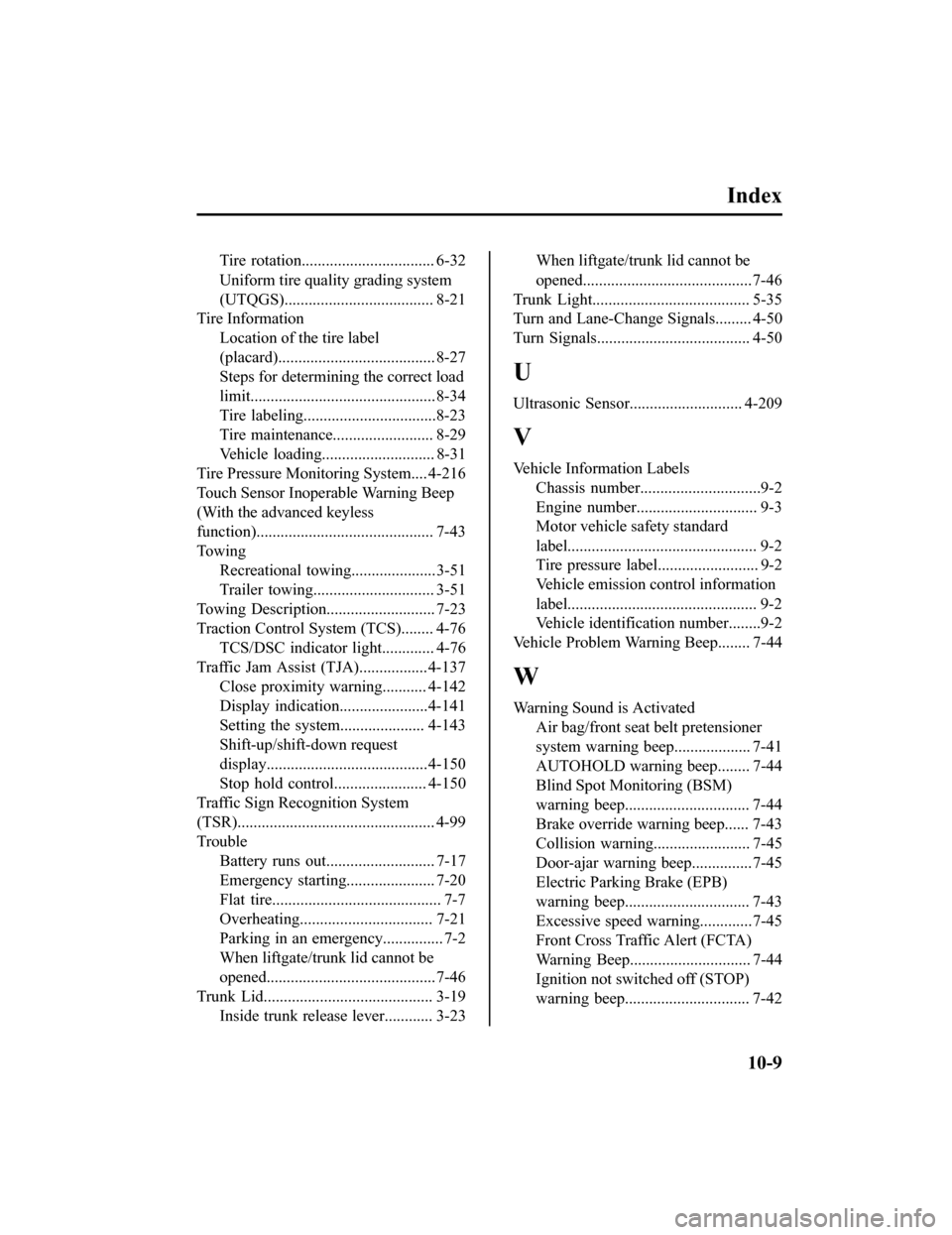

Index
Tire rotation................................. 6-32
Uniform tire quality grading system
(UTQGS)..................................... 8-21
Tire Information
Location of the tire label
(placard)....................................... 8-27
Steps for determining the correct load
limit..............................................8-34
Tire labeling.................................8-23
Tire maintenance......................... 8-29
Vehicle loading............................ 8-31
Tire Pressure Monitoring System.... 4-216
Touch Sensor Inoperable Warning Beep
(With the advanced keyless
function)............................................ 7-43
To w i n g
Recreational towing.....................3-51
Trailer towing.............................. 3-51
Towing Description........................... 7-23
Traction Control System (TCS)........ 4-76
TCS/DSC indicator light............. 4-76
Traffic Jam Assist (TJA).................4-137
Close proximity warning........... 4-142
Display indication......................4-141
Setting the system..................... 4-143
Shift-up/shift-down request
display........................................4-150
Stop hold control....................... 4-150
Traffic Sign Recognition System
(TSR)................................................. 4-99
Trouble Battery runs out........................... 7-17
Emergency starting...................... 7-20
Flat tire.......................................... 7-7
Overheating................................. 7-21
Parking in an emergency............... 7-2
When liftgate/tr unk lid cannot be
opened..........................................7-46
Trunk Lid............ .............................. 3-19
Inside trunk release lever............ 3-23When liftgate/tr unk lid cannot be
opened..........................................7-46
Trunk Light....... ................................ 5-35
Turn and Lane-Change Signals......... 4-50
Turn Signals...................................... 4-50
U
Ultrasonic Sensor............................ 4-209
V
Vehicle Information Labels
Chassis number..............................9-2
Engine number.............................. 9-3
Motor vehicle safety standard
label............................................... 9-2
Tire pressure label......................... 9-2
Vehicle emission control information
label............................................... 9-2
Vehicle identification number........9-2
Vehicle Problem Warning Beep........ 7-44
W
Warning Sound is Activated Air bag/front seat belt pretensioner
system warning beep................... 7-41
AUTOHOLD warning beep........ 7-44
Blind Spot Monitoring (BSM)
warning beep............................... 7-44
Brake override warning beep...... 7-43
Collision warning........................ 7-45
Door-ajar warning beep...............7-45
Electric Parking Brake (EPB)
warning beep............................... 7-43
Excessive speed warning.............7-45
Front Cross Traffic Alert (FCTA)
Warning Beep.............................. 7-44
Ignition not switched off (STOP)
warning beep............................... 7-42
10-9
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
