MAZDA MODEL 3-SEDAN 2020 Owners Manual

Advanced Keyless EntrySystem
*
â–¼Advanced Keyless Entry System
WA R N I N G
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key will affect the device.
The advanced keyless function allows you
to lock/unlock the door, liftgate, and
fuel-filler lid, or open the liftgate/trunk lid
while carrying the key.

System malfunctions or warnings are
indicated by the foll
owing warning beeps.
ï‚·Touch Sensor Inoperable Warning Beep
Refer to Touch Sensor Inoperable
Warning Beep (With the advanced
keyless function) on page 7-43.
ï‚·Key Left-in-luggage Compartment/
Trunk Warning Beep
Refer to Key Left-in-luggage
Compartment/Trunk Warning Beep
(With the advanced keyless function) on
page 7-43.
ï‚·Key Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-43.
NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated, you
will be unable to start the engine by
carrying the key. Consult an Authorized
Mazda Dealer for details. If the advanced
keyless entry system has been deactivated,
you can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-8.
Before Driving
Advanced Keyless Entry System
*Some models.3-9
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Operational Range
â–¼Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in
places where there are high-intensity radio
waves or noise, the operational range may
become narrower or the system may not
operate. For determining battery
replacement, Refer to Keyless Entry
System on page 3-4.
â–¼Locking/Unlocking Using Touch
Sensor
1. Exterior antenna
2. 80 cm (31 in)
3. Operational range

NOTE
ï‚·The system may not operate if you are
too close to the windows or door
handles.
ï‚·If the key is left in the following areas
and you leave the vehicle, the doors may
be locked depending on the radio wave
conditions even if the key is left in the
vehicle.
ï‚·Around the dashboard
ï‚·In the storage compartments such as
the glove compartment or the center
console
On the rear parcel shelf (4–door)
ï‚·Next to a communication device such
as a mobile phone
â–¼ Locking Using Door-Lock Switch
(5–door)/Unlocking Using Electric
Opener
1. Exterior antenna
2. 80 cm (31 in)
3. Operational range
Before Driving
Advanced Keyless Entry System
3-10
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

Door Locks
â–¼Door Locks
WA R N I N G
Always take all children and pets with you
or leave a responsible person with them:
Leaving a child or a pet unattended in a
parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle can
become high enough to cause brain
damage or even death.
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:
Leaving children in a vehicle with the key is
dangerous. This could result in someone
being badly injured or even killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle are
dangerous. Passengers can fall out if a
door is accidentally opened and can more
easily be thrown out in an accident.
Always close all the windows and
moonroof, lock the doors, fuel-filler lid, and
liftgate and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is dangerous
as children could lock themselves in a hot
vehicle, which could result in death. Also, a
vehicle left unlocked becomes an easy
target for thieves and intruders.
After closing the doors and the liftgate/
trunk lid, always verify that they are
securely closed:
Doors and the liftgate/trunk lid not
securely closed are dangerous, if the vehicle
is driven with a door and the liftgate/trunk
lid not securely closed, the door and the
liftgate/trunk lid could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door and the
liftgate/trunk lid:
Suddenly opening a door and the liftgate/
trunk lid is dangerous. A passing vehicle or
a pedestrian could be hit and cause an
accident.
CAUTION

Always confirm the conditions around
the vehicle before opening/closing the
doors and the liftgate/trunk lid and use
caution during strong winds or when
parked on an incline. Not being aware of
the conditions around the vehicle is
dangerous because fingers could get
caught in the door and the liftgate/trunk
lid or a passing pedestrian could be hit,
resulting in an unexpected accident or
injury.
NOTE
ï‚·Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside the
cabin.
Before Driving
Doors and Locks
3-11
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

ï‚·If the key is left in the following areas
and you leave the vehicle, the doors may
be locked depending on the radio wave
conditions even if the key is left in the
vehicle.
ï‚·Around the dashboard
ï‚·In the storage compartments such as
the glove compartment or the center
console
On the rear parcel shelf (4–door)
ï‚·Next to a communication device such
as a mobile phone
ï‚·When the ignition is switched to ACC or
ON, the vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
All doors, fuel-filler lid, and liftgate will
automatically unlock if they are locked
using the power door locks with any
door or the liftgate open.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When all doors, fuel-filler lid, and
liftgate are locked using the power door
lock with any door or the liftgate/trunk
lid open, the closed doors, fuel-filler lid,
and liftgate are locked. After that, when
all doors and the liftgate/trunk lid are
closed, all doors and the liftgate/trunk
lid are locked. However, if the key is
inside the vehicle, all doors, fuel-filler
lid, and liftgate are automatically
unlocked.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key
has been left in the vehicle.
(Without the advanced keyless
function)
The horn sound is heard twice to notify
the driver that the key has been left in
the vehicle.
ï‚·(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors, fuel-filler lid, and liftgate in the
event the vehicle is involved in an
accident to allow passengers to get out
of the vehicle immediately and prevent
being trapped inside. While the ignition
is switched ON and in the event the
vehicle receives an impact strong
enough to inflate the air bags, all the
doors, fuel-filler lid, and liftgate are
automatically unlocked after about 6
seconds have elapsed from the time of
the accident.
The doors, fuel-filler lid, and liftgate
may not unlock depending on how an
impact is applied, the force of the
impact, and other conditions of the
accident.
If door-related systems or the battery is
malfunctioning, the doors, fuel-filler lid,
and liftgate will not unlock.
Before Driving
Doors and Locks
3-12
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

â–¼Unlocking with Auxiliary Key
Only the driver's door can be unlocked
using the auxiliary key.
Refer to Keys on page 3-2.
Insert the auxiliary key while the driver's
door handle is pulled and turn the key to
the unlock side. Turn the auxiliary key
back to its original position before
removing it.
NOTE
If you attempt to open the driver’s door
using an unauthorized auxiliary key, the
key cylinder will spin around but the door
will not unlock.
â–¼Locking, Unlocking with Touch
Sensor, Door Handle (With the
advanced keyless function)
By touching the sensing area of the touch
sensor, various locking/unlocking
operations can be done without taking the
key out of a bag or pocket.
There are two types of touch sensors used
for locking and unlocking, and each sensor
is built into the outer door handle on the
driver and front passenger's doors.
1. Sensing area of door lock touch sensor
(Depression on outer side of door
handle)
2. Sensing area of door release touch sensor (Inner side of door handle)
NOTE
ï‚·When locking/unlocking with the
transmitter carried, securely touch the
sensing area of the touch sensor as
follows.
Locking
Unlocking
ï‚·The system may not operate normally
under the following conditions.
ï‚·You touch the sensing area of the door
lock touch sensor and the sensing
area of the door release touch sensor
at the same time.
Before Driving
Doors and Locks
3-13
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

ï‚·You touch the sensing area of the
touch sensor while wearing gloves.
ï‚·Foreign matter such as snow or dirt is
stuck on the sensing area of the touch
sensor.
ï‚·You pull the door handle just after
touching the sensing area of the touch
sensor.
ï‚·The system may operate if the outer side
door handle of a front door is splashed
with water by a car wash or rain while
the transmitter is in the operation range.
ï‚·If the system does not operate even
though you touch the sensing area of the
touch sensor correctly, release the touch
sensor once, and then touch the sensing
area of the touch sensor again after
waiting about 3 seconds.
Locking
When locking, touch the sensing area of
the door lock touch sensor with all of the
following conditions met.
ï‚·The ignition is switched OFF.
ï‚·All the doors are closed.
ï‚·You are carrying the transmitter.
The following locations are locked by
touching the sensing area of the door lock
touch sensor.
ï‚·All doors
ï‚·Fuel-filler lid
ï‚·Liftgate
When locking, the hazard warning lights
and sound operate one time.
Unlocking
When unlocking, touch the sensing area of
the door release touch sensor with all of
the following conditions met.
ï‚·The ignition is switched OFF.
The driver’s door is locked.
ï‚·Three seconds or longer have passed
since the doors were locked.
ï‚·You are carrying the transmitter.
(Unlocking from the driver's door)
The following locations are unlocked by
touching the sensing area of the door
release touch sensor of the driver's door.
Driver’s door
ï‚·Fuel-filler lid
NOTE
ï‚·The location to be unlocked can be
changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When unlocking, the hazard warning
lights and sound operate two times.

(Unlocking from the front passenger’s
door)
The following locations are unlocked by
touching the sensing area of the door
release touch sensor of the front
passenger's door.
ï‚·All doors
ï‚·Fuel-filler lid
ï‚·Liftgate
When unlocking, the hazard warning
lights and sound operate two times.
NOTE
ï‚·Confirm that all the doors and liftgate/
trunk lid are securely locked.
For the liftgate/trunk lid, move it
without pressing the electric liftgate/
trunk lid opener to verify that the
liftgate/trunk lid has not been left ajar.
Before Driving
Doors and Locks
3-14
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

ï‚·A beep sound is heard for confirmation
when the doors, fuel-filler lid, and
liftgate are locked/unlocked using the
touch sensor. If you prefer, the beep
sound can be turned off.
The volume of the beep sound can also
be changed. Refer to the Settings section
in the Mazda Connect Owner's Manual.
ï‚·(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-42.
ï‚·The setting can be changed so that the
doors, fuel-filler lid, and liftgate are
locked automatically without touching
the sensing area of the touch sensor.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
(Walk-away auto lock function)
A beep sound is heard when all doors
and the liftgate/trunk lid are closed
while the transmitter is being carried.
All the doors, fuel-filler lid, and liftgate
are locked automatically when the
transmitter is out of the operational
range. Also, the hazard warning lights
flash once. (Even if the driver is in the
operational range, all the doors,
fuel-filler lid, and liftgate are locked
automatically after about 30 seconds.) If
you are out of the operational range
before the doors and the liftgate/trunk
lid are completely closed or another
transmitter is left in the vehicle, the
walk-away auto lock function will not
work. Always make sure that all doors
and the liftgate/trunk lid are closed and
locked before leaving the vehicle. The
walk-away auto lock function does not
close the power windows.
ï‚·(Auto re-lock function)
After unlocking with the touch sensor,
all the doors , fuel-filler lid, and liftgate
will automatically lock if any of the
following operations are not performed
within about 60 seconds.
ï‚·Opening a door or the liftgate/trunk
lid.
ï‚·Switching the igniti on to any position
other than off.
If your vehicle has a theft-deterrent
system, the hazard warning lights will
flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
â–¼ Locking, Unlocking with
Transmitter
The following locations can be locked/
unlocked by operating the keyless entry
system transmitter.
Refer to Keyless Entry
System (page 3-4).
ï‚·All doors
ï‚·Fuel-filler lid
ï‚·Liftgate
â–¼ Locking, Unlocking with Door-Lock
Switch
Door-lock switch on driver’s and front
passenger's door
The following locations are locked/
unlocked by pressing the door-lock switch.
ï‚·All doors
ï‚·Fuel-filler lid
ï‚·Liftgate
Before Driving
Doors and Locks
3-15
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

Driver's door
1. Unlock
2. Lock
Front passenger's door
1. Unlock
2. Lock
Locking from the outside using the
door-lock switch
When locking from the outside using the
door-lock switch, press the lock side of the
door-lock switch with all of the following
conditions met and then close all the
doors.
ï‚·The ignition is switched OFF.
ï‚·Any door is open.
NOTE
ï‚·To prevent the transmitter from being
left in the vehicle, make sure that you
carry the transmitter before locking.
ï‚·After locking by pressing the door-lock
switch and when all the doors are closed
with the transmitter left in the vehicle,
all the doors, liftgate, and fuel-filler lid
are unlocked.
ï‚·After locking by pressing the door-lock
switch and when the liftgate/trunk lid is
closed last with th e transmitter left in
the vehicle, only the liftgate/trunk lid is
unlocked.

Door-lock switch on liftgate (With the
advanced keyless function)
All doors, fuel-filler lid, and the liftgate
can be locked by pressing the door-lock
switch.

When locking using the door-lock switch,
press the door-lock switch with all of the
following conditions met and then close
the liftgate.
ï‚·You are carrying the transmitter.
ï‚·The ignition is switched OFF.
ï‚·All the doors are closed.
When locking, the hazard warning lights
and a beep sound operate 1 time.
Before Driving
Doors and Locks
3-16
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

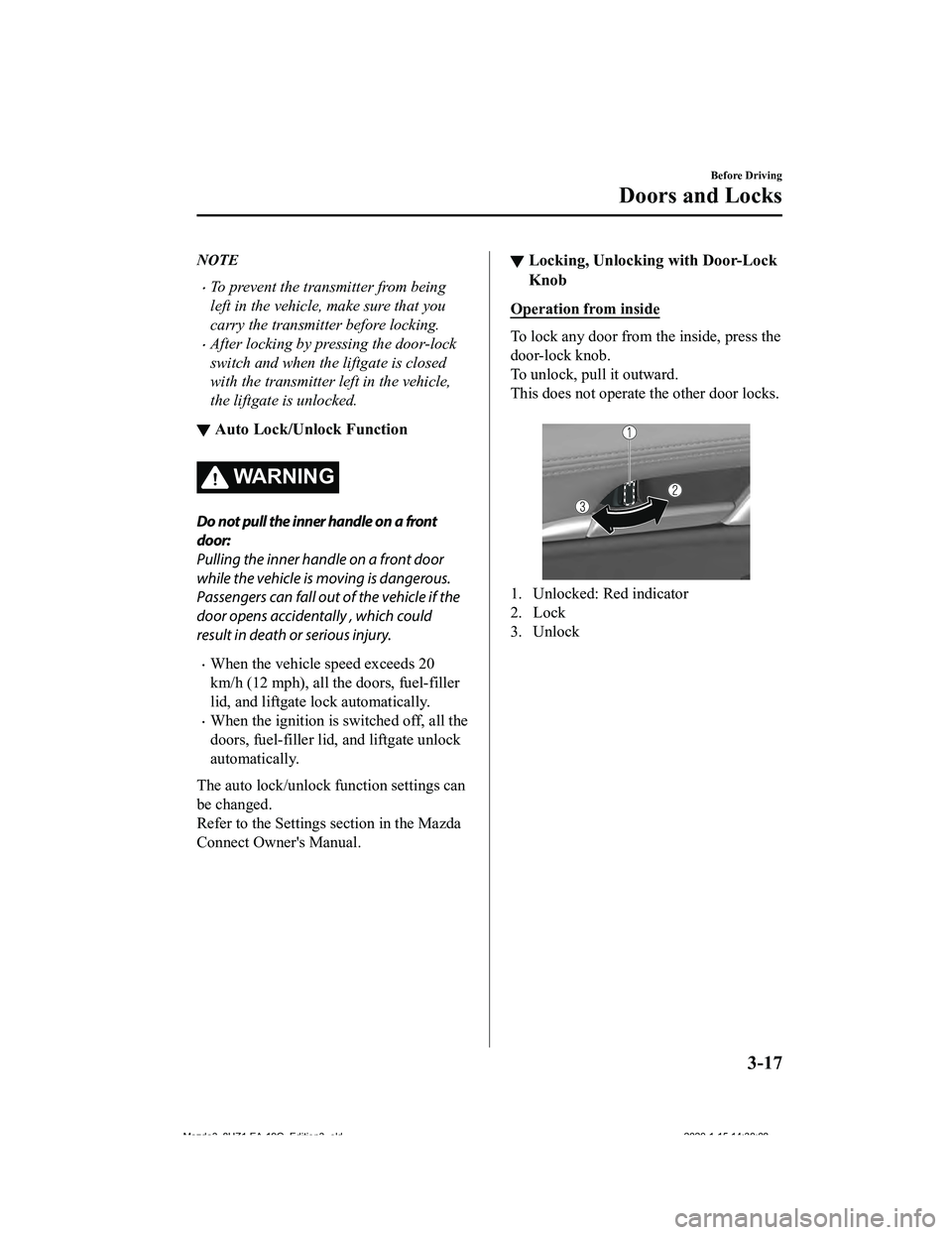

NOTE
ï‚·To prevent the transmitter from being
left in the vehicle, make sure that you
carry the transmitte r before locking.
ï‚·After locking by pressing the door-lock
switch and when the liftgate is closed
with the transmitter left in the vehicle,
the liftgate is unlocked.
â–¼Auto Lock/Unlock Function
WA R N I N G
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front door
while the vehicle is moving is dangerous.
Passengers can fall out of the vehicle if the
door opens accidentally , which could
result in death or serious injury.
ï‚·When the vehicle speed exceeds 20
km/h (12 mph), all the doors, fuel-filler
lid, and liftgate lock automatically.
ï‚·When the ignition is sw
itched off, all the
doors, fuel-filler lid, and liftgate unlock
automatically.
The auto lock/unlock function settings can
be changed.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
â–¼ Locking, Unlocking with Door-Lock
Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate t
he other door locks.

1. Unlocked: Red indicator
2. Lock
3. Unlock

Before Driving
Doors and Locks
3-17
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

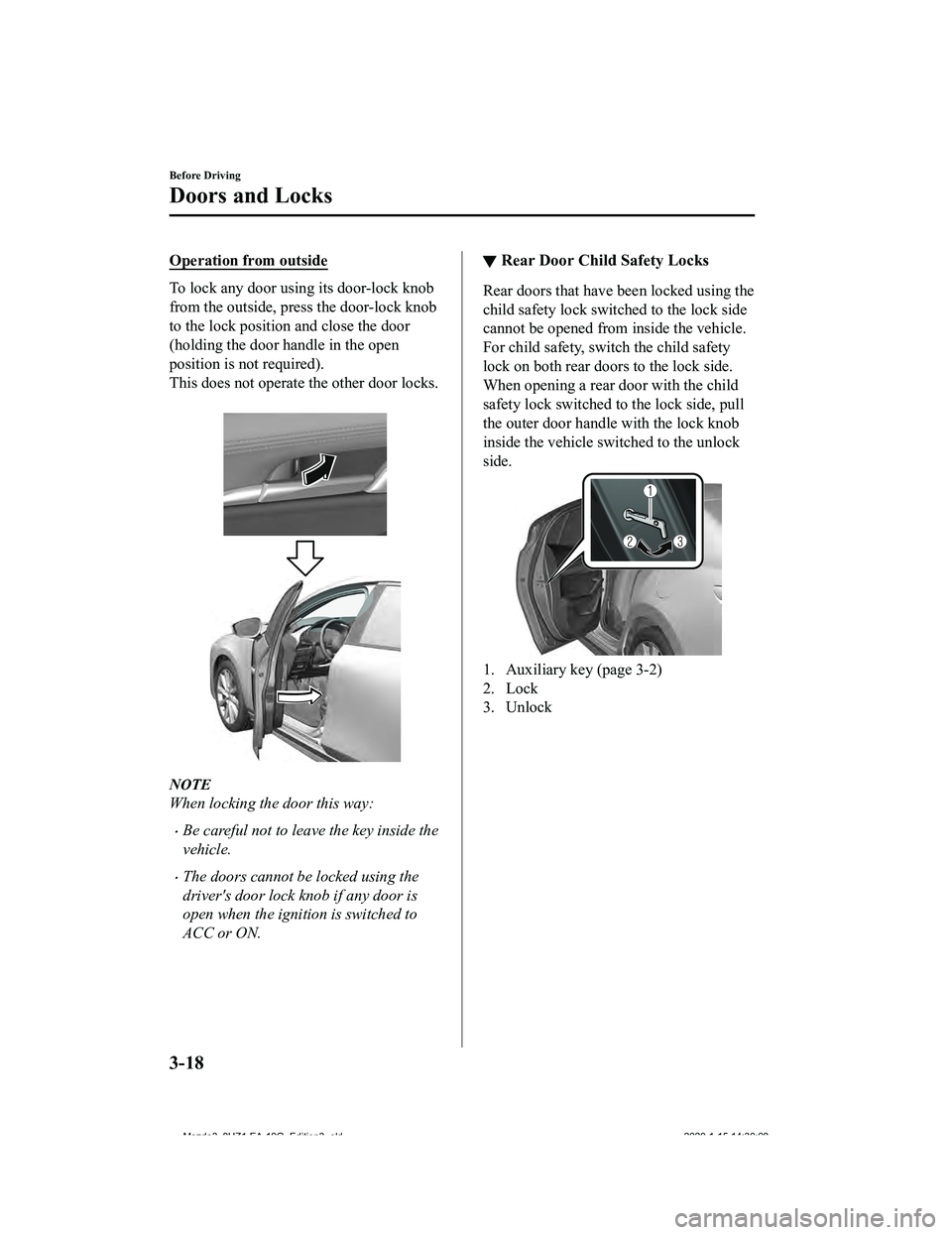

Operation from outside
To lock any door using its door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door
(holding the door handle in the open
position is not required).
This does not operate the other door locks.

NOTE
When locking the door this way:
ï‚·Be careful not to leave the key inside the
vehicle.
ï‚·The doors cannot be locked using the
driver's door lock knob if any door is
open when the ignition is switched to
ACC or ON.
â–¼ Rear Door Child Safety Locks
Rear doors that have been locked using the
child safety lock switched to the lock side
cannot be opened from inside the vehicle.
For child safety, swi
tch the child safety
lock on both rear doors to the lock side.
When opening a rear door with the child
safety lock switched t o the lock side, pull
the outer door handle with the lock knob
inside the vehicle switched to the unlock
side.
1. Auxiliary key (page 3-2)
2. Lock
3. Unlock
Before Driving
Doors and Locks
3-18
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08
