lock MAZDA MODEL 3-SEDAN 2020 Owners Manual

Interior Equipment (View A)
▼Interior Equipment (View A)
ƒ
High beam control switch..................................................................................... page 4-90
„ Lighting control.....................................................................................................page 4-44
… Turn and lane-change sig nals................................................................................ page 4-50
† Audio remote control switches.................................. ............................................page 5-19
‡ INFO switch.......................................................................................................... page 4-14
ˆ Cruise control switches.....................................................page 4-122, 4-131, 4-143, 4-212
‰ Wiper and washer lever......................................... ................................................ page 4-51
Š i-ACTIVSENSE switch............................................ ............................................ page 4-87
‹ 360° view monitor switch...................................................................................page 4-175
ΠParking sensor OFF switch................................................................................. page 4-239
DSC OFF switch................................................................................................... page 4-78
Ž Position memory buttons.......................................................................................page 2-10
Trunk release button.............................................................................................. page 3-20
Outside mirror switches........................................................................................ page 3-30
‘ Power window switches........................................................................................ page 3-35
’ Power window lock switch................................................................................... page 3-35
“ Door-lock switch................................................................................................... page 3-15
” Door-lock knob..................................................................................................... page 3-17
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Interior Equipment (View B)
▼Interior Equipment (View B)
ƒ
Instrument cluster.................................................................................................. page 4-12
„ Active driving display........................................................................................... page 4-29
… Mazda Connect......................................................................................................page 5-14
† Climate control system............................................................................................page 5-2
‡ Heated steering wheel switch................................... ............................................. page 2-21
ˆ Seat warmer switches........................................... ................................................. page 2-20
‰ Hazard warning flasher switch.............................................................................. page 4-58
Š Rear window defogger switch.................................... ........................................... page 4-56
‹ Glove compartment.............................................. ................................................. page 5-42
ΠExternal input terminal........................................ .................................................. page 5-14
Push button start...................................................................................................... page 4-4
Ž Horn........................................................... ............................................................page 4-57
Lock release lever................................................................................................... page 2-5
Hood release handle............................................ .................................................. page 6-12
‘ Storage pocket................................................. ...................................................... page 5-42
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-3
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

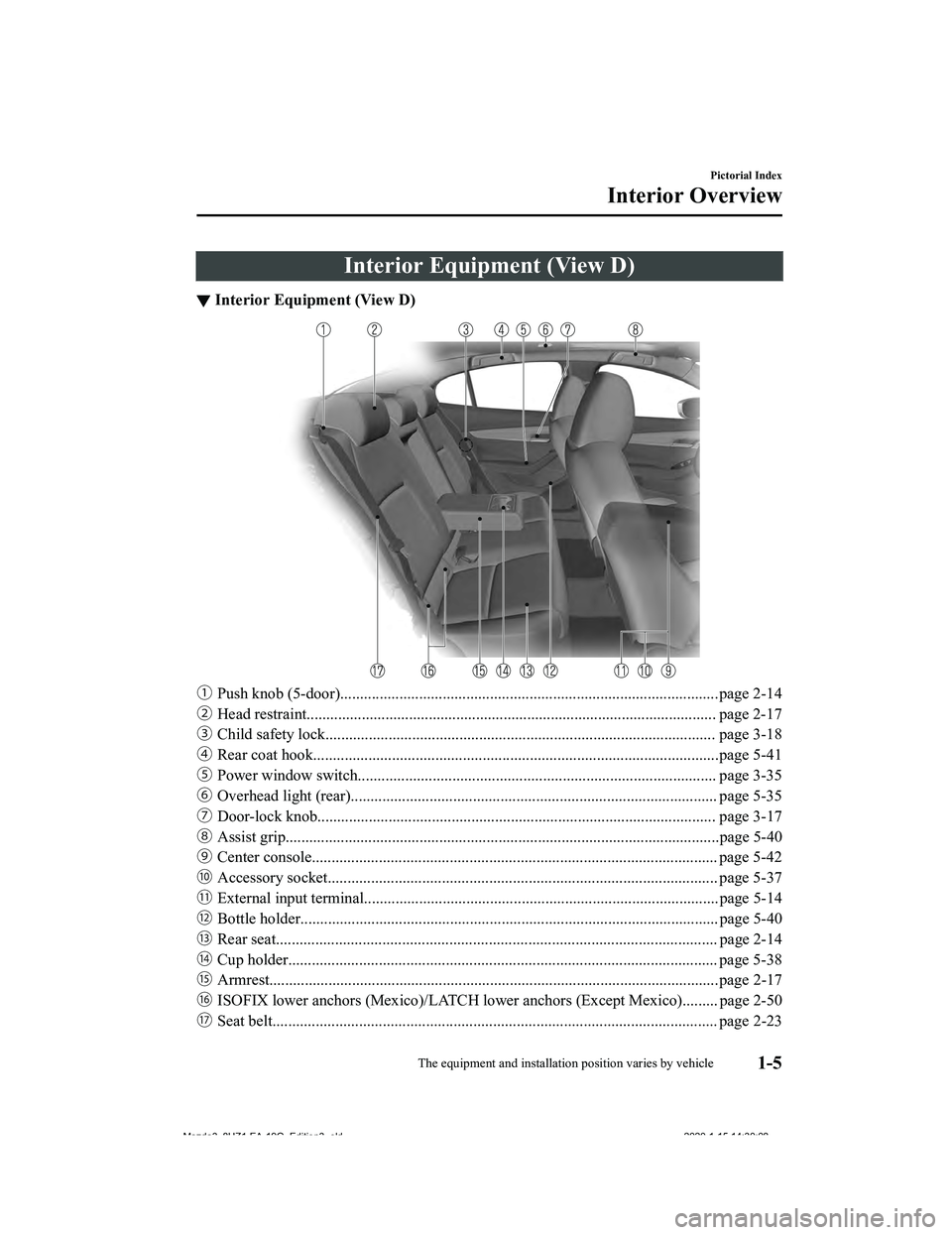

Interior Equipment (View D)
▼Interior Equipment (View D)
ƒ
Push knob (5-door)................................................................................................page 2-14
„ Head restraint........................................................................................................ page 2-1 7
… Child safety lock................................................................................................... page 3-18
† Rear coat hook.......................................................................................................page 5-41
‡ Power window switch........................................................................................... page 3-35
ˆ Overhead light (rear).......................................... ................................................... page 5-35
‰ Door-lock knob................................................. .................................................... page 3-17
Š Assist grip.................................................... ..........................................................page 5-40
‹ Center console....................................................................................................... page 5-42
ΠAccessory socket............................................... .................................................... page 5-37
External input terminal........................................ .................................................. page 5-14
Ž Bottle holder.................................................. ........................................................ page 5-40
Rear seat...................................................... .......................................................... page 2-14
Cup holder............................................................................................................. page 5- 38
‘ Armrest..................................................................................................................page 2-17
’ ISOFIX lower anchors (Mexico)/LATCH lower anchors (Except Mexic o)......... page 2-50
“ Seat belt................................................................................................................. page 2-23
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-5
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Seat Precautions
▼Seat Precautions
WA R N I N G
Make sure the adjustable components of a
seat are locked in place:
Adjustable seats and seatbacks that are
not securely locked are dangerous. In a
sudden stop or collision, the seat or
seatback could move, causing injury. Make
sure the adjustable components of the seat
are locked in place by
attempting to slide
the seat forward and backward and
rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is
dangerous as it could result in serious
injury if a child's hands or feet become
caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role
in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can
allow passengers to be ejected or thrown
around and baggage to strike occupants in
a sudden stop or collision, resulting in
severe injury. After adjusting the seatback
at any time, even when there are no other
passengers, rock the seatback to make sure
it is locked in place.
Adjust a seat only when the vehicle is
stopped:
If the seat is adjusted while the vehicle is
being driven, the seating posture may
become unstable and the seat could move
unexpectedly resulting in injury.
Do not modify or replace the front seats:
Modifying or replacing the front seats such
as replacing the upholstery or loosening
any bolts is dangerous. The front seats
contain air bag components essential to
the supplemental restraint system. Such
modifications could damage the
supplemental restraint system and result in
serious injury. Cons ult an Authorized
Mazda Dealer if there is any need to
remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as
seat cushions torn or damaged down to
the urethane, is dangerous. A collision,
even one not strong enough to inflate the
air bags, could damage the front seats
which contain essential air bag
components. If there was a subsequent
collision, an air bag may not deploy which
could lead to injuries. Always have an
Authorized Mazda Dealer inspect the front
seats, front seat belt pretensioners and air
bags after a collision.
Do not drive with either front seats
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous because you
do not get the full protection from seat
belts. During sudden braking or a collision,
you can slide under the lap belt and suffer
serious internal injuries. For maximum
protection, sit well back and upright.
Essential Safety Equipment
Seats
2-2
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Do not place an object such as a cushion
between the seatback and your back:
Putting an object such as a cushion
between the seatback and your back is
dangerous because you will be unable to
maintain a safe driving posture and the
seat belt cannot function at its full capacity
in a collision, which could result in a serious
accident, injury or death.
Do not place objects under the seat:
The object could get stuck and cause the
seat to not be fixed securely, and result in
an accident.
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo higher
than the seatbacks is dangerous. During
sudden braking or a collision, objects can
fly around and become projectiles that
may hit and injure passengers.
Make sure luggage and cargo is secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be crushed
during sudden braking or a collision and
cause injury.Never allow a passenger to sit or stand on
the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded
seatback is dangerous. Allowing a child to
sit up on the folded seatback while the
vehicle is moving is particularly dangerous.
In a sudden stop or even a minor collision,
a child not in a proper seat or
child-restraint system and seat belt could
be thrown forward, back or even out of the
vehicle resulting in serious injuries or death.
The child in the baggage area could be
thrown into other occupants and cause
serious injury.
Never give the car keys to children and do
not allow them to play in the vehicle (4–
Door):
Playing with the folding rear seats is
dangerous. Once the seatbacks are back
up, a child in the trunk would not be able to
get out the way they had entered. If you
have small children, keep the seatbacks
locked.
Always leave your car locked and keep the
car keys safely away from children (4–
Door):
Leaving your car unlocked or the keys in
reach of children is dangerous. Children
who find their way into the trunk through
an unlocked rear seatback or an open
trunk can become accidentally locked in
the trunk. This could result in death or
brain damage from heat prostration,
particularly in the summer. Always lock the
doors and the trunk, and as an added
measure, keep the rear seatbacks locked,
whether you have children in your home or
not.
Essential Safety Equipment
Seats
2-3
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Front Seat
▼Adjusting the Driver's Seat
Using the driving position set up
procedure recommended by Mazda allows
you to maintain a relaxed posture, drive
the vehicle for longer periods without
feeling tired, and make quick operations
naturally.
Also, you can be assured of a clear view in
the forward direction to help you drive
more safely and comfortably.
The adjustments for the driving position
recommended by Mazda are done using
the following procedures.
1. Moving the steering wheel and seat to
their default positions.
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the seat height.
5. Adjusting the height on the front edge of the seat bottom.
6. Adjusting the steering wheel position.
7. Adjusting the head restraint position.
Manual seat
1. Seat Slide
To move a seat forwa rd or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its
original position a nd the seat is locked
in place by attempting to push it
forward and backward.
2. Height Adjustment
To adjust the seat height, move the
lever up or down.
3. Height Adjustment for Front Edge
of Seat Bottom
To adjust the height for front edge of
the seat bottom, rotate the dial to the
desired position.
Essential Safety Equipment
Seats
2-5
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

4.Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position
and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to push
it forward and backward.

Power seat
1. Seat Slide
To slide the seat, m ove the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
2. Height Adjustment
To adjust the seat height, move the
slide lifter switch up or down.
3.Height Adjustment for Front Edge
of Seat Bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch.
4. Seat Recline
To change the seatback angle, press the
front or rear side of the reclining
switch. Release the switch at the
desired position.
5. Lumbar Support Adjustment
To increase the seat firmness, press
and hold the front part of the switch to
the desired position, then release it.
Press the rear part of the switch to
decrease firmness.

Before making adjustments to the
driving position recommended by
Mazda
Before making adjustments, move the
steering wheel and s eat to their default
positions.
How to move the steering wheel to its
default position
WA R N I N G
Never adjust the steering wheel while the
vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous. Moving it
can very easily cause the driver to abruptly
turn to the left or righ t. This can lead to loss
of control or an accident.
Essential Safety Equipment
Seats
2-6
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

After adjusting the steering wheel position,
make sure it is securely locked by trying to
move it up and down:
Driving with the steering wheel not
securely locked in position is dangerous. If
the steering wheel moves unexpectedly
while driving, you could lose control of the
steering resulting in an accident.
Lower the lever, move the steering wheel
to the lowest position, and then push it
down and all the way back.
How to move a driver’s seat to its
default position
1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Lower the front edge of the seatbottom to its lowest height.
4. Sit squarely in the seat and rest your back against the seatback.
Seat adjustment pr ocedure for the
driving position recommended by
Mazda
Adjusting the seatba ck angle (reclining)
Adjust the seatback to the angle providing
a comfortable seated posture.
1. With your posture slightly slouched, move the seatback forward to the angle
where your waist feels slightly
cramped.
1. Manual Seat
2. Power Seat

Essential Safety Equipment
Seats
2-7
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Adjusting the height on the front edge
of the seat bottom
Adjust the height on the front edge of the
seat bottom to the position where the back
of your knees contacts the front edge of
the seat bottom.
1. With your right foot set on the accelerator pedal, adjust the height on
the front edge of the seat bottom so
that the back of your knees lightly
contacts the front edge of the seat
bottom.
2. Depress the accelerator pedal and
make sure that you no longer feel
cramping in the back of your knees.
1. Manual Seat
2. Power Seat

Adjusting the ste ering wheel position
Adjust the steering wh eel to the position
where it can be operated easily and the
gauges can be viewed easily.
1. With your back resting against the seatback, extend both arms, place them
on the top of the steering wheel, and
pull the steering wheel towards you to
the position of your wrists.
2. Adjust the steering wheel height sothat the gauges can be viewed easily.
3. Raise the lever to securely lock the
steering wheel.
Adjusting the head restraint position
To prevent shock to the head and neck,
adjust the head restra ints to their correct
positions.
Refer to Height Adjustment on page
2-17.
▼ Driving Position Memory (Power
Seat)*
The desired driving position can be called
up after programming the position.
The following driving positions can be
programmed.
Essential Safety Equipment
Seats
2-10*Some models.
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

Driver’s seat position (seat slide, height
adjustment, front edge of seat bottom,
seat recline)
Refer to Adjusting the Driver's Seat on
page 2-5.
Active driving display (display position,
brightness level, display information)
Refer to Active Driving Display on page
4-29.
Outside mirror angle
Refer to Outside Mirrors on page 3-30.
A driving position can be programmed to
the following parts.
Position memory button
Transmitter used for vehicle
NOTE
Lumbar support adjustment cannot be
programmed.
Programming
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in the P
position.
3. Switch the ignition ON.
4. Adjust the follo wing parts to the
desired conditions.
Driver's seat
Active driving display
Outside mirrors
5. Press the SET button continuously until a sound is activated.
1. 1 button
2. 2 button
3. SET button
6. Do the following operation within 5 seconds after the sound is activated to
program the driving position.
Programming to a position
memory button
Press the button you want to
program, either 1 or 2 button.
Programming to the transmitter
Press the unlock button on the
transmitter.
A sound is activated when the
operation is completed correctly.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
If the angle of the outer mirrors only
changes a little, the angle of the outer
mirrors may not have been programmed
correctly.
If the angle of the outer mirrors is
adjusted close to the limits of its range
of motion, the driving position can be
successfully programmed, but it may fail
when calling up the programmed
driving position.
Essential Safety Equipment
Seats
2-11
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08
