MAZDA MODEL 3 SEDAN 2021 Owners Manual

Body Lubrication
▼Body Lubrication
All moving points of the body, such as
door and hood hinges and locks,
should be lubricated each time the
engine oil is changed. Use a
nonfreezing lubricant on locks during
cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when
the primary latch is released.
Wiper Blades
▼Wiper Blades
CAUTION

Hot waxes applied by automatic car
washers have been known to
aff ect
the wiper's ability to clean windows.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 When the wiper lever is in the AUTO
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:
 If the windshield above the rain
sensor is touched.
 If the windshield above the rain
sensor is wiped with a cloth.
 If the windshield is struck with a
hand or other object.
 If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or fingers as it may cause injury, or
damage the wipers. When washing
or servicing the vehicle, make sure
the wiper lever is in the OFF
position.
Maintenance and Care
Owner Maintenance
6-23
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

Before lifting the windshield wiper
blades off the windshield, always
follow the procedur e for moving the
windshield wiper blades. Otherwise,
a wiper blade, wiper arm, or the
hood could be damaged.
Refer to the Replacing Windshield
Wiper Blades (page 6-24) section
for the procedure on how to move
the windshield wipe r blades to the
service position.
Contamination of either the
windshield or the blades with foreign
matter can reduce wiper e ffectiveness.
Common sources are insects, tree sap,
and hot wax treatments used by some
commercial car washes.

If the blades are not wiping properly,
clean the window and blades with a
good cleaner or mild detergent; then
rinse thoroughly with clean water.
Repeat if necessary.▼ Replacing Windshield Wiper
Blades
When the wipers no longer clean well,
the blades are probably worn or
cracked.
Replace them.
CAUTION

To prevent damaging a windshield
wiper blade, wiper arm, or the hood,
perform the following procedure.
 Before lifting the windshield wiper
blades o ff the windshield, always
move them to the service position.
 When putting the windshield
wiper blades back on the
windshield, make sure that they
are in the service position before
switching the ignition ON and
operating the windshield wipers.
 Replace with Mazda genuine wiper
blades. If they are replaced with
wiper blades other than a Mazda
genuine product, they may not wipe
with the same
effi ciency as the
genuine product.
 To prevent damage to the wiper
arms and other components, do not
try to sweep the wiper arm by hand.
 Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiff ener in the
blade may deform and the
windshield wiper operation may be
adversely a ffected.
 Do not hold a wiper blade by its end
when raising the wiper arm.
Otherwise, the part may deform and
the wiping performance may lower.
Maintenance and Care
Owner Maintenance
6-24
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

NOTE
You can replace the wiper blades
yourself, however you cannot replace
the wiper arms.
If you want to replace the wiper
arms, consult an Authorized Mazda
Dealer.
Forcefully lowering the wiper arms
could damage the wiper arm and
blade, and may scratch or crack the
windshield.
Replace the wiper blades using the
following procedure.
1. Move the wipers to the service positions using the following
procedure.
a) Switch the ignition ON.
b) Switch the ignition OFF.
c) Press up the wiper switch to theMIST position 2 times within 30
seconds after switching the
ignition OFF.
When the procedure is
completed, the wipers operate
and they stop at the service
positions.
2. Raise the wiper arms.
CAUTION
To prevent damage to the
windshield let the wiper arm down
easily, do not let it slap down on
the windshield.
3. Slide the blade component in the direction of the arrow while
pressing the wiper arm tab to
remove the blade component from
the wiper arm.

4. Pull the blade rubber in thedirection of the arrow and slide it
to a position where the blade
holder groove can be checked.

Maintenance and Care
Owner Maintenance
6-25
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

5. Pull the end of the blade rubberfrom the blade holder groove in the
direction of the arrow and remove
the blade rubber from the blade
holder.
6. Insert the end of the new bladerubber into the groove of the blade
holder until it contacts the end of
the blade holder.

Maintenance and Care
Owner Maintenance
6-26
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

7. After pulling the blade rubber in thedirection of the arrow and sliding
the blade rubber to a position to
check the blade holder groove,
slide the blade rubber end in the
opposite direction.

8. Make sure that the blade rubber iscorrectly installed to the blade
holder.
9. Slide the blade component and
install it to the wiper arm.

10.Slowly lower the wiper arms ontothe windshield.
11.Move the wipers to their initialpositions using the following
procedure.
a) Make sure that the wipers are seton the windshield.
b) Switch the ignition ON.
c) Press up the wiper switch to the MIST position 1 time.
When the procedure is
completed, the wipers operate
and they stop at the initial
positions.
▼Replacing Rear Window Wiper
Blade (5-Door)
When the wiper no longer cleans well,
the blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, do not move
the wiper by hand.
1. Remove the cover.
Maintenance and Care
Owner Maintenance
6-27
Mazda3_8JM2-EA
-20H_Edition1_new 2020-7-10 17:21:34

2. Remove the stopper and raise thewiper arm.
3. Firmly rotate the wiper blade to theright until it unlocks, then remove
the blade.
CAUTION
To prevent damage to the rear
window, do not let the wiper arm
fall on it.
4. Pull down the blade rubber and
slide it out of the blade holder.
5. Remove the metal sti ffeners from
the blade rubber and install them in
the new blade.
CAUTION
Do not bend or discard the
sti ffeners. You need to use them
again.
6. Carefully insert the new blade
rubber.
Then install the blade assembly in
the reverse order of removal.
Maintenance and Care
Owner Maintenance
6-28
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

Battery
▼Battery
WARNING
Wash hands after handling the battery
and related accessories:
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the
State of California to cause cancer and
reproductive harm.
Read the following precautions
carefully before using the battery or
inspecting to ensure safe and correct
handling:
Always wear eye protection
when working near the battery:
Working without eye protection is
dangerous. Battery fluid contains
SULFURIC ACID which could cause
blindness if splashed into your eyes.
Also, hydrogen gas produced during
normal battery operation, could ignite
and cause the battery to explode.
Wear eye protection and
protective gloves to prevent contact
with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID
which could cause serious injuries if it
gets in eyes, or on the skin or clothing.
If this happens, immediately flush your
eyes with water for 15 minutes or wash
your skin thoroughly and get medical
attention.
Always keep batteries out of
the reach of children:
Allowing children to play near batteries
is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or
on the skin.
Keep flames and sparks away
from open battery cells and do not
allow metal tools to contact the
positive (+) or negative (-) terminal of
the battery when working near a
battery. Do not allow the positive (+)
terminal to contact the vehicle body:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames including
cigarettes and sparks away from open
battery cells.
Maintenance and Care
Owner Maintenance
6-29
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

Keep all flames and sparks
away from open battery cells because
hydrogen gas is produced from open
battery cells while charging the
battery or adding battery fluid:
Flames and sparks near open battery
cells are dangerou s. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames including
cigarettes and sparks away from open
battery cells.
NOTE
Before performing battery
maintenance, remove the battery
cover.

▼ Battery Maintenance
To get the best service from a battery:
Keep it securely mounted.Keep the top clean and dry.Keep terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.
Rinse o
ff spilled electrolyte
immediately with a solution of water
and baking soda.
If the vehicle will not be used for an
extended time, disconnect the
battery cables and charge the battery
every 6 weeks.
▼ Battery Replacement
Contact an Authorized Mazda Dealer
for battery replacement.
Maintenance and Care
Owner Maintenance
6-30
Mazda3_8JM2-EA
-20H_Edition1_new 2020-7-10 17:21:34

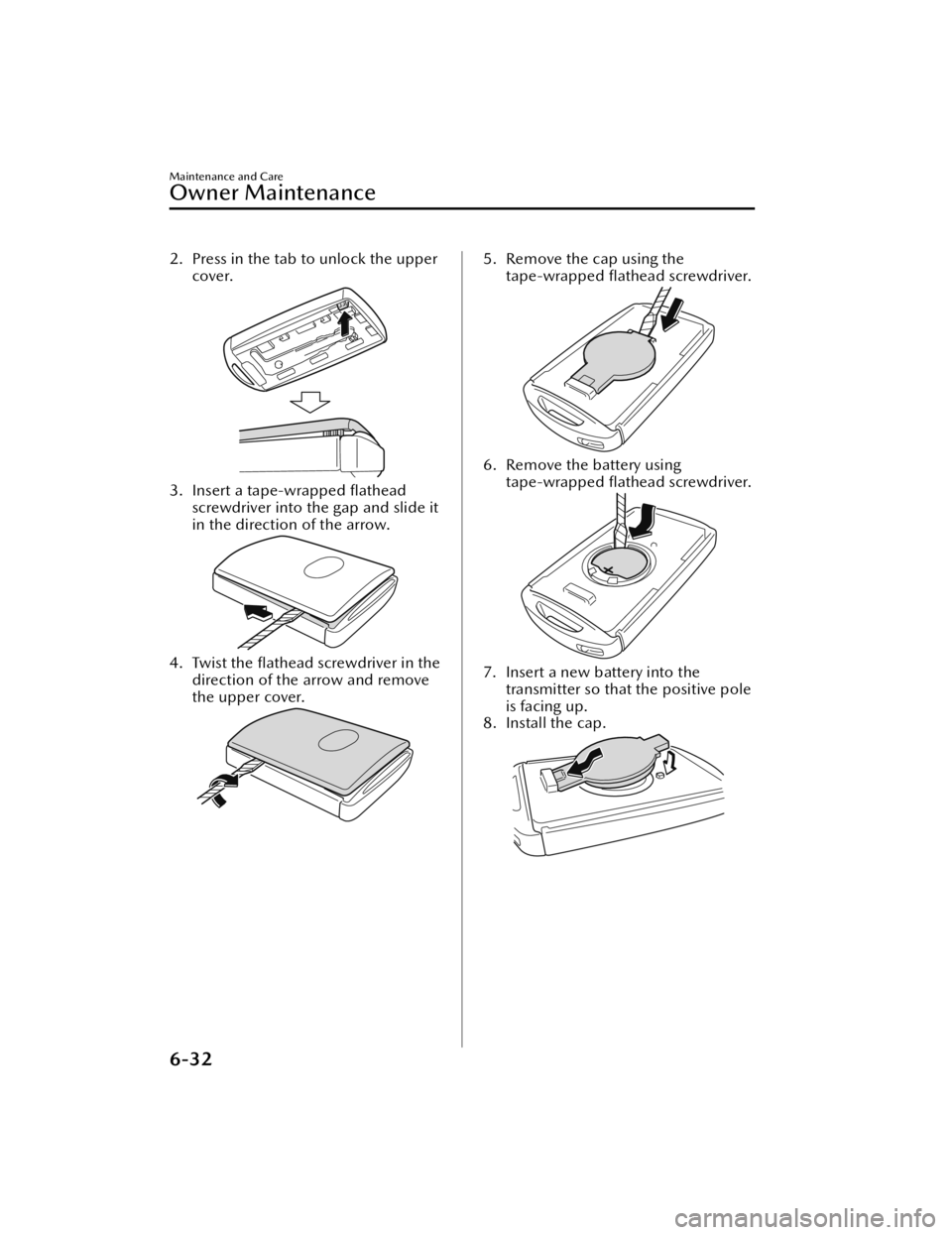

Key Battery Replacement
▼Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not
flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
 Make sure the battery is installed
correctly. Battery leakage could occur
if it is not installed correctly.
 When replacing the battery, be
careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter could
be damaged.
 There is the danger of explosion if
the battery is not correctly replaced.
 Dispose of used batteries according
to the following instructions.
 Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
 Never disassemble.
 Never throw the battery into fire or
water.
 Never deform or crush.
 Replace only with the same type
battery (CR2032 or equivalent).
The following conditions indicate that
the battery power is low:
A message, “Low Key Fob Battery.
Replace Battery” is displayed on the
multi-information display when the
ignition is switched OFF.
The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
The system's operational range is
reduced.
Incorrect battery replacement
operation may damage the key.
Replacing the battery at an Authorized
Mazda Dealer is recommended. If
replacing the battery by yourself,
follow the instruction.
Replacing the key battery
1. Remove the lower cover while pressing the knob in the direction
of the arrow.
Maintenance and Care
Owner Maintenance
6-31
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34

2. Press in the tab to unlock the uppercover.
3. Insert a tape-wrapped flathead
screwdriver into the gap and slide it
in the direction of the arrow.
4. Twist the flathead screwdriver in the
direction of the arrow and remove
the upper cover.
5. Remove the cap using the tape-wrapped flathead screwdriver.
6. Remove the battery using
tape-wrapped flathead screwdriver.
7. Insert a new battery into the
transmitter so that the positive pole
is facing up.
8. Install the cap.
Maintenance and Care
Owner Maintenance
6-32
Mazda3_8JM2-EA -20H_Edition1_new 2020-7-10 17:21:34
