Add-On Non-GenuineParts and Accessories
▼ Add-On Non-Genuine Parts and
Accessories
Non-genuine parts and accessories for
Mazda vehicles can be found in stores.
These may
fit your vehicle, but they are
not approved by Mazda for use with
Mazda vehicles. When you install
non-genuine parts or accessories, they
could affect your vehicle's
performance or safe ty systems; the
Mazda warranty doesn't cover this.
Before you install any non-genuine
parts or accessories, consult an
Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda
Dealer before you install non-genuine
parts or accessories:
Improperly designed parts or
accessories could seriously affect your
vehicle's performance or safety
systems. This could cause you to have
an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and
installing add-on electrical
equipment, such as mobile
telephones, two-way radios, stereo
systems, and car alarm systems:
Incorrectly choosing or installing
improper add-on equipment or
choosing an improper installer is
dangerous. Essential systems could be
damaged, causing engine stalling ,
air-bag (SRS) activation,
ABS/TCS/DSC inactivation, or a fire in
the vehicle.
Mazda assumes no responsibility for
death, injury, or expenses that may
result from the installation of add-on
non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Warranty
8-17
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Recording of VehicleData
▼Recording of Vehicle Data
This vehicle is equipped with a
computer which records the following
main vehicle data related to vehicle
controls, operation, and other driving
conditions.

Recorded data
Vehicle conditions such as engine
speed and vehicle speed
Driving operation conditions such as
accelerator and brake pedals, and
information related to the
environmental circumstances while
the vehicle is driven
Malfunction diagnosis information
from each on-vehicle computer
Information related to controls of
other on-vehicle computers
NOTE
The recorded data may vary depending
on the vehicle grade and optional
equipment. Voice and images are not
recorded.

Data handling
Mazda and its subcontracting parties
may obtain and use the recorded data
for vehicle malfunction diagnosis,
research and development, and quality
improvement.
Mazda will not disclose or provide any
of the obtained data to a third party
unless:
An agreement from the vehicle
owner (agreements from lessor and
lessee for leased vehicle) is obtained
Officially requested by the police or
other law enforcement authorities
For statistical processing by a
research institution after processing
the data so that identification of the
owner or the vehicle is impossible
Customer Information and Reporting Safety Defects
Recording of Vehicle Data
8-20
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

GVW (Gross Vehicle Weight) is the
Vehicle Curb Weight + cargo +
passengers.

GVWR (Gross Vehicle Weight Rating)
is the maximum allowable weight of
the fully loaded vehicle (including all
options, equipment, passengers and
cargo). The GVWR is shown on the
Safety Compliance Certification Label
located on the driver's door frame or
door pillar. The GVW must never
exceed the GVWR.

SAMPLE
WARNING
Never Exceed Axle Weight Rating
Limits:
Exceeding the Safety Certification
Label axle weight rating limits is
dangerous and could result in death or
serious injury as a result of substandard
vehicle handling, performance, engine,
transmission and/or structural
damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle
weight rating limits.

GCW
GCW (Gross Combination Weight) is
the weight of the loaded vehicle
(GVW).

GCWR (Gross Combination Weight
Rating) is the maximum allowable
weight of the vehicle - including all
cargo and passengers - that the vehicle
can handle without risking damage.
The GCW must never exceed the
GCWR.

WARNING
Never Exceed GVWR or GAWR
Specifications:
Exceeding the GVWR or the GAWR
specified on the certification label is
dangerous. Exceeding any vehicle
rating limitation could result in a
serious accident, injury, or damage to
the vehicle.
Do not use replacement tires with
lower load carrying capacities than the
originals because they may lower the
vehicle's GVWR and GAWR
limitations. Replacement tires with a
higher limit than th e originals do not
increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR
specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-33
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

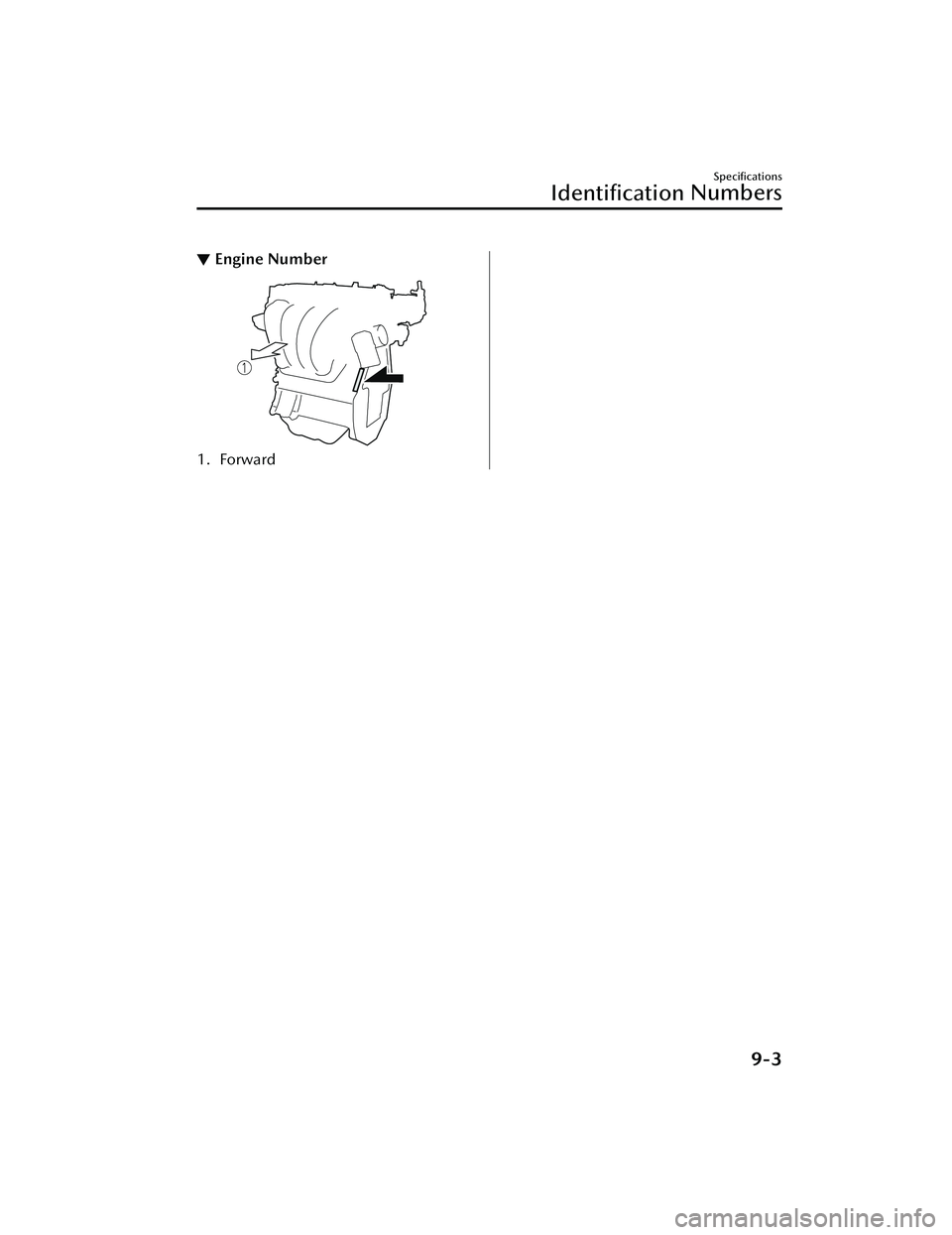

▼Engine Number
1. Forward
Specifications
Identification
Numbers
9-3
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0
10.5
▼Electrical System
Classification
Specification
Battery
*1
U.S.A. and Cana-
da 12V-60Ah/20HR or 12V-65Ah/20HR
Mexico 12V-60Ah/20HR
Spark-plug num-
ber SKYACTIV-G 2.0,
SKYACTIV-G
2.5Mazda Genuine spark
plug
*2PE5R-18-110 or PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark
plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.

CAUTION
When cleaning the iridium plugs, do no t use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-16.
Coolant FL-22 type
Manual transmission oil Mazda Long Life Gear Oil G7
Automatic transmission fluid
*1Mazda Genuine ATF FZ
Tra n s f e r c a s e o i l
*2Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil
*2Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Periodic replacement is unnecessary.*2 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYACTIV-G 2.0
With oil filter re-
placement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter re-
placement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G 2.5 With oil filter re-
placement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter re-
placement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYACTIV-G 2.5T With oil filter re-
placement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter re-
placement 4.6 L (4.9 US qt, 4.0 Imp qt)
Specifications
Specifications
9-5
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

ItemCapacity
Coolant SKYACTIV-G 2.0
Manual transmis-
sion
6.2 L (6.6 US qt, 5.5 Imp qt)
Automatic trans-
mission 6.5 L (6.9 US qt, 5.7 Imp qt)
SKYACTIV-G 2.5 Manual transmis-
sion
6.3 L (6.7 US qt, 5.5 Imp qt)
Automatic trans-
mission 6.6 L (7.0 US qt, 5.8 Imp qt)
SKYACTIV-G 2.5T For engine
8.3 L (8.8 US qt, 7.3 Imp qt)
For water-cooled
charge air cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Manual transmis-
sion oil SKYACTIV-G 2.0
1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-G 2.5 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic trans-
mission fluid SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank U.S.A. and Canada
FWD
50.0 L (13.2 US gal, 11.0 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Mexico FWD
51.0 L (13.5 US gal, 11.2 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
4-Door
Item
Vehicle specification
Overall length 4,662 mm (183.5 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,445 mm (56.9 in)
Front tread 1,568 mm (61.7 in)
Rear tread FWD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
Specifications
Specifications
9-6
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Index
Cruise Control........................ 4-225Cruise control switch.......... 4-225
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-225
Cup Holder.............................. 5-43
Customer Assistance (Canada)..... 8-6
Customer Assistance (Mexico)..... 8-9
Customer Assistance (Puerto
Rico).......................................... 8-8
Customer Assistance (U.S.A.)....... 8-2
D
Daytime Running Lights............. 4-61
Defogger.................................. 4-68 Mirror.................................. 4-69
Rear window........................ 4-68
Dimensions.................................9-6
Display..................................... 4-18
Distance & Speed Alert (DSA).. 4-119 Indication on display...........4-120
Door Locks............................... 3-11
Door-ajar Warning Beep............ 7-48
Driver Attention Alert (DAA).... 4-120
Driver Monitoring Camera....... 4-223
Driver Monitoring (DM)...........4-122
Drive Selection..........................4-92
Driving In Flooded Area............. 3-51
Driving on Uneven Road............ 3-52
Driving Position Memory........... 2-11
Driving Tips...............................3-46 Automatic transmission......... 4-51
Break-in period.................... 3-46
Driving in flooded area......... 3-51
Driving on uneven road.........3-52
Floor mat............................. 3-48
Hazardous driving.................3-47
Overloading......................... 3-51
Rocking the vehicle...............3-48
Saving fuel and protection of the
environment.........................3-46
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-52
Winter driving...................... 3-49
Dynamic Stability Control
(DSC)....................................... 4-90 DSC OFF indicator light........ 4-91
DSC OFF switch................... 4-91
TCS/DSC indicator light........4-90
E
Electric Parking Brake (EPB)........ 4-76
Electric Parking Brake (EPB) Warning
Beep.........................................7-46
Emergency StartingPush-starting........................ 7-20
Starting a flooded engine...... 7-20
Emergency Towing Tiedown hooks..................... 7-24
Towing description............... 7-23
Emission Control System............ 3-27
Engine Coolant............................... 6-19
Engine compartment
overview.............................. 6-14
Exhaust gas.......................... 3-27
Hood release....................... 6-12
Oil....................................... 6-16
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-19
Excessive Speed Warning........... 7-48
Exterior Care............................. 6-47 Aluminum wheel
maintenance........................ 6-52
Bright-metal maintenance..... 6-51
Maintaining the finish........... 6-48
Plastic part maintenance....... 6-52
10-3
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Index
F
FlasherHazard warning.................... 4-70
Headlights............................4-56
Flat Tire Changing a flat tire................. 7-7
Mounting the spare tire........ 7-12
Removing a flat tire................ 7-8
Floor Mat................................. 3-48
Fluids Brake/Clutch........................6-20
Classification.......................... 9-5
Washer................................ 6-21
Foot Brake................................ 4-75
Forward Sensing Camera (FSC) ..........
.............................................. 4-212
Front Camera/Side Cameras/Rear
Camera.................................. 4-222
Front Cross Traffic Alert (FCTA) ..........
.............................................. 4-124
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-47
Front Radar Sensor.................. 4-216
Front Side Radar Sensor........... 4-219
Fuel Filler lid and cap...................3-28
Requirements....................... 3-26
Tank capacity......................... 9-5
Fuses........................................ 6-39 Panel description.................. 6-42
Replacement........................ 6-39
G
Gauges..................................... 4-18
Glove Compartment..................5-47
H
Hazardous Driving.....................3-47
Hazard Warning Flasher............. 4-70
HeadlightsComing home light...............4-60
Flashing................................4-59
High-low beam.................... 4-59
Leaving home light............... 4-60
Leveling................................4-61
Head Restraint.......................... 2-17
High Beam Control System
(HBC)..................................... 4-101 High Beam Control System (HBC)
indicator light (green)......... 4-102
Hill Launch Assist (HLA)............. 4-87
HomeLink Wireless Control
System...................................... 4-70
Hood Release........................... 6-12
Horn........................................ 4-69
I
If a Warning Light Turns On or
Flashes......................................7-27
If the Active Driving Display Does Not
Operate.................................... 7-51
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-44
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-42
Immobilizer System................... 3-42
Inside Trunk Release Lever......... 3-24
Inspecting Brake/Clutch Fluid
Level.........................................6-20
Inspecting Coolan t Level............ 6-19
Inspecting Engine Oil Level.........6-18
Inspecting Washer Fluid Level..... 6-21
Instrument Cluster..................... 4-18 Average fuel economy...........4-26
Compass display.................. 4-28
Current fuel economy........... 4-26
Dashboard illumination........ 4-24
Deceleration regeneration charge
display................................. 4-27
10-4
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Index
Distance-to-empty................4-26
Engine coolant temperature
gauge...................................4-23
Fuel gauge........................... 4-23
Indication/indicator lights..... 4-31
i-ACTIVSENSE display........... 4-27
Message Display................... 4-28
Message indicated on multi-
information display............... 7-40
Multi-information display...... 4-20
Odometer............................ 4-22
Outside temperature
display................................. 4-25
Speedometer....................... 4-18
Tachometer.......................... 4-19
Trip meter............................ 4-22
Warning indication/warning
lights....................................4-29
Interior Care............................. 6-53 Active driving display
maintenance........................ 6-55
Cleaning the floor mats......... 6-55
Cleaning the window
interiors............................... 6-55
Instrument panel top (Soft pad)
maintenance........................ 6-54
Leather upholstery
maintenance........................ 6-54
Panel maintenance............... 6-55
Plastic part maintenance....... 6-54
Seat belt maintenance.......... 6-53
Upholstery maintenance....... 6-54
Vinyl upholstery
maintenance........................ 6-53
Interior Lights............................ 5-40 Luggage compartment light... 5-40
Map lights............................5-40
Overhead lights.................... 5-40
Trunk light............................ 5-40
i-ACTIVSENSE........................... 4-96 Active safety technology........ 4-96Adaptive Front Lighting System
(AFS)................................. 4-101
Blind Spot Monitoring
(BSM)................................ 4-107
Camera and sensors............. 4-97
Distance & Speed Alert
(DSA)................................ 4-119
Driver Attention Alert
(DAA)................................ 4-120
Driver monitoring camera....4-223
Driver Monitoring (DM)...... 4-122
Forward Sensing Camera
(FSC)................................. 4-212
Front camera/side cameras/rear
camera...............................4-222
Front Cross Tra ffi c Alert
(FCTA)............................... 4-124
Front radar sensor...............4-216
Front side radar sensor........ 4-219
High Beam Control System
(HBC)................................ 4-101
i-ACTIVSENSE OFF Switch... 4-100
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system)................................ 4-98
Lane Departure Warning System
(LDWS).............................. 4-103
Lane-keep Assist System
(LAS)..................................4-165
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)........... 4-140
Mazda Radar Cruise Control
(MRCC)............................. 4-131
Pre-crash safety technology... 4-97
Rear Cross Traffic Alert
(RCTA)............................... 4-127
Rear side radar sensor......... 4-220
Smart Brake Support (SBS)...4-169
Tra ffi c Jam Assist (TJA)......... 4-151
10-5
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
