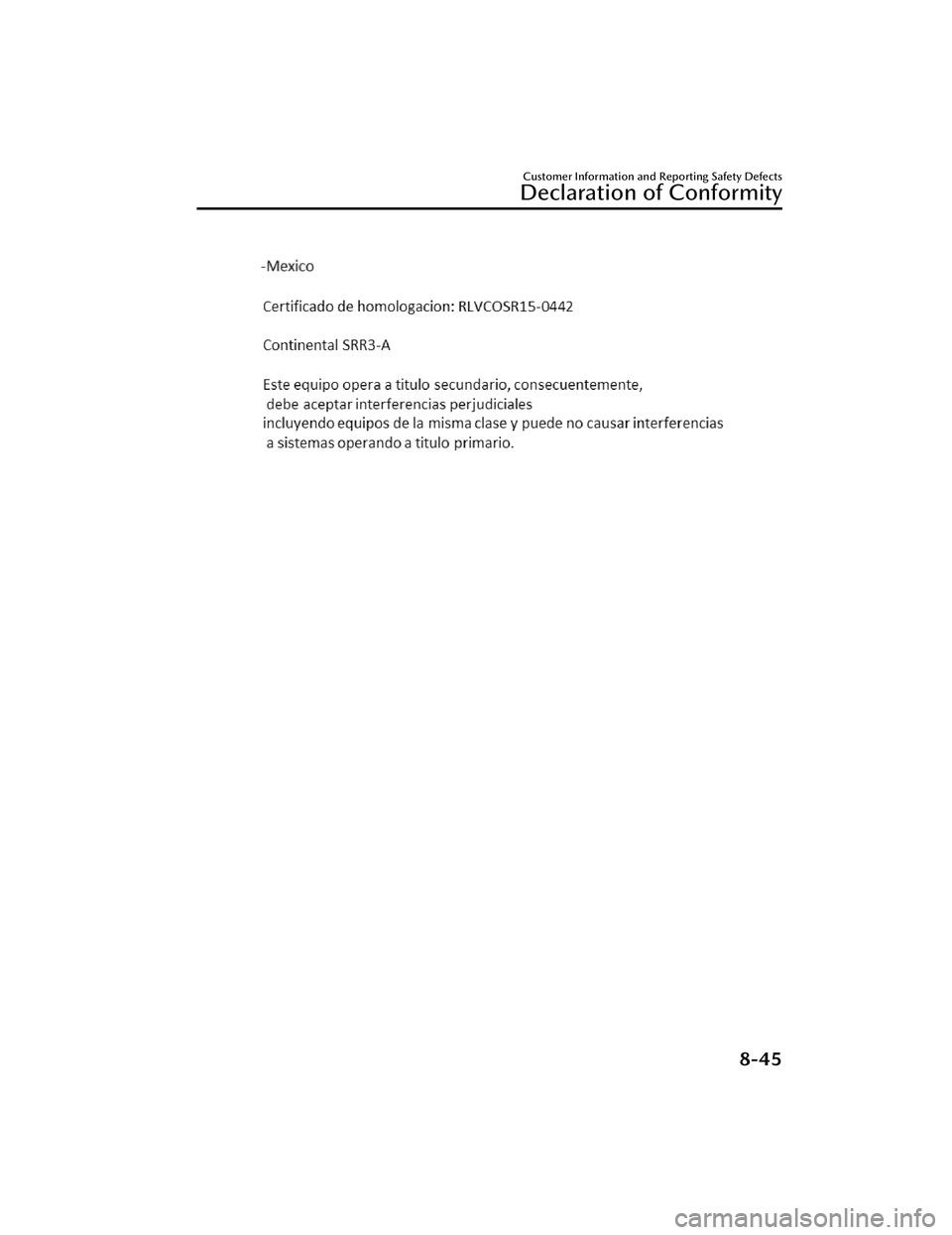

Customer Information and Reporting Safety Defects
Declaration of Conformity
8-45
Mazda3_8KH1-EA-21K_Edition1_new2021-7-27 16:02:22

MEMO
8-46
Mazda3_8KH1-EA-21K_Edition1_new2021-7-27 16:02:22

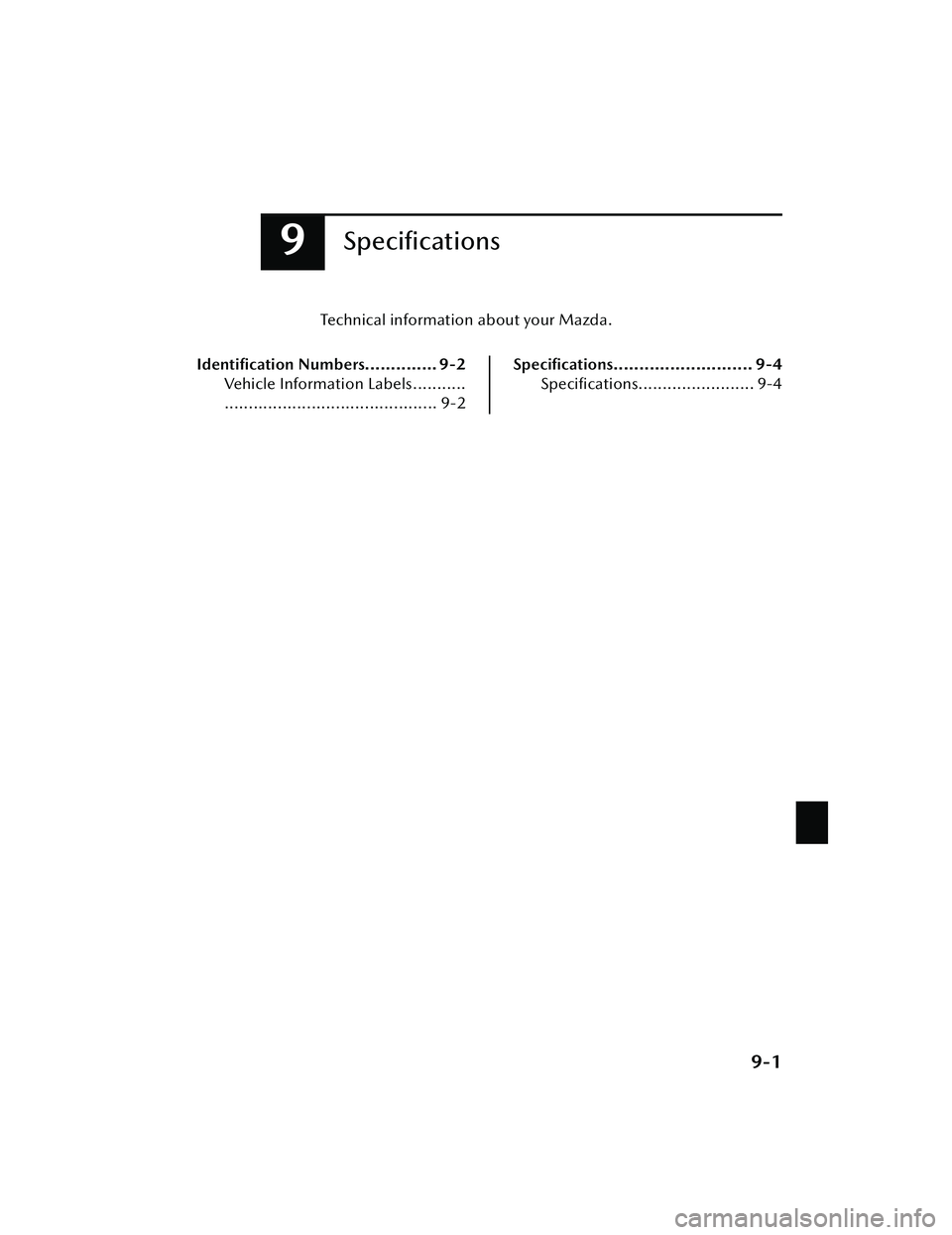

9Specifications
Technical information about your Mazda.
Identification Numbers.............. 9-2
Vehicle Information Labels...........
............................................ 9-2
Specifications ........................... 9-4
Specifications........................ 9-4
9-1
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Vehicle InformationLabels
▼Ve h i c l e
Identification Number
The vehicle identification number
legally
identifies your vehicle. The
number is on a plate attached to the
cowl panel located on the left corner
of the dashboard. This plate can easily
be seen through the windshield.
▼ Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼
Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification
Numbers
9-2
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

▼Engine Number
1. Forward
Specifications
Identification
Numbers
9-3
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0
10.5
▼Electrical System
Classification
Specification
Battery
*1
U.S.A. and Cana-
da 12V-60Ah/20HR or 12V-65Ah/20HR
Mexico 12V-60Ah/20HR
Spark-plug num-
ber SKYACTIV-G 2.0,
SKYACTIV-G
2.5Mazda Genuine spark
plug
*2PE5R-18-110 or PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark
plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.

CAUTION
When cleaning the iridium plugs, do no t use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-16.
Coolant FL-22 type
Manual transmission oil Mazda Long Life Gear Oil G7
Automatic transmission fluid
*1Mazda Genuine ATF FZ
Tra n s f e r c a s e o i l
*2Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil
*2Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Periodic replacement is unnecessary.*2 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYACTIV-G 2.0
With oil filter re-
placement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter re-
placement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G 2.5 With oil filter re-
placement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter re-
placement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYACTIV-G 2.5T With oil filter re-
placement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter re-
placement 4.6 L (4.9 US qt, 4.0 Imp qt)
Specifications
Specifications
9-5
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

ItemCapacity
Coolant SKYACTIV-G 2.0
Manual transmis-
sion
6.2 L (6.6 US qt, 5.5 Imp qt)
Automatic trans-
mission 6.5 L (6.9 US qt, 5.7 Imp qt)
SKYACTIV-G 2.5 Manual transmis-
sion
6.3 L (6.7 US qt, 5.5 Imp qt)
Automatic trans-
mission 6.6 L (7.0 US qt, 5.8 Imp qt)
SKYACTIV-G 2.5T For engine
8.3 L (8.8 US qt, 7.3 Imp qt)
For water-cooled
charge air cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Manual transmis-
sion oil SKYACTIV-G 2.0
1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-G 2.5 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic trans-
mission fluid SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank U.S.A. and Canada
FWD
50.0 L (13.2 US gal, 11.0 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Mexico FWD
51.0 L (13.5 US gal, 11.2 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
4-Door
Item
Vehicle specification
Overall length 4,662 mm (183.5 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,445 mm (56.9 in)
Front tread 1,568 mm (61.7 in)
Rear tread FWD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
Specifications
Specifications
9-6
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

5-Door
ItemVehicle specification
Overall length 4,459 mm (175.6 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,440 mm (56.7 in)
Front tread 1,568 mm (61.7 in)
Rear tread FWD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
▼We igh ts
U.S.A. and Canada
SKYACTIV-G 2.0
(4-Door)
Item Weight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,804 kg (3,977 lbs) 1,825 kg (4,023 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 966 kg (2,130 lbs) 989 kg (2,180 lbs)
Rear 843 kg (1,858 lbs) 841 kg (1,854 lbs)
(5-Door)
Item
Weight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,810 kg (3,990 lbs) 1,833 kg (4,041 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 965 kg (2,127 lbs) 989 kg (2,180 lbs)
Rear 848 kg (1,870 lbs) 847 kg (1,867 lbs)
SKYACTIV-G 2.5
(4-Door)
Item
Weight
FWD AWD
GVWR (Gross Vehicle Weight
Rating) 1,850 kg (4,079 lbs) 1,910 kg (4,211 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 1,016 kg (2,240 lbs) 1,030 kg (2,271 lbs)
Rear 839 kg (1,850 lbs) 885 kg (1,951 lbs)
Specifications
Specifications
9-7
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
