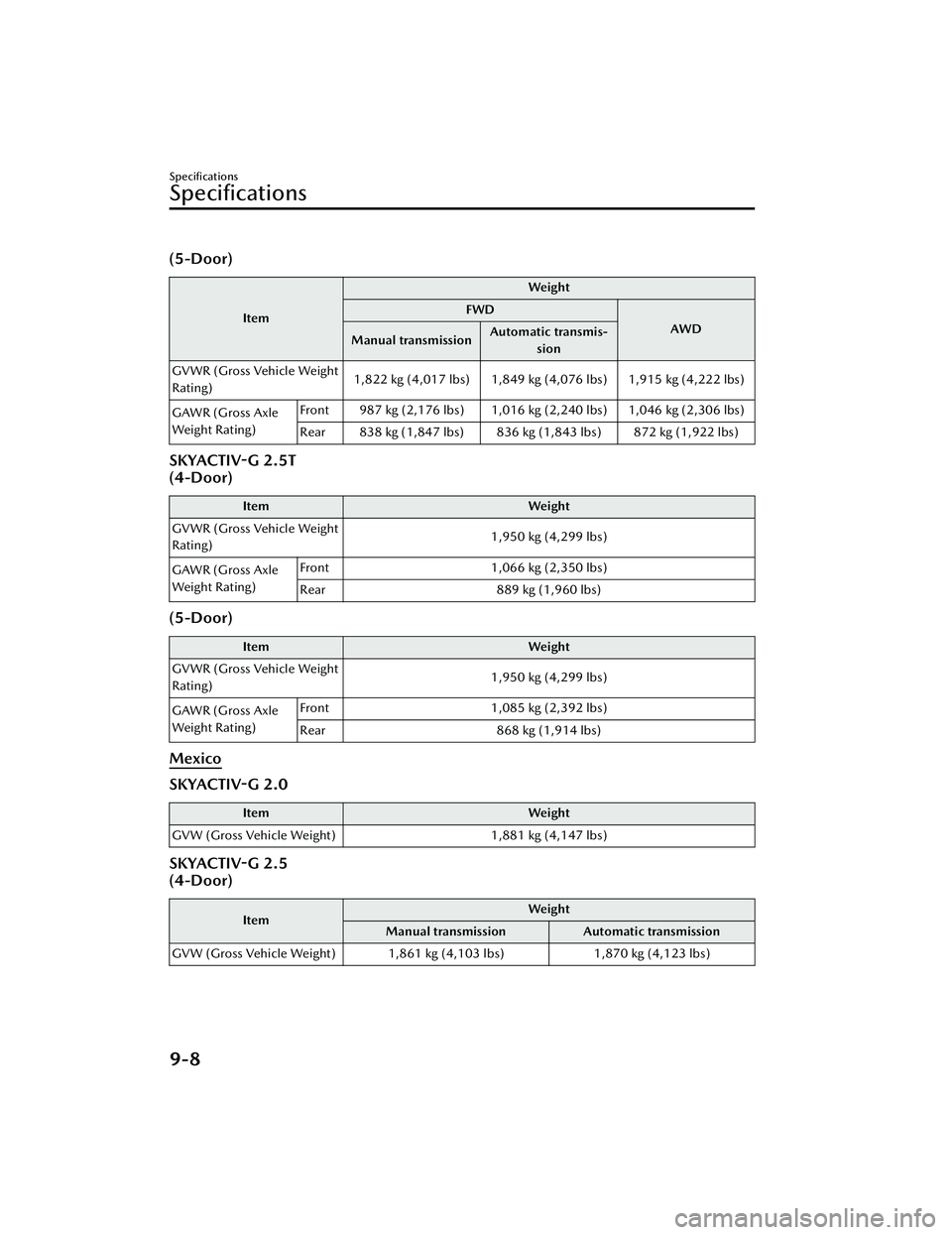

(5-Door)
ItemWeight
FWD AWD
Manual transmission Automatic transmis-
sion
GVWR (Gross Vehicle Weight
Rating) 1,822 kg (4,017 lbs) 1,849 kg (4,076 lbs) 1,915 kg (4,222 lbs)
GAWR (Gross Axle
Weight Rating) Front 987 kg (2,176 lbs) 1,016 kg (2,240 lbs) 1,046 kg (2,306 lbs)
Rear 838 kg (1,847 lbs) 836 kg (1,843 lbs) 872 kg (1,922 lbs)
SKYACTIV-G 2.5T
(4-Door)
Item
Weight
GVWR (Gross Vehicle Weight
Rating) 1,950 kg (4,299 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,066 kg (2,350 lbs)
Rear 889 kg (1,960 lbs)
(5-Door)
Item Weight
GVWR (Gross Vehicle Weight
Rating) 1,950 kg (4,299 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,085 kg (2,392 lbs)
Rear 868 kg (1,914 lbs)
Mexico
SKYACTIV-G 2.0
Item Weight
GVW (Gross Vehicle Weight) 1,881 kg (4,147 lbs)
SKYACTIV-G 2.5
(4-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,861 kg (4,103 lbs) 1,870 kg (4,123 lbs)
Specifications
Specifications
9-8
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

(5-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,848 kg (4,074 lbs) 1,870 kg (4,123 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) 1,950 kg (4,299 lbs)
▼Light Bulbs
Exterior light
Light bulb Category
Watta ge UN-R*1 (SAE)
Headlights LED ― (― )
Daytime running lights LED― (― )
Parking lights LED type
LED― (― )
Bulb type 5WY5W (―)
Front turn signal lights LED― (― )
Front side-marker lights LED type
LED― (― )
Bulb type 5WY5W (―)
Side turn signal lights
*LED ― (― )
High-mount brake light LED― (― )
Rear turn signal lights LED― (― )
Rear side-marker lights LED― (― )
Brake lights LED― (― )
Taillights LED― (― )
Reverse lights LED― (― )
License plate lights LED― (― )
*1 UN-R stands for United Nations Regulation.
Interior light
Light bulb Category
Watta ge UN-R*1
Overhead light (Front)/Map lights LED―
Overhead light (Rear) LED―
Vanity mirror lights
*LED ―
Specifications
Specifications
*Some models.9-9
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

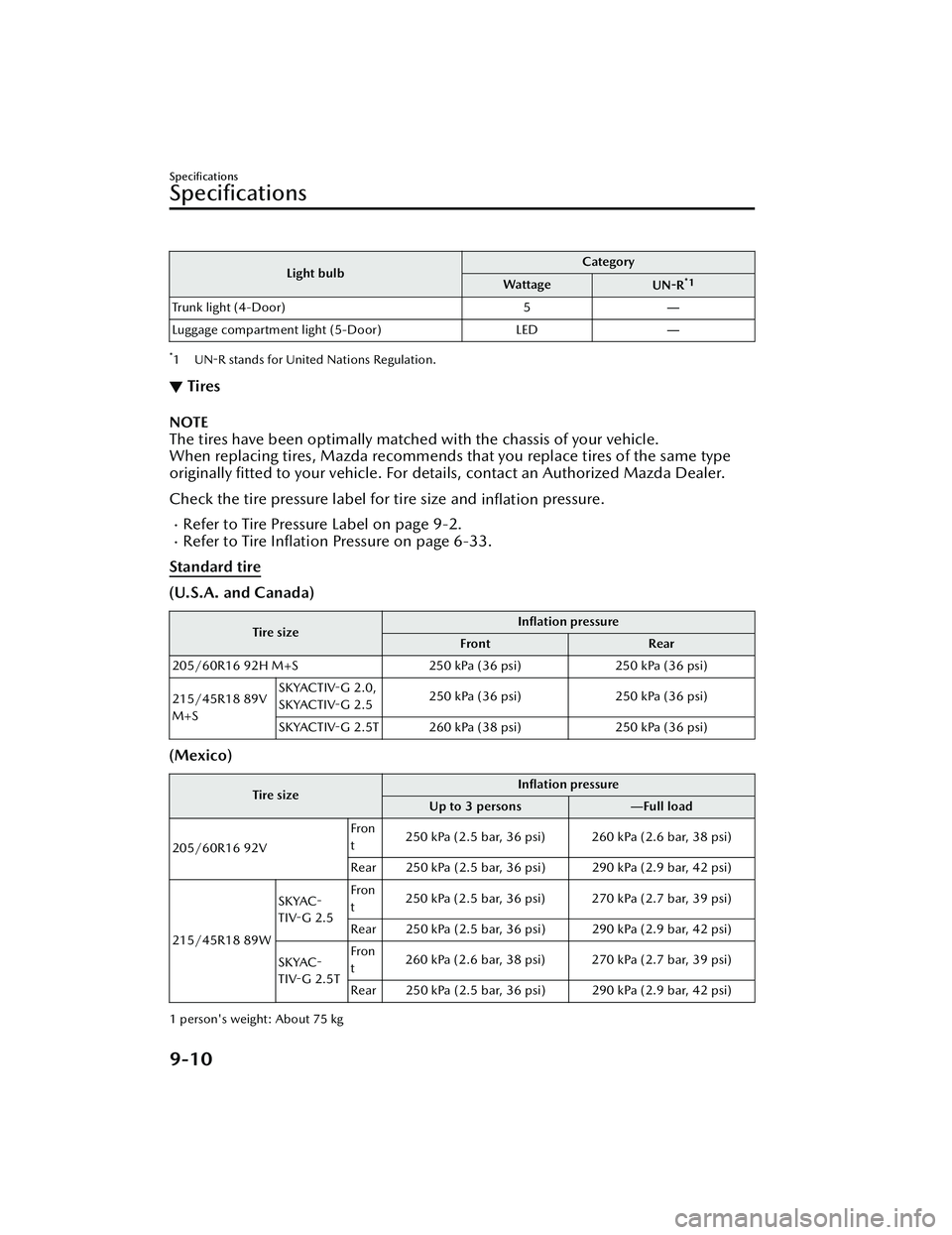

Light bulbCategory
Wattage UN-R*1
Trunk light (4-Door) 5―
Luggage compartment light (5-Door) LED―
*1 UN-R stands for United Nations Regulation.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and
inflation pressure.
Refer to Tire Pressure Label on page 9-2.Refer to Tire Inflation Pressure on page 6-33.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
205/60R16 92H M+S 250 kPa (36 psi) 250 kPa (36 psi)
215/45R18 89V
M+S SKYACTIV-G 2.0,
SKYACTIV-G
2.5 250 kPa (36 psi) 250 kPa (36 psi)
SKYACTIV-G 2.5T 260 kPa (38 psi) 250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Up to 3 persons ―Full load
205/60R16 92V Fron
t
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
215/45R18 89W SKYAC-
TIV-G 2.5
Fron
t
250 kPa (2.5 bar, 36 psi) 270 kPa (2.7 bar, 39 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
SKYAC-
TIV-G 2.5T Fron
t
260 kPa (2.6 bar, 38 psi) 270 kPa (2.7 bar, 39 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Specifications
Specifications
9-10
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Temporary spare tire
Tire sizeInflation pressure
T125/70D16 96M
* １420 kPa (60 psi)
T125/80D16 97M
*2420 kPa (60 psi)
*1FWD*2AWD
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80 ―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-39.
Specifications
Specifications
9-11
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

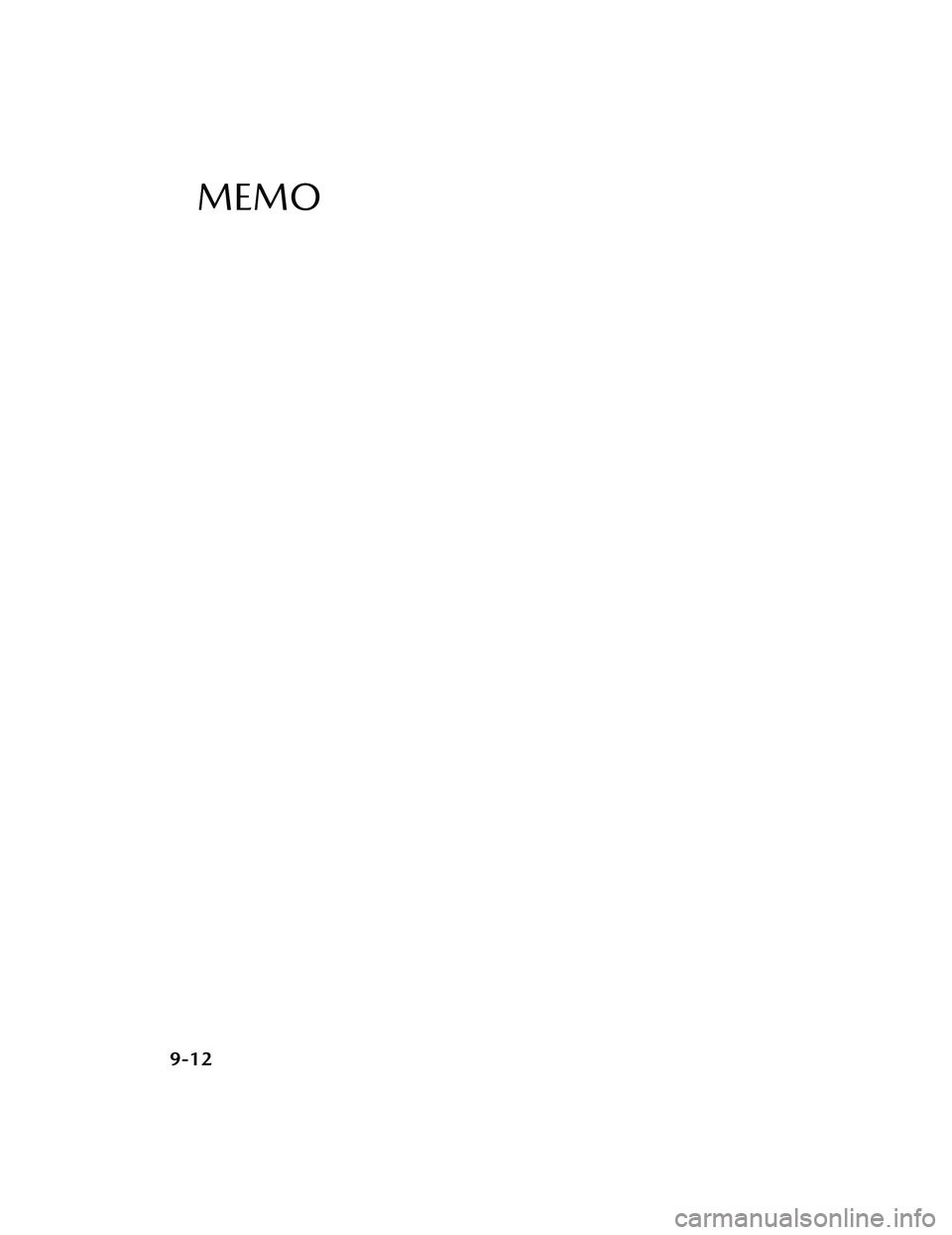

MEMO
9-12
Mazda3_8KH1-EA-21K_Edition1_new2021-7-27 16:02:22

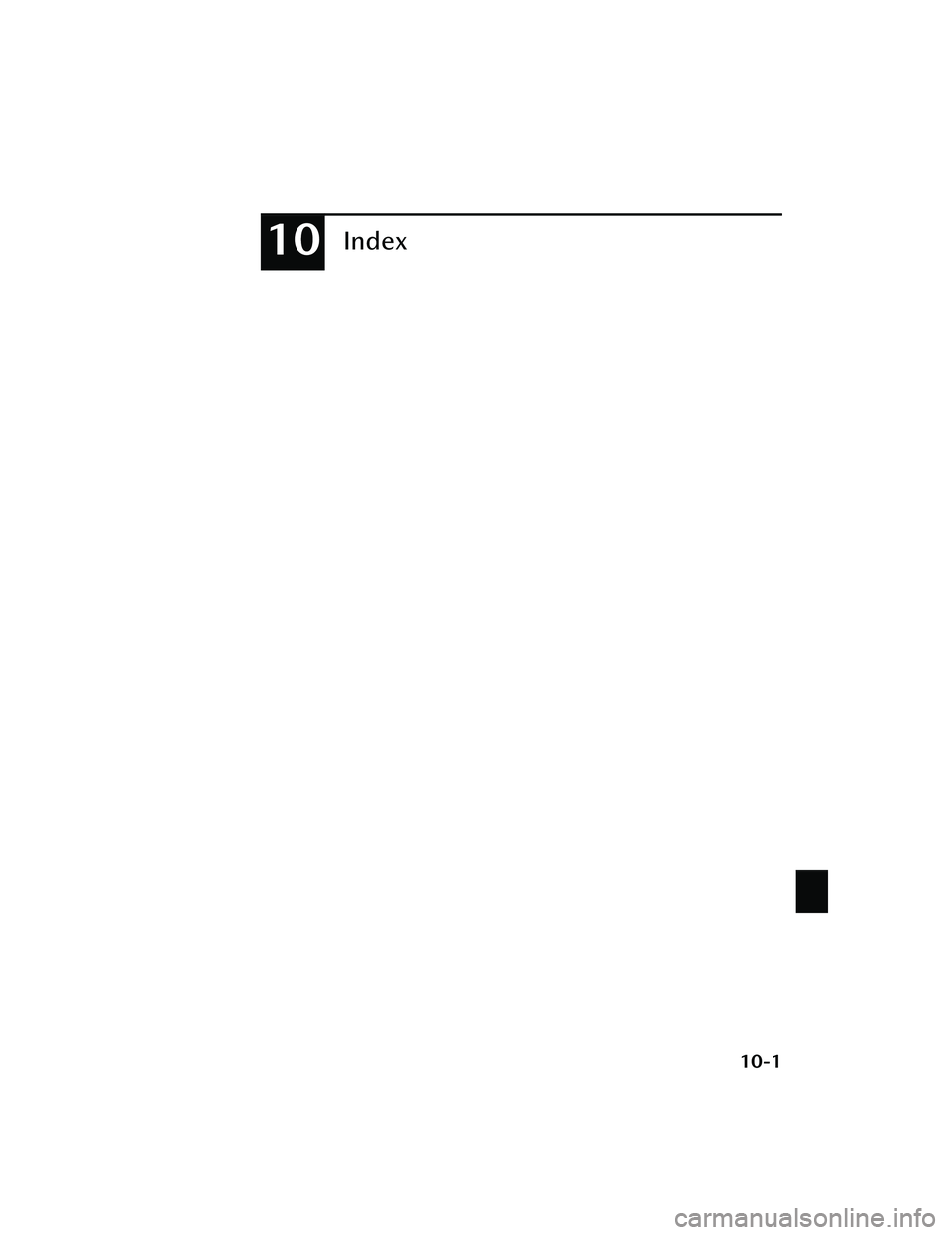

10Index
10-1
Mazda3_8KH1-EA-21K_Edition1_new2021-7-27 16:02:22

Index
A
Accessory Socket....................... 5-42
Active Driving Display................4-36
Adaptive Front Lighting System
(AFS)...................................... 4-101
Add-On Non-Genuine Parts and
Accessories............................... 8-17
Advanced KeyAdvanced keyless entry
system................................... 3-9
Operational range................ 3-10
Advanced Keyless Entry System..... 3-9
Antilock Brake System (ABS).......4-88
Assist Grips............................... 5-45
AUTOHOLD.............................. 4-82
AUTOHOLD Warning Beep........ 7-47
Automatic Transmission Active Adaptive Shift (AAS)... 4-44
Automatic transmission
controls................................4-41
Direct mode.........................4-50
Driving tips.......................... 4-51
Manual shift mode............... 4-44
Shift-lock system...................4-42
Transmission ranges.............. 4-43
B
Battery...................................... 6-28Maintenance........................ 6-29
Replacement........................ 6-29
Specifications......................... 9-4
Battery Runs Out....................... 7-17
Jump-starting....................... 7-17
Blind Spot Monitoring (BSM)....4-107 Canceling operation of Blind Spot
Monitoring (BSM)...............4-111
Blind Spot Monitoring (BSM) Warning
Beep.........................................7-47
Body Lubrication....................... 6-22
Bottle Holder............................ 5-45
Brakes Brake assist.......................... 4-80
Brake override system........... 4-81
Electric Parking Brake (EPB)....4-76
Foot brake............................4-75
Pad wear indicator................4-80
Parking brake....................... 4-76
Warning light........................4-79
Brake Override System............... 4-81
Brake Override Warning Beep.....7-46
Brake System Warning Beep....... 7-46
Break-In Period......................... 3-46
C
Capacities...................................9-5
Cell Phones.............................. 8-18
Center Console......................... 5-47
Child Restraint Categories of child-restraint
systems................................ 2-37
Child-restraint precautions.... 2-32
Child-restraint system
installation........................... 2-37
Child-restraint system suitability
for various seat positions
table.................................... 2-39
Installing child-restraint
systems................................ 2-42
ISOFIX child-restraint systems
(Mexico).............................. 2-50
LATCH child-restraint systems
(Except Mexico)................... 2-50
Climate Control System Fully automatic type..............5-10
Manual type...........................5-5
Operating tips........................ 5-2
Vent operation....................... 5-3
Collision warning...................... 7-48
Coming Home Light.................. 4-60
10-2
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Index
Cruise Control........................ 4-225Cruise control switch.......... 4-225
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-225
Cup Holder.............................. 5-43
Customer Assistance (Canada)..... 8-6
Customer Assistance (Mexico)..... 8-9
Customer Assistance (Puerto
Rico).......................................... 8-8
Customer Assistance (U.S.A.)....... 8-2
D
Daytime Running Lights............. 4-61
Defogger.................................. 4-68 Mirror.................................. 4-69
Rear window........................ 4-68
Dimensions.................................9-6
Display..................................... 4-18
Distance & Speed Alert (DSA).. 4-119 Indication on display...........4-120
Door Locks............................... 3-11
Door-ajar Warning Beep............ 7-48
Driver Attention Alert (DAA).... 4-120
Driver Monitoring Camera....... 4-223
Driver Monitoring (DM)...........4-122
Drive Selection..........................4-92
Driving In Flooded Area............. 3-51
Driving on Uneven Road............ 3-52
Driving Position Memory........... 2-11
Driving Tips...............................3-46 Automatic transmission......... 4-51
Break-in period.................... 3-46
Driving in flooded area......... 3-51
Driving on uneven road.........3-52
Floor mat............................. 3-48
Hazardous driving.................3-47
Overloading......................... 3-51
Rocking the vehicle...............3-48
Saving fuel and protection of the
environment.........................3-46
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-52
Winter driving...................... 3-49
Dynamic Stability Control
(DSC)....................................... 4-90 DSC OFF indicator light........ 4-91
DSC OFF switch................... 4-91
TCS/DSC indicator light........4-90
E
Electric Parking Brake (EPB)........ 4-76
Electric Parking Brake (EPB) Warning
Beep.........................................7-46
Emergency StartingPush-starting........................ 7-20
Starting a flooded engine...... 7-20
Emergency Towing Tiedown hooks..................... 7-24
Towing description............... 7-23
Emission Control System............ 3-27
Engine Coolant............................... 6-19
Engine compartment
overview.............................. 6-14
Exhaust gas.......................... 3-27
Hood release....................... 6-12
Oil....................................... 6-16
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-19
Excessive Speed Warning........... 7-48
Exterior Care............................. 6-47 Aluminum wheel
maintenance........................ 6-52
Bright-metal maintenance..... 6-51
Maintaining the finish........... 6-48
Plastic part maintenance....... 6-52
10-3
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Index
F
FlasherHazard warning.................... 4-70
Headlights............................4-56
Flat Tire Changing a flat tire................. 7-7
Mounting the spare tire........ 7-12
Removing a flat tire................ 7-8
Floor Mat................................. 3-48
Fluids Brake/Clutch........................6-20
Classification.......................... 9-5
Washer................................ 6-21
Foot Brake................................ 4-75
Forward Sensing Camera (FSC) ..........
.............................................. 4-212
Front Camera/Side Cameras/Rear
Camera.................................. 4-222
Front Cross Traffic Alert (FCTA) ..........
.............................................. 4-124
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-47
Front Radar Sensor.................. 4-216
Front Side Radar Sensor........... 4-219
Fuel Filler lid and cap...................3-28
Requirements....................... 3-26
Tank capacity......................... 9-5
Fuses........................................ 6-39 Panel description.................. 6-42
Replacement........................ 6-39
G
Gauges..................................... 4-18
Glove Compartment..................5-47
H
Hazardous Driving.....................3-47
Hazard Warning Flasher............. 4-70
HeadlightsComing home light...............4-60
Flashing................................4-59
High-low beam.................... 4-59
Leaving home light............... 4-60
Leveling................................4-61
Head Restraint.......................... 2-17
High Beam Control System
(HBC)..................................... 4-101 High Beam Control System (HBC)
indicator light (green)......... 4-102
Hill Launch Assist (HLA)............. 4-87
HomeLink Wireless Control
System...................................... 4-70
Hood Release........................... 6-12
Horn........................................ 4-69
I
If a Warning Light Turns On or
Flashes......................................7-27
If the Active Driving Display Does Not
Operate.................................... 7-51
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-44
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-42
Immobilizer System................... 3-42
Inside Trunk Release Lever......... 3-24
Inspecting Brake/Clutch Fluid
Level.........................................6-20
Inspecting Coolan t Level............ 6-19
Inspecting Engine Oil Level.........6-18
Inspecting Washer Fluid Level..... 6-21
Instrument Cluster..................... 4-18 Average fuel economy...........4-26
Compass display.................. 4-28
Current fuel economy........... 4-26
Dashboard illumination........ 4-24
Deceleration regeneration charge
display................................. 4-27
10-4
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Index
Distance-to-empty................4-26
Engine coolant temperature
gauge...................................4-23
Fuel gauge........................... 4-23
Indication/indicator lights..... 4-31
i-ACTIVSENSE display........... 4-27
Message Display................... 4-28
Message indicated on multi-
information display............... 7-40
Multi-information display...... 4-20
Odometer............................ 4-22
Outside temperature
display................................. 4-25
Speedometer....................... 4-18
Tachometer.......................... 4-19
Trip meter............................ 4-22
Warning indication/warning
lights....................................4-29
Interior Care............................. 6-53 Active driving display
maintenance........................ 6-55
Cleaning the floor mats......... 6-55
Cleaning the window
interiors............................... 6-55
Instrument panel top (Soft pad)
maintenance........................ 6-54
Leather upholstery
maintenance........................ 6-54
Panel maintenance............... 6-55
Plastic part maintenance....... 6-54
Seat belt maintenance.......... 6-53
Upholstery maintenance....... 6-54
Vinyl upholstery
maintenance........................ 6-53
Interior Lights............................ 5-40 Luggage compartment light... 5-40
Map lights............................5-40
Overhead lights.................... 5-40
Trunk light............................ 5-40
i-ACTIVSENSE........................... 4-96 Active safety technology........ 4-96Adaptive Front Lighting System
(AFS)................................. 4-101
Blind Spot Monitoring
(BSM)................................ 4-107
Camera and sensors............. 4-97
Distance & Speed Alert
(DSA)................................ 4-119
Driver Attention Alert
(DAA)................................ 4-120
Driver monitoring camera....4-223
Driver Monitoring (DM)...... 4-122
Forward Sensing Camera
(FSC)................................. 4-212
Front camera/side cameras/rear
camera...............................4-222
Front Cross Tra ffi c Alert
(FCTA)............................... 4-124
Front radar sensor...............4-216
Front side radar sensor........ 4-219
High Beam Control System
(HBC)................................ 4-101
i-ACTIVSENSE OFF Switch... 4-100
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system)................................ 4-98
Lane Departure Warning System
(LDWS).............................. 4-103
Lane-keep Assist System
(LAS)..................................4-165
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)........... 4-140
Mazda Radar Cruise Control
(MRCC)............................. 4-131
Pre-crash safety technology... 4-97
Rear Cross Traffic Alert
(RCTA)............................... 4-127
Rear side radar sensor......... 4-220
Smart Brake Support (SBS)...4-169
Tra ffi c Jam Assist (TJA)......... 4-151
10-5
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
