qOperating the In-Dash CD Changerí
Disc up
button Disc down
button Fast-forward
buttonTrack down
button
Random button
Scan button
Channel
preset
buttons
Track up button
Load button
Repeat button
CD slot
CD eject button
CD play button
Reverse button
(Music CD player)
(Music CD/MP3 CD player)
There are two types of In-dash CD
changers. Check which In-dash CD
changer type you own.
Type
Playable data
Music CD player · Music data (CD-DA)
Music CD/MP3 CD
player · Music data (CD-DA)
· MP3 file
NOTE
If a disc has both music data (CD-DA) and
MP3 files, playback of the two file types differs
depending on how the disc was recorded.
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.
NOTE
The CD will begin playback automatically
after insertion.
A CD cannot be inserted while the display
reads
“WAIT ”. A beeping sound can be heard
during this waiting time. Simultaneously
pressing the power/volume dial and the load
button (
) for about 2 seconds will turn
this beeping sound ON or OFF.
6-36
Interior Comfort
íSome models.
Audio System
Mazda5_8X91-EA-07E_Edition1 Page196
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (197,1)
Normal insertion
1. Press the load button (
).
2. When “IN ”is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button (
)
for about 2 seconds until a beep sound
is heard.
2. Press the channel preset button for the desired tray number while “WAIT ”is
displayed.
3. When “IN ”is displayed, insert the CD.
NOTE
The CD cannot be inserted to the desired tray
number if the number is already occupied.
Multiple insertion
1. Press and hold the load button (
)
for about 2 seconds until a beep sound
is heard.
2. When “IN ”is displayed, insert the CD.
3. When “IN ”is displayed again, insert
the next CD.
NOTE
The first-inserted CD will be played
automatically when:
lNo other CD is inserted within 15 seconds
after “IN ”is displayed.
lThe CD trays are full.
Displaying the CD-inserted tray
number
When you want to know the number for a
CD-inserted tray, press the display button
(
). The tray number will be displayed
for 5 seconds.
Ejecting the CD
Normal ejection
1. Press the CD eject button (
). The
disc number and “DISC ”“OUT ”will
be displayed.
2. Pull out the CD.
NOTE
lWhen the CD is ejected during play, the
next CD will be played automatically.
l(Music CD player)
If the CD is not removed from the slot
within approximately 10 seconds after
ejection, it will be re- inserted
automatically.
Ejecting CDs from desired tray number
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep sound
is heard.
The “DISC ”“OUT ”display flashes.
2. Press the channel preset button for the desired CD number for less than 5
seconds after the beep sound is heard.
3. Pull out the CD.
NOTE
(Music CD player)
If the CD is not removed from the slot within
approximately 10 seconds after ejection, it will
be re- inserted automatically.
Multiple ejection
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep sound
is heard.
The “DISC ”“OUT ”display flashes.
2. Press the CD eject button (
) again
for less than 5 seconds after the beep
sound is heard.
Interior Comfort
Audio System
6-37
Mazda5_8X91-EA-07E_Edition1 Page197
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (198,1)
NOTE
If the button is not pressed and about 5
seconds have elapsed while“DISC ”“OUT ”is
flashing, CDs are automatically ejected.
3. Pull out the CD, then the next CD will be ejected.
NOTE
lCDs will be ejected starting with the one
with the lowest number.
lAll CDs in the tray will be ejected
continuously.
lCDs can be ejected when the ignition
switch is off. Press and hold the CD eject
button (
) for about 2 seconds and all
CDs will eject.
l(Music CD player)
If the CD is not removed from the slot
within approximately 10 seconds after
ejection, it will be re- inserted
automatically.
Playing
Press the CD play button (
) to start
play when a CD is in the unit.
If there isn't a CD in the unit when the CD
play button (
) is pressed, “NO DISC ”
will flash on and off.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
)onceto
skip back to the beginning of the current
track.
Disc search
During music CD playback
To change the disc, press the DISC button
(
or) during playback.
During MP3 CD playback
To change the disc, press the DISC button
(
or) for 1.5 seconds or
more during playback.
Folder search (during MP3 CD
playback)
To change to the previous folder, press the
folder down button (
) for less than
1.5 seconds, or press the folder up button
(
) for less than 1.5 seconds to
advance to the next folder.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
) during play
to start scan play operation (the track
number will flash).
Press the scan button (
) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play will
resume where scan was selected.
Repeat play
During music CD playback
1. Press the repeat button (
) during
playback to play the current track
repeatedly. “RPT ”is displayed.
2. Press the button again to cancel the repeat play.
6-38
Interior Comfort
Audio System
Mazda5_8X91-EA-07E_Edition1 Page198
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (199,1)
During MP3 CD playback
(Track repeat)
1. Press the repeat button (
) during
playback to play the current track
repeatedly. “RPT ”is displayed.
2. To cancel the repeat play, press the button again after 3 seconds.
(Folder repeat)
1. Press the repeat button (
) during
playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ RPT ”is displayed.
2. Press the button again to cancel the repeat play.
Random play
Tracks are randomly selected and played.
During music CD playback
1. Press the random button (
) during
playback to play the tracks in the CD
randomly. “RDM ”is displayed.
2. Press the button again to cancel the random play.
During MP3 CD playback
(Folder random)
1. Press the random button (
) during
playback to play the tracks in the folder
randomly. “RDM ”is displayed.
2. To cancel the random play, press the button again after 3 seconds. (CD random)
1. Press the random button (
) during
playback, and then press the button
again within 3 seconds to play the
tracks in the CD randomly. “RDM ”is
displayed.
2. Press the button again to cancel the random play.
Switching the display (Music CD/MP3
CD player)
Each time the display button (
)is
pressed during playback, the display will
switch in the following order.
Music CD
Track number/Elapsed
time display
Disc tray number
File name display
Album name display Artist name display
Interior Comfort
Audio System
6-39
Mazda5_8X91-EA-07E_Edition1 Page199
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (200,1)
MP3 CD
Folder number/Track
numberDisc number/File
number/Elapsed
time display
Disc tray number
File name
Folder name
Album name (ID3 Tag) Song name (ID3 Tag)
Artist name (ID3 Tag)
NOTE
(MP3 CD)l“ NO TITLE ”will be displayed when the
display is switched for a file without a file,
track or other name input.
lThis unit can only read English (including
numerals) one-byte characters. If any other
character is included, “NO TITLE ”will be
displayed. Depending on the CD writing
software used, proper display may not be
possible.
Display scroll (Music CD/MP3 CD
player)
Only 12 characters can be displayed at
one time. To display the rest of the
characters of a long title, turn the display
feed dial (
) to the right. Hidden
titles can be scrolled into the display one
character at a time. NOTE
The displayable number of characters is
limited. If the number of characters, including
the file extension (.mp3), exceeds 32
characters, it may not be fully displayed.
Message display
If
“CHECK CD ”is displayed, it means
that there is some CD malfunction. Check
for damage, dirt, or smudges on the CD,
and then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
6-40
Interior Comfort
Audio System
Mazda5_8X91-EA-07E_Edition1 Page200
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (201,1)

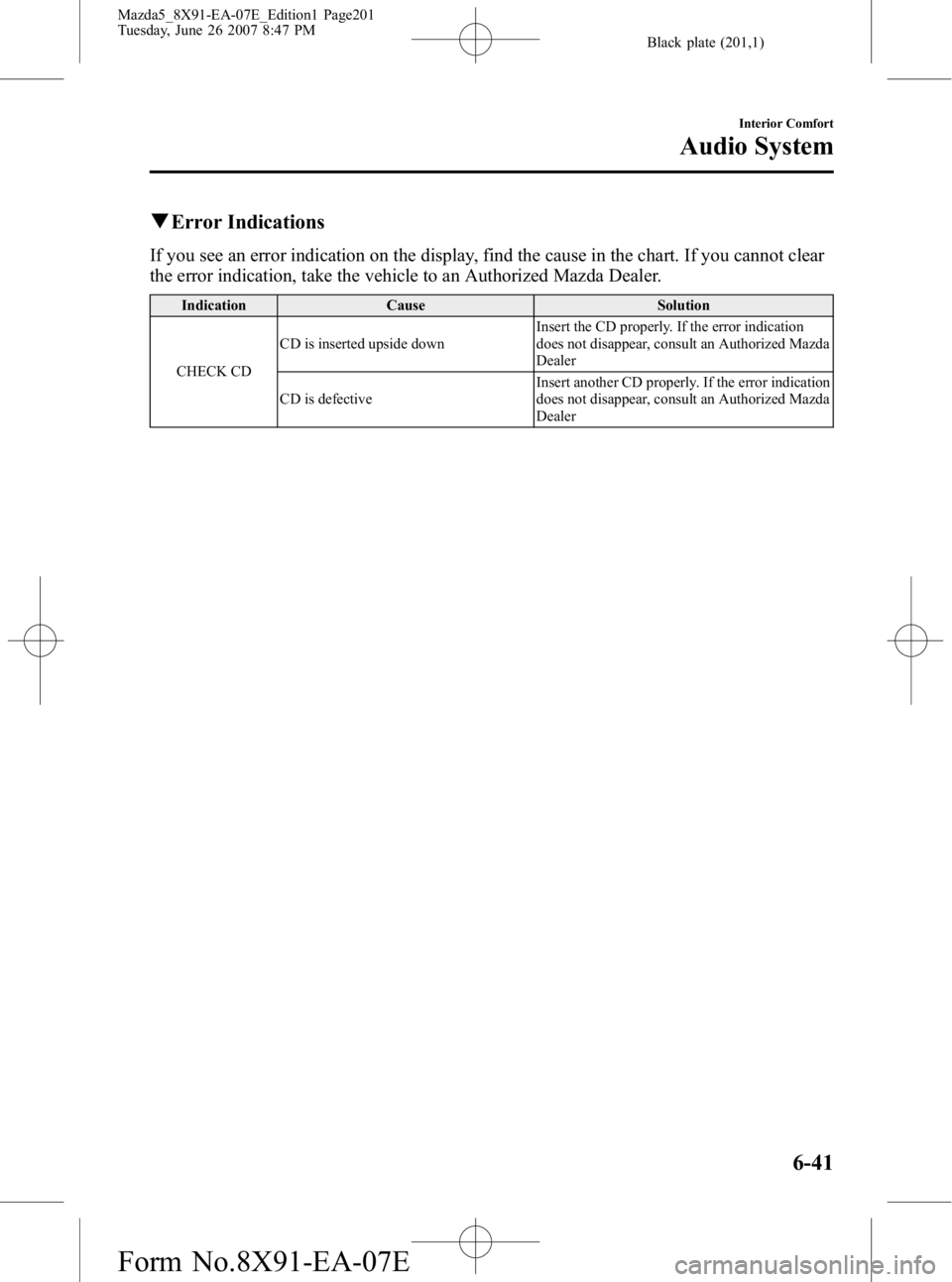

qError Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK CD CD is inserted upside down
Insert the CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CD is defective Insert another CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
Interior Comfort
Audio System
6-41
Mazda5_8X91-EA-07E_Edition1 Page201
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (208,1)
Information Display
Climate control display/
Ambient temperature display
Clock Audio display
q
Information Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display, Fully Automatic Type)lClimate Control Display (Fully Automatic Type)lAudio Display
6-48
Interior Comfort
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page208
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (209,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK switch until a beep
sounds, and “12Hr ”and “24Hr ”will be
displayed.
2. Press the SET switch to switch between “12Hr ”and “24Hr ”displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK switch again while
the preferred setting is flashing.
3. “Hr. ADJUST ”will be displayed next,
and the hour portion of the display will
flash. Press the SET switch to set the
hour, then press the CLOCK switch.
4. “Min. ADJUST ”will be displayed
next, and the minutes portion of the
display will flash. Press the SET switch
to set the minutes, then press the
CLOCK switch.
Time resetting
While the clock is displayed, press the
SET switch 1.5 seconds or more. When
the switch is released, a beep will sound
and the clock will be reset as follows:
(Example) 12:01
―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the SET switch is released, the seconds
are reset to “00 ”.
q Ambient Temperature Display
(Fully Automatic Type)
When the ignition switch is in the ON
position, press the AMB switch (page
6-10) to display the ambient temperature.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AMB switch 2 seconds or more to
switch the display from Fahrenheit to
Centigrade or vice versa.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
Interior Comfort
Interior Equipment
6-49
Mazda5_8X91-EA-07E_Edition1 Page209
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (210,1)
qClimate Control Display (Fully
Automatic Type)
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-15).
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
qFront
To use, open the cover.
6-50
Interior Comfort
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page210
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (348,1)
A
Accessory Socket .............................. 6-56
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-39
Ambient Temperature Display .......... 6-49
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-7
Appearance Care ............................... 8-48
Audio System ................................... 6-15 Audio control switch .................. 6-42
Audio set .................................... 6-25
Operating tips for audio
system ........................................ 6-15
Safety certification ..................... 6-45
Automatic Transaxle Driving tips ................................ 5-16
Fluid ........................................... 8-23
Manual shift mode ..................... 5-13
Shift-lock override ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
BatteryEmergency starting .................... 7-15
Maintenance ............................... 8-30
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-42
Lights-on reminder ..................... 5-42
Seat belt warning beep ............... 5-42
Tire inflation pressure warning
beep ............................................ 5-42
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Body Lubrication .............................. 8-26
Bottle Holder ..................................... 6-52
Brake/Clutch
Fluid ........................................... 8-22
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-8
Foot brake .................................... 5-4
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-36
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-55
Cargo Sub-Compartment .................. 6-55
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Console .................................. 6-53
Child Restraint Child restraint precautions ......... 2-26
LATCH child-restraint
systems ....................................... 2-36
Child Safety Locks for Rear Doors ... 3-10
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Clock ................................................. 6-49
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-50
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-30
Daytime Running Lights ................... 5-46
11-2
Index
Mazda5_8X91-EA-07E_Edition1 Page348
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E
