climate control MAZDA MODEL 5 2007 Owners Manual

Black plate (9,1)
Power window lock switch ................................................................................ page 3-15
Power window switches .................................................................................... page 3-14
Power door lock switch ....................................................................................... page 3-8
Hood release handle .......................................................................................... page 3-16
Lighting control/Turn signals ............................................................................ page 5-43
Instrument cluster .............................................................................................. page 5-27
Air bags ............................................................................................................. page 2-39
Hazard warning flasher switch .......................................................................... page 5-53
Wiper and washer lever ..................................................................................... page 5-47
Information display ............................................................................................ page 6-48
Audio system ..................................................................................................... page 6-15
Climate control system ........................................................................................ page 6-2
Accessory socket ............................................................................................... page 6-56
Center console ................................................................................................... page 6-53
Parking brake ....................................................................................................... page 5-5
AT shift lever (Sport AT) ................................................................................... page 5-11
MT shift lever ...................................................................................................... page 5-9
Cruise control switches ...................................................................................... page 5-18
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-23
Audio control switch ......................................................................................... page 6-42
Remote fuel-filler lid release ............................................................................. page 3-16
Outside mirror switch ........................................................................................ page 3-23
Interior light ....................................................................................................... page 6-46
Seat belt ............................................................................................................. page 2-14
Sunvisor ............................................................................................................. page 6-46
Map light ........................................................................................................... page 6-47
Rearview mirror ................................................................................................. page 3-24
Vanity mirror ...................................................................................................... page 6-46
Glove box .......................................................................................................... page 6-52
Front seats ............................................................................................................ page 2-2
Cup holder ......................................................................................................... page 6-50
Second-row seat ................................................................................................... page 2-6
Third-row seat .................................................................................................... page 2-11
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda5_8X91-EA-07E_Edition1 Page9
Tuesday, June 26 2007 8:46 PM
Form No.8X91-EA-07E

Black plate (161,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí.......................................................... 6-10
Audio System ............................................................................... 6-15 Antenna ................................................................................... 6-15
Operating Tips for Audio System ........................................... 6-15
Audio Set ................................................................................ 6-25
Audio Control Switch Operation (Steering Wheel)
í............. 6-42
Safety Certification ................................................................. 6-45
Interior Equipment ..................................................................... 6-46 Sunvisors ................................................................................. 6-46
Interior Lights ......................................................................... 6-46
Information Display ................................................................ 6-48
Cup Holder .............................................................................. 6-50
Bottle Holder ........................................................................... 6-52
Storage Compartments ............................................................ 6-52
Accessory Sockets .................................................................. 6-56
6-1íSome models.
Mazda5_8X91-EA-07E_Edition1 Page161
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (162,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ACC position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
Mazda5_8X91-EA-07E_Edition1 Page162
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (163,1)
Vent Operation
Knob
Close Open
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Horizontal air flow can be adjusted by pressing the vent left or right.
Opening/closing vents
These vents can be opened and closed with wheel.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
Interior Comfort
Climate Control System
6-3
Mazda5_8X91-EA-07E_Edition1 Page163
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (164,1)
qSelecting the Airflow Mode
Floor Vents Dashboard and Floor Vents Dashboard Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda5_8X91-EA-07E_Edition1 Page164
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (165,1)
Types of the Climate Control System
Manual type and fully automatic type climate control systems are explained separately.
Check your vehicle's climate control type and read the appropriate pages.
Manual Type ............................................................................................................ page 6-6
Fully Automatic Type ............................................................................................ page 6-10
Interior Comfort
Climate Control System
6-5
Mazda5_8X91-EA-07E_Edition1 Page165
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (166,1)
Manual Typeí
Temperature control dial Fan control dial Mode selector dialA/C switchAir intake selector
Some models.
qControl Switches
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0― Fan off
1 ― Low speed
2 ― Medium low speed
3 ― Medium high speed
4 ― High speed
6-6
Interior Comfort
íSome models.
Climate Control System
Mazda5_8X91-EA-07E_Edition1 Page166
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (167,1)
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
NOTE
lIf you want to slightly adjust the airflow
amount, set the mode selector dial at
.lFor example, when the mode selector dial is
at the
position between theand
positions, airflow from the floor vent is less
than that of the
position.
A/C switchí
Push the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan
control dial is set at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).
Air intake selector
This switch controls the source of air
entering the vehicle.
Press the
switch to alternate
between the outside air and recirculated
air modes.
It is recommended that under normal
conditions the switch be kept in the
outside air mode.
Outside air mode (Indicator light is off)
Outside air is taken into the vehicle. Use
this mode for normal ventilation and
heating.
Recirculated air mode (Indicator light
is on)
Outside air is shut off. Air within the
vehicle is recirculated.
This mode can be used when driving on a
dusty road or in similar conditions. It also
helps to provide quicker cooling of the
interior.
WARNING
Do not use the recirculated air mode in
cold or rainy weather:
Using the recirculated air mode in
cold or rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
Interior Comfort
Climate Control System
6-7íSome models.
Mazda5_8X91-EA-07E_Edition1 Page167
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (168,1)
qHeating
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the hot position.
3. Set the fan control dial to the desired speed.
NOTE
lIf the windshield fogs up easily, set the
mode selector dial to the
position.lIf cooler air is desired at face level, set the
mode selector dial at the
position and
adjust the temperature control dial to
maintain maximum comfort.
lThe air to the floor is warmer than air to
the face (except when the temperature
control dial is set at the extreme hot or cold
position).
lIn the,,orposition, the air
conditioner is automatically turned on
(however, the indicator light does not
illuminate) and the outside air mode is
automatically selected to defrost the
windshield.
In the
orposition, the outside air
mode cannot be changed to the recirculated
air mode.
q Cooling (With Air Conditioner)í
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the cold position.
3. Set the fan control dial to the desired speed.
4. Turn on the air conditioner by pressing the A/C switch. 5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
CAUTION
When using the air conditioner while
driving up long hills or in heavy
traffic, closely monitor the
temperature gauge (page 5-29).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off (page 7-13).
NOTE
lWhen maximum cooling is desired, set the
temperature control dial to the extreme cold
position and set the air intake selector to
the recirculated air mode, then set the fan
control dial to position 4.
lIf warmer air is desired at floor level, set
the mode selector dial at the
position
and adjust the temperature control dial to
maintain maximum comfort.
lThe air to the floor is warmer than air to
the face (except when the temperature
control dial is set at the extreme hot or cold
position).
q Ventilation
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside air mode.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
6-8
Interior Comfort
íSome models.
Climate Control System
Mazda5_8X91-EA-07E_Edition1 Page168
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (169,1)

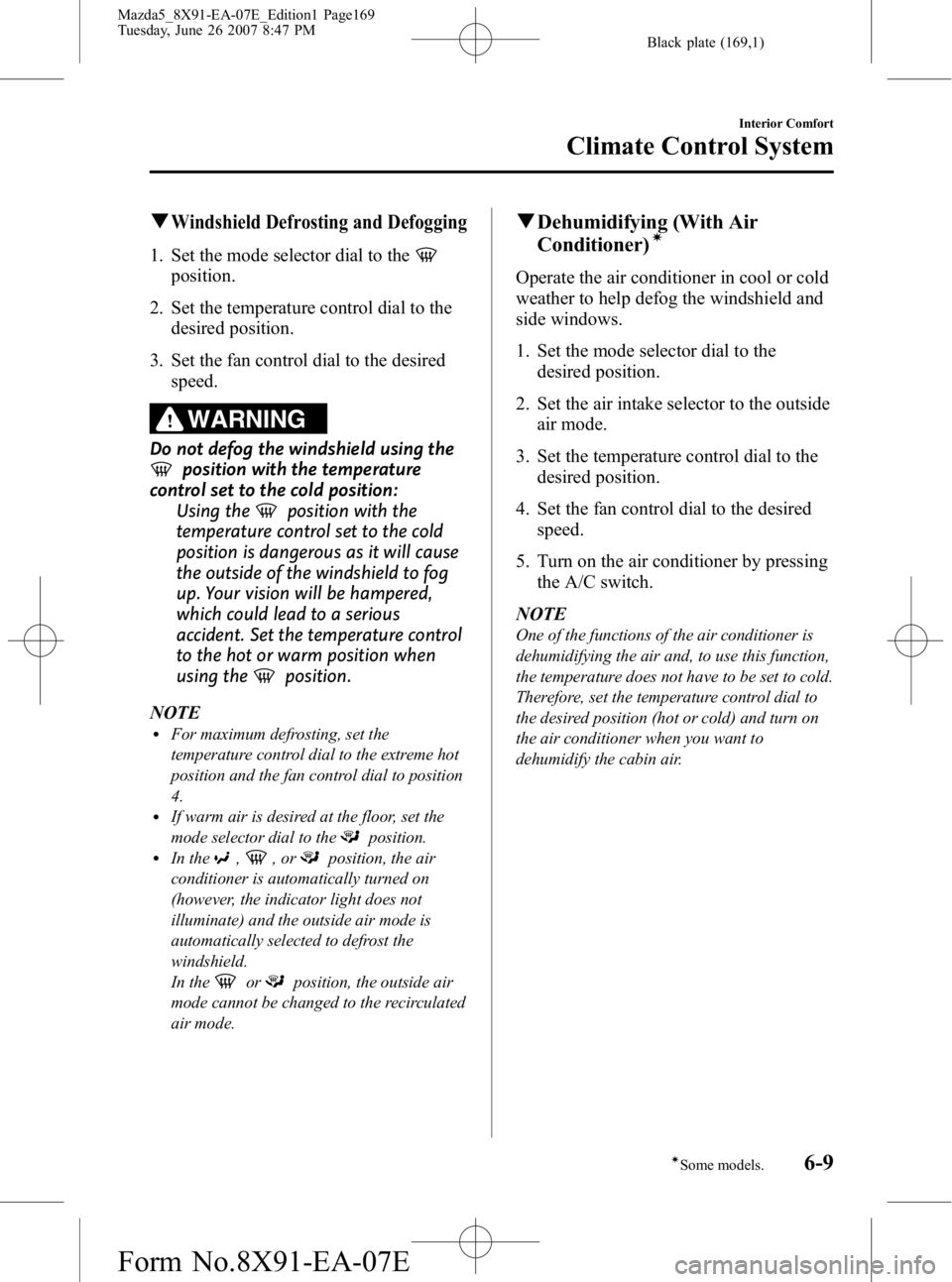

qWindshield Defrosting and Defogging
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the desired position.
3. Set the fan control dial to the desired speed.
WARNING
Do not defog the windshield using the
position with the temperature
control set to the cold position: Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident. Set the temperature control
to the hot or warm position when
using the
position.
NOTE
lFor maximum defrosting, set the
temperature control dial to the extreme hot
position and the fan control dial to position
4.
lIf warm air is desired at the floor, set the
mode selector dial to the
position.lIn the,,orposition, the air
conditioner is automatically turned on
(however, the indicator light does not
illuminate) and the outside air mode is
automatically selected to defrost the
windshield.
In the
orposition, the outside air
mode cannot be changed to the recirculated
air mode.
q Dehumidifying (With Air
Conditioner)í
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the outside air mode.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
5. Turn on the air conditioner by pressing the A/C switch.
NOTE
One of the functions of the air conditioner is
dehumidifying the air and, to use this function,
the temperature does not have to be set to cold.
Therefore, set the temperature control dial to
the desired position (hot or cold) and turn on
the air conditioner when you want to
dehumidify the cabin air.
Interior Comfort
Climate Control System
6-9íSome models.
Mazda5_8X91-EA-07E_Edition1 Page169
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E
