MAZDA MODEL 5 2008 Owners Manual

Black plate (261,1)
CAUTION
Follow these instructions when
towing the vehicle with all wheels on
the ground.
1. Shift to neutral (MT), or the Nposition (AT).
2. Turn the ignition switch to the ACC position to prevent the steering
from locking up.
3. Release the parking brake.
Remember that power assist for the
brakes and steering will not be
available when the engine is not
running.
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under
the front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing
will damage the bumper.
q Tiedown Hook-Front
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-3).
2. Wrap the jack lever with a soft cloth to prevent damage to the bumper and
open the cap located on the front
bumper.
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface.
In Case of an Emergency
Emergency Towing
7-21
Mazda5_8X53-EA-07I_Edition3 Page261
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (262,1)
3. Securely install the tiedown eyeletusing the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
qTiedown Hooks-Rear
7-22
In Case of an Emergency
Emergency Towing
Mazda5_8X53-EA-07I_Edition3 Page262
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (263,1)
Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-20) and
“ Tiedown Hook ”(page 7-21) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-23
Mazda5_8X53-EA-07I_Edition3 Page263
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

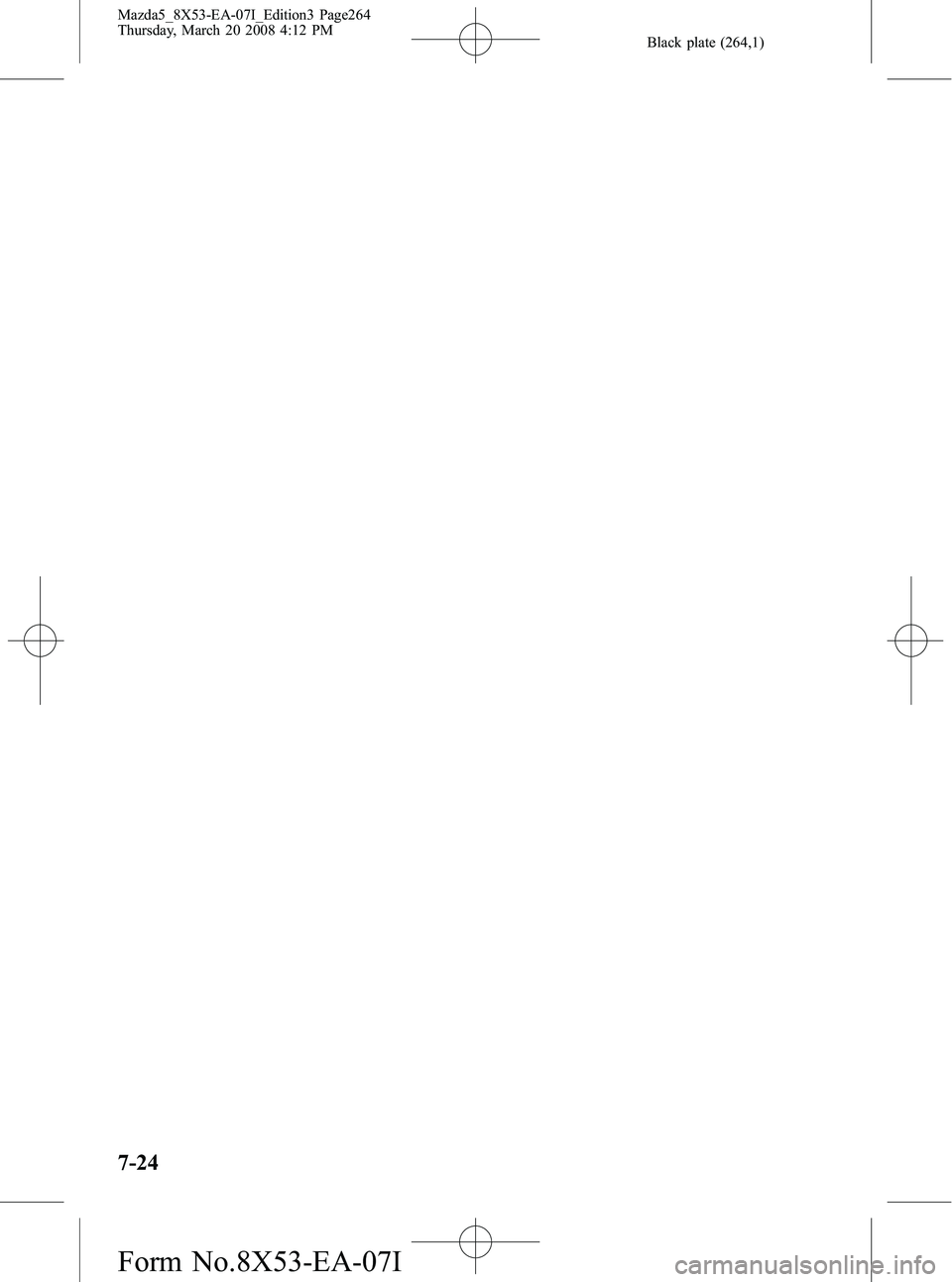

Black plate (264,1)
7-24
Mazda5_8X53-EA-07I_Edition3 Page264
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (265,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-18
Engine Coolant ....................................................................... 8-20
Brake/Clutch Fluid .................................................................. 8-22
Power Steering Fluid ............................................................... 8-23
Automatic transaxle Fluid (ATF) ............................................ 8-23
Washer Fluid ........................................................................... 8-24
Body Lubrication .................................................................... 8-25
Wiper Blades ........................................................................... 8-26
Battery ..................................................................................... 8-29
Tires ........................................................................................ 8-31
Light Bulbs ............................................................................. 8-35
Fuses ....................................................................................... 8-42
Appearance Care ........................................................................ 8-48 How to Minimize Environmental Paint Damage .................... 8-48
Exterior Care ........................................................................... 8-50
Interior Care ............................................................................ 8-53
8-1
Mazda5_8X53-EA-07I_Edition3 Page265
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (266,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
8-2
Maintenance and Care
Introduction
Mazda5_8X53-EA-07I_Edition3 Page266
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (267,1)
Scheduled Maintenance (USA, Canada, and Puerto Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
lRepeated short-distance drivinglDriving in dusty conditionslDriving with extended use of brakeslDriving in areas where salt or other corrosive materials are being usedlDriving on rough or muddy roadslExtended periods of idling or low-speed operationlDriving for long periods in cold temperatures or extremely humid climateslDriving in extremely hot conditionslDriving in mountainous conditions continually
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
NOTE
After the prescribed period, continue to follow the described maintenance at the recommended
intervals.
Maintenance and Care
Scheduled Maintenance
8-3
Mazda5_8X53-EA-07I_Edition3 Page267
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (268,1)
qSchedule 1
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine valve clearance Audible inspect every 120,000 km (75,000 miles), if noisy,
adjust
Drive belts I
Engine oil RRRRRRRR
Engine oil filter RRRRRRRR
COOLING SYSTEM
Engine coolant FL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
Others Replace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakes IIII
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial play II
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hinges LLLLLLLL
8-4
Maintenance and Care
Scheduled Maintenance
Mazda5_8X53-EA-07I_Edition3 Page268
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (269,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
AIR CONDITIONER SYSTEM
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up or replace if necessary.
R: Replace
L: Lubricate
T: Tighten
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
Maintenance and Care
Scheduled Maintenance
8-5
Mazda5_8X53-EA-07I_Edition3 Page269
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (270,1)
qSchedule 2
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96 ×1000miles 5 1015202530354045505560
ENGINE
Engine valve clearance Audible inspect every 120,000 km (75,000 miles), if noisy, adjust
Drive belts I
Engine oil Puerto
Rico
Replace every 5,000 km (3,000 miles) or 3 months
Others RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Engine coolant FL22
type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after that, every
96,000 km (60,000 miles) or 5 years
Others Replace at first 96,000 km (60,000 miles) or 4 years; after that, every 2
years
Engine coolant level I I I IIIIIIIII
FUEL SYSTEM
Air filter Puerto
Rico
RR
Others R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
ELECTRICAL SYSTEM
Function of all lights I I I IIIIIIIII
8-6
Maintenance and Care
Scheduled Maintenance
Mazda5_8X53-EA-07I_Edition3 Page270
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I
