securely latched.Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
Knowing Your Mazda
Doors and Locks
3-13
Mazda5_8X53-EA-07I_Edition3 Page81
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (82,1)

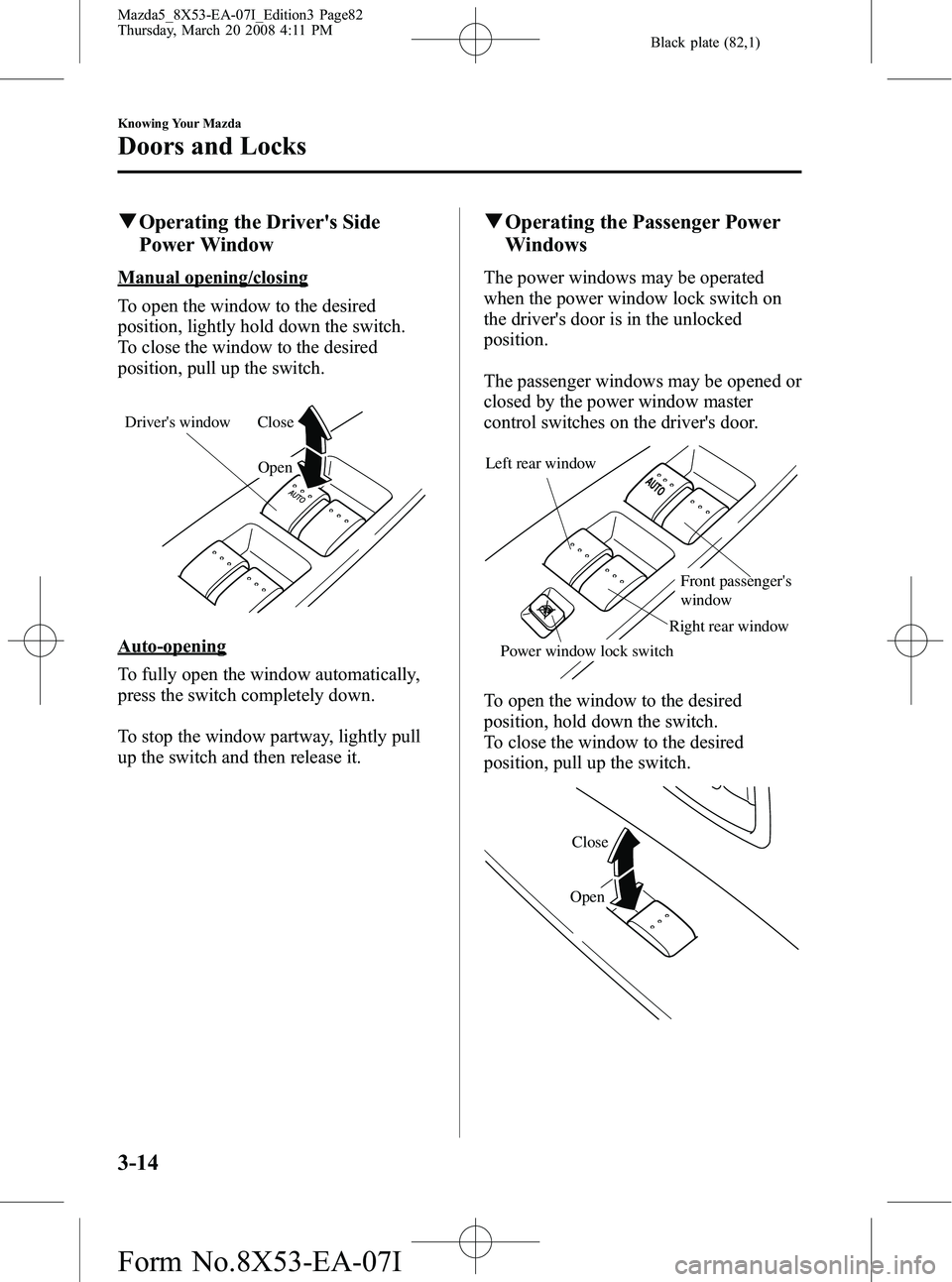

qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, pull up the switch.
Open
Close
Driver's window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
q Operating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger windows may be opened or
closed by the power window master
control switches on the driver's door.
Left rear window
Power window lock switch Front passenger's
window
Right rear window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
3-14
Knowing Your Mazda
Doors and Locks
Mazda5_8X53-EA-07I_Edition3 Page82
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (83,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position: Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen the
cap slightly and wait for any hissing to
stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-15
Mazda5_8X53-EA-07I_Edition3 Page83
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (102,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDon't race the engine.lDon't maintain one constant speed,
either slow or fast, for a long period of
time.
lDon't drive constantly at full-throttle or
high engine rpm for extended periods
of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDon't carry unnecessary weight.lDon't rest your foot on the brake pedal
while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
4-6
Before Driving Your Mazda
Driving Tips
Mazda5_8X53-EA-07I_Edition3 Page102
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I

Black plate (109,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-4
Brake System ............................................................................ 5-5
Manual Transaxle Operation ..................................................... 5-9
Automatic Transaxle Controls ................................................. 5-11
Power Steering ........................................................................ 5-17
Cruise Control
í...................................................................... 5-18
Tire Pressure Monitoring Systemí......................................... 5-22
Instrument Cluster and Indicators ............................................ 5-28 Meters and Gauges .................................................................. 5-28
Warning/Indicator Lights and Beep Sounds ............................ 5-33 Warning/Indicator Lights ........................................................ 5-33
Beep Sounds ........................................................................... 5-44
Switches and Controls ................................................................ 5-45 Lighting Control ..................................................................... 5-45
Turn and Lane-Change Signals ............................................... 5-48
Fog Lights
í............................................................................ 5-49
Windshield Wipers and Washer .............................................. 5-49
Rear Window Wiper and Washer ............................................ 5-53
Rear Window Defroster ........................................................... 5-53
Horn ........................................................................................ 5-54
Hazard Warning Flasher .......................................................... 5-55
5-1íSome models.
Mazda5_8X53-EA-07I_Edition3 Page109
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I
