Vehicle Loading
WARNING
Do not taw a trailer with this vehicle:Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle: Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Customer Information
Tire Information (U.S.A.)
9-35
Mazda5_8Z98-EA-08F_Edition1 Page351
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (353,1)
SAMPLE
CARGO
Cargo Weightincludes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed ”value on the tire
label.
Customer Information
Tire Information (U.S.A.)
9-37
Mazda5_8Z98-EA-08F_Edition1 Page353
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (355,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information
Tire Information (U.S.A.)
9-39
Mazda5_8Z98-EA-08F_Edition1 Page355
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (356,1)
GCW
GCW (Gross Combination Weight)is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.
Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10 _
15% (conventional trailer) or king pin weight of 15 _
25%
(fifth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.
Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
9-40
Customer Information
Tire Information (U.S.A.)
Mazda5_8Z98-EA-08F_Edition1 Page356
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (358,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs ”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the “XXX ”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 _
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
9-42
Customer Information
Tire Information (U.S.A.)
Mazda5_8Z98-EA-08F_Edition1 Page358
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (360,1)

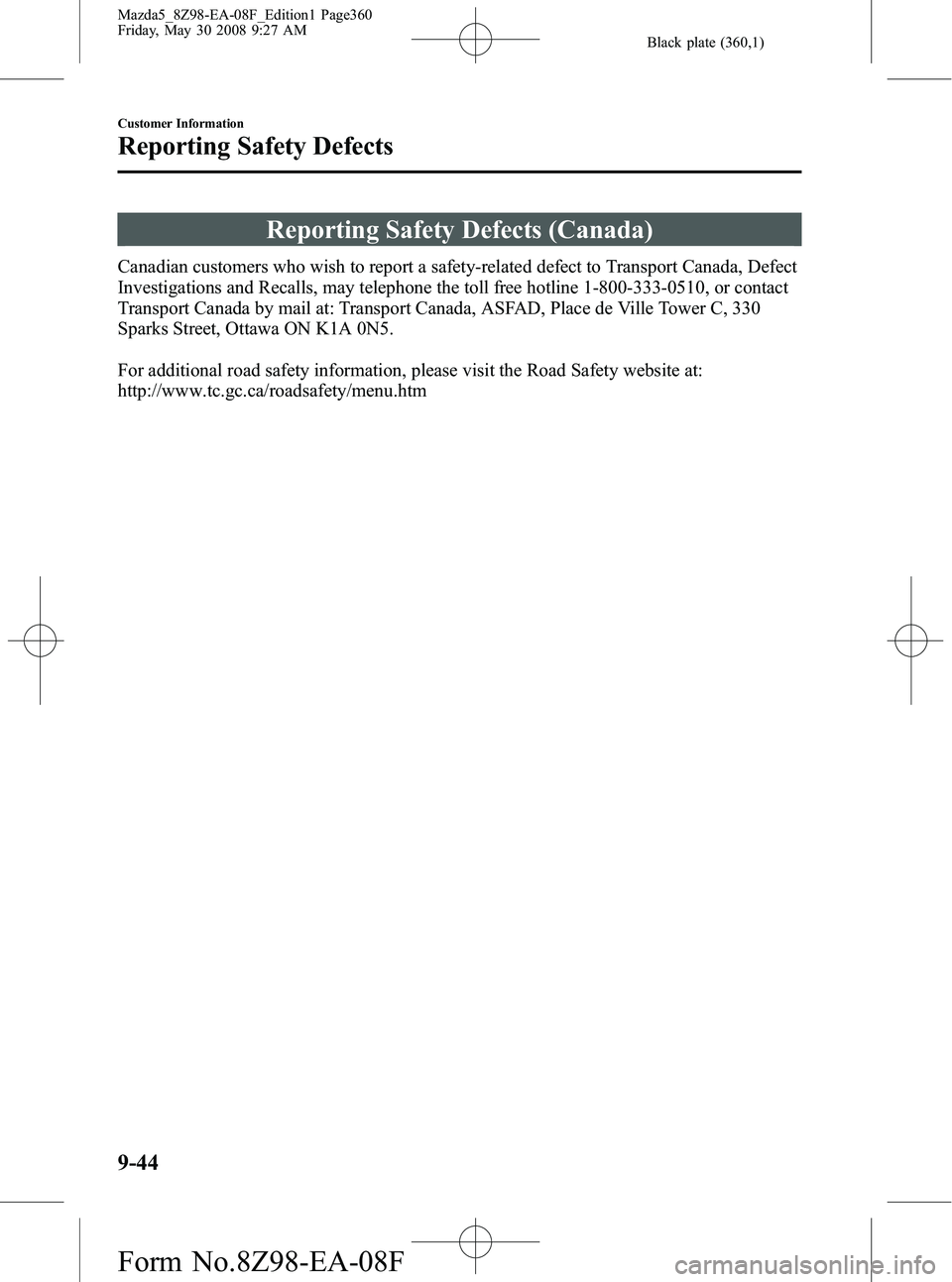

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
9-44
Customer Information
Reporting Safety Defects
Mazda5_8Z98-EA-08F_Edition1 Page360
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (373,1)
C
Child RestraintChild restraint precautions ......... 2-25
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Clock ................................................. 6-67
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-68
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-31
Daytime Running Lights ................... 5-48
Defroster Mirror ......................................... 5-54
Rear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-7
Winter driving .............................. 4-8
E
Easy Closure ..................................... 3-11
Emergency Starting ........................... 7-15Flooded engine ........................... 7-15
Jump-starting .............................. 7-16
Push-starting .............................. 7-19
E
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
EngineCoolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-17
Oil .............................................. 8-18
Overheating ................................ 7-13
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-13
Engine Coolant Temperature
Gauge ................................................ 5-30
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-50
F
Flasher Hazard warning .......................... 5-55
Headlights .................................. 5-45
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-16
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42 Panel description ........................ 8-45
Replacement ............................... 8-42
Index
11-3
Mazda5_8Z98-EA-08F_Edition1 Page373
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (375,1)
O
Odometer and Trip Meter .................. 5-29
Outside Mirrors ................................. 3-26
Overhead Lights ................................ 6-65
Overheating ....................................... 7-13
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-48
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks .............................. 3-8
Power Steering .................................. 5-17Fluid ........................................... 8-23
Power steering malfunction indicator
light ............................................ 5-17
Power Windows ................................ 3-14
Push-Starting ..................................... 7-19
R
Rear Door Child Safety Locks .......... 3-11
Rear Window Defroster .................... 5-54
Rear Window Washer ....................... 5-53
Rear Window Wiper .......................... 5-53
Rearview Mirror ................................ 3-27
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-7
S
Safety Defects, Reporting ................. 9-43
S
Seat Belt System Automatic locking ...................... 2-17
Belt minder ................................. 2-23
Emergency locking .................... 2-16
Extender ..................................... 2-22
Pregnant women ........................ 2-16
Pretensioner and load limiting .... 2-20
Seat belt precautions .................. 2-14
Seat belts .................................... 2-18
Warning light/beep ..................... 2-23
Seats Front seat ...................................... 2-2
Seat warmer ................................ 2-12
Second-row seats ......................... 2-5
Third-row Seat ............................. 2-9
Second-Row seats ............................... 2-5
Security System Immobilizer system .................... 3-21
Theft-deterrent system ............... 3-23
Service Publications .......................... 9-45
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-29
SRS Air Bags How the Air Bags Work ............. 2-44
Supplemental restraint systems
precautions ................................. 2-38
Warning light ............................. 2-53
Steering Wheel .................................. 3-26 Horn ........................................... 5-55
Storage Box ...................................... 6-73
Storage Compartments ...................... 6-71
Cargo securing loops .................. 6-74
Cargo sub-compartment ............. 6-75
Center console ............................ 6-71
Glove box ................................... 6-71
Storage box ................................ 6-73
Underseat storage ....................... 6-72
Index
11-5
Mazda5_8Z98-EA-08F_Edition1 Page375
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (376,1)
S
Sunshade ........................................... 3-20
Sunvisors .......................................... 6-64
T
Tachometer ........................................ 5-30
Temporary Spare Tire ....................... 8-33
Theft-Deterrent System ..................... 3-23
Third-Row seat ................................... 2-9
TiedownHook .......................................... 7-21
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-22 System error activation .............. 5-26
Tire pressure monitoring system
warning light .............................. 5-24
Tires and wheels ......................... 5-26
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-31
Replacement ............................... 8-32
Rotation ...................................... 8-32
Snow tires .................................... 4-8
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-8
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing Description ................................. 7-20
Emergency towing ..................... 7-20
Hook .......................................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-11
Trailer Towing ................................... 4-11
Trip Meter ......................................... 5-29
Turn and Lane-Change Signals ......... 5-48
U
Underseat Storage ............................. 6-72
V
Vanity Mirrors ................................... 6-64
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-33 ABS ............................................ 5-35
Air bag system ........................... 5-37
Automatic transaxle ................... 5-40
Brake system .............................. 5-35
Charging system ......................... 5-36
Check engine .............................. 5-37
Door-ajar .................................... 5-39
Engine oil pressure ..................... 5-36
Front seat belt pretensioner
system ........................................ 5-37
Low fuel ..................................... 5-38
Low washer fluid level ............... 5-39
Seat belt ...................................... 5-38
Tire pressure monitoring
system ........................................ 5-40
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-24
Weights ............................................. 10-5
Wheel Replacement .......................... 8-34
Windows Power windows .......................... 3-14
Windshield Washer ........................... 5-53
Windshield Wipers ............................ 5-50 Blades replacement .................... 8-26
Winter Driving .................................... 4-8
11-6
Index
Mazda5_8Z98-EA-08F_Edition1 Page376
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F
