Black plate (178,1)
NOTElSetting the temperature to maximum high
or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the outside air position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-4). Airflow amount will
be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident. NOTE
Use the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.
q
Sunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
6-16
Interior Comfort
Climate Control System
Mazda5_8Z98-EA-08F_Edition1 Page178
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (210,1)
Audio unit/Navigation system
The audio unit or navigation system is
used for adjusting the volume.
If Bluetooth Hands-Free is operated,
information such as mobile phone signal
strength of Bluetooth Hands-Free are
displayed on the screen. (With navigation
system)
Bluetooth Hands-Free information
qVoice
To prevent the deterioration in voice
recognition rate and voice quality, the
following points must be observed:
lIt is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
lClose the windows and/or the
moonroof to reduce loud noises from
outside the vehicle, or turn down the
airflow of the climate control system
while Bluetooth Hands-Free is being
used. Voice recognition may not
function correctly or voice quality may
deteriorate under the following
conditions.
lA passenger is speaking.lDriving with the window and/or the
moonroof open.
lDriving on bumpy roads.lNoise outside of the vehicle is loud.
(Construction sites, inside tunnels,
excess oncoming traffic, or heavy
rain.)
lOperation noise from turn signals,
wipers, or the horn is heard.
lA/C airflow is strong or wind is
blowing on the microphone.
lThere is noise coming from cargo
loaded in the vehicle.
lVoice commands may not be
recognized depending on the voice. If
the voice commands are not recognized
correctly, repeat the commands in a
louder voice, at a natural pace, as if
speaking to another person.
lDialects or different wording other than
hands-free prompts cannot be
recognized by voice recognition. Speak
in the wording specified by the voice
commands.
Please be aware that the voice recognition
may error despite following the above
points.
6-48
Interior Comfort
Bluetooth Hands-Free
Mazda5_8Z98-EA-08F_Edition1 Page210
Friday, May 30 2008 9:26 AM
Form No.8Z98-EA-08F

Black plate (288,1)
Wiper Blades
CAUTION
ØHot waxes applied by automatic
car washers have been known to
affect the wiper's ability to clean
windows.
Ø To prevent damage to the wiper
blades, don't use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
Ø When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When
washing or servicing your Mazda,
make sure the wiper lever is in the
OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
qReplacing Windshield Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, don't try to
sweep the wiper arm by hand.
NOTE
To prevent damage to the wiper arm blades
when raising both the driver and passenger
side wiper arms, raise the driver side wiper
arm first. Conversely, when setting down the
wiper arms, set the passenger side wiper arm
down first.
1. Raise the wiper arm and turn the blade assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.
Plastic locking clip
CAUTION
To prevent damage to the windshield
let the wiper arm down easily, don't
let it slap down on the windshield.
8-26
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page288
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (289,1)
2. Hold the end of the rubber and pulluntil the tabs are free of the metal
support.
Metal support
Ta b
3. Remove the metal stiffeners from each blade rubber and install them in the
new blade.
CAUTION
ØDon't bend or discard the
stiffeners. You need to use them
again.
Ø If the metal stiffeners are
switched, the blade's wiping
efficiency could be reduced.
So don't use the driver's side metal
stiffeners on the passenger's side,
or vice versa.
Ø Be sure to reinstall the metal
stiffeners in the new blade rubber
so that the curve is the same as it
was in the old blade rubber.
4. Carefully insert the new blade rubber. Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are toward the
bottom of the wiper arm.
qReplacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
Maintenance and Care
Owner Maintenance
8-27
Mazda5_8Z98-EA-08F_Edition1 Page289
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

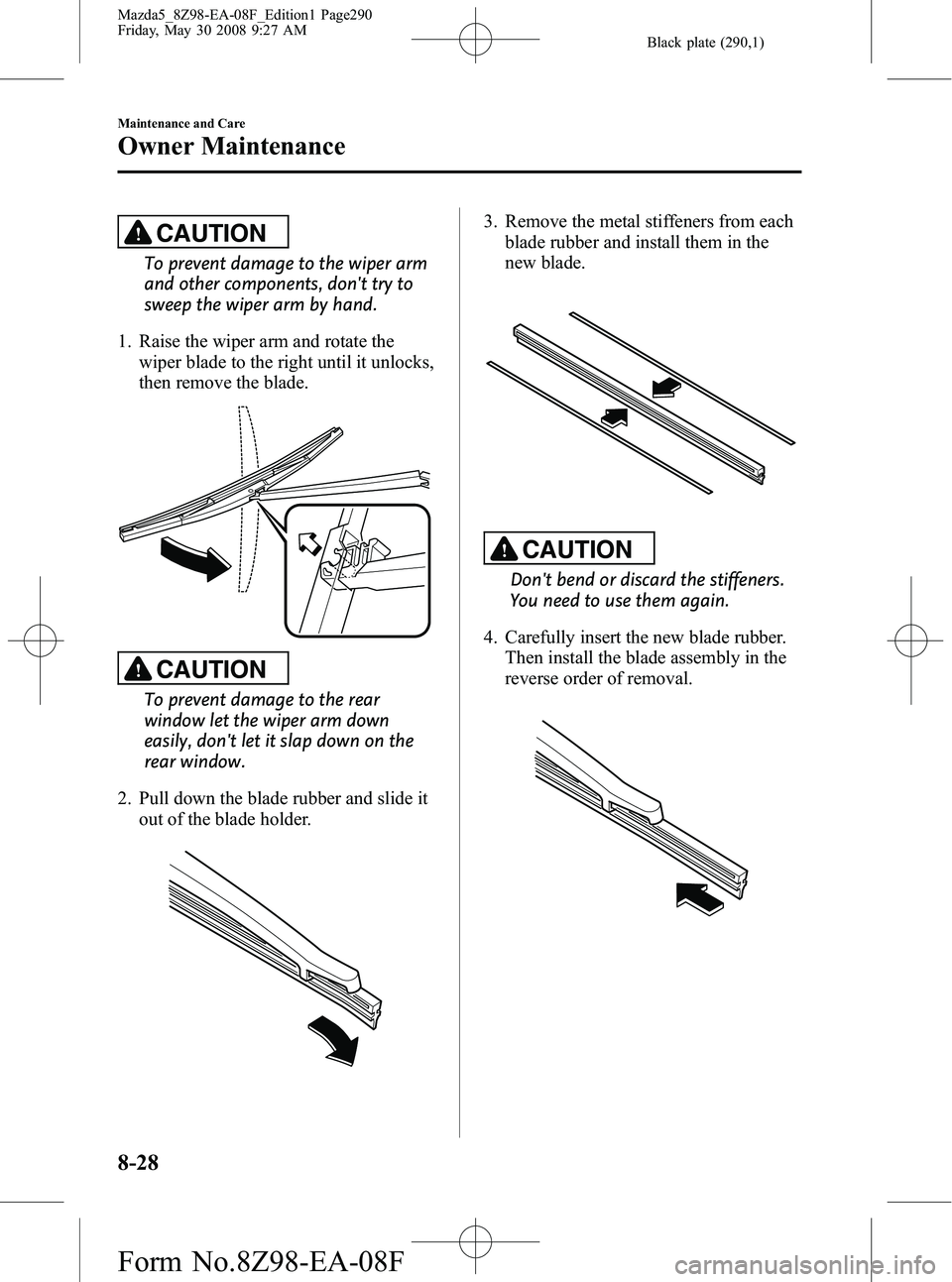

Black plate (290,1)
CAUTION
To prevent damage to the wiper arm
and other components, don't try to
sweep the wiper arm by hand.
1. Raise the wiper arm and rotate the wiper blade to the right until it unlocks,
then remove the blade.
CAUTION
To prevent damage to the rear
window let the wiper arm down
easily, don't let it slap down on the
rear window.
2. Pull down the blade rubber and slide it out of the blade holder.
3. Remove the metal stiffeners from eachblade rubber and install them in the
new blade.
CAUTION
Don't bend or discard the stiffeners.
You need to use them again.
4. Carefully insert the new blade rubber. Then install the blade assembly in the
reverse order of removal.
8-28
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page290
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (307,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3 P.WIND
*140 A Power windows
R.BLOWER*230 A Rear blower motor
4 IG KEY1 INJ*130 A For protection of various circuits
IG KEY2*220 A ―
5 ABS-V 20 A ABS
6 ABS-P 30 A ABS
7 IG KEY2
*120 A
―
IG KEY1*240 A For protection of various circuits
8 HEATER DEICER TCM 20 A ―
9 BLOWER
*140 A Blower motor
F.BLOWER*220 A Front blower motor
10 GLOW IG KEY1*140 A For protection of various circuits
F.BLOWER*220 A Front blower motor
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A ―
Maintenance and Care
Owner Maintenance
8-45
Mazda5_8Z98-EA-08F_Edition1 Page307
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (308,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 CLOSER P.SLIDE LH 20 A Easy closer
í
14 CLOSER P.SLIDE RH 20 A Easy closerí
15 EHPAS 80 A Electro-Hydraulic Power Assist Steering
16 FOG 15 A Fog lightsí
17 D.LOCK 20 A Power door lock
18 P.WIND H/CLEAN 20 A Power windows
19 ETC 10 A Accelerator position sensor
20 DEFOG 25 A Rear window defroster
21 ENG+B 10 A PCM
22 STOP 10 A Brake lights
23 FUEL 20 A Fuel pump
24 HAZARD 10 A Turn signals, Hazard warning flashers
25 ROOM 15 AOverhead lights, Map lights, Luggage compartment light, For
protection of various circuits
26 ―― ―
27 MAG 10 A Magnet clutch
28 GLOW SIG
*17.5 A
―
―*2――
29 HEAD HR 10 A Headlight high beam (RH)
30 HEAD HL 10 A Headlight high beam (LH)
31 HORN 15 A Horn
32 SUN ROOF 20 A Moonroof
í
33 MIRROR BURGLAR*17.5 A Theft-Deterrent Systemí
―*2――
34 HEAD LR 15 A Headlight low beam (RH), Manual headlight levelingí
35 HEAD LL 15 A Headlight low beam (LH)
36 ENG BAR2 15 A O
2heater
37 ENG BAR 15 A Air flow sensor, Engine control system
38 INJ ENG BA 20 A Injector
39 ILLUMI 10 A Illumination
40 TAIL 10 A Taillights, Parking lights, License plate lights, For protection of
various circuits
*1 Without rear ventilation system
*2 With rear ventilation system
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page308
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (309,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 M.DEF 7.5 A Mirror defroster
í
2―― ―
3 ENG3 20 A Ignition switch
4 P.OUTLET 15 A Accessory Socket
5 SHIFT/L 5 A AT shift
í
6 CIGAR 15 A Lighter
7 MIRROR 7.5 A Power control mirror, Audio systemí
8 A/C 10 A Air conditioner
9 F.WIP 25 A Windshield wipers and washer
10 R.WIP 15 A Rear window wiper and washer
11 ENG 5 A Main relay
12 METER 10 A Instrument cluster
13 SAS 10 A Supplemental restraint systems
14 S.WARM 15 A Seat warmer
í
15 ABS/DSC 5 A ABS
16 EHPAS 5 A Electro-Hydraulic Power Assist Steering
17 ENG2 15 A ―
18 P/W 30 A Power windows
19 P/W ――
Maintenance and Care
Owner Maintenance
8-47íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page309
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (316,1)
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
Center panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting from
the use of a hard brush or cloth may not be
repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of
the rear window. You may damage
the rear window defroster grid.
8-54
Maintenance and Care
íSome models.
Appearance Care
Mazda5_8Z98-EA-08F_Edition1 Page316
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (373,1)
C
Child RestraintChild restraint precautions ......... 2-25
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Clock ................................................. 6-67
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-68
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-31
Daytime Running Lights ................... 5-48
Defroster Mirror ......................................... 5-54
Rear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-7
Winter driving .............................. 4-8
E
Easy Closure ..................................... 3-11
Emergency Starting ........................... 7-15Flooded engine ........................... 7-15
Jump-starting .............................. 7-16
Push-starting .............................. 7-19
E
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
EngineCoolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-17
Oil .............................................. 8-18
Overheating ................................ 7-13
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-13
Engine Coolant Temperature
Gauge ................................................ 5-30
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-50
F
Flasher Hazard warning .......................... 5-55
Headlights .................................. 5-45
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-16
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42 Panel description ........................ 8-45
Replacement ............................... 8-42
Index
11-3
Mazda5_8Z98-EA-08F_Edition1 Page373
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F
