WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulbs
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood. 3. Perform the following procedure when
replacing the left headlight bulb. Turn
the screws counterclockwise and
remove them and the cover.
Battery duct
Battery cover
4. Find the high and low beam bulbs inthe rear of the headlight unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam
(page 8-35).
High-beam bulb
1. Turn the socket and bulb assembly counterclockwise, and carefully pull it
backward.
2. Disconnect the socket and bulb assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
8-36
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page298
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (308,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 CLOSER P.SLIDE LH 20 A Easy closer
í
14 CLOSER P.SLIDE RH 20 A Easy closerí
15 EHPAS 80 A Electro-Hydraulic Power Assist Steering
16 FOG 15 A Fog lightsí
17 D.LOCK 20 A Power door lock
18 P.WIND H/CLEAN 20 A Power windows
19 ETC 10 A Accelerator position sensor
20 DEFOG 25 A Rear window defroster
21 ENG+B 10 A PCM
22 STOP 10 A Brake lights
23 FUEL 20 A Fuel pump
24 HAZARD 10 A Turn signals, Hazard warning flashers
25 ROOM 15 AOverhead lights, Map lights, Luggage compartment light, For
protection of various circuits
26 ―― ―
27 MAG 10 A Magnet clutch
28 GLOW SIG
*17.5 A
―
―*2――
29 HEAD HR 10 A Headlight high beam (RH)
30 HEAD HL 10 A Headlight high beam (LH)
31 HORN 15 A Horn
32 SUN ROOF 20 A Moonroof
í
33 MIRROR BURGLAR*17.5 A Theft-Deterrent Systemí
―*2――
34 HEAD LR 15 A Headlight low beam (RH), Manual headlight levelingí
35 HEAD LL 15 A Headlight low beam (LH)
36 ENG BAR2 15 A O
2heater
37 ENG BAR 15 A Air flow sensor, Engine control system
38 INJ ENG BA 20 A Injector
39 ILLUMI 10 A Illumination
40 TAIL 10 A Taillights, Parking lights, License plate lights, For protection of
various circuits
*1 Without rear ventilation system
*2 With rear ventilation system
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page308
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (313,1)

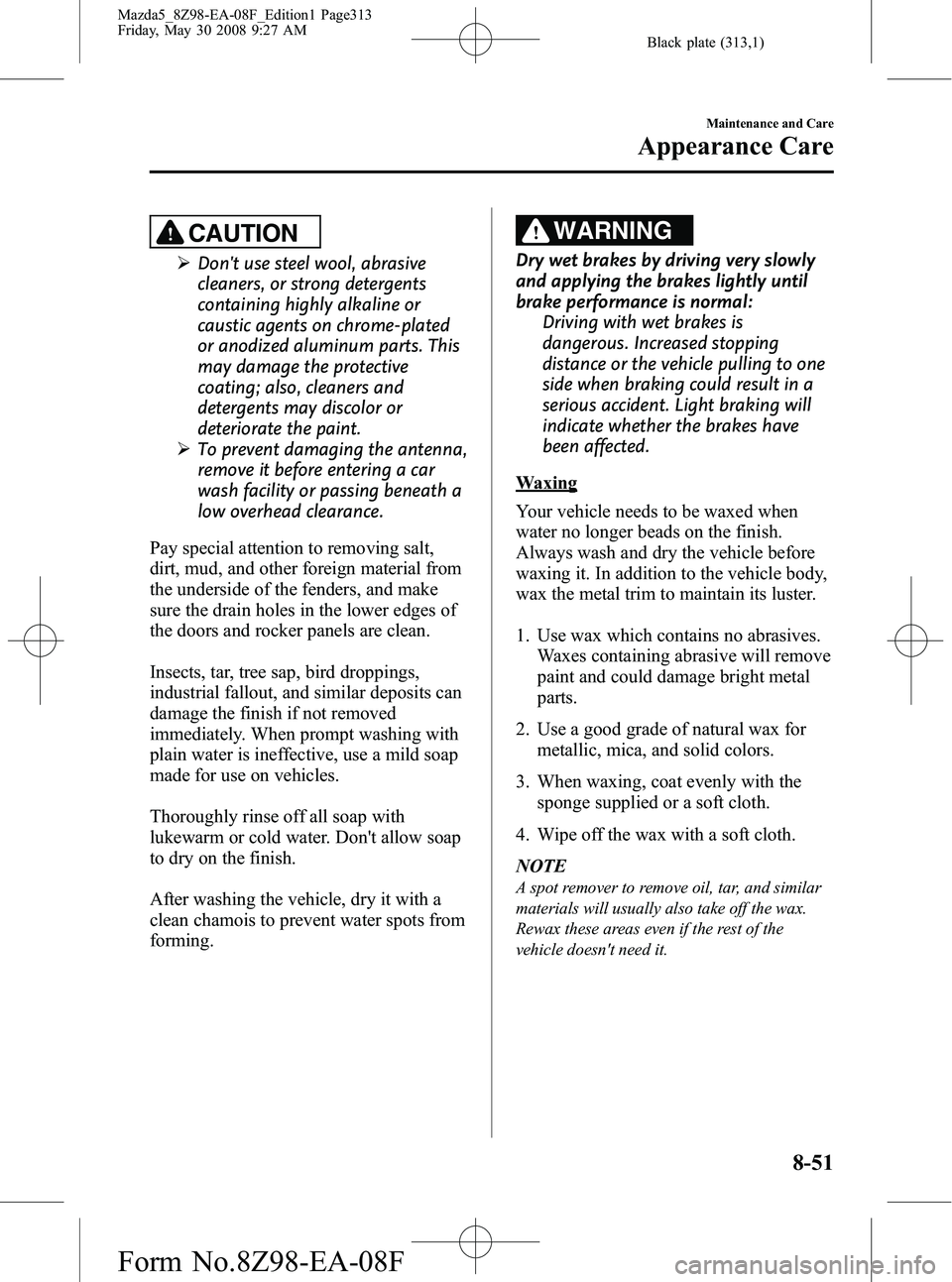

CAUTION
ØDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may damage the protective
coating; also, cleaners and
detergents may discolor or
deteriorate the paint.
Ø To prevent damaging the antenna,
remove it before entering a car
wash facility or passing beneath a
low overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle doesn't need it.
Maintenance and Care
Appearance Care
8-51
Mazda5_8Z98-EA-08F_Edition1 Page313
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (314,1)

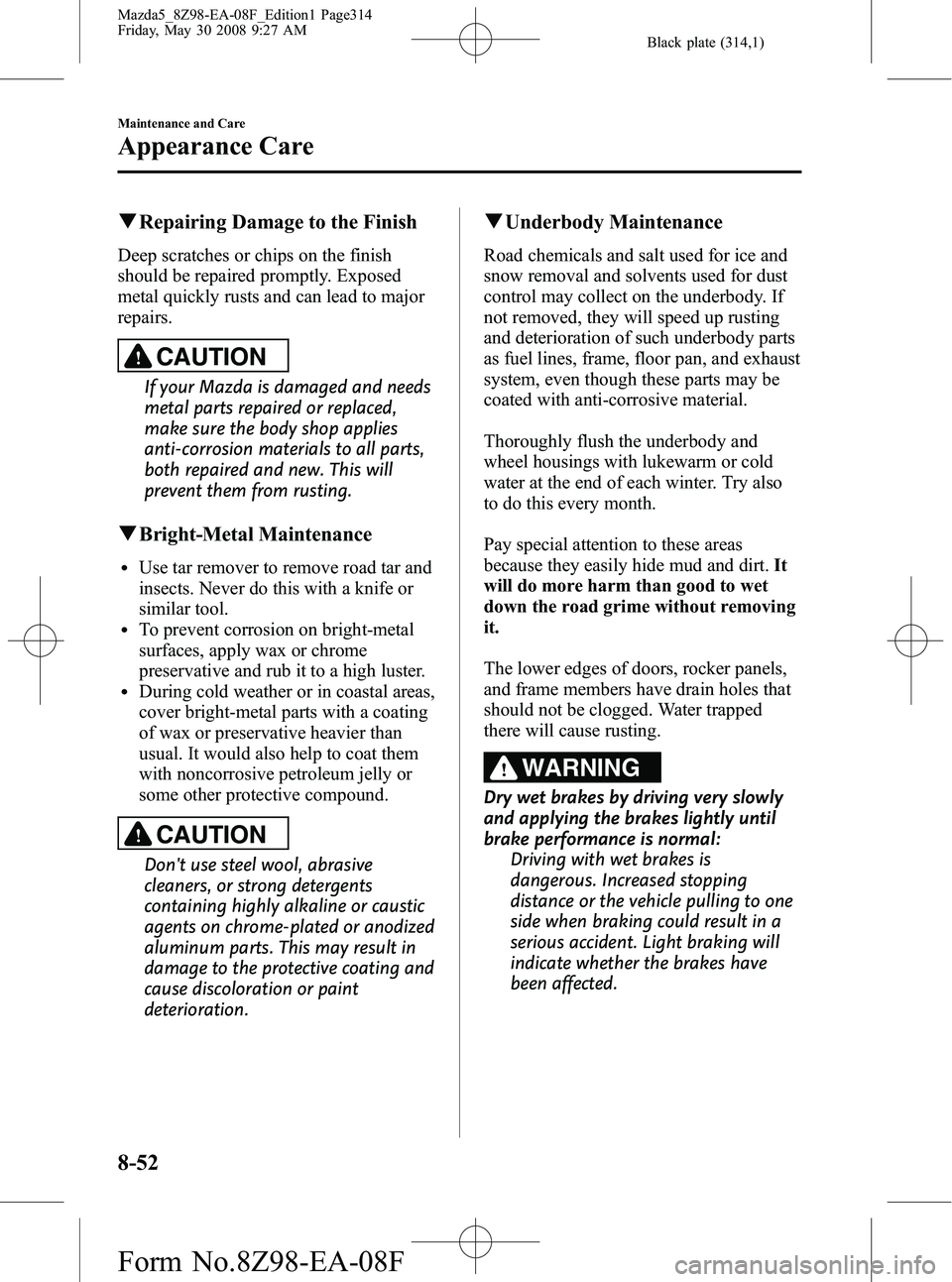

qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
8-52
Maintenance and Care
Appearance Care
Mazda5_8Z98-EA-08F_Edition1 Page314
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (340,1)
11. Tread wear, traction and temperature grades
12. Max. permissible inflation pressure
13. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).
215
“215 ”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“ 65 ”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction ”.
15
“15 ”is the wheel rim diameter in inches.
95
“95 ”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
9-24
Customer Information
Tire Information (U.S.A.)
Mazda5_8Z98-EA-08F_Edition1 Page340
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (372,1)
A
Accessory Socket .............................. 6-76
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Air Bag Systems ............................... 2-38
Ambient Temperature Display .......... 6-67
Antenna ............................................. 6-18
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-8
Appearance Care ............................... 8-48
Audio System ................................... 6-18 Audio control switch .................. 6-40
Audio set .................................... 6-25
AUX mode ................................. 6-42
Operating tips for audio
system ........................................ 6-18
Safety certification ..................... 6-45
Automatic Transaxle Driving tips ................................ 5-16
Fluid ........................................... 8-23
Manual shift mode ..................... 5-13
Shift-lock override ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
BatteryEmergency starting .................... 7-15
Maintenance ............................... 8-29
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-44
Lights-on reminder ..................... 5-44
Seat belt warning beep ............... 5-44
Tire inflation pressure warning
beep ............................................ 5-44
B
Before Starting the Engine .................. 4-5After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-46 Basic Bluetooth Hands-Free
Operation ................................... 6-50
Convenient Use of the Hands-Free
System ........................................ 6-53
Hands-Free Telephone Setting .... 6-58
Mazda Bluetooth Hands-Free
Customer Service ....................... 6-63
Safety certification ..................... 6-63
When the Bluetooth Hands-Free
cannot be used ............................ 6-62
Body Lubrication .............................. 8-25
Bottle Holder ..................................... 6-70
Brake/Clutch
Fluid ........................................... 8-22
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-35
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-74
Cargo Sub-Compartment .................. 6-75
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-20
Center Console .................................. 6-71
11-2
Index
Mazda5_8Z98-EA-08F_Edition1 Page372
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (373,1)
C
Child RestraintChild restraint precautions ......... 2-25
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Clock ................................................. 6-67
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-68
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-31
Daytime Running Lights ................... 5-48
Defroster Mirror ......................................... 5-54
Rear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-7
Winter driving .............................. 4-8
E
Easy Closure ..................................... 3-11
Emergency Starting ........................... 7-15Flooded engine ........................... 7-15
Jump-starting .............................. 7-16
Push-starting .............................. 7-19
E
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
EngineCoolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-17
Oil .............................................. 8-18
Overheating ................................ 7-13
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-13
Engine Coolant Temperature
Gauge ................................................ 5-30
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-50
F
Flasher Hazard warning .......................... 5-55
Headlights .................................. 5-45
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-16
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42 Panel description ........................ 8-45
Replacement ............................... 8-42
Index
11-3
Mazda5_8Z98-EA-08F_Edition1 Page373
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (374,1)
G
Glove Box ......................................... 6-71
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-7
HeadlightsControl ....................................... 5-45
Flashing ...................................... 5-47
High-low beam .......................... 5-47
Leveling ..................................... 5-47
On reminder ............................... 5-47
Hood Release .................................... 3-17
Horn .................................................. 5-55
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-64
Immobilizer System .......................... 3-21
Indicator Lights ................................. 5-33 Cruise ......................................... 5-43
Headlight high-beam .................. 5-42
Power steering malfunction ........ 5-43
Security ...................................... 5-42
Shift position .............................. 5-42
Turn-signal/hazard warning ....... 5-44
Information Display .......................... 6-66 Ambient temperature display ..... 6-67
Audio display ............................. 6-68
Climate control display .............. 6-68
Clock .......................................... 6-67
Information display functions .... 6-66
Instrument Cluster ............................. 5-28
Interior Care ...................................... 8-53
Interior Lights ................................... 6-64
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-48
Liftgate .............................................. 3-12
Light Bulbs Replacement ............................... 8-35
Specifications ............................. 10-6
Lighting Control ............................... 5-45
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-65
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-65
Mirror Defroster ................................ 5-54
Mirrors Outside mirrors .......................... 3-26
Rearview mirror ......................... 3-27
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-19
11-4
Index
Mazda5_8Z98-EA-08F_Edition1 Page374
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (375,1)
O
Odometer and Trip Meter .................. 5-29
Outside Mirrors ................................. 3-26
Overhead Lights ................................ 6-65
Overheating ....................................... 7-13
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-48
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks .............................. 3-8
Power Steering .................................. 5-17Fluid ........................................... 8-23
Power steering malfunction indicator
light ............................................ 5-17
Power Windows ................................ 3-14
Push-Starting ..................................... 7-19
R
Rear Door Child Safety Locks .......... 3-11
Rear Window Defroster .................... 5-54
Rear Window Washer ....................... 5-53
Rear Window Wiper .......................... 5-53
Rearview Mirror ................................ 3-27
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-7
S
Safety Defects, Reporting ................. 9-43
S
Seat Belt System Automatic locking ...................... 2-17
Belt minder ................................. 2-23
Emergency locking .................... 2-16
Extender ..................................... 2-22
Pregnant women ........................ 2-16
Pretensioner and load limiting .... 2-20
Seat belt precautions .................. 2-14
Seat belts .................................... 2-18
Warning light/beep ..................... 2-23
Seats Front seat ...................................... 2-2
Seat warmer ................................ 2-12
Second-row seats ......................... 2-5
Third-row Seat ............................. 2-9
Second-Row seats ............................... 2-5
Security System Immobilizer system .................... 3-21
Theft-deterrent system ............... 3-23
Service Publications .......................... 9-45
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-29
SRS Air Bags How the Air Bags Work ............. 2-44
Supplemental restraint systems
precautions ................................. 2-38
Warning light ............................. 2-53
Steering Wheel .................................. 3-26 Horn ........................................... 5-55
Storage Box ...................................... 6-73
Storage Compartments ...................... 6-71
Cargo securing loops .................. 6-74
Cargo sub-compartment ............. 6-75
Center console ............................ 6-71
Glove box ................................... 6-71
Storage box ................................ 6-73
Underseat storage ....................... 6-72
Index
11-5
Mazda5_8Z98-EA-08F_Edition1 Page375
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (376,1)
S
Sunshade ........................................... 3-20
Sunvisors .......................................... 6-64
T
Tachometer ........................................ 5-30
Temporary Spare Tire ....................... 8-33
Theft-Deterrent System ..................... 3-23
Third-Row seat ................................... 2-9
TiedownHook .......................................... 7-21
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-22 System error activation .............. 5-26
Tire pressure monitoring system
warning light .............................. 5-24
Tires and wheels ......................... 5-26
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-31
Replacement ............................... 8-32
Rotation ...................................... 8-32
Snow tires .................................... 4-8
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-8
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing Description ................................. 7-20
Emergency towing ..................... 7-20
Hook .......................................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-11
Trailer Towing ................................... 4-11
Trip Meter ......................................... 5-29
Turn and Lane-Change Signals ......... 5-48
U
Underseat Storage ............................. 6-72
V
Vanity Mirrors ................................... 6-64
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-33 ABS ............................................ 5-35
Air bag system ........................... 5-37
Automatic transaxle ................... 5-40
Brake system .............................. 5-35
Charging system ......................... 5-36
Check engine .............................. 5-37
Door-ajar .................................... 5-39
Engine oil pressure ..................... 5-36
Front seat belt pretensioner
system ........................................ 5-37
Low fuel ..................................... 5-38
Low washer fluid level ............... 5-39
Seat belt ...................................... 5-38
Tire pressure monitoring
system ........................................ 5-40
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-24
Weights ............................................. 10-5
Wheel Replacement .......................... 8-34
Windows Power windows .......................... 3-14
Windshield Washer ........................... 5-53
Windshield Wipers ............................ 5-50 Blades replacement .................... 8-26
Winter Driving .................................... 4-8
11-6
Index
Mazda5_8Z98-EA-08F_Edition1 Page376
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F
