Black plate (305,1)
3. Locate the position of the suspectedfuse by using the chart inside the fuse
block cover.
4. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
5. Inspect the fuse and replace it if it'sblown.
Normal Blown
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
Maintenance and Care
Owner Maintenance
8-43
Mazda5_8Z98-EA-08F_Edition1 Page305
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (307,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3 P.WIND
*140 A Power windows
R.BLOWER*230 A Rear blower motor
4 IG KEY1 INJ*130 A For protection of various circuits
IG KEY2*220 A ―
5 ABS-V 20 A ABS
6 ABS-P 30 A ABS
7 IG KEY2
*120 A
―
IG KEY1*240 A For protection of various circuits
8 HEATER DEICER TCM 20 A ―
9 BLOWER
*140 A Blower motor
F.BLOWER*220 A Front blower motor
10 GLOW IG KEY1*140 A For protection of various circuits
F.BLOWER*220 A Front blower motor
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A ―
Maintenance and Care
Owner Maintenance
8-45
Mazda5_8Z98-EA-08F_Edition1 Page307
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (308,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 CLOSER P.SLIDE LH 20 A Easy closer
í
14 CLOSER P.SLIDE RH 20 A Easy closerí
15 EHPAS 80 A Electro-Hydraulic Power Assist Steering
16 FOG 15 A Fog lightsí
17 D.LOCK 20 A Power door lock
18 P.WIND H/CLEAN 20 A Power windows
19 ETC 10 A Accelerator position sensor
20 DEFOG 25 A Rear window defroster
21 ENG+B 10 A PCM
22 STOP 10 A Brake lights
23 FUEL 20 A Fuel pump
24 HAZARD 10 A Turn signals, Hazard warning flashers
25 ROOM 15 AOverhead lights, Map lights, Luggage compartment light, For
protection of various circuits
26 ―― ―
27 MAG 10 A Magnet clutch
28 GLOW SIG
*17.5 A
―
―*2――
29 HEAD HR 10 A Headlight high beam (RH)
30 HEAD HL 10 A Headlight high beam (LH)
31 HORN 15 A Horn
32 SUN ROOF 20 A Moonroof
í
33 MIRROR BURGLAR*17.5 A Theft-Deterrent Systemí
―*2――
34 HEAD LR 15 A Headlight low beam (RH), Manual headlight levelingí
35 HEAD LL 15 A Headlight low beam (LH)
36 ENG BAR2 15 A O
2heater
37 ENG BAR 15 A Air flow sensor, Engine control system
38 INJ ENG BA 20 A Injector
39 ILLUMI 10 A Illumination
40 TAIL 10 A Taillights, Parking lights, License plate lights, For protection of
various circuits
*1 Without rear ventilation system
*2 With rear ventilation system
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page308
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (332,1)
Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety requirements (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-16
Customer Information
Warranty
Mazda5_8Z98-EA-08F_Edition1 Page332
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (333,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of Canada:lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information
Warranty
9-17
Mazda5_8Z98-EA-08F_Edition1 Page333
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (335,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information
Warranty
9-19
Mazda5_8Z98-EA-08F_Edition1 Page335
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (355,1)

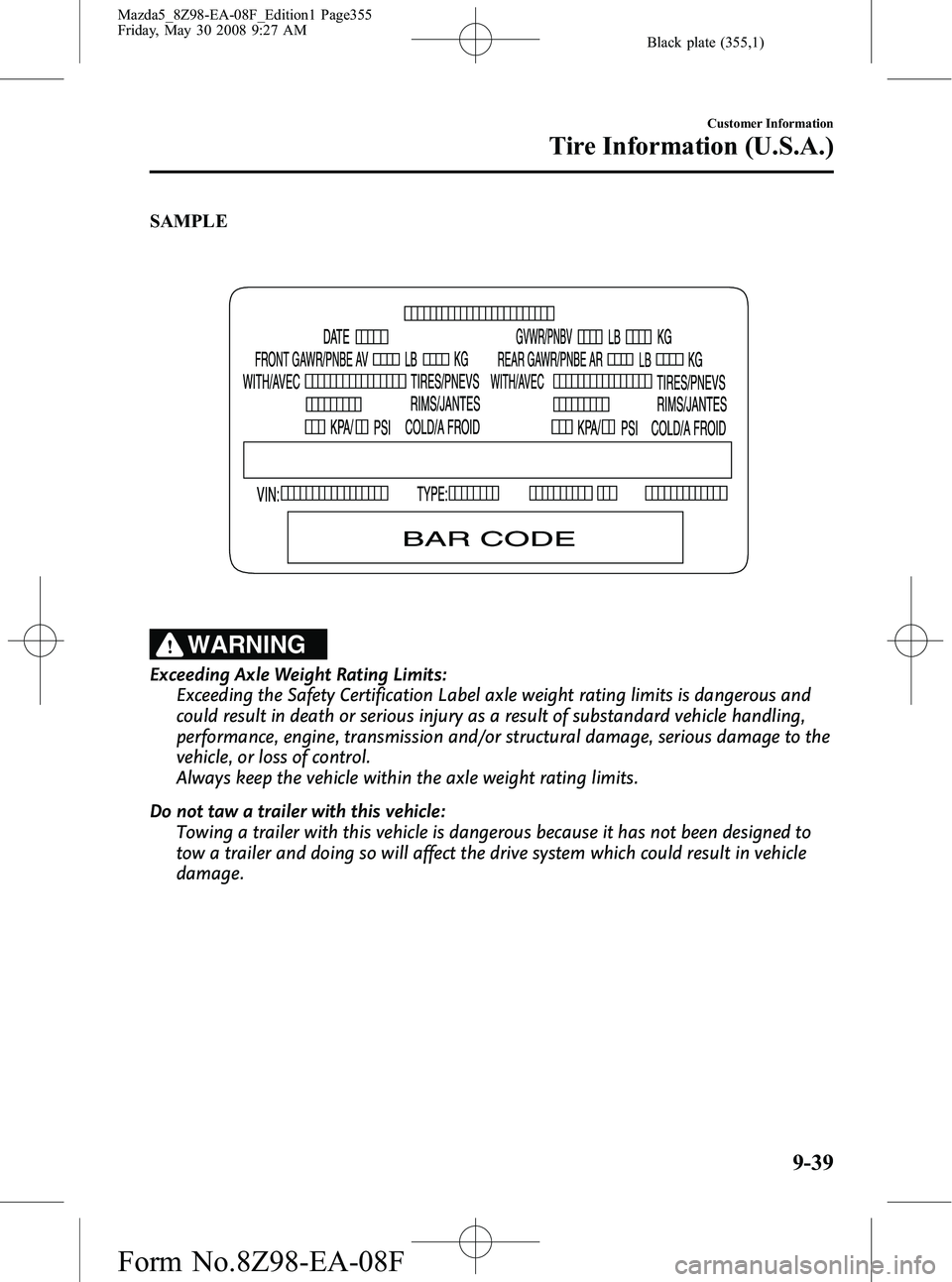

SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information
Tire Information (U.S.A.)
9-39
Mazda5_8Z98-EA-08F_Edition1 Page355
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (365,1)
qEngine Number
Forward
Identification Numbers
10-3
Mazda5_8Z98-EA-08F_Edition1 Page365
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (366,1)

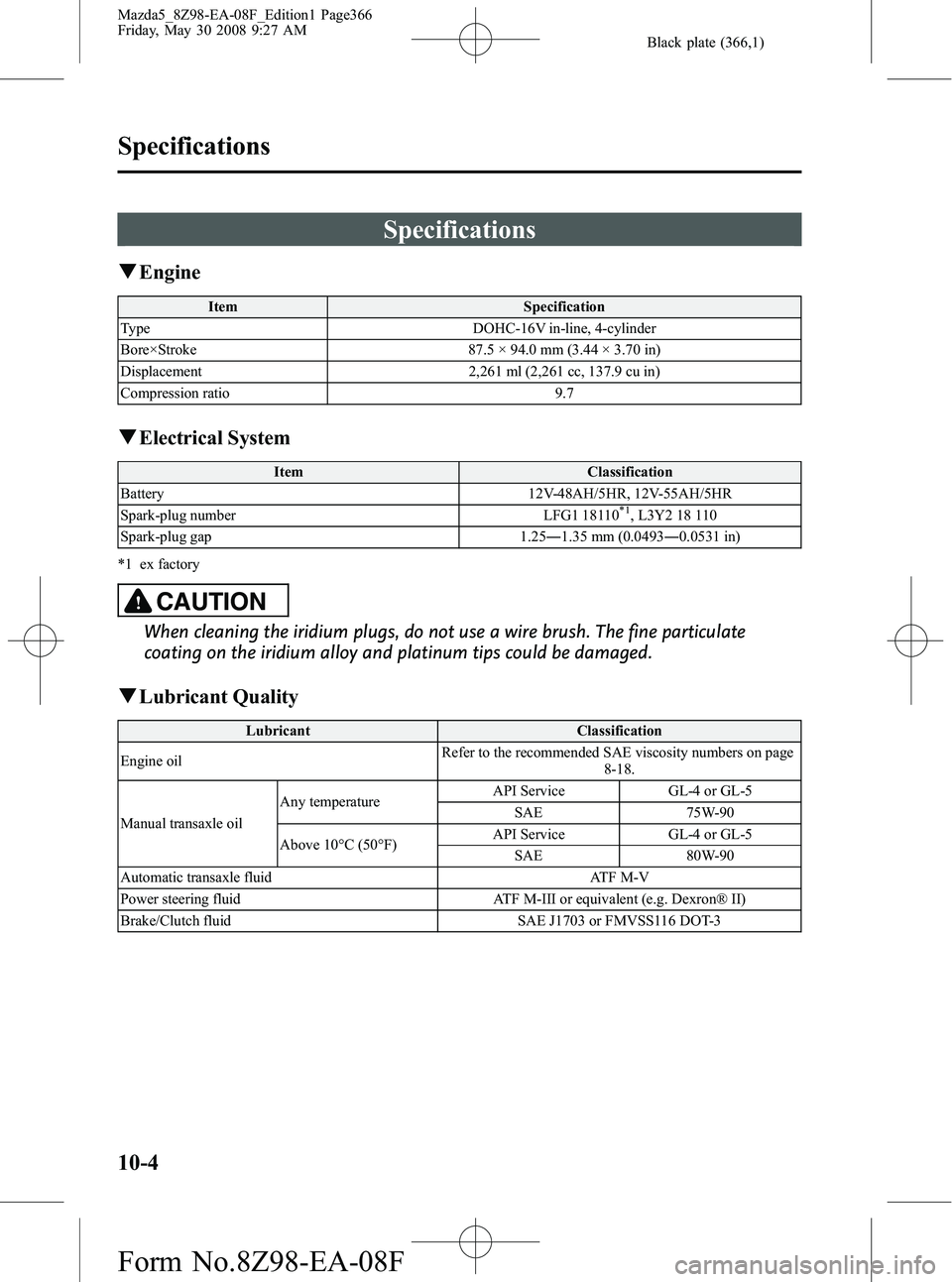

Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 9.7
qElectrical System
Item Classification
Battery 12V-48AH/5HR, 12V-55AH/5HR
Spark-plug number LFG1 18110
*1, L3Y2 18 110
Spark-plug gap 1.25 ―1.35 mm (0.0493 ―0.0531 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page
8-18.
Manual transaxle oil Any temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service
GL-4 or GL-5
SAE 80W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda5_8Z98-EA-08F_Edition1 Page366
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (367,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil 2.77 L (2.93 US qt, 2.44 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,620 mm (181.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,630 mm (64.2 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
(Manual transaxle)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,090 kg (4,608 lb)
GAWR (Gross Axle Weight Rating) Front
1,015 kg (2,238 lb)
Rear 1,090 kg (2,403 lb)
(Automatic transaxle) Item Weight
GVWR (Gross Vehicle Weight Rating) 2,116 kg (4,665 lb)
GAWR (Gross Axle Weight Rating) Front
1,046 kg (2,306 lb)
Rear 1,085 kg (2,392 lb)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
Mazda5_8Z98-EA-08F_Edition1 Page367
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F
