Power window switches .................................................................................... page 3-14
Lighting control ................................................................................................. page 5-45
Turn and lane-change signals ............................................................................ page 5-48
Instrument cluster .............................................................................................. page 5-28
Air bags ............................................................................................................. page 2-38
Wiper and washer lever ..................................................................................... page 5-49
Hazard warning flasher switch .......................................................................... page 5-55
Information display ............................................................................................ page 6-66
Audio system ..................................................................................................... page 6-18
Climate control system ........................................................................................ page 6-2
Glove box .......................................................................................................... page 6-71
Rear ventilation system ..................................................................................... page 6-17
Cup holder ......................................................................................................... page 6-68
Parking brake ....................................................................................................... page 5-6
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-26
Hood release handle .......................................................................................... page 3-17
Outside mirror switch ........................................................................................ page 3-26
Power window lock switch ................................................................................ page 3-15
Interior light ....................................................................................................... page 6-64
Seat belts ............................................................................................................ page 2-14
Sunvisor ............................................................................................................. page 6-64
Map light ........................................................................................................... page 6-65
Rearview mirror ................................................................................................. page 3-27
Vanity mirror ...................................................................................................... page 6-64
Front seats ............................................................................................................ page 2-2
Second-row seat ................................................................................................... page 2-5
Third-row seat ..................................................................................................... page 2-9
Navigation system (if equipped) .......................................... Refer to the separate manual
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda5_8Z98-EA-08F_Edition1 Page9
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats ................................................................................ 2-2
Second-Row Seats .................................................................... 2-5
Third-Row Seat ......................................................................... 2-9
Head Restraints ....................................................................... 2-11
Seat Warmer
í......................................................................... 2-12
Seat Belt Systems ........................................................................ 2-14 Seat Belt Precautions .............................................................. 2-14
Seat Belt .................................................................................. 2-18
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-20
Seat Belt Extender ................................................................... 2-22
Seat Belt Warning Light/Beep ................................................ 2-23
Child Restraint ............................................................................ 2-25 Child Restraint Precautions ..................................................... 2-25
Installing Child-Restraint Systems .......................................... 2-29
LATCH Child-Restraint Systems ............................................ 2-35
SRS Air Bags ............................................................................... 2-38 Supplemental Restraint Systems (SRS) Precautions ............... 2-38
Supplemental Restraint System Components ......................... 2-42
How the Air Bags Work .......................................................... 2-44
2-1íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page13
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the passenger seat
properly with the seatback upright and
feet on the floor: Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda5_8Z98-EA-08F_Edition1 Page15
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (18,1)

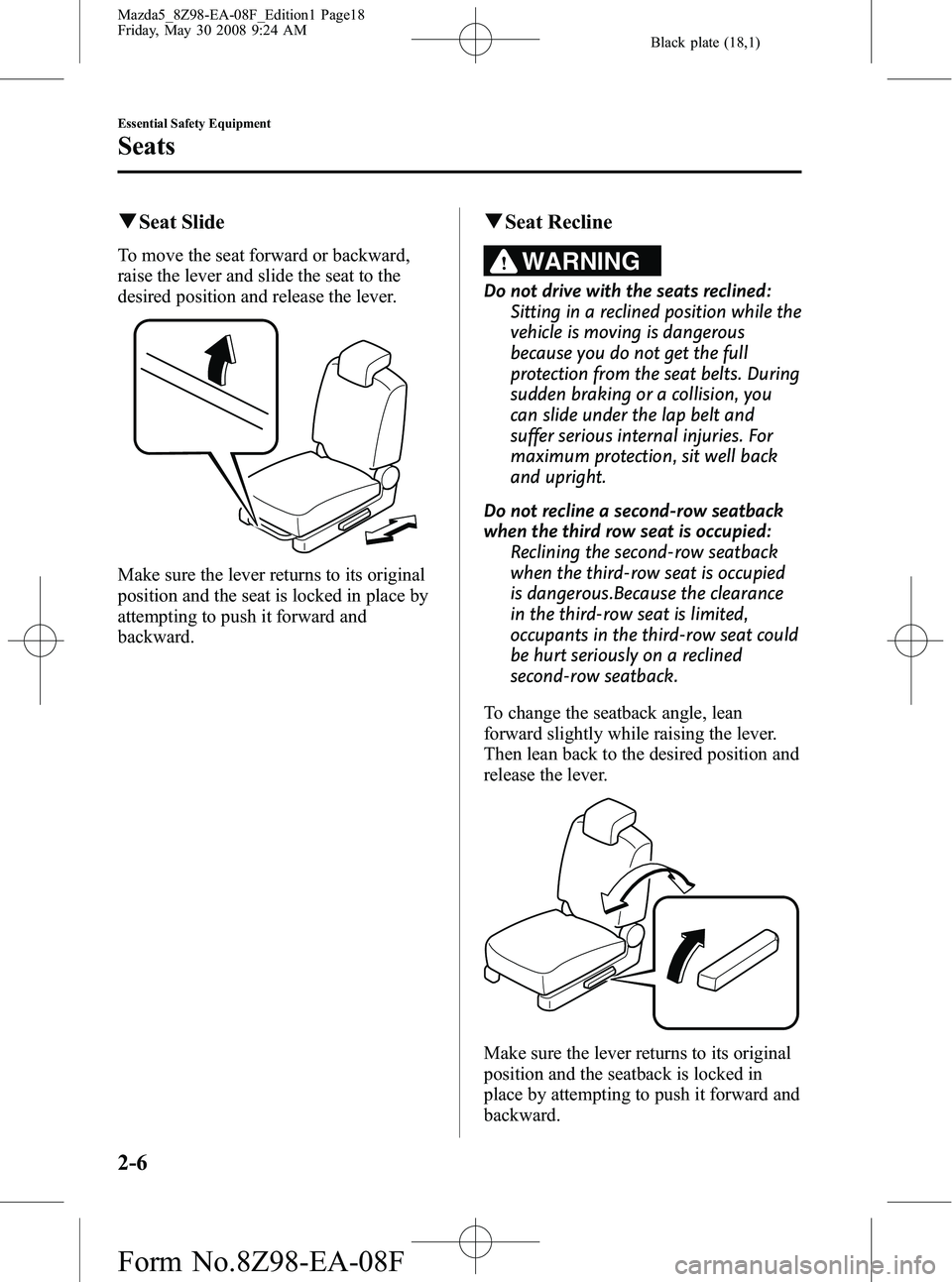

qSeat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied: Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
2-6
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page18
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (21,1)
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-10).
Returning seatbacks to their original
positions
1. Return the seatback to its originalposition while raising its lever.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. Return the seat-bottom to its original
position and secure it. After returning
the seat-bottom to its original position,
make sure the seat-bottom is secured
by attempting to lightly move it up and
down.
Third-Row Seat
WARNING
Do not stack cargo higher than the
seatbacks: Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked: All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Essential Safety Equipment
Seats
2-9
Mazda5_8Z98-EA-08F_Edition1 Page21
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (23,1)
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-8).
To return third-row seat to its original
position
Return the seatback to its original position
while pulling its strap.
Make sure the seatback is secured by
attempting to lightly move it forward and
back.
Head Restraints
Head restraints are intended to help
protect you and the passengers from neck
injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Front seat
Essential Safety Equipment
Seats
2-11
Mazda5_8Z98-EA-08F_Edition1 Page23
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (24,1)
Second-Row seat
Third-Row seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Seat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Indicator
OFF
ON
2-12
Essential Safety Equipment
íSome models.
Seats
Mazda5_8Z98-EA-08F_Edition1 Page24
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (33,1)
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.
Properly dispose of the pretensioner
system: Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. The pretensioner system for the
front passenger is designed to only deploy
in accordance with the total seated weight
on the front passenger seat. It will not
activate in most rollovers, side or rear
impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs: Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
Essential Safety Equipment
Seat Belt Systems
2-21
Mazda5_8Z98-EA-08F_Edition1 Page33
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (35,1)
NOTE
When not in use, remove the seat belt extender
and store it in the vehicle. If the seat belt
extender is left connected, the seat belt
extender might get damaged as it will not
retract with the rest of the seat belt and can
easily fall out of the door when not in use and
be damaged. In addition, the seat belt warning
light will not illuminate and function properly.Seat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
ConditionResult
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position. The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated. The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position. The warning light will
not illuminate and the
beep sound will not be
heard.
q
Belt Minder
NOTE
The belt minder can be deactivated. Consult an
Authorized Mazda Dealer to deactivate or
restore the seat belt minder.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda5_8Z98-EA-08F_Edition1 Page35
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (36,1)
Driver seated/Front passenger not
seated
The belt minder is a supplemental
warning to the seat belt warning function.
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the warning light/beep
operates to give you further reminders
according to the chart below.
ConditionVehicle speed
Between 0 ―20
km/h
(0 ― 12 mph) 20 km/h
(12 mph) or
more
Seat belt
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
Driver seated/Front passenger seated
The seat belt warning function reminds
the front passenger to fasten the seat belt
according to the chart below.
Condition Vehicle speed
Between 0 ―20
km/h
(0 ― 12 mph) 20 km/h
(12 mph) or more
Seat belt
(Driver)
Seat belt
(Passenger)
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function to
operate depending on the weight of the
item.
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
NOTE
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that neither
the warning light nor the warning beep
operate.
2-24
Essential Safety Equipment
Seat Belt Systems
Mazda5_8Z98-EA-08F_Edition1 Page36
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F
