headlight bulb MAZDA MODEL 5 2010 Owners Manual

Black plate (159,1)
CAUTION
ØDo not shade the light sensor by
adhering a sticker or a label on
the windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
ØThe light sensor also works as a
rain sensor for the auto-wiper
control. Keep hands and scrapers
clear of the windshield when the
wiper lever is in the AUTO position
and the ignition switch is in the
ON position as fingers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically. If you are
going to clean the windshield, be
sure the wipers are turned off
completely - this is particularly
important when clearing ice and
snow - when it is particularly
tempting to leave the engine
running. NOTE
lThe headlights, other exterior lights and
dashboard illumination may not turn off
immediately even if the surrounding area
becomes well-lit because the light sensor
determines that it is nighttime if the
surrounding area is continuously dark for
several minutes such as inside long tunnels,
traffic jams inside tunnels, or in indoor
parking lots.
In this case, the light turns off if the light
switch is turned to the OFF position.
lWhen the headlight switch is in the AUTO
position and the ignition switch is turned to
the ACC or LOCK position, the headlights,
other exterior lights and dashboard
illumination will turn off.
lThe timing for turning on the headlights,
other exterior lights and dashboard
illumination can be delayed by adjusting
the sensitivity of the light sensor. Consult an
Authorized Mazda Dealer regarding sensor
adjustment.
lThe sensitivity of the AUTO lights may be
changed by an Authorized Mazda Dealer.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Driving Your Mazda
Switches and Controls
5-51íSome models.
Mazda5_8AU7-EA-09H_Edition4 Page159
Tuesday, March 30 2010 1:10 PM
Form No.8AU7-EA-09H

Black plate (160,1)
NOTE
If the headlights flicker, or the brightness
weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an
Authorized Mazda Dealer.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
OFF
Flashing
q Headlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch adjusts this
angle.
5-52
Driving Your Mazda
íSome models.
Switches and Controls
Mazda5_8AU7-EA-09H_Edition4 Page160
Tuesday, March 30 2010 1:10 PM
Form No.8AU7-EA-09H

Black plate (161,1)
Select the proper setting from the following chart.Front seat Rear
seat Load Switch
Position
Driver Passenger
× ――― 0
×× ――0
×× × ―1
×× ×× 2
× ―― ×3
×: Yes
― :No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Turn and Lane-Change
Signals
q Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
Driving Your Mazda
Switches and Controls
5-53
Mazda5_8AU7-EA-09H_Edition4 Page161
Tuesday, March 30 2010 1:10 PM
Form No.8AU7-EA-09H

Black plate (311,1)
Light Bulbs
Luggage compartment light
LED type
Bulb type
Overhead light (Rear)
License plate lights Rear turn signal lights
Rear turn signal lights
Overhead light/Map lights (Front)
Reverse lights
High-mount brake light
Fog lights
Brake
lights/
Taillights
Reverse
lightsBrake lights/Taillights
(Rear side-marker lights)
Some models.
Parking lights/Front turn signal lights/Front side-marker
lights
Headlights (Low beam)
Headlights (High beam) Rear side-marker lights
Maintenance and Care
Owner Maintenance
8-39
Mazda5_8AU7-EA-09H_Edition4 Page311
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (312,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Headlight bulbs
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Lift the hood. 3. Perform the following procedure when
replacing the left headlight bulb. Turn
the screws counterclockwise and
remove them and the cover.
Battery duct
Battery cover
4. Find the high and low beam bulbs inthe rear of the headlight unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam
(page 8-39).
High-beam bulb
1. Turn the socket and bulb assembly counterclockwise, and carefully pull it
backward.
2. Disconnect the socket and bulb assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
8-40
Maintenance and Care
Owner Maintenance
Mazda5_8AU7-EA-09H_Edition4 Page312
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (313,1)
3. Install the new socket and bulbassembly in the reverse order of
removal.
NOTE
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Disconnect the electrical connector from the bulb by pulling it to the rear.
2. Pull off the sealing cover. 3. Unhook the bulb retaining spring.
4. Swing the retaining spring out and
away to free the headlight bulb.
5. Carefully remove the socket and bulb assembly by pulling it straight back.
6. Remove the headlight bulb from the socket.
7. Install the new socket and bulbassembly in the reverse order of
removal.
Maintenance and Care
Owner Maintenance
8-41
Mazda5_8AU7-EA-09H_Edition4 Page313
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (314,1)
NOTElIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
lWhen reinstalling the sealing cover, make
sure
faces up.
Fog light bulbsí
1. Make sure the ignition is switched offand the headlight switch is off.
2. Remove the three screws under the mudguard by turning them
counterclockwise, and partially open
the mudguard.
3. Turn the socket and bulb assemblycounterclockwise, and carefully pull it
rearward. 4. Disconnect the socket and bulb
assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
5. Install the new socket and bulbassembly in the reverse order of
removal.
NOTE
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Parking lights/Front turn signal lights/
Front side-marker lights
1. Make sure the ignition is switched off and the headlight switch is off.
8-42
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8AU7-EA-09H_Edition4 Page314
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (315,1)
2. Turn the center section of the plasticretainers counterclockwise and remove
them, then partially peel back the
mudguard.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Remove the bulb by pushing it in slightly and turning it
counterclockwise.
5. Install the new bulb in the reverse orderof removal.
Brake lights/Taillights (Rear side-
marker lights), Rear turn signal lights,
Reverse lights
1. Make sure the ignition is switched offand the headlight switch is off. 2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the rear
combination component and gently
insert it in the cover as shown in the
figure, and then remove the cover.
3. Turn the screws counterclockwise and
remove them.
4. Turn the socket and bulb assembly counterclockwise and remove it.
5. Disconnect the bulb from the socket.
Rear turn signal
lights
Reverse lights
Brake lights/Tail
lights (Rear side-
marker lights)
Bulb type
Maintenance and Care
Owner Maintenance
8-43
Mazda5_8AU7-EA-09H_Edition4 Page315
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

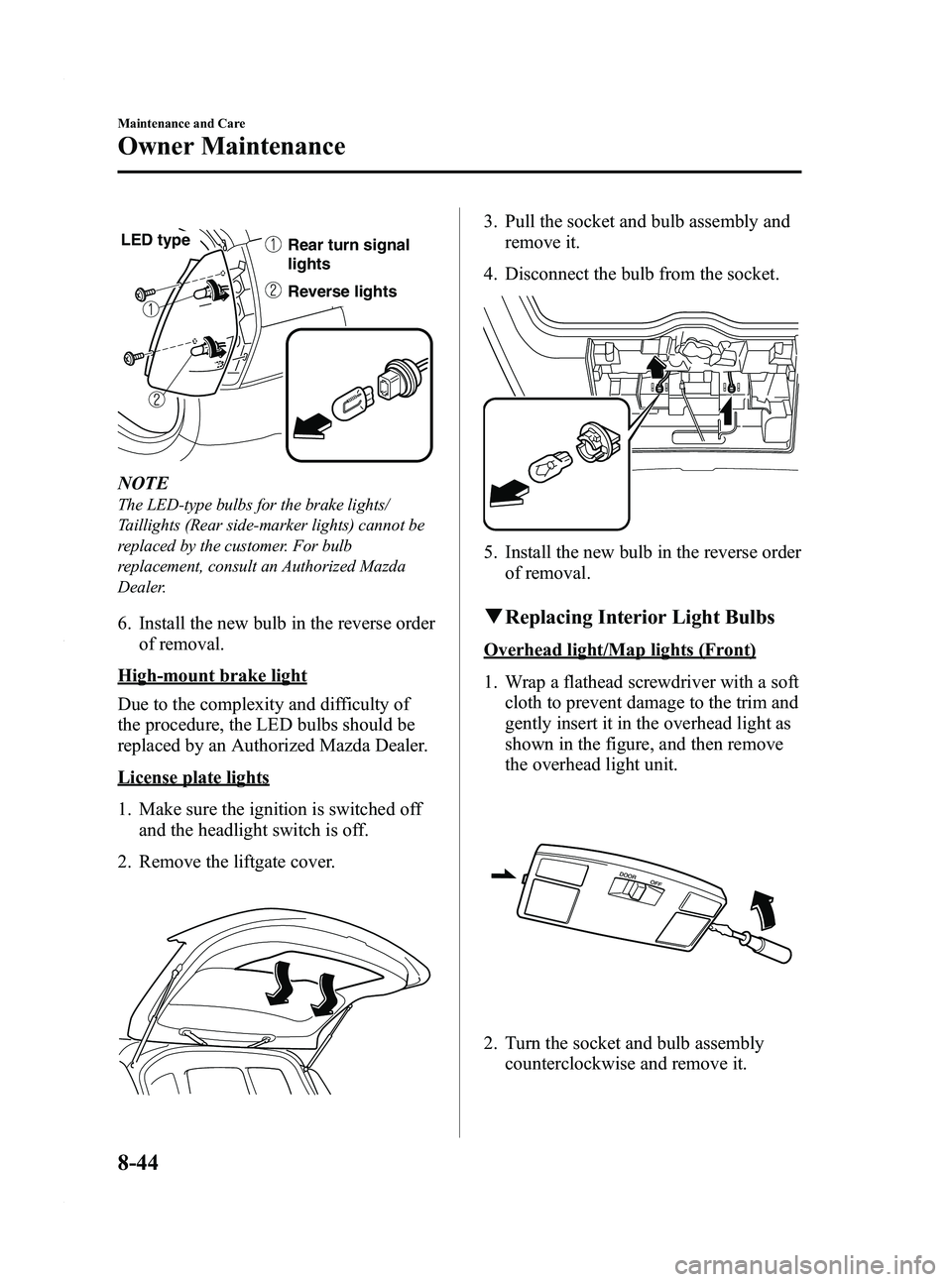

Black plate (316,1)
Reverse lights Rear turn signal
lights
LED type
NOTE
The LED-type bulbs for the brake lights/
Taillights (Rear side-marker lights) cannot be
replaced by the customer. For bulb
replacement, consult an Authorized Mazda
Dealer.
6. Install the new bulb in the reverse orderof removal.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
License plate lights
1. Make sure the ignition is switched offand the headlight switch is off.
2. Remove the liftgate cover.
3. Pull the socket and bulb assembly and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
8-44
Maintenance and Care
Owner Maintenance
Mazda5_8AU7-EA-09H_Edition4 Page316
Tuesday, March 30 2010 1:11 PM
Form No.8AU7-EA-09H

Black plate (382,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 60 HB3 (HB3)
Low beam
Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights (Front side-marker lights) 27/8 ―(#1157NA)
Fog lights
í55 H11 (H11)
High-mount brake light LED*1―(― )
Rear combination
lights Reverse lights 18 W16W (#921)
Rear turn signal lights 21 WY21W (32CP)
Brake lights/Taillights
(Rear side-marker lights)
Bulb type
21/5W21/5W (#7443)
LED type LED
*1―(― )
License plate lights 5 W5W (4CP)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Luggage compartment light 8 ―
Overhead light/Map lights (Front) 5 W5W
Overhead light (Rear) 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-34.
Standard tire
Tire size Inflation pressure
Front Rear
P205/55R16 89H 230 kPa (34 psi)230 kPa (34 psi)
205/50R17 89V 230 kPa (34 psi)230 kPa (34 psi)
P205/50R17 88V 240 kPa (35 psi)240 kPa (35 psi)
10-6íSome models.
Specifications
Mazda5_8AU7-EA-09H_Edition4 Page382
Tuesday, March 30 2010 1:12 PM
Form No.8AU7-EA-09H
