MAZDA MODEL 5 2012 Owner's Manual

Black plate (21,1)
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
Ø When folding the seatback of the
right second-row seat, make sure
the storage box is stowed. If the
storage box is not stowed, it could
be damaged.
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-10).
Returning seatbacks to their original
positions
1. Return the seatback to its original position while raising its lever.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. Return the seat-bottom to its original
position and secure it. After returning
the seat-bottom to its original position,
make sure the seat-bottom is secured
by attempting to lightly move it up and
down.
3. Lift the head restraint upward to its upright position.
Essential Safety Equipment
Seats
2-9
Mazda5_8BR9-EA-10J_Edition3 Page21
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (22,1)

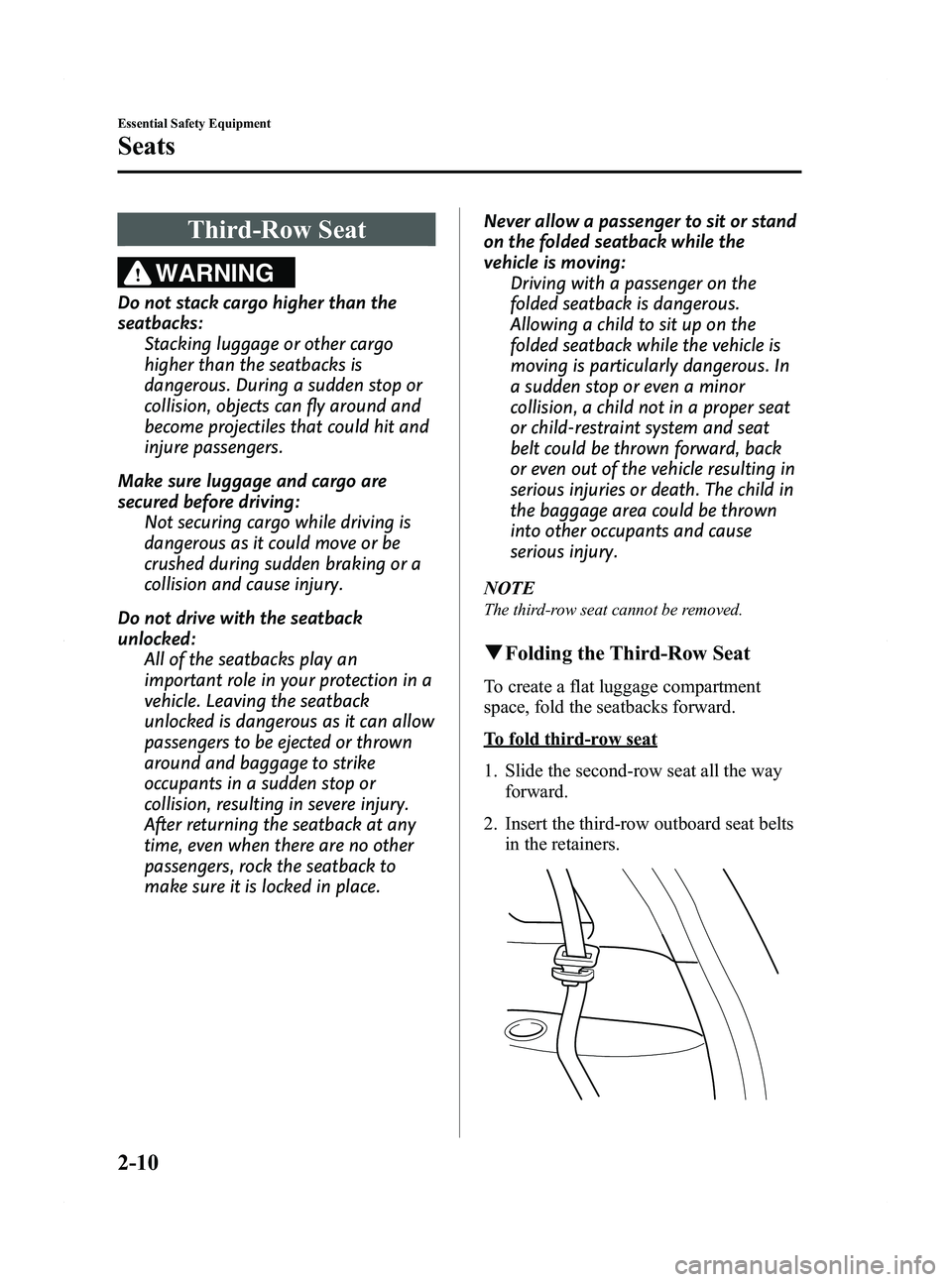

Third-Row Seat
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked: All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place. Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
The third-row seat cannot be removed.
q Folding the Third-Row Seat
To create a flat luggage compartment
space, fold the seatbacks forward.
To fold third-row seat
1. Slide the second-row seat all the way
forward.
2. Insert the third-row outboard seat belts in the retainers.
2-10
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page22
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (23,1)

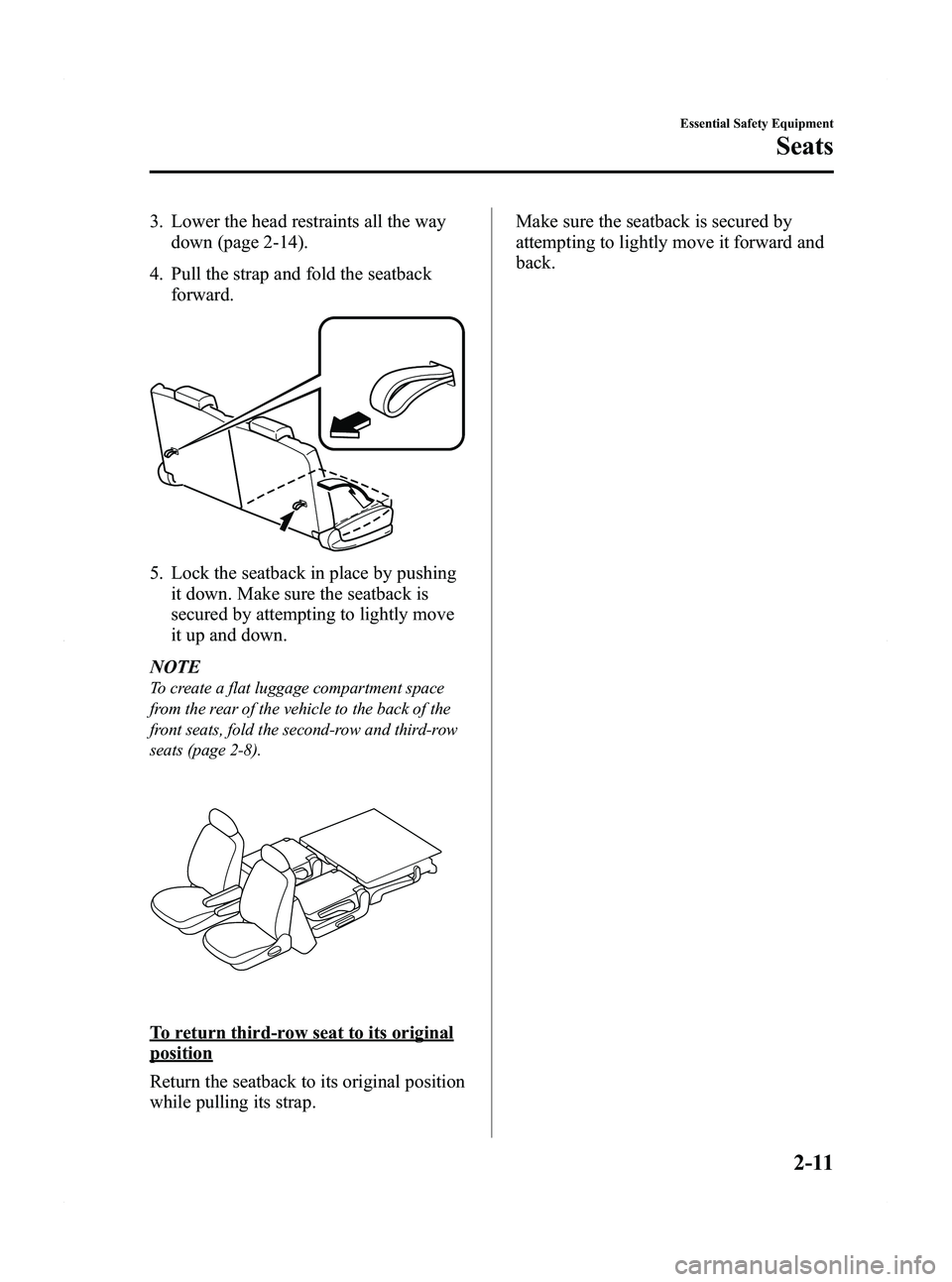

3. Lower the head restraints all the waydown (page 2-14).
4. Pull the strap and fold the seatback forward.
5. Lock the seatback in place by pushing
it down. Make sure the seatback is
secured by attempting to lightly move
it up and down.
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-8).
To return third-row seat to its original
position
Return the seatback to its original position
while pulling its strap. Make sure the seatback is secured by
attempting to lightly move it forward and
back.
Essential Safety Equipment
Seats
2-11
Mazda5_8BR9-EA-10J_Edition3 Page23
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (24,1)

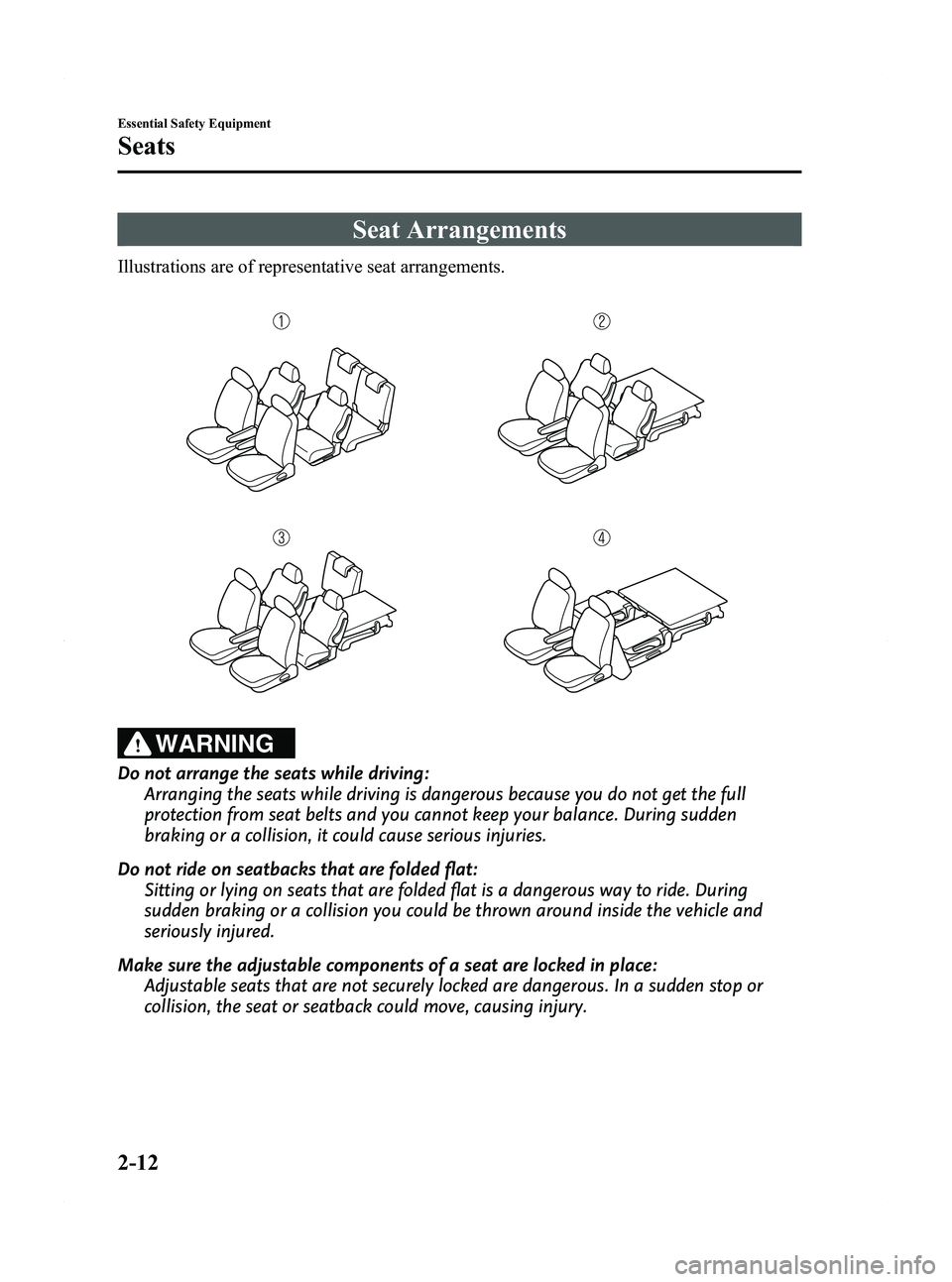

Seat Arrangements
Illustrations are of representative seat arrangements.
WARNING
Do not arrange the seats while driving:Arranging the seats while driving is dangerous because you do not get the full
protection from seat belts and you cannot keep your balance. During sudden
braking or a collision, it could cause serious injuries.
Do not ride on seatbacks that are folded flat: Sitting or lying on seats that are folded flat is a dangerous way to ride. During
sudden braking or a collision you could be thrown around inside the vehicle and
seriously injured.
Make sure the adjustable components of a seat are locked in place: Adjustable seats that are not securely locked are dangerous. In a sudden stop or
collision, the seat or seatback could move, causing injury.
2-12
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page24
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (25,1)
CAUTION
ØBe careful not to place your hands and fingers around moving parts of the seat
when arranging the seat to prevent injury.
Ø Do not move around in the vehicle while the seats are folded down. A foot could
be injured if it becomes pinched between the seat bottom and seatback. If you
have to move around the folded down seats, step on the center of the seats and
move carefully.

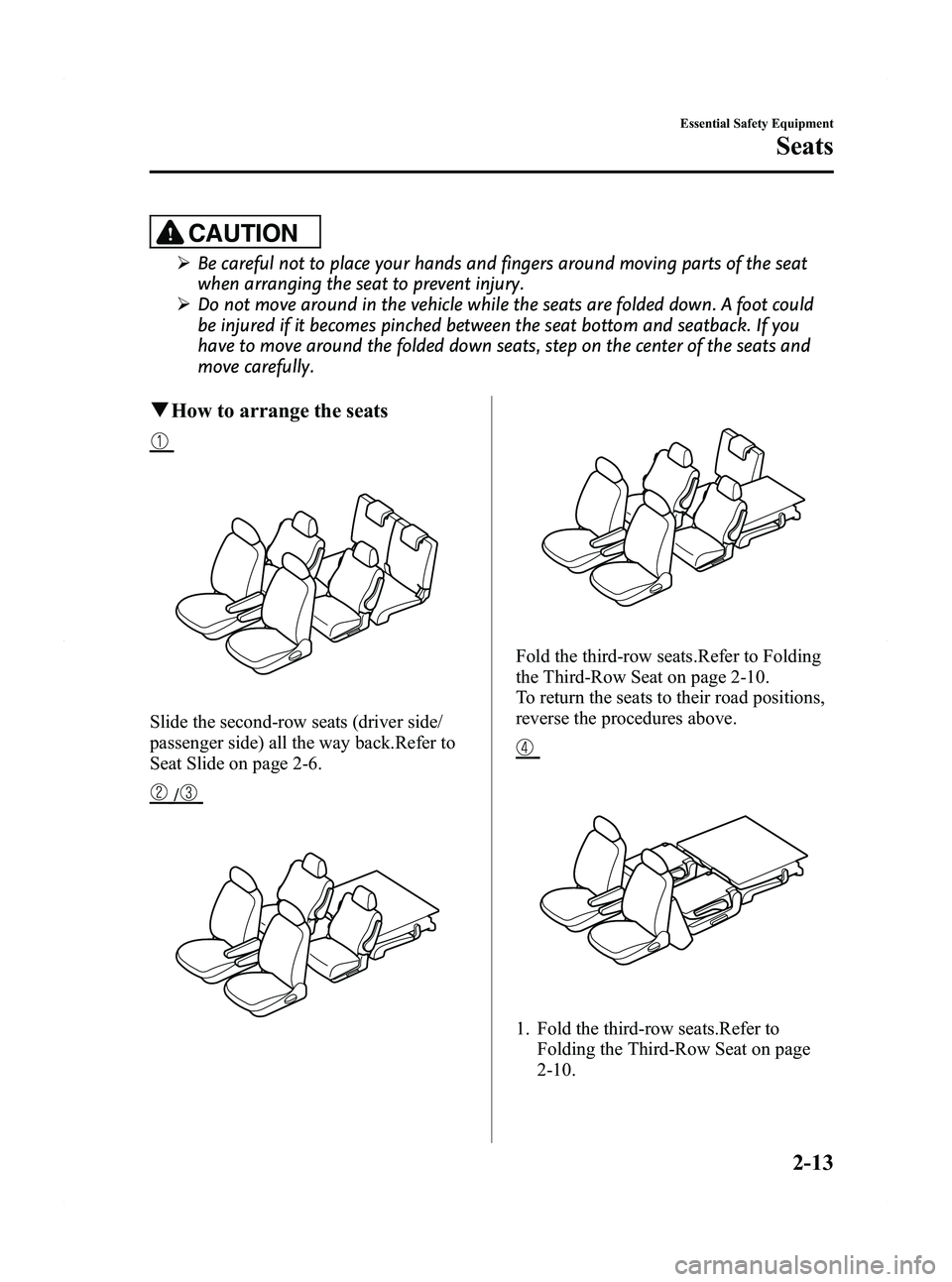

qHow to arrange the seats
Slide the second-row seats (driver side/
passenger side) all the way back.Refer to
Seat Slide on page 2-6.
/
Fold the third-row seats.Refer to Folding
the Third-Row Seat on page 2-10.
To return the seats to their road positions,
reverse the procedures above.
1. Fold the third-row seats.Refer to
Folding the Third-Row Seat on page
2-10.
Essential Safety Equipment
Seats
2-13
Mazda5_8BR9-EA-10J_Edition3 Page25
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (26,1)
2. Fold the second-row seats.Refer toFolding the Second-Row Seats on page
2-8.
To return the seats to their road positions,

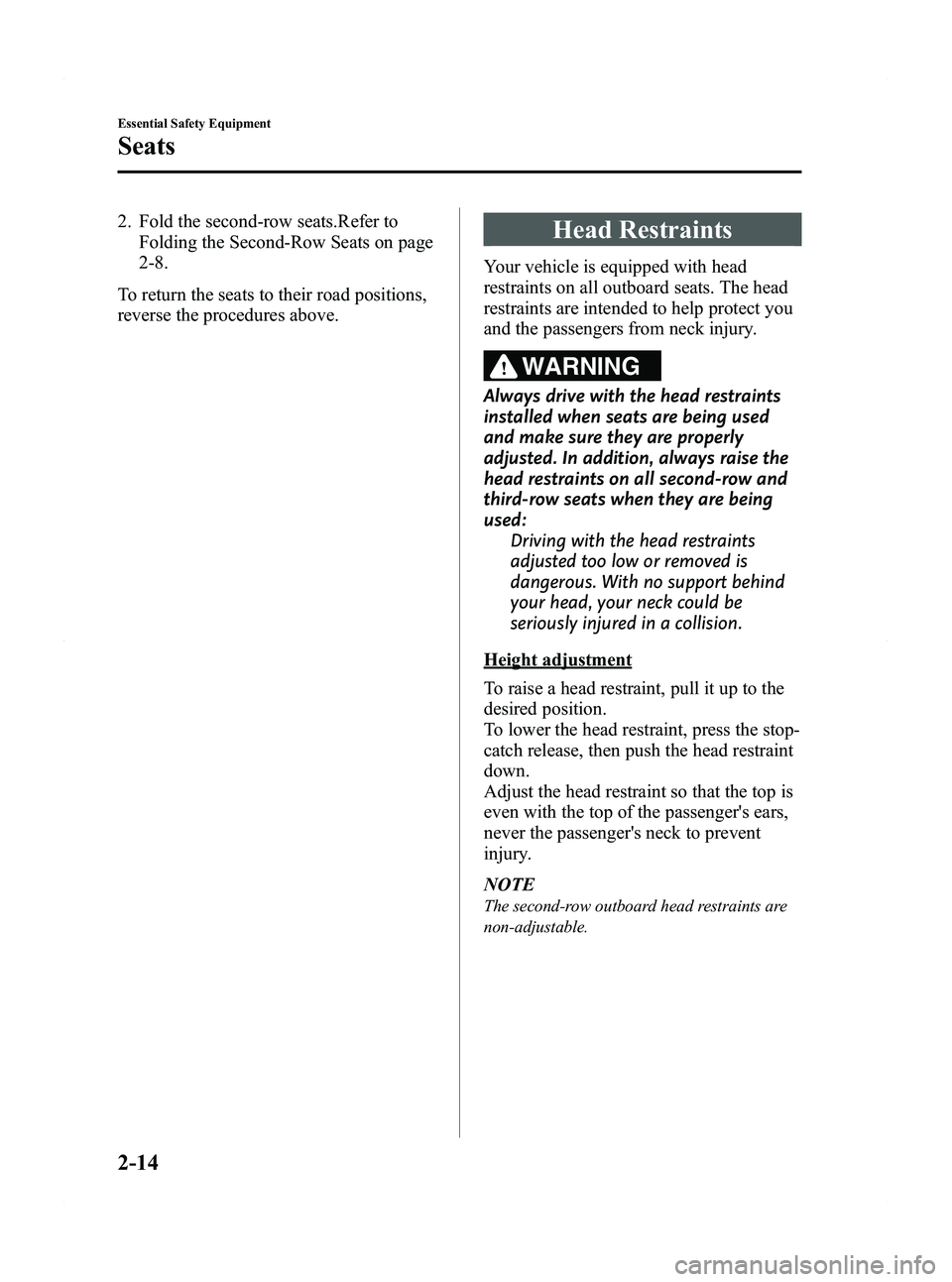

reverse the procedures above.Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats. The head
restraints are intended to help protect you
and the passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted. In addition, always raise the
head restraints on all second-row and
third-row seats when they are being
used: Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
NOTE
The second-row outboard head restraints are
non-adjustable.
2-14
Essential Safety Equipment
Seats
Mazda5_8BR9-EA-10J_Edition3 Page26
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (27,1)

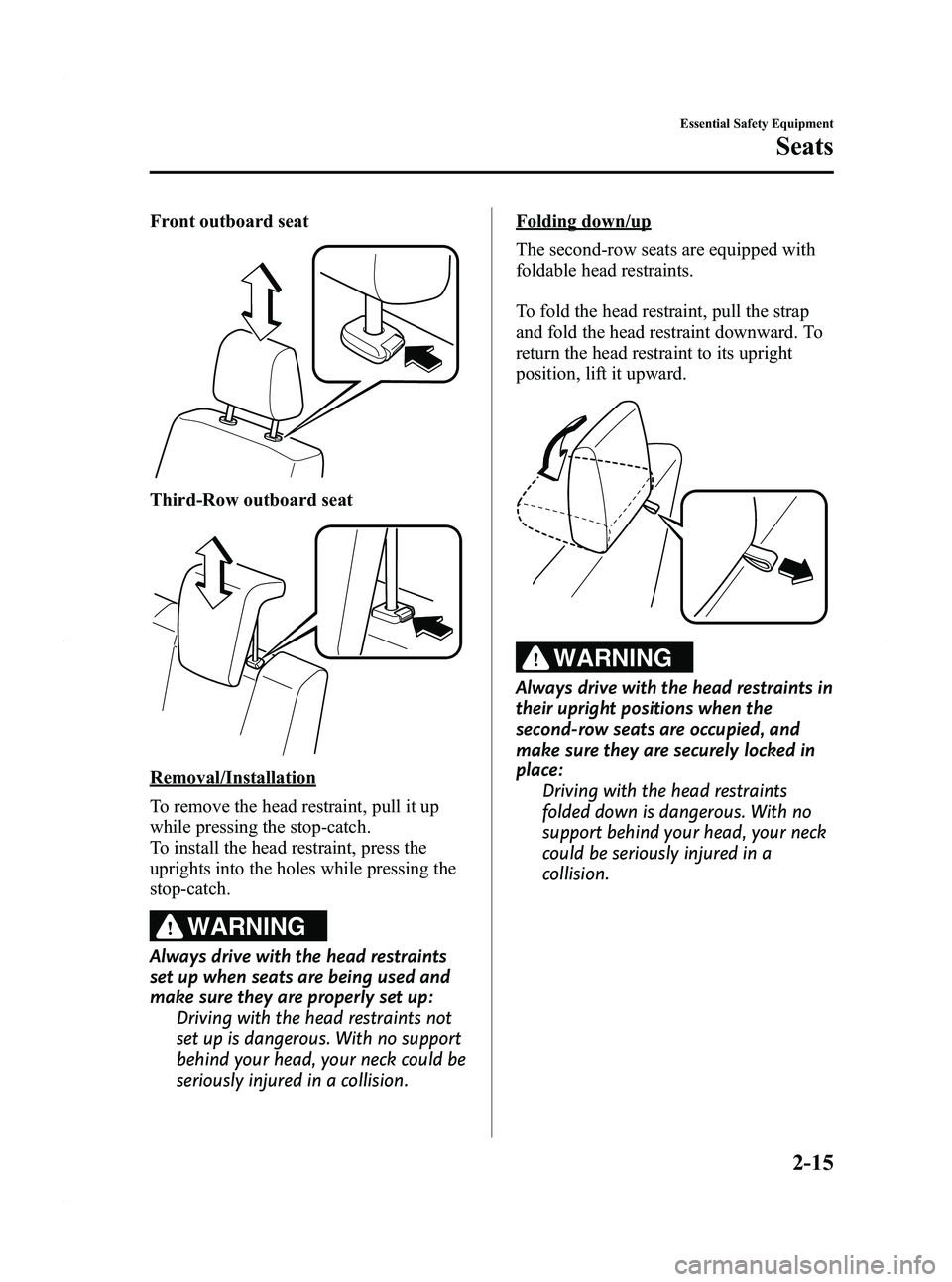

Front outboard seat
Third-Row outboard seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Folding down/up
The second-row seats are equipped with
foldable head restraints.
To fold the head restraint, pull the strap
and fold the head restraint downward. To
return the head restraint to its upright
position, lift it upward.
WARNING
Always drive with the head restraints in
their upright positions when the
second-row seats are occupied, and
make sure they are securely locked in
place:
Driving with the head restraints
folded down is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
Essential Safety Equipment
Seats
2-15
Mazda5_8BR9-EA-10J_Edition3 Page27
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (28,1)
Seat Warmerí
The front seats are electrically heated. The
ignition must be switched ON.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
OFFON
WARNING
Ø
Be careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Ø Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
Ø Do not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
Ø Do not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
2-16
Essential Safety Equipment
íSome models.
Seats
Mazda5_8BR9-EA-10J_Edition3 Page28
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (29,1)
NOTElUse the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
lThe temperature of the seat warmer cannot
be adjusted because the seat warmer is
controlled by a thermostat.
Essential Safety Equipment
Seats
2-17
Mazda5_8BR9-EA-10J_Edition3 Page29
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (30,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
Your vehicle has the following types of seat belts.
With Driver and Front Passenger Occupant Classification System model
Seating PositionTypes of seat belt
Front seat Driver side 3-point type seat belt with emergency locking mode retractor
Passenger side 3-point type seat belt with emergency locking mode
retractor/automatic locking mode retractor
Second-row seat
Third-row seat
Except above
Seating Position Types of seat belt
Front seat Driver side
3-point type seat belt with emergency looking mode retractor
Passenger side
Second-row seat 3-point type seat belt with emergency looking mode
retractor/automatic locking mode retractor
Third-row seat
3-point type seat belt with emergency locking mode retractor
This belt has retractors with an inertia lock that keep the belt retracted when not in use.
The lock allows the belt to remain comfortable on the user, but it will lock in position
during a collision.
Refer to Emergency Locking Mode on page 2-20.
3-point type seat belt with emergency locking mode retractor/automatic locking mode
retractor
In addition to the emergency locking mode function, this belt has retractors that operate in
another mode, the automatic locking mode, for the child-restraint system.
Refer to Automatic Locking Mode on page 2-21.
Refer to Installing Child-Restraint Systems on page 2-36.
We recommend you put all children in the rear seats, if you must use the front passenger
seat for a child, slide the front passenger seat as far back as possible and make sure any
child-restraint system is secured properly.
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda5_8BR9-EA-10J_Edition3 Page30
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
