Black plate (94,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open
Driver's window
Close
Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
3-16
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page94
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (158,1)
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full.
Full
1/4 Full
5-34
Driving Your Mazda
Instrument Cluster and Indicators
Mazda5_8BR9-EA-10J_Edition3 Page158
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

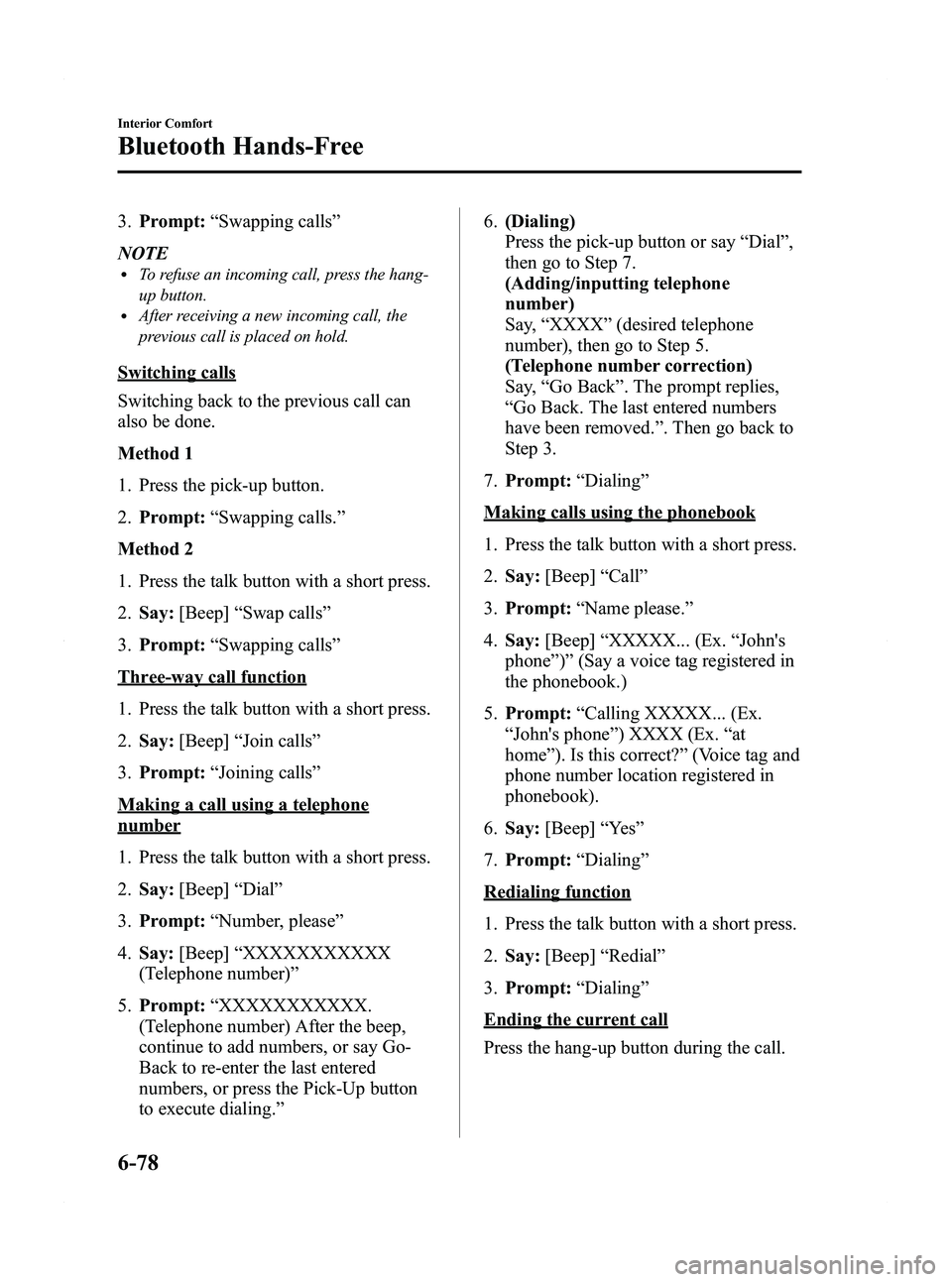

Black plate (264,1)
3.Prompt: “Swapping calls ”
NOTE
lTo refuse an incoming call, press the hang-
up button.
lAfter receiving a new incoming call, the
previous call is placed on hold.
Switching calls
Switching back to the previous call can
also be done.
Method 1
1. Press the pick-up button.
2. Prompt: “Swapping calls. ”
Method 2
1. Press the talk button with a short press.
2. Say: [Beep] “Swap calls ”
3. Prompt: “Swapping calls ”
Three-way call function
1. Press the talk button with a short press.
2.Say: [Beep] “Join calls ”
3. Prompt: “Joining calls ”
Making a call using a telephone
number
1. Press the talk button with a short press.
2.Say: [Beep] “Dial ”
3. Prompt: “Number, please ”
4. Say: [Beep] “XXXXXXXXXXX
(Telephone number) ”
5. Prompt: “XXXXXXXXXXX.
(Telephone number) After the beep,
continue to add numbers, or say Go-
Back to re-enter the last entered
numbers, or press the Pick-Up button
to execute dialing. ” 6.
(Dialing)
Press the pick-up button or say “Dial ”,
then go to Step 7.
(Adding/inputting telephone
number)
Say, “XXXX ”(desired telephone
number), then go to Step 5.
(Telephone number correction)
Say, “Go Back ”. The prompt replies,
“ Go Back. The last entered numbers
have been removed. ”. Then go back to
Step 3.
7. Prompt: “Dialing ”
Making calls using the phonebook
1. Press the talk button with a short press.
2.Say: [Beep] “Call ”
3. Prompt: “Name please. ”
4. Say: [Beep] “XXXXX... (Ex. “John's
phone ”)” (Say a voice tag registered in
the phonebook.)
5. Prompt: “Calling XXXXX... (Ex.
“ John's phone ”) XXXX (Ex. “at
home ”). Is this correct? ”(Voice tag and
phone number location registered in
phonebook).
6. Say: [Beep] “Ye s ”
7. Prompt: “Dialing ”
Redialing function
1. Press the talk button with a short press.
2.Say: [Beep] “Redial ”
3. Prompt: “Dialing ”
Ending the current call
Press the hang-up button during the call.
6-78
Interior Comfort
Bluetooth Hands-Free
Mazda5_8BR9-EA-10J_Edition3 Page264
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (319,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-18
Engine Coolant ....................................................................... 8-20
Brake/Clutch Fluid .................................................................. 8-21
Power Steering Fluid ............................................................... 8-22
Automatic Transaxle Fluid (ATF)
í........................................ 8-23
Washer Fluid ........................................................................... 8-24
Body Lubrication .................................................................... 8-25
Wiper Blades ........................................................................... 8-26
Battery ..................................................................................... 8-30
Tires ........................................................................................ 8-34
Light Bulbs ............................................................................. 8-40
Fuses ....................................................................................... 8-48
Appearance Care ........................................................................ 8-53 How to Minimize Environmental Paint Damage .................... 8-53
Exterior Care ........................................................................... 8-55
Interior Care ............................................................................ 8-59
8-1íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page319
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (335,1)
Engine Compartment Overview
BatteryBrake/Clutch fluid reservoir
Engine oil-filler cap
Windscreen washer fluid reservoir Engine oil dipstick
Engine coolant reservoir
Fuse block
Power steering fluid reservoir Cooling system cap
Automatic transaxle fluid-level dipstick
(Only for automatic transaxle)
Maintenance and Care
Owner Maintenance
8-17
Mazda5_8BR9-EA-10J_Edition3 Page335
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (366,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off. 3. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
4. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
5. Inspect the fuse and replace it if it'sblown.
Normal Blown
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
8-48
Maintenance and Care
Owner Maintenance
Mazda5_8BR9-EA-10J_Edition3 Page366
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (367,1)
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
7. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,and other switches are off.
2. Remove the fuse block cover.
Fuse block
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
4. Reinstall the cover and make sure that
it is securely installed.
Maintenance and Care
Owner Maintenance
8-49
Mazda5_8BR9-EA-10J_Edition3 Page367
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (368,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 IG KEY1 50 A For protection of various circuits
2 AD FAN 30 A Cooling fan
3 GLOW2
HEATER2 30 A Air conditioner
4 EGI MAIN 40 A Engine control system
5 INJ
FAN2 ――
6 ABS P 40 A ABS, DSC
7 P.SLIDE L ――
8 TCM 20 A Transaxle control system
í
9 HEATER1 40 A Air conditioner
10 GLOW1
HEATER3 30 A Air conditioner
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A For protection of various circuits
13 FAN1 30 A Cooling fan
14 P.SLIDE R ――
15 EHPAS 80 A Power assist steering
8-50
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8BR9-EA-10J_Edition3 Page368
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (369,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
16 FOG 15 A Fog lights
í
17 D.LOCK 20 A Power door lock
18 P.WIND 20 A Power window
19 AT PUMP ――
20 HEAD HI 20 A Headlight high beam
21
10 A Engine control system
22 STOP 10 A Brake lights
23 F.WARMER
FUEL PUMP 20 A Fuel pump
24 HAZARD 10 A Hazard warning flasher, Turn signal lights
25 ROOM 15 A Overhead lights
26 TAIL 15 A Taillights, Parking lights, License plate lights
27 A/C MAG 10 A Air conditioner
28 ABS V 20 A ABS, DSC
29 SUN ROOF 20 A Moonroof
í
30 H/CLEAN ――
31 HORN 15 A Horn
32 ―― ―
33 ILLUMI 7.5 A Illumination
34 ENG INJ 25 A Engine control system
35 ENG BAR 15 A Engine control system
36 ―― ―
37 M.DEF 7.5 A Mirror defroster
í
38 DEFOG 25 A Rear window defroster
39 HEAD LO L 15 A Headlight low beam (LH)
40 HEAD LO R 15 A Headlight low beam (RH)
Maintenance and Care
Owner Maintenance
8-51íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page369
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (370,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P/W 30 A Power window
2 M.DEF ――
3 STARTER 10 A Engine control system
4 ENG3 20 A Engine control system
5 P/W ――
6 P.OUTLET 15 A Accessory sockets (Cargo compartment)
7 SHIFT/L 5 A ―
8 CIGAR 15 A Accessory sockets (Dashboard)
9 MIRROR 7.5 A Power control mirror
10 A/C 10 A Air conditioner
11 F.WIP 25 A Windshield wipers and washer
12 R.WIP 15 A Rear window wiper
13 ENG ――
14 METER 10 A Instrument cluster
15 SAS 10 A Air bag
16 S.WARM 15 A Seat warmer
í
17 ABS/DSC ――
18 EHPAS 5 A Power assist steering
19 ENG2 15 A Engine control system
8-52
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8BR9-EA-10J_Edition3 Page370
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J
