low beam MAZDA MODEL 5 2012 Owners Manual

Black plate (161,1)
SignalWarning/Indicator Lights Page
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-42
Low Fuel Warning Light5-42
Check Fuel Cap Warning Light5-42
Seat Belt Warning Light5-43
Door-Ajar Warning Light5-43
Low Washer Fluid Level Warning Light5-43
Automatic Transaxle Warning Light5-43
Tire Pressure Monitoring System Warning Light5-44
Security Indicator Light5-46
Headlight High-Beam Indicator Light5-46
Shift Position Indicator Light5-46
Low Engine Coolant Temperature Indicator Light (Blue) 5-47
TCS/DSC Indicator Light5-47
DSC OFF Indicator Light5-47
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-47
Lights-On Indicator Light5-48
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-37
Mazda5_8BR9-EA-10J_Edition3 Page161
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (177,1)
NOTElThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the light turns off if the light switch is turned to the OFF position.
lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by pressing the knob. To adjust the brightness of the
dashboard illumination: Refer to Dashboard Illumination on page 5-35.
lWhen the headlight switch is in the AUTO position and the ignition is switched to ACC or the
ignition is switched off, the headlights, other exterior lights and dashboard illumination will turn
off.
lThe sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer. Refer to
Personalization Features on page 10-8.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourselfReplacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-53íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page177
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (178,1)
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
A personalized function is available to change
the sound volume for the lights-on reminder.
Refer to Personalization Features on page
10-8.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.
OFF
Flashing
q Headlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch is used to
adjust the angle of the headlights
manually.
5-54
Driving Your Mazda
íSome models.
Switches and Controls
Mazda5_8BR9-EA-10J_Edition3 Page178
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (358,1)
Light Bulbs
Headlights (Low beam)Headlights (High beam)
High-mount brake light Fog lights
Front turn signal lights/Front side-marker
lights/Parking lights
Some models.
License plate lights Brake lights/Taillights/Rear side-
marker lights
Overhead light/Map lights (Front)
Overhead light (Rear)
Luggage compartment light
Rear turn signal lights Reverse lights
8-40
Maintenance and Care
Owner Maintenance
Mazda5_8BR9-EA-10J_Edition3 Page358
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (360,1)
5. Turn the bulb assemblycounterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of removal.
Low-beam bulbs
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself. The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Lift the hood. 3. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
4. Turn the bulb assemblycounterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
5. Install the new bulb in the reverse order
of removal.
Fog light bulbsí
1. Make sure the ignition is switched off,and the headlight switch is off.
8-42
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8BR9-EA-10J_Edition3 Page360
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (369,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
16 FOG 15 A Fog lights
í
17 D.LOCK 20 A Power door lock
18 P.WIND 20 A Power window
19 AT PUMP ――
20 HEAD HI 20 A Headlight high beam
21
10 A Engine control system
22 STOP 10 A Brake lights
23 F.WARMER
FUEL PUMP 20 A Fuel pump
24 HAZARD 10 A Hazard warning flasher, Turn signal lights
25 ROOM 15 A Overhead lights
26 TAIL 15 A Taillights, Parking lights, License plate lights
27 A/C MAG 10 A Air conditioner
28 ABS V 20 A ABS, DSC
29 SUN ROOF 20 A Moonroof
í
30 H/CLEAN ――
31 HORN 15 A Horn
32 ―― ―
33 ILLUMI 7.5 A Illumination
34 ENG INJ 25 A Engine control system
35 ENG BAR 15 A Engine control system
36 ―― ―
37 M.DEF 7.5 A Mirror defroster
í
38 DEFOG 25 A Rear window defroster
39 HEAD LO L 15 A Headlight low beam (LH)
40 HEAD LO R 15 A Headlight low beam (RH)
Maintenance and Care
Owner Maintenance
8-51íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page369
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (430,1)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 60 HB3 (HB3)
Low beam
Halogen 55 H11 (H11)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights
(Front side-marker lights) 27/8
―(#1157NA)
Fog lights
í55 H11 (H11)
High-mount brake light LED*1―(― )
Rear turn signal lights 21 WY21W (32CP)
Brake lights/Taillights (Rear side-marker lights) 21/5 W21/5W (#7443)
Reverse light 21 W21W (7440)
License plate lights 5 W5W ( ―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Luggage compartment light 8 ―
Overhead light/Map lights (Front) 5 W5W
Overhead light (Rear) 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
Mazda5_8BR9-EA-10J_Edition3 Page430
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

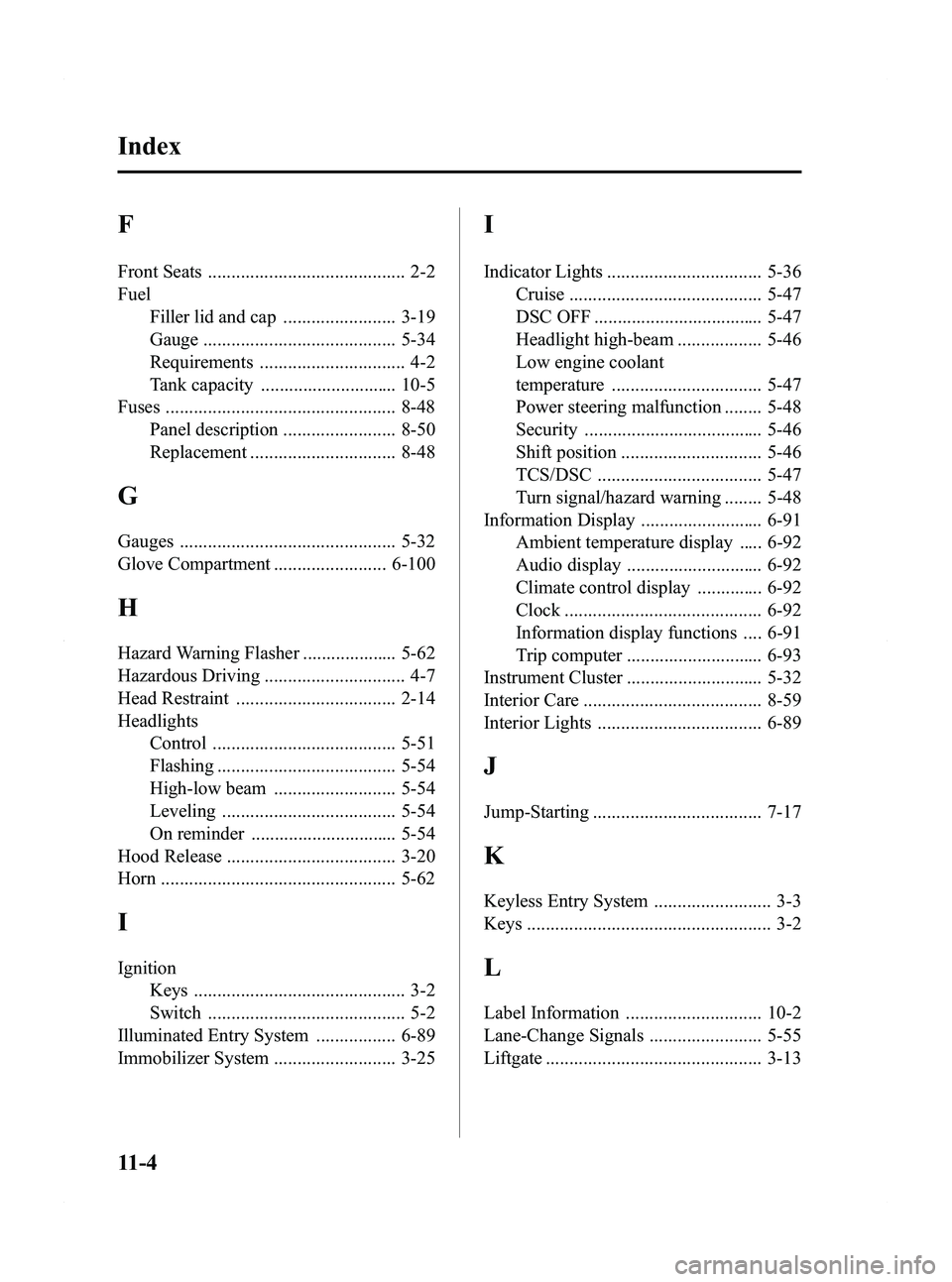

Black plate (436,1)
F
Front Seats .......................................... 2-2
FuelFiller lid and cap ........................ 3-19
Gauge ......................................... 5-34
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-48
Panel description ........................ 8-50
Replacement ............................... 8-48
G
Gauges .............................................. 5-32
Glove Compartment ........................ 6-100
H
Hazard Warning Flasher .................... 5-62
Hazardous Driving .............................. 4-7
Head Restraint .................................. 2-14
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-54
High-low beam .......................... 5-54
Leveling ..................................... 5-54
On reminder ............................... 5-54
Hood Release .................................... 3-20
Horn .................................................. 5-62
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-89
Immobilizer System .......................... 3-25
I
Indicator Lights ................................. 5-36 Cruise ......................................... 5-47
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Low engine coolant
temperature ................................ 5-47
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-46
TCS/DSC ................................... 5-47
Turn signal/hazard warning ........ 5-48
Information Display .......................... 6-91 Ambient temperature display ..... 6-92
Audio display ............................. 6-92
Climate control display .............. 6-92
Clock .......................................... 6-92
Information display functions .... 6-91
Trip computer ............................. 6-93
Instrument Cluster ............................. 5-32
Interior Care ...................................... 8-59
Interior Lights ................................... 6-89
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-55
Liftgate .............................................. 3-13
11-4
Index
Mazda5_8BR9-EA-10J_Edition3 Page436
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
