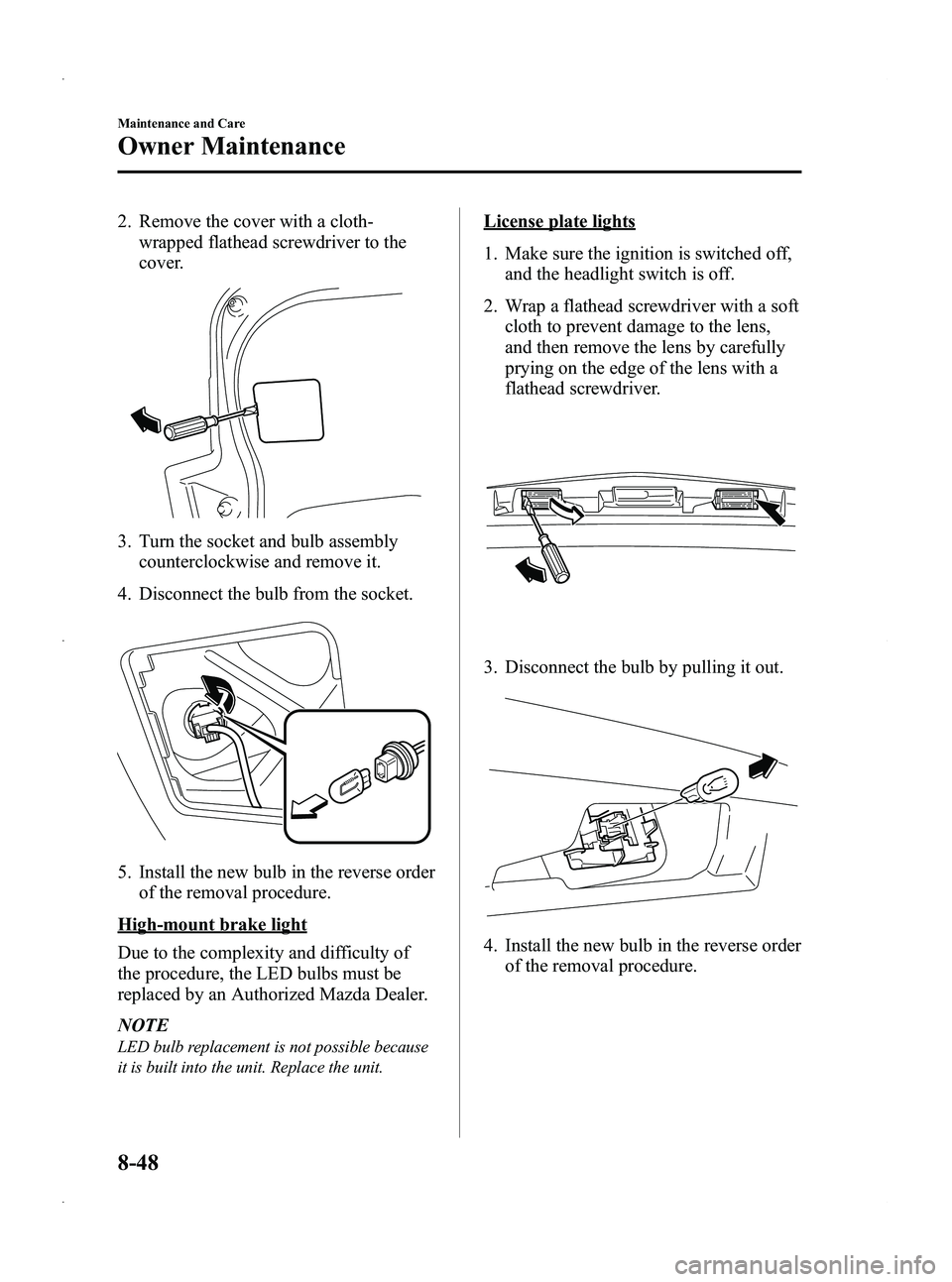

2. Remove the cover with a cloth-wrapped flathead screwdriver to the
cover.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of the removal procedure.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof the removal procedure.
8-48
Maintenance and Care
Owner Maintenance
Mazda5_8CN3-EA-12I_Edition2 Page378
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (379,1)

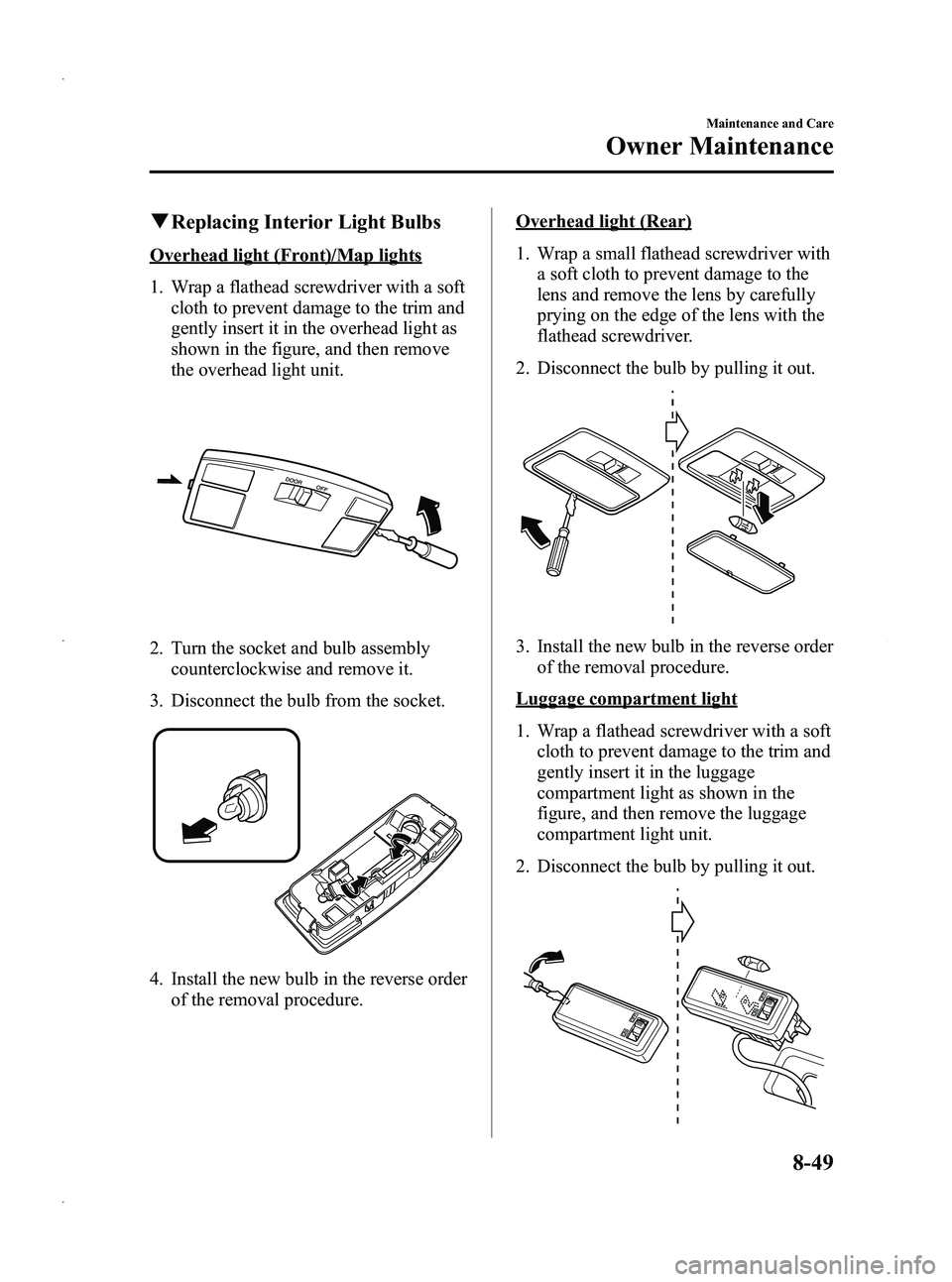

qReplacing Interior Light Bulbs
Overhead light (Front)/Map lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of the removal procedure.
Overhead light (Rear)
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of the removal procedure.
Luggage compartment light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
Maintenance and Care
Owner Maintenance
8-49
Mazda5_8CN3-EA-12I_Edition2 Page379
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (451,1)
C
