MAZDA MODEL 5 2014 Owners Manual

Black plate (441,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features ............................................................ 10-8 Personalization Features .......................................................... 10-8
10-1
Mazda5_8DH4-EA-13H_Edition3 Page441
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (442,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Labelí
qChassis Number
qVehicle Emission Control
Information Labelí
qTire Pressure Label
10-2íSome models.
Identification Numbers
Mazda5_8DH4-EA-13H_Edition3 Page442
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (443,1)

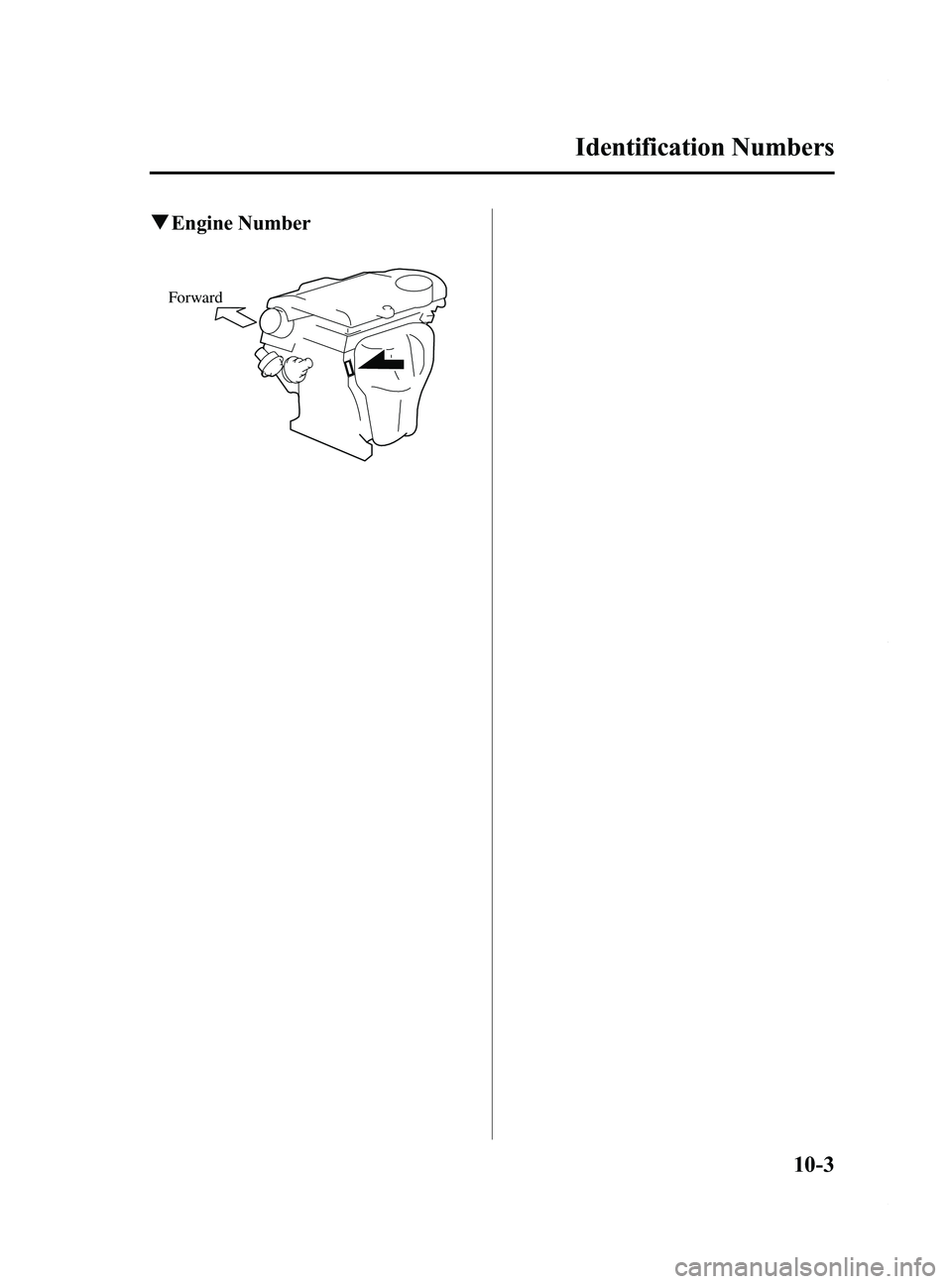

qEngine Number
Forward
Identification Numbers
10-3
Mazda5_8DH4-EA-13H_Edition3 Page443
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (444,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 9.7
qElectrical System
Item Classification
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark
plug LFJD-18-110 or L3Y2-18-110
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q
Lubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-20.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Power steering fluid Mazda Genuine ATF M-III , M-V, or equivalent
(e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.
10-4
Specifications
Mazda5_8DH4-EA-13H_Edition3 Page444
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (445,1)

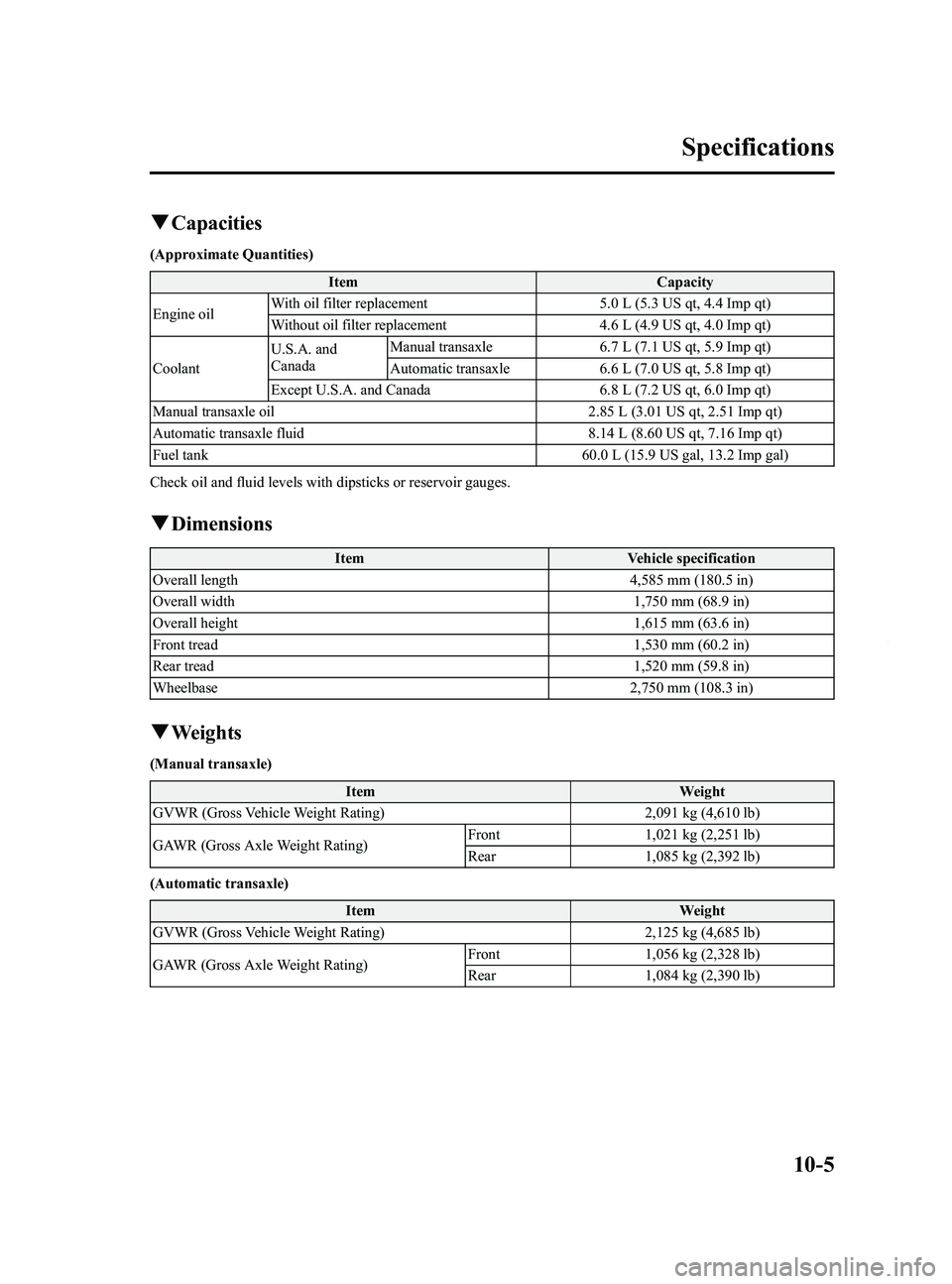

qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement 5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant U.S.A. and
Canada Manual transaxle 6.7 L (7.1 US qt, 5.9 Imp qt)
Automatic transaxle 6.6 L (7.0 US qt, 5.8 Imp qt)
Except U.S.A. and Canada 6.8 L (7.2 US qt, 6.0 Imp qt)
Manual transaxle oil 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,585 mm (180.5 in)
Overall width 1,750 mm (68.9 in)
Overall height 1,615 mm (63.6 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
(Manual transaxle)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,091 kg (4,610 lb)
GAWR (Gross Axle Weight Rating) Front 1,021 kg (2,251 lb)
Rear 1,085 kg (2,392 lb)
(Automatic transaxle) Item Weight
GVWR (Gross Vehicle Weight Rating) 2,125 kg (4,685 lb)
GAWR (Gross Axle Weight Rating) Front 1,056 kg (2,328 lb)
Rear 1,084 kg (2,390 lb)
Specifications
10-5
Mazda5_8DH4-EA-13H_Edition3 Page445
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (446,1)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 65 HB3 (9005)
Low beam
Halogen 55 H11 (H11)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights
(Front side-marker lights) 27/8
―(1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lightsíLED*1― (― )
High-mount brake light LED*1― (― )
Rear turn signal lights 21 WY21W (7443NA)
Brake lights/Taillights (Rear side-marker lights) 21/5 W21/5W (7443)
Reverse lights 21 W21W (7440)
License plate lights 5 W5W ( ―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Luggage compartment light 8 ―
Overhead lights (Front)/Map lights 5 W5W
Overhead light (Rear) 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
Mazda5_8DH4-EA-13H_Edition3 Page446
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (447,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-36.
Standard tireTire size Inflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi)240 kPa (35 psi)
205/50R17 89V 230 kPa (34 psi)230 kPa (34 psi)
Temporary tire
Tire size Inflation pressure
T125/70D16 96M 420 kPa (60 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
88 ―118 N·m (9 ―12 kgf·m, 65 ―87 ft·lbf)
q Fuses
Refer to Fuses on page 8-50.
Specifications
10-7
Mazda5_8DH4-EA-13H_Edition3 Page447
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (448,1)

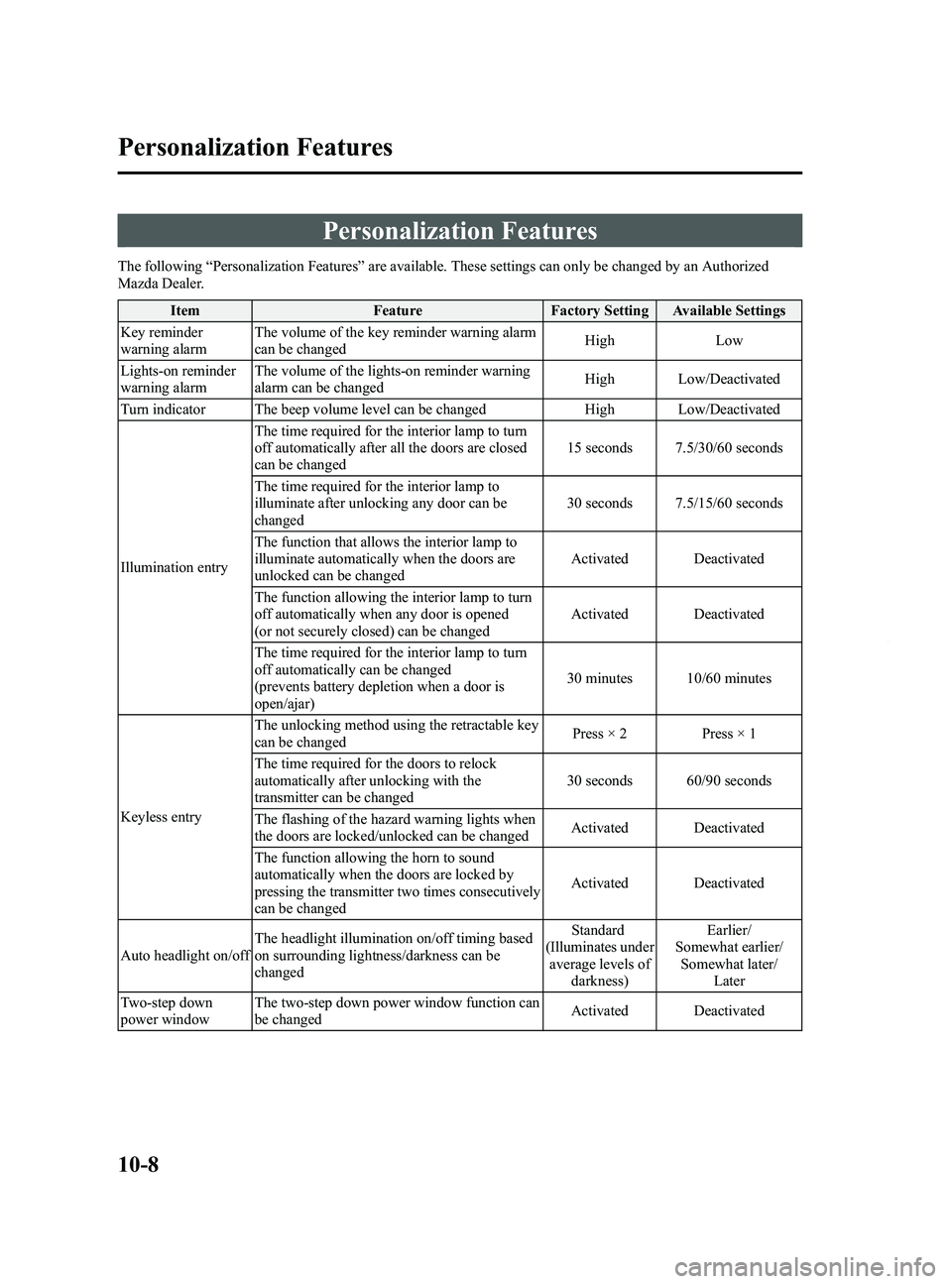

Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed
High Low
Lights-on reminder
warning alarm The volume of the lights-on reminder warning
alarm can be changed
High Low/Deactivated
Turn indicator The beep volume level can be changed High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed
15 seconds 7.5/30/60 seconds
The time required for the interior lamp to
illuminate after unlocking any door can be
changed 30 seconds 7.5/15/60 seconds
The function that allows the interior lamp to
illuminate automatically when the doors are
unlocked can be changed Activated Deactivated
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar) 30 minutes 10/60 minutes
Keyless entry The unlocking method using the retractable key
can be changed
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed 30 seconds 60/90 seconds
The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed Activated Deactivated
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be changed Activated Deactivated
Auto headlight on/off The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed Standard
(Illuminates under
average levels of darkness) Earlier/
Somewhat earlier/
Somewhat later/ Later
Two-step down
power window The two-step down power window function can
be changed
Activated Deactivated
10-8
Personalization Features
Mazda5_8DH4-EA-13H_Edition3 Page448
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (449,1)
11Index
11-1
Mazda5_8DH4-EA-13H_Edition3 Page449
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (450,1)
A
Accessory Socket ............................ 6-109
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-96
Antenna ............................................. 6-11
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-56
Audio System .................................... 6-11 Audio control switch .................. 6-47
Audio set .................................... 6-23
AUX/USB/iPod Mode ............... 6-50
Operating tips for audio
system ........................................ 6-12
Safety certification ..................... 6-59
Automatic Transaxle Driving tips ................................ 5-19
Fluid ........................................... 8-24
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-31
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-58
Lights-on reminder ..................... 5-58
Seat belt warning ........................ 5-58
Tire inflation pressure warning ... 5-58
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Bluetooth® Audio ............................ 6-60
Bluetooth® Hands-Free .................... 6-70
Basic Bluetooth® Hands-Free
operation .................................... 6-74
Convenient use of the hands-free
system ........................................ 6-79
Hands-free setting ...................... 6-85
Mazda Bluetooth® Hands-Free
customer service ......................... 6-92
Safety certification ..................... 6-92
When Bluetooth® Hands-Free cannot
be used ....................................... 6-91
Body Lubrication .............................. 8-27
Bottle Holder ................................... 6-101
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-42
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-107
Cargo Sub-Compartment ................ 6-107
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-19
Center Console ................................ 6-104
11-2
Index
Mazda5_8DH4-EA-13H_Edition3 Page450
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H
