warning MAZDA MODEL 5 2015 Owners Manual

Black plate (288,1)
Safety Certification
FCC ID: CB2MBLUEC09 IC:279B-
MBLUEC09
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmfulinterference, and
(2) This device must accept any interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
The term “IC: ”before the radio
certification number only signifies that
Industry Canada technical specifications
were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers must
be provided with installation instructions
and transmitter operating conditions for
satisfying RF exposure compliance.
Mazda Bluetooth® Hands-
Free Customer Service
lU.S.A.
Phone: 800-430-0153 (Toll-free)
www.MazdaUSA.com/bluetooth
lCanada
Phone: 800-430-0153 (Toll-free)
www.mazdahandsfree.ca
lMexico
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA (Toll-free)
Web: www.mazdamexico.com.mx
6-92
Interior Comfort
Bluetooth® Hands-Free
Mazda5_8DW3-EA-14H_Edition3 Page288
Thursday, December 18 2014 9:27 AM
Form No.8DW3-EA-14H

Black plate (295,1)
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 5 L (6 US qt, 5
Imp qt) of fuel.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch, -
- - km/h (- - - mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Interior Comfort
Interior Equipment
6-99
Mazda5_8DW3-EA-14H_Edition3 Page295
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (296,1)
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
qFront
The front cup holder is in the center
console.
qRear
Second-row Seat
Storage box (Second-row right-side
seat)
í
To use, pull out the storage box (page
6-105).
6-100
Interior Comfort
íSome models.
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page296
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (298,1)

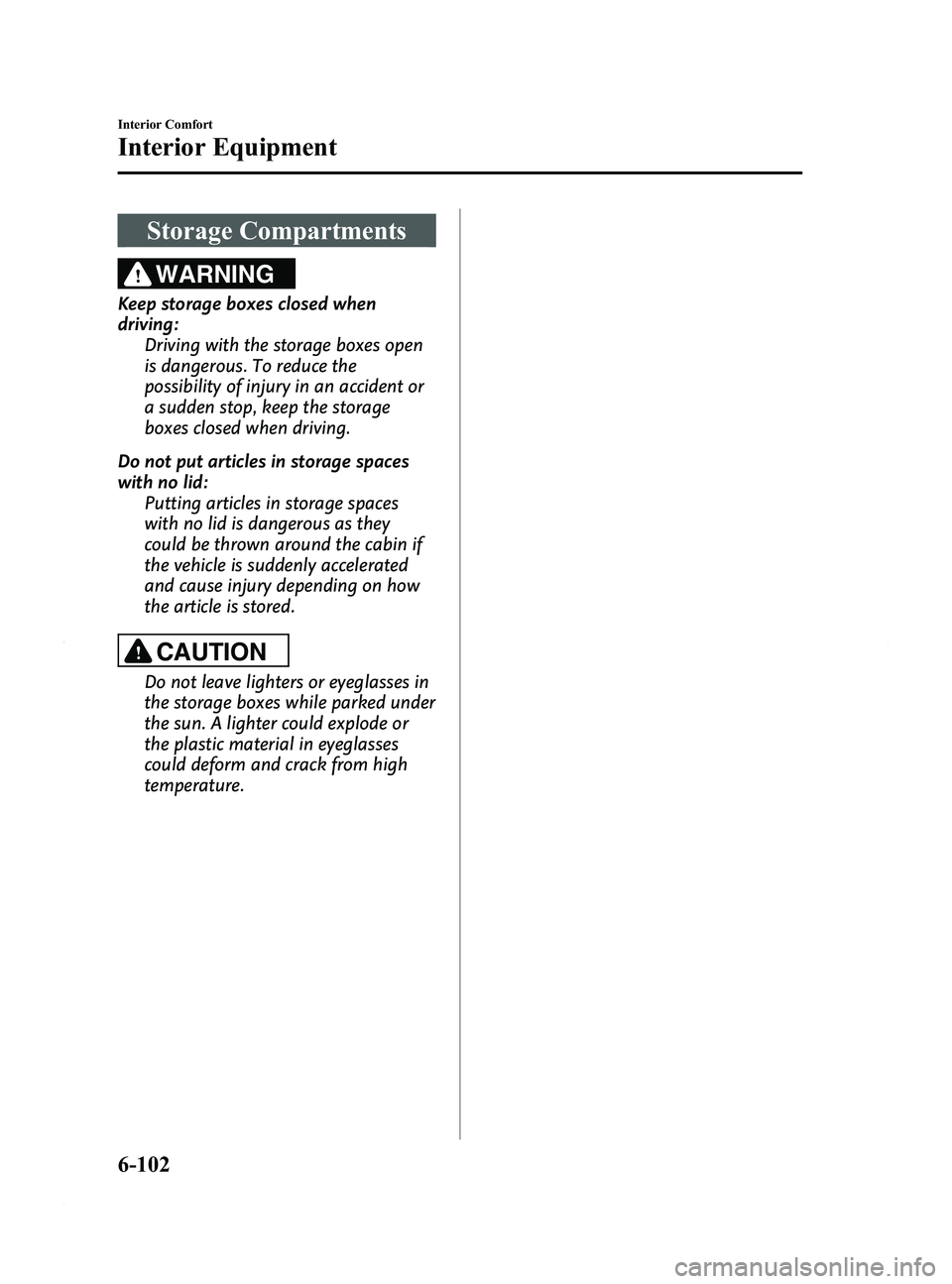

Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
Do not put articles in storage spaces
with no lid: Putting articles in storage spaces
with no lid is dangerous as they
could be thrown around the cabin if
the vehicle is suddenly accelerated
and cause injury depending on how
the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
6-102
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page298
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (299,1)

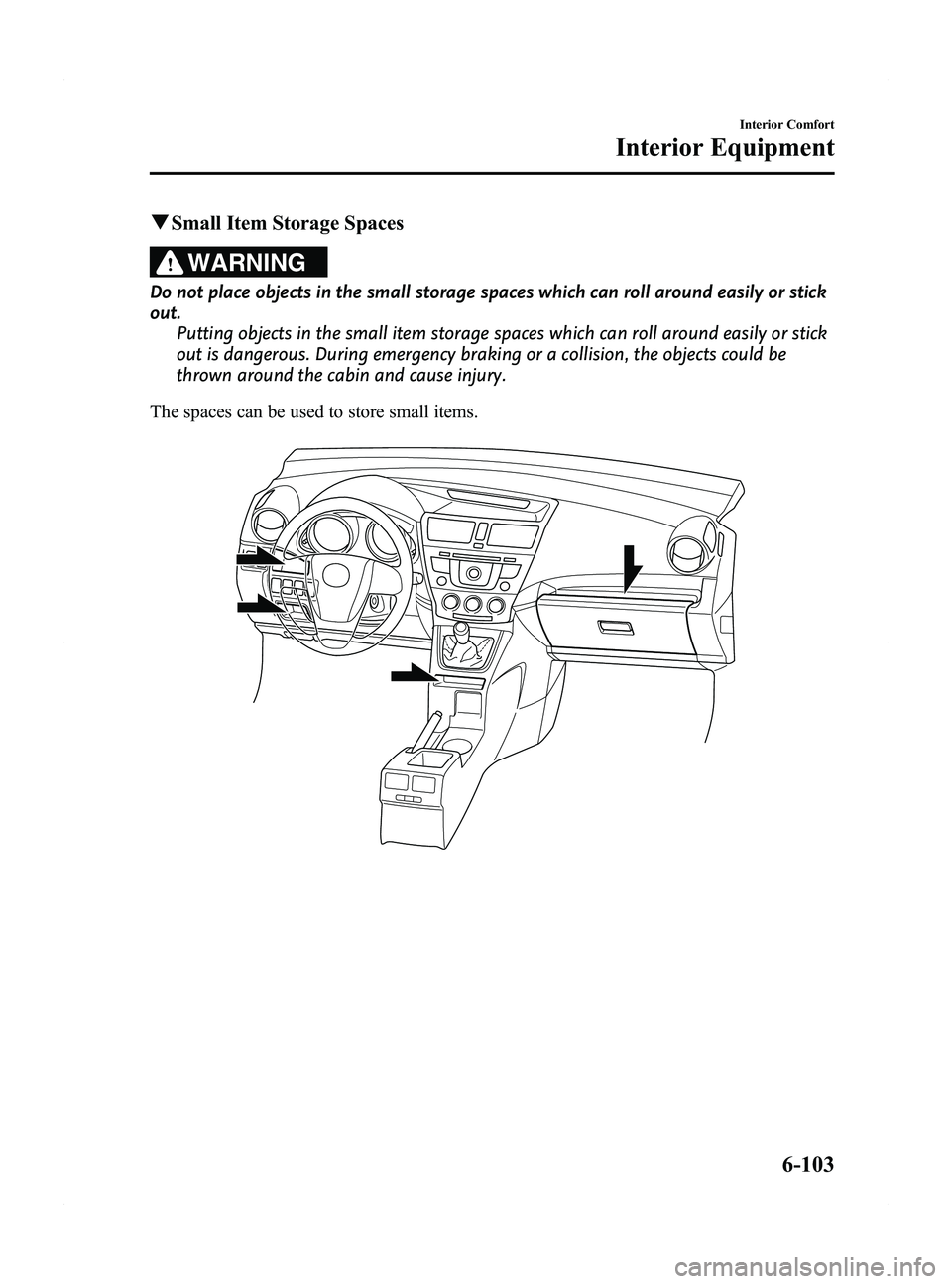

qSmall Item Storage Spaces
WARNING
Do not place objects in the small storage spaces which can roll around easily or stick
out.
Putting objects in the small item storage spaces which can roll around easily or stick
out is dangerous. During emergency braking or a collision, the objects could be
thrown around the cabin and cause injury.
The spaces can be used to store small items.
Interior Comfort
Interior Equipment
6-103
Mazda5_8DW3-EA-14H_Edition3 Page299
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (303,1)
CAUTION
When returning the seat-bottom to
its upright position, make sure there
is no object lodged between the
seatback and the seat belt buckle. If
the seat-bottom is returned to its
upright position in this condition it
could damage the seat belt buckle. If
the seat belt buckle does not return
to its position after removing the
obstruction, move the buckle
rearward with your hand and then
lower the seat-bottom.
Buckle
qCargo Securing Loops
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
q
Cargo Sub-Compartment
Lift the cover.
Trunk board
Cargo sub-
compartment
Interior Comfort
Interior Equipment
6-107
Mazda5_8DW3-EA-14H_Edition3 Page303
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (304,1)

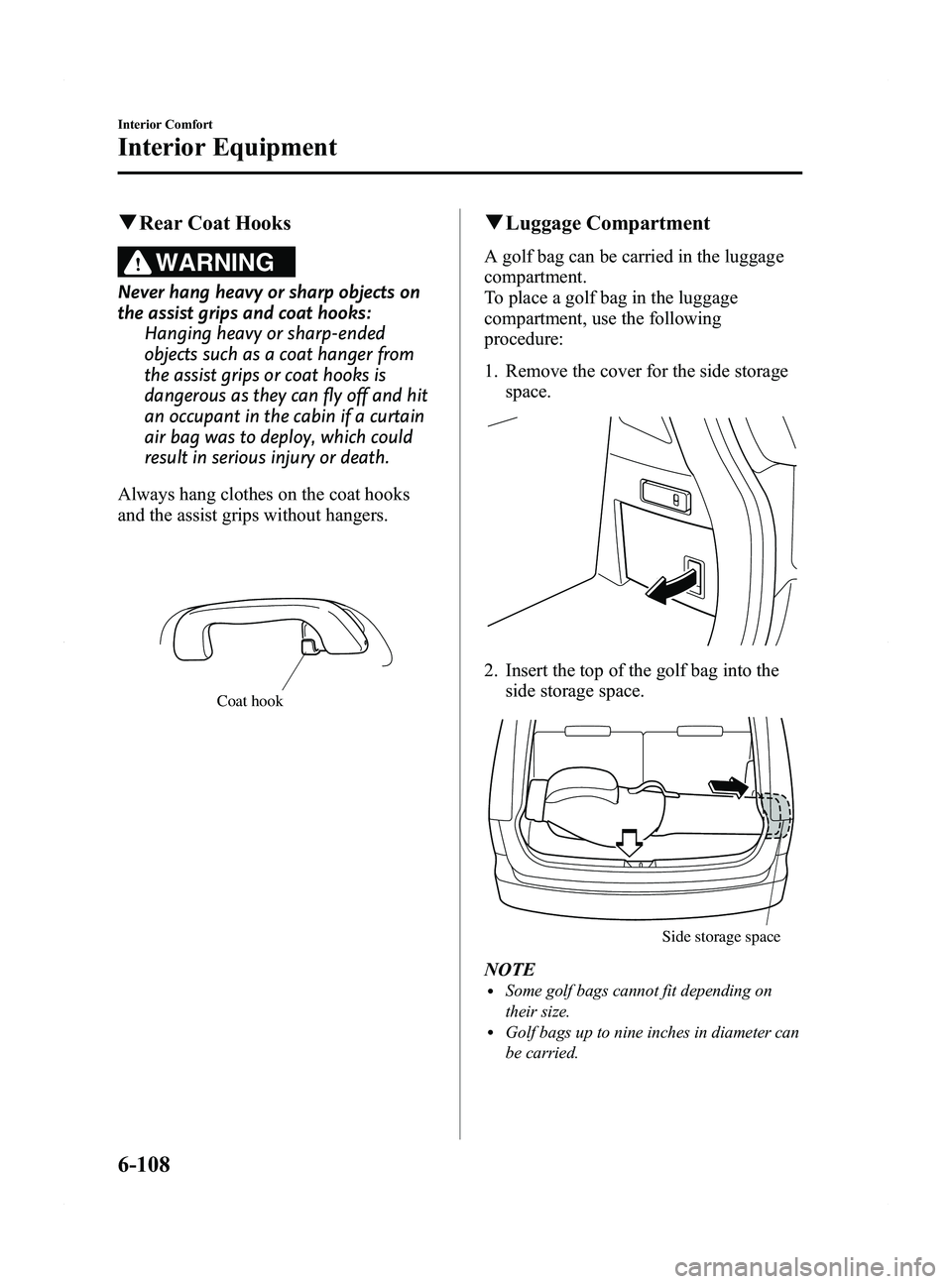

qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
q Luggage Compartment
A golf bag can be carried in the luggage
compartment.
To place a golf bag in the luggage
compartment, use the following
procedure:
1. Remove the cover for the side storage
space.
2. Insert the top of the golf bag into theside storage space.
Side storage space
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
6-108
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page304
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (305,1)
Accessory Sockets
Switch the ignition to ACC or ON.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
Rear
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
Ø Noise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-109
Mazda5_8DW3-EA-14H_Edition3 Page305
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (308,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda5_8DW3-EA-14H_Edition3 Page308
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (311,1)

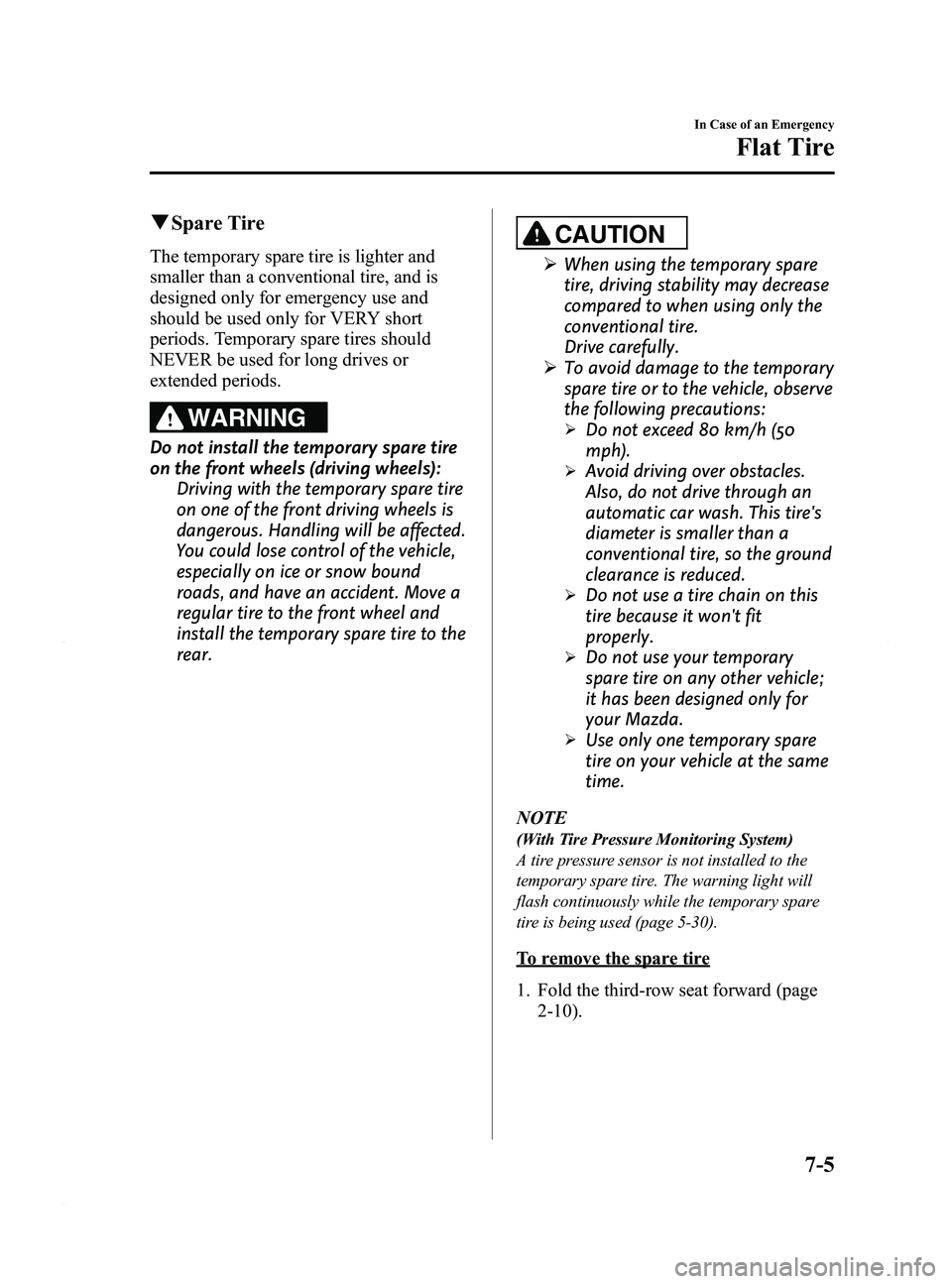

qSpare Tire
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
Ø To avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced.
ØDo not use a tire chain on this
tire because it won't fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-30).
To remove the spare tire
1. Fold the third-row seat forward (page 2-10).
In Case of an Emergency
Flat Tire
7-5
Mazda5_8DW3-EA-14H_Edition3 Page311
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H
