light MAZDA MODEL 5 2015 Owners Manual

Black plate (386,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 FAN1 30 A Cooling fan
AT PUMP ――
14 P.SLIDE R ――
15 EHPAS 80 A Power assist steering
16 FOG 15 A Fog lights
í
17 D.LOCK 20 A Power door lock
18 P.WIND 20 A Power window
19 AT PUMP
――
TCM ――
20 HEAD HI 20 A Headlight high beam
21
10 A Engine control system
22 STOP 10 A Brake lights
23 F.WARMER
FUEL PUMP 20 A Fuel system
24 HAZARD 10 A Hazard warning flasher, Turn signal lights
25 ROOM 15 A Overhead lights
26 TAIL
ENG FAN 15 A Taillights, Parking lights, License plate lights
27 A/C MAG 10 A Air conditioner
28 ABS V
20 A ABS, Dynamic stability control system
HORN ――
29 SUN ROOF 20 A Moonroof
í
AUDIO1
――
30 H/CLEAN
――
DCDC3 ――
31 HORN 15 A Horn
ABS V ――
32 TAIL ――
33 ILLUMI 7.5 A Instrument panel illumination
34 ENG INJ 25 A Engine control system
35 ENG BAR 15 A Engine control system
36 ―― ―
37 M.DEF 7.5 A Mirror defogger
38 DEFOG 25 A Rear window defogger
39 HEAD LO L 15 A Headlight low beam (LH)
40 HEAD LO R 15 A Headlight low beam (RH)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8DW3-EA-14H_Edition3 Page386
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (392,1)
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
When using an automatic car wash
lRetract the door mirrors.lThe automatic car wash brushes could
reduce the paint lustre or hasten paint
deterioration.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm (12 in) or
more) between the nozzle and the vehicle.
In addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish. Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle does not need it.
q Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
8-60
Maintenance and Care
Appearance Care
Mazda5_8DW3-EA-14H_Edition3 Page392
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (393,1)
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
Maintenance and Care
Appearance Care
8-61
Mazda5_8DW3-EA-14H_Edition3 Page393
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (394,1)
NOTElDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-32.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
8-62
Maintenance and Care
Appearance Care
Mazda5_8DW3-EA-14H_Edition3 Page394
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

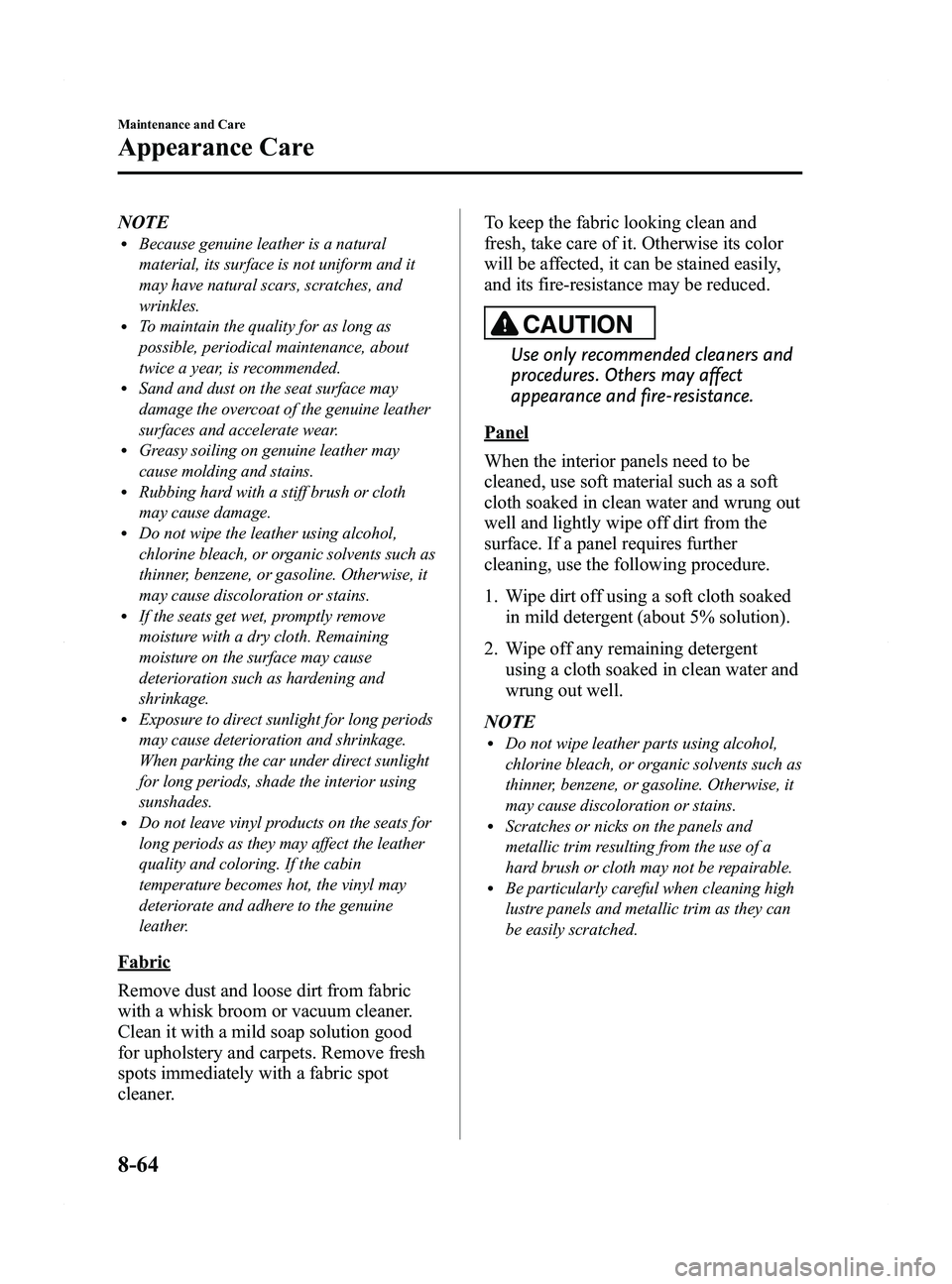

Black plate (396,1)
NOTElBecause genuine leather is a natural
material, its surface is not uniform and it
may have natural scars, scratches, and
wrinkles.
lTo maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
lSand and dust on the seat surface may
damage the overcoat of the genuine leather
surfaces and accelerate wear.
lGreasy soiling on genuine leather may
cause molding and stains.
lRubbing hard with a stiff brush or cloth
may cause damage.
lDo not wipe the leather using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lIf the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.
lExposure to direct sunlight for long periods
may cause deterioration and shrinkage.
When parking the car under direct sunlight
for long periods, shade the interior using
sunshades.
lDo not leave vinyl products on the seats for
long periods as they may affect the leather
quality and coloring. If the cabin
temperature becomes hot, the vinyl may
deteriorate and adhere to the genuine
leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Panel
When the interior panels need to be
cleaned, use soft material such as a soft
cloth soaked in clean water and wrung out
well and lightly wipe off dirt from the
surface. If a panel requires further
cleaning, use the following procedure.
1. Wipe dirt off using a soft cloth soaked
in mild detergent (about 5% solution).
2. Wipe off any remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
lDo not wipe leather parts using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lScratches or nicks on the panels and
metallic trim resulting from the use of a
hard brush or cloth may not be repairable.
lBe particularly careful when cleaning high
lustre panels and metallic trim as they can
be easily scratched.
8-64
Maintenance and Care
Appearance Care
Mazda5_8DW3-EA-14H_Edition3 Page396
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (422,1)
11. Max. load rating
12. Tread wear, traction and temperature grades
13. Max. permissible inflation pressure
14. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).
215
“215 ”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“ 65 ”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction ”.
15
“15 ”is the wheel rim diameter in inches.
95
“95 ”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
9-24
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda5_8DW3-EA-14H_Edition3 Page422
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (425,1)
qInformation on Temporary Tires
Please refer to the sample below.
1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index & speed symbol
T115/70D16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
T
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
11 5
“115 ”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-27
Mazda5_8DW3-EA-14H_Edition3 Page425
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (442,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-012B-15 2015 WORKSHOP MANUAL (English)
9999-MX-012B-15 2015 WORKSHOP MANUAL (Spanish)
9999-95-074G-15 2015 WIRING DIAGRAM (English)
9999-MX-074G-15 2015 WIRING DIAGRAM (Spanish)
9999-95-005C-15 2015 OWNER'S MANUAL (English)
9999-EC-005C-15 2015 OWNER'S MANUAL (English and French)
9999-PR-005C-15 2015 OWNER'S MANUAL (Spanish)
9999-95-MODL-15 2015 SERVICE HIGHLIGHTS
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
9-44
Customer Information and Reporting Safety Defects
Service Publications
Mazda5_8DW3-EA-14H_Edition3 Page442
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (448,1)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage UNECE
*1(SAE)
Headlights High beam 65 HB3 (9005)
Low beam
Halogen 55 H11 (H11)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights
(Front side-marker lights) 27/8
―(1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lightsíLED*2― (― )
High-mount brake light LED*2― (― )
Rear turn signal lights 21 WY21W (7443NA)
Brake lights/Taillights (Rear side-marker lights) 21/5 W21/5W (7443)
Reverse lights 21 W21W (7440)
License plate lights 5 W5W ( ―)
*1 UNECE stands for United Nations Economic Commission for Europe.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage UNECE
*1
Luggage compartment light 8―
Overhead lights (Front)/Map lights 5W5W
Overhead light (Rear) 10―
*1 UNECE stands for United Nations Economic Commission for Europe.
q Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
Mazda5_8DW3-EA-14H_Edition3 Page448
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H

Black plate (450,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed
High Low
Lights-on reminder
warning alarm The volume of the lights-on reminder warning
alarm can be changed
High Low/Deactivated
Turn indicator The beep volume level can be changed High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed
15 seconds 7.5/30/60 seconds
The time required for the interior lamp to
illuminate after unlocking any door can be
changed 30 seconds 7.5/15/60 seconds
The function that allows the interior lamp to
illuminate automatically when the doors are
unlocked can be changed Activated Deactivated
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar) 30 minutes 10/60 minutes
Keyless entry The unlocking method using the retractable key
can be changed
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed 30 seconds 60/90 seconds
The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed Activated Deactivated
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be changed Activated Deactivated
Auto headlight on/off The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed Standard
(Illuminates under
average levels of darkness) Earlier/
Somewhat earlier/
Somewhat later/ Later
Two-step down
power window The two-step down power window function can
be changed
Activated Deactivated
10-8
Personalization Features
Mazda5_8DW3-EA-14H_Edition3 Page450
Thursday, December 18 2014 9:29 AM
Form No.8DW3-EA-14H
