MAZDA MODEL 5 2015 Owners Manual

Black plate (291,1)
Information Display
Steering switch
Audio display
Climate control display Trip computer
display
Clock/Ambient
temperature display
q
Information Display Functions
The information display has the following functions:lClocklAmbient Temperature DisplaylClimate Control DisplaylAudio DisplaylTrip Computerí
lBluetooth®Hands-Free DisplayíRefer to Bluetooth® Hands-Free on page 6-70.
Interior Comfort
Interior Equipment
6-95íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page291
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (292,1)
qClock
When the ignition is switched to ACC or
ON, the time is displayed.
Time setting
1. Switch the ignition to ACC or ON.
2. Adjust the time using the time setting
buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Switch the ignition to ACC or ON.
2. Press the :00 button.
3. When the button is pressed, the time will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the button is pressed, the seconds will
start at “00 ”.
q Ambient Temperature Display
When the ignition is switched ON, the
ambient temperature is displayed.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AUTO switch(page 6-5) for 3
seconds or more to switch the display from
Fahrenheit to Centigrade or vice versa.
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-11).
6-96
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page292
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (293,1)
qTrip Computerí
The trip computer can display the
following:
lThe current fuel economy.lThe average fuel economy.lThe approximate distance you can
travel on the available fuel.
lThe average vehicle speed.
Switch the ignition ON.
Press the INFO switch to change the
display mode.
Average vehicle speed mode Distance-to-empty mode
Average fuel economy mode
Current fuel economy mode
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled. Current fuel economy will be calculated
and displayed every 2 seconds.
When this mode is selected, CURRENT
will be displayed.
U.S.A.
CANADA
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - -mpg) will be
displayed.
Interior Comfort
Interior Equipment
6-97íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page293
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (294,1)
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed
every minute.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second.After pressing the INFO switch, - - - L/
100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
When this mode is selected, RANGE will
be displayed.
U.S.A.
CANADA
6-98
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page294
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (295,1)
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 5 L (6 US qt, 5
Imp qt) of fuel.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch, -
- - km/h (- - - mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Interior Comfort
Interior Equipment
6-99
Mazda5_8DW3-EA-14H_Edition3 Page295
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (296,1)
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
qFront
The front cup holder is in the center
console.
qRear
Second-row Seat
Storage box (Second-row right-side
seat)
í
To use, pull out the storage box (page
6-105).
6-100
Interior Comfort
íSome models.
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page296
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (297,1)

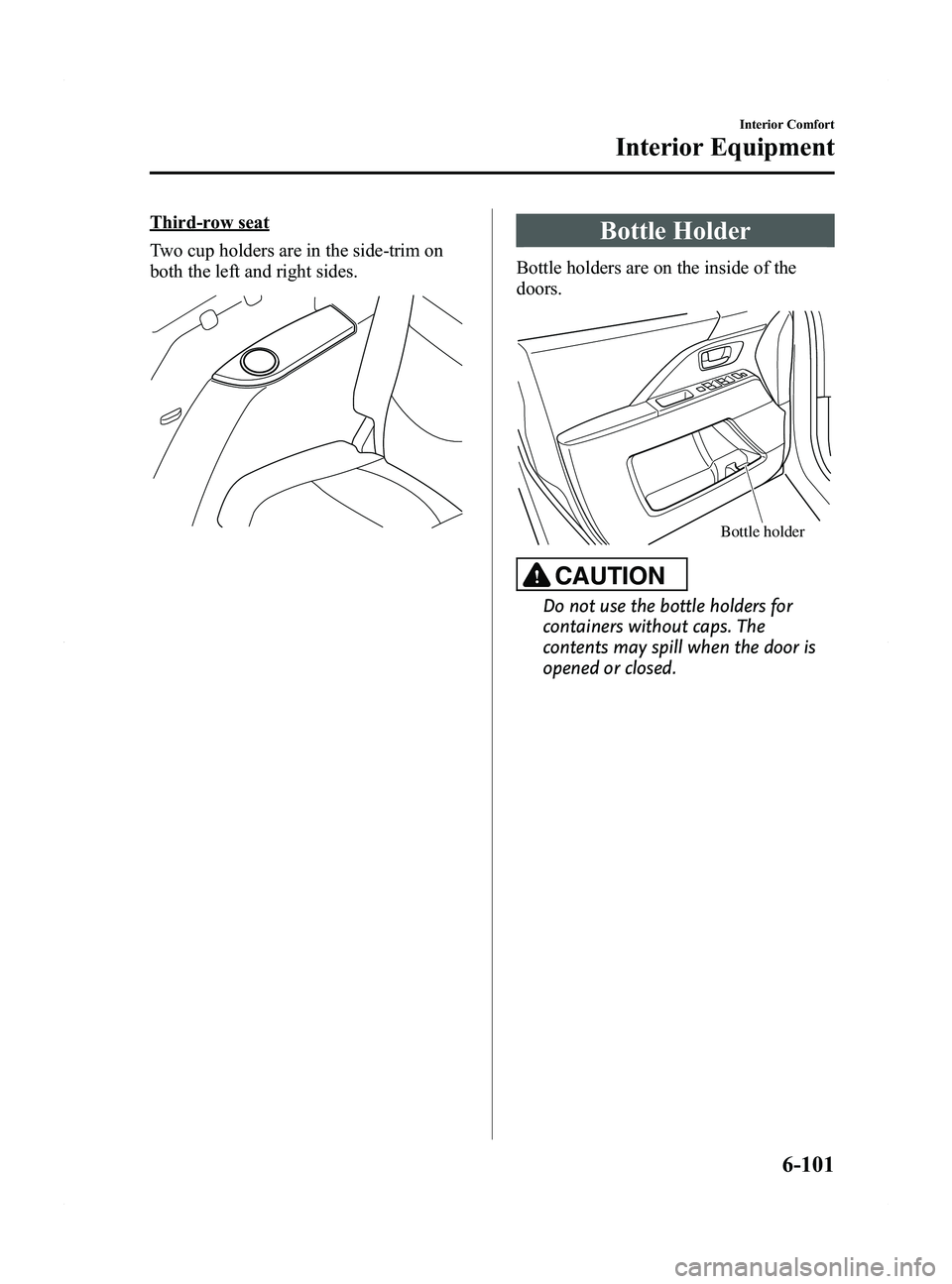

Third-row seat
Two cup holders are in the side-trim on
both the left and right sides.Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Interior Comfort
Interior Equipment
6-101
Mazda5_8DW3-EA-14H_Edition3 Page297
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (298,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
Do not put articles in storage spaces
with no lid: Putting articles in storage spaces
with no lid is dangerous as they
could be thrown around the cabin if
the vehicle is suddenly accelerated
and cause injury depending on how
the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
6-102
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page298
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (299,1)
qSmall Item Storage Spaces
WARNING
Do not place objects in the small storage spaces which can roll around easily or stick
out.
Putting objects in the small item storage spaces which can roll around easily or stick
out is dangerous. During emergency braking or a collision, the objects could be
thrown around the cabin and cause injury.
The spaces can be used to store small items.
Interior Comfort
Interior Equipment
6-103
Mazda5_8DW3-EA-14H_Edition3 Page299
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (300,1)
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
qUnderseat Storage
If your vehicle has a right second-row
storage box (page 6-105), when using the
storage box, small items can be stored
under the both bottoms of the second-row
seats.
To use the under seat storage
Pull the strap and lift the seat bottom up
and forward.
6-104
Interior Comfort
Interior Equipment
Mazda5_8DW3-EA-14H_Edition3 Page300
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H
