8-37
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I

Fuse Panel Description
Fuse block (Engine compartment)
*12.3-liter engine*23.0-liter engine
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 SPARE 20A—
2 SPARE 15A—
3 SPARE 10A—
4—— —
5—— —
6 INJ 15A Injector
7 ENG BAR10A
*1Air flow sensor,
EGR control
valve 15A
*2
8ENG BAR2*115A O2 sensor
ENG BB*25A Cooling fan
9 HEAD LR 10AHeadlight-low
beam (Right)
10 HEAD LL 10AHeadlight-low
beam (Left)
11 HEAD HL 10AHeadlight-high
beam (Left)
12 HEAD HR 10AHeadlight-high
beam (Right)
13 ETC 7.5AAccelerator
position sensor
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
14 HAZARD 10ATurn signal
lights
15 STOP 15A Brake/Taillights
16TCM
*110A TCM
IG1*215A O2 sensor
17
ENG B7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY 40AWindshield
wiper and
washer, Engine
control unit,
Lighter
20 P.WIND 30A Power window
21—— —
22—— —
23 IG KEY2 30AReverse lights,
Heater control
unit
shuseizumi_J56J_8R29_EA_02I.book Page 37 Wednesday, October 16, 2002 9:51 AM

8-38
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
*12.3-liter engine*23.0-liter engine
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
24 BLOWER 40A Blower motor
25 BTN 40AOverhead light,
Power door lock
26—— —
27 DEFOG 40ARear window
defroster
28 ABS 60A ABS
29AD FAN
*130A Cooling fan
FA N 2*2
30FA N*130A Cooling fan
FA N 1*2
31 TAIL 10ABrake/Taillights,
License plate
lights, Parking
lights
32 ILLUMI 10ADashboard
illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
36 OPENER 7.5A Fuel lid opener
37—— —
38—— —
39 FOG 15A Fog lights
40 MAIN100A
*1For protection of
all circuits
120A*2
shuseizumi_J56J_8R29_EA_02I.book Page 38 Wednesday, October 16, 2002 9:51 AM

8-39
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
Fuse block (Vehicle’s left side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 ENGINE IG 15AEngine control
system
2 METER IG 15AInstrument
cluster
3 SEAT 15ASeat warmer,
Rear window
defroster
4 M.DEF 7.5A Mirror defroster
5 WIPER 20AWindshield
wiper and
washer
6 SAS 15AABS unit, SAS
unit
7 BACK 5A Reverse lights
8 A/C 15A Heater
9 METER ACC 5AInstrument
cluster
10 CIGAR 15A Lighter
11 ROOM 15A Overhead light
12—— —
13 MIRROR 5APower control
mirror, Audio
systemDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
14 R.CIGAR 15AAccessory
socket
15——
—16 D.LOCK 30A Power door lock
17—— —
shuseizumi_J56J_8R29_EA_02I.book Page 39 Wednesday, October 16, 2002 9:51 AM

8-40
Maintenance and Care
Form No. 8R29-EA-02I
Appearance Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint’s protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent them.

Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle
emissions drift into the air and mix with
rain or dew to form acids. These acids can
settle on a vehicle’s finish. As the water
evaporates, the acid becomes concentrated
and can damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle’s finish.

Damage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren’t removed they can eat away the clear
and color base coat of the vehicle’s
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle’s paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according
to the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
How to Minimize
Environmental Paint
Damage
shuseizumi_J56J_8R29_EA_02I.book Page 40 Wednesday, October 16, 2002 9:51 AM

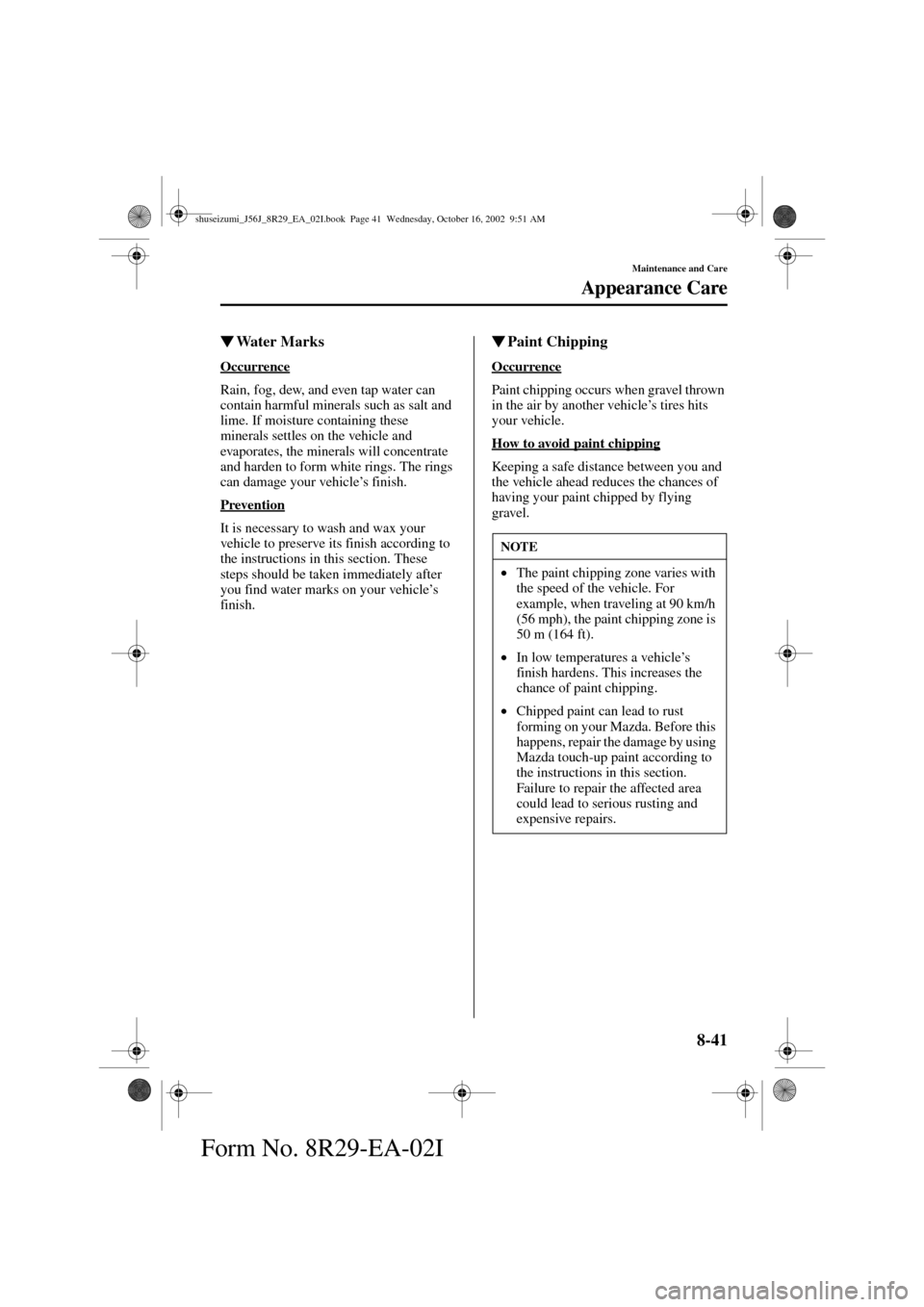

8-41
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I

Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle’s finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle’s
finish.

Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle’s tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
•
The paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
•
In low temperatures a vehicle’s
finish hardens. This increases the
chance of paint chipping.
•
Chipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
shuseizumi_J56J_8R29_EA_02I.book Page 41 Wednesday, October 16, 2002 9:51 AM

8-42
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I
Follow all
label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.

Maintaining the Finish
Wa s h i n g
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
•
The vehicle is washed without first
rinsing off dirt and other foreign
matter.
•
The vehicle is washed with a rough,
dry, or dirty cloth.
•
The vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
•
Cleansers or wax containing abrasives
are used.To minimize scratches on the vehicle’s
paint finish:
•
Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
•
Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
•
Rub gently when washing or drying the
vehicle.
•
Take your vehicle only to a car wash
that keeps its brushes well maintained.
•
Don’t use abrasive cleansers or wax
that contain abrasives.
Exterior Care
NOTE
•
Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.
•
Scratches are more noticeable on
vehicles with darker paint finishes.
Don’t use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage the
protective coating; also, cleaners and
detergents may discolor or deteriorate
the paint.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 42 Wednesday, October 16, 2002 9:51 AM

8-43
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don’t allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.Wa x i n g
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
Driving with Wet Brakes:Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance is
normal.
WARNING
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn’t need it.
shuseizumi_J56J_8R29_EA_02I.book Page 43 Wednesday, October 16, 2002 9:51 AM

8-44
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I

Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.

Bright-Metal Maintenance
•
Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
•
To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
•
During cold weather or in coastal
areas, cover bright-metal parts with a
coating of wax or preservative heavier
than usual. It would also help to coat
them with noncorrosive petroleum jelly
or some other protective compound.

Underbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also to
do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.

The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting. If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
Don’t use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
CAUTION
CAUTION
Driving with Wet Brakes:Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance is
normal.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 44 Wednesday, October 16, 2002 9:51 AM

8-45
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I

Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.

Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They’ll damage and discolor
it. If these solutions get on the dashboard,
wipe them off immediately.

Cleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
Real leather isn’t uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a damp
soft cloth; then dry
and buff it with a dry
soft cloth.
NOTE
•
Don’t use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
•
Only use a mild soap or neutral
detergent and always use a sponge
or soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean
the wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
•
Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
•
If your aluminum wheels lose
luster, wax the wheels.
Interior Care
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 45 Wednesday, October 16, 2002 9:51 AM

8-46
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.

Cleaning the Lap/Shoulder Belt
We b b i n g
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don’t bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.

Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Damaged Seat Belt:Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have your Authorized
Mazda Dealer replace damaged belts
immediately.
CAUTION
WARNING
•
Don’t scrape or scratch the inside of
the rear window. You may damage
the rear window defroster grid.
•
When washing the inside rear
window, use a soft cloth dampened
in lukewarm water, gently wiping
the antenna lines.
Use of glass cleaning products
could damage the antenna.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 46 Wednesday, October 16, 2002 9:51 AM
