2-34
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I
Small children should be protected by a child-restraint system. In certain regions, larger
children must use a child-restraint system (page 2-21).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner’s Manual as well as the child-restraint system
manufacturer’s instructions.
Air Bags without Seat Belts:Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in collisions with frontal, near frontal or side forces that are at
least moderate. Vehicle occupants should always wear seat belts.
Child in the Front Seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. A sleeping child is
more likely to lean against the door and be hit by the side air bag in a moderate, right-
side collision. Whenever possible, always secure a child 12 years and under on the
rear seat with an appropriate child-restraint system for the child’s age and size.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy.
Seating Position with Front Air Bags:
Sitting too close to the air bag storage compartments or placing hands or feet on them
is extremely dangerous. Front Air bags inflate with great force and speed. Serious
injuries could occur if someone is too close. The driver should always hold onto only
the rim of the steering wheel. The front seat passenger should keep both feet on the
floor. Front seat occupants should adjust their seats as far back as possible and
always sit upright against the seatbacks with seat belts worn properly.
WARNING
Deploying air bag
shuseizumi_J56J_8R29_EA_02I.book Page 34 Wednesday, October 16, 2002 9:51 AM

4-8
Before Driving Your Mazda
Driving Tips
Form No. 8R29-EA-02I
•
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask a Mazda dealer to perform the
following precautions:
•
Have the proper ratio of antifreeze in
the radiator.
•
Inspect the battery and its cables. Cold
reduces battery capacity.
•
Use only cold-weather engine oil (page
8-10).
•
Inspect the ignition system for damage
and loose connections.
•
Use washer fluid made with
antifreeze—but don’t use engine
coolant antifreeze for washer fluid
(page 8-19).
•
Don’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transaxle and to 1 or R with
a manual transaxle. Block the rear
wheels.

Snow Tires
Use snow tires on all four wheels
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Don’t go faster than 120 km/h (75 mph).
Inflate snow tires 30 kPa (0.3 kgf/cm
2, 4.3
psi) more than recommended on the tire
pressure label (driver’s door frame), but
never more than the maximum cold-tire
pressure shown on the tires.

Tire Chains
This vehicle cannot be operated with tire
chains because it could cause interference
with the vehicle body and scratching.
Winter Driving
Mixing Tire Types:Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
WARNING
Check local regulations before using
studded tires.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 8 Wednesday, October 16, 2002 9:51 AM

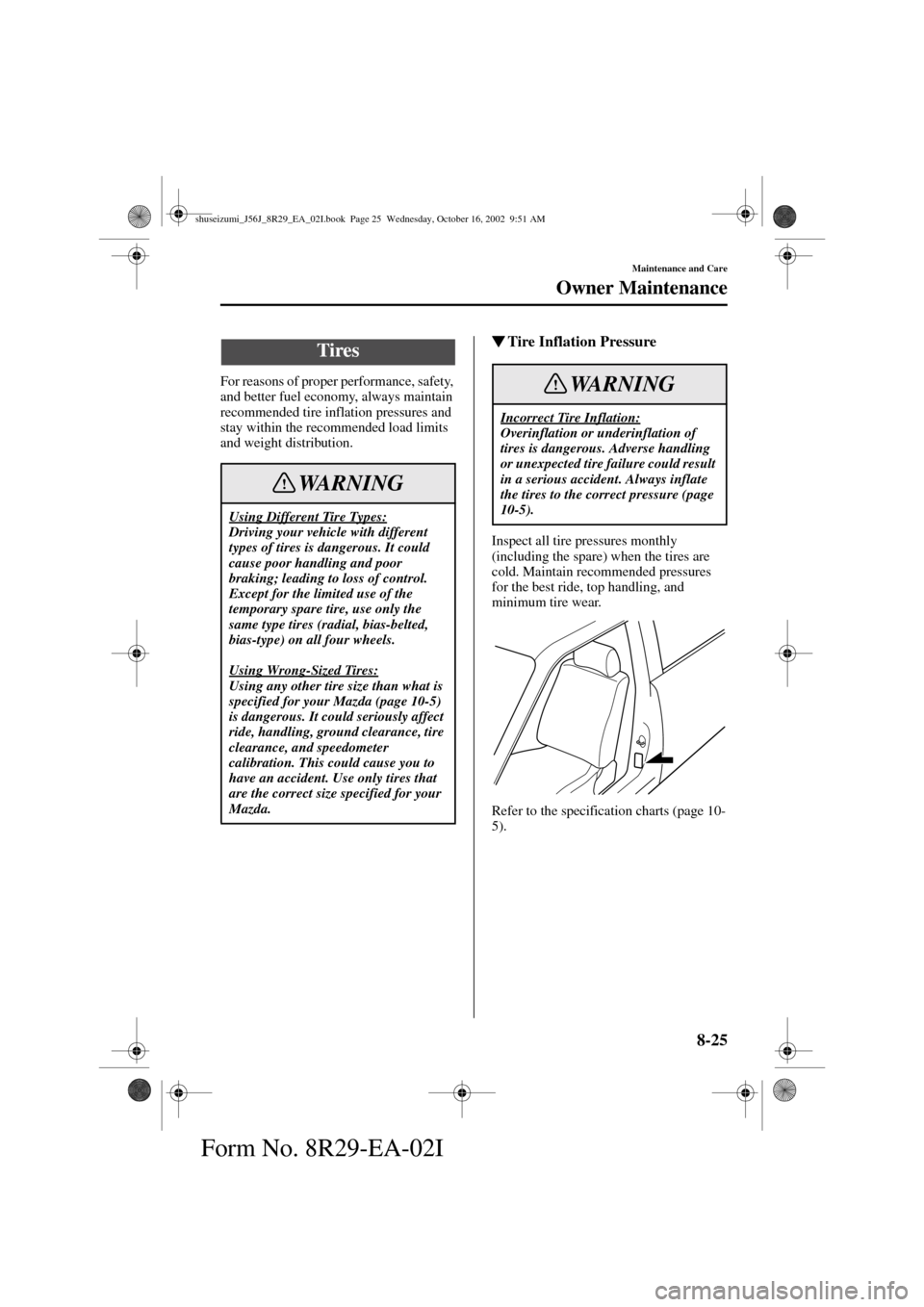

8-25
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

Tire Inflation Pressure
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures
for the best ride, top handling, and
minimum tire wear.
Refer to the specification charts (page 10-
5).
Tires
Using Different Tire Types:Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-5)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
WARNING
Incorrect Tire Inflation:Overinflation or underinflation of
tires is dangerous. Adverse handling
or unexpected tire failure could result
in a serious accident. Always inflate
the tires to the correct pressure (page
10-5).
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 25 Wednesday, October 16, 2002 9:51 AM

8-28
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I

Replacing a Wheel
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Using a Wrong-Sized Wheel:Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
A wrong-sized wheel may adversely
affect
•
Ti r e fit
•
Wheel and bearing life
•
Ground clearance
•
Snow-chain clearance
•
Speedometer calibration
•
Headlight aim
•
Bumper height
WARNING
CAUTION
