ESP MAZDA MODEL 6 2004 Owners Manual (in English)

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
•
Changes or modifications could
cause malfunctions and void the
keyless entry system warranty.
•
Damage to your keyless entry
system may prevent other systems
from operating properly and may
affect the vehicle warranty
coverage.
CAUTION
Door Locks
Unattended Children and Pets:Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors when leaving your
vehicle unattended. This discourages
intruders and thieves.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 7 Saturday, September 7, 2002 12:58 PM

3-14
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I
The ignition switch must be in the ON
position for the power windows to
operate.

Operating the Driver’s Side
Power Window
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Auto-opening
To fully open the window automatically,
push the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC,
LOCK position or key out of ignition with
all doors closed. If any front door is
opened, the power window will be
inoperable.
Power Windows
Closing Power Windows:Closing power windows are
dangerous. A person’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child’s
hands, head or neck becomes caught
by the window. Always lock all
passenger power windows with the
power window lock switch on the
driver’s side while children are in the
vehicle, and never allow children to
play with power window switches.
To prevent burning out the fuse and
damaging the power window system,
don’t open or close more than two
windows at once.
WARNING
CAUTION
Close
OpenLeft front window
shuseizumi_J56J_8R29_EA_02I.book Page 14 Saturday, September 7, 2002 12:58 PM

3-18
Knowing Your Mazda
Doors and Locks
Form No. 8R29-EA-02I
3. Use the support rod to hold the hood
open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Secure the rod in its clip, while holding
up the hood.
3. Close the hood so that it locks securely.The sunroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Support rodClip
Sunroof
Extending the Head or Arms Through the Sunroof:Extending the head, arms, or other
parts of the body through the sunroof
is dangerous. The head or arms could
hit something while the vehicle is
moving. This could cause death or
serious injury. Don’t let passengers
stand up or extend anything through
the open sunroof while the vehicle is
moving.
Closing the Sunroof:
A closing sunroof is dangerous. The
hands, head, or even neck of a person
—especially a child— could be
caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the sunroof.
Slide switch
Tilt switch
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 18 Saturday, September 7, 2002 12:58 PM

5-7
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I

Anti-Lock Brake System (ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don’t
pump the brakes, continue to press down
on the brake pedal.
Brake Warning Light:Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, after checking that
the parking brake is released, have
the brakes inspected immediately.
Don’t drive with this light on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
ABS:The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 7 Saturday, September 7, 2002 12:58 PM

5-44
Driving Your Mazda
Switches and Controls
Form No. 8R29-EA-02I

Programming the HomeLink
System
The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Verify that there is a remote control
transmitter available for the device you
would like to program.
2. Disconnect the power to the device.
3. Hold the transmitter for the device to
be programmed in close proximity to
HomeLink, approximately 2.5—7.5
cm (1—3 in).
4. Press the transmitter button and the
desired HomeLink button
simultaneously until the HomeLink
indicator light goes from slow to rapid
flashing.
5. Connect the power to the device.
6. Verify that the device operates properly
by pressing the HomeLink button that
was programmed. The transceiver has been tested and
complies with FCC and Industry
Canada rules. Changes or
modifications not expressly approved
by the party responsible for
compliance could void the user’s
authority to operate the device.NOTE
FCC ID: NZLSTDHL3
CANADA: 4112104541A
This device complies with FCC rules
part 15. Operation is subject to the
following conditions:
1- This device may not cause any
harmful interference and
2- This device must accept any
interference that may be received
including interference that may cause
undesired operation.
NOTE
The programming will not be erased
even if the battery is disconnected.
CAUTION
When programming a garage door
opener or a gate, disconnect the power
to these devices before performing
programming, as continuous operation
of the devices could damage the motor.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 44 Saturday, September 7, 2002 12:58 PM

6-29
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Seek tuning
Pressing the seek tuning button ( , )
will cause the tuner to seek a higher or
lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button ( ) again during this interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the desired station.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
shuseizumi_J56J_8R29_EA_02I.book Page 29 Saturday, September 7, 2002 12:58 PM

8-2
Maintenance and Care
Form No. 8R29-EA-02I
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda’s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
shuseizumi_J56J_8R29_EA_02I.book Page 2 Saturday, September 7, 2002 12:58 PM

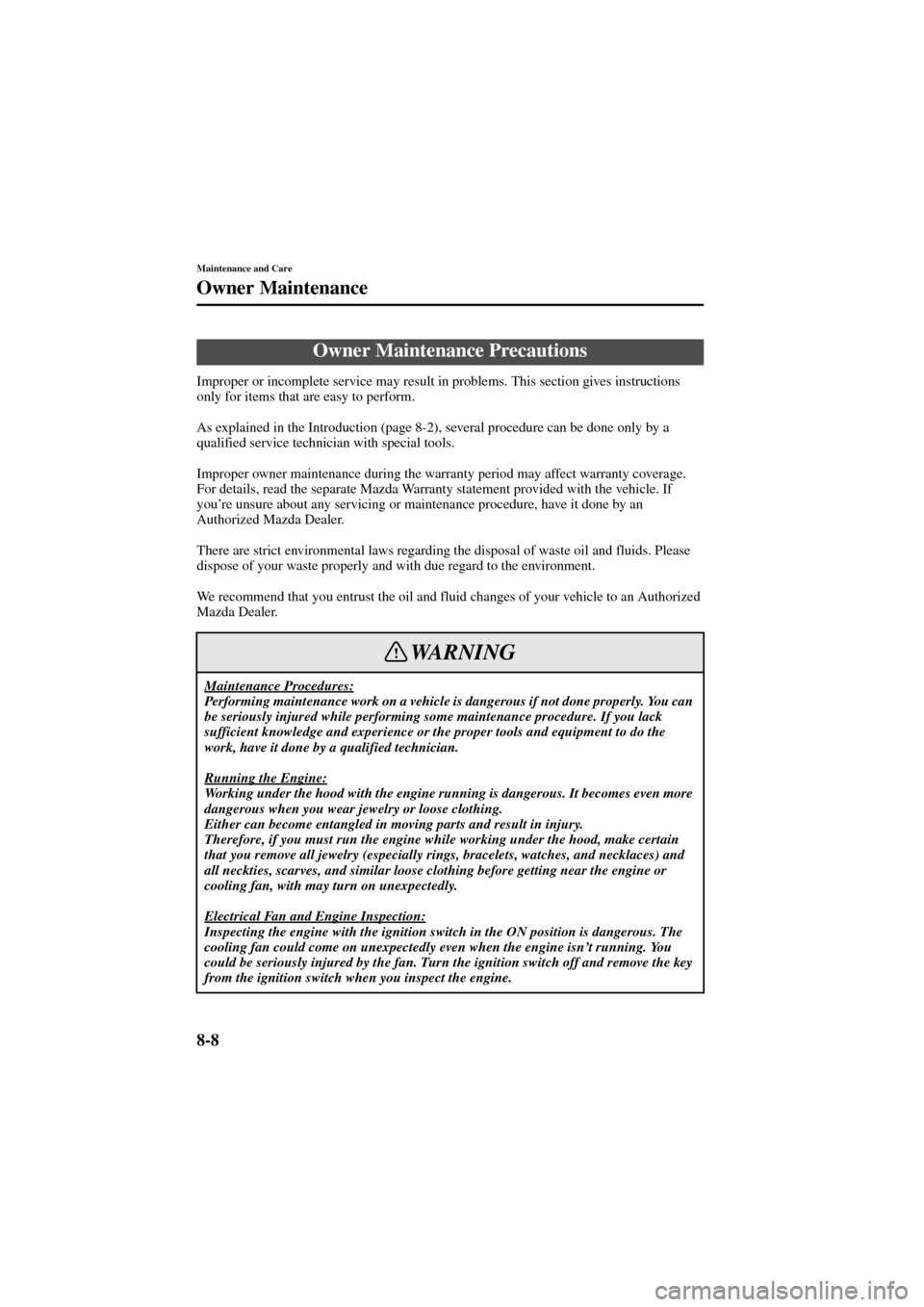

8-8
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedure can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedure. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan, with may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn’t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 8 Saturday, September 7, 2002 12:58 PM

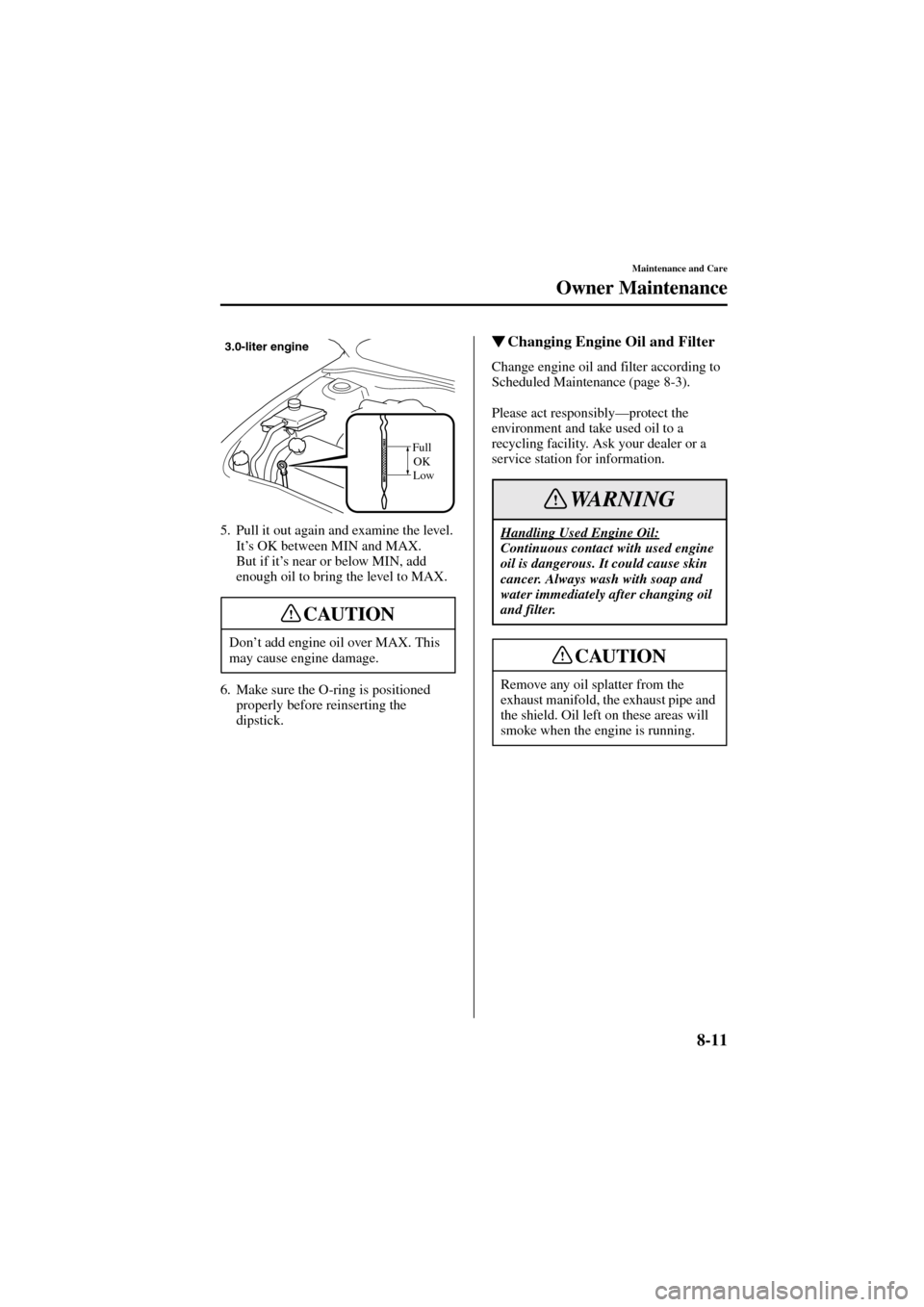

8-11
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
5. Pull it out again and examine the level.
It’s OK between MIN and MAX.
But if it’s near or below MIN, add
enough oil to bring the level to MAX.
6. Make sure the O-ring is positioned
properly before reinserting the
dipstick.

Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information.
Don’t add engine oil over MAX. This
may cause engine damage.
Full
OK
Low 3.0-liter engine
CAUTION
Handling Used Engine Oil:Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
Remove any oil splatter from the
exhaust manifold, the exhaust pipe and
the shield. Oil left on these areas will
smoke when the engine is running.
WARNING
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 11 Saturday, September 7, 2002 12:58 PM

8-42
Maintenance and Care
Appearance Care
Form No. 8R29-EA-02I
Follow all
label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.

Maintaining the Finish
Wa s h i n g
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
•
The vehicle is washed without first
rinsing off dirt and other foreign
matter.
•
The vehicle is washed with a rough,
dry, or dirty cloth.
•
The vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
•
Cleansers or wax containing abrasives
are used.To minimize scratches on the vehicle’s
paint finish:
•
Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
•
Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
•
Rub gently when washing or drying the
vehicle.
•
Take your vehicle only to a car wash
that keeps its brushes well maintained.
•
Don’t use abrasive cleansers or wax
that contain abrasives.
Exterior Care
NOTE
•
Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.
•
Scratches are more noticeable on
vehicles with darker paint finishes.
Don’t use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage the
protective coating; also, cleaners and
detergents may discolor or deteriorate
the paint.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 42 Saturday, September 7, 2002 12:58 PM
