glove box MAZDA MODEL 6 2005 Owners Manual (in English)

Black plate (3,1)
Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda North American Operations
Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you
resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal at
Mazda, we reserve the right to make changes in specifications at any time without notice and without obligation.
Event Data Recorder
This vehicle is equipped with an event data recorder. In the event of a crash, this device records data related to
vehicle dynamics and safety systems for a short period of time. These data can help provide a better
understanding of the circumstances in which crashes and injuries occur and lead to the designing of safer
vehicles.
Air Conditioning and the Environment
Your Mazda's genuine air conditioner is filled with HFC134a (R134a), a refrigerant that has been found not to
damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda
Dealer.
Please be aware that this manual applies to all models, equipment and options. As a result, you may find
some explanations for equipment not installed on your vehicle.
©2004 Mazda North American Operations
Printed in U.S.A. (Print2)
A Word to Mazda Owners
Mazda6_8T56-EC-04G_Edition2 Page3
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (9,1)
Rear seat .............................................................................................................. page 2-9
Front seats ............................................................................................................ page 2-2
Seat belt ............................................................................................................. page 2-16
Air bags ............................................................................................................. page 2-44
Power door lock switch ....................................................................................... page 3-8
Power window lock switch ................................................................................ page 3-24
Power window switches .................................................................................... page 3-23
Hood release handle .......................................................................................... page 3-26
Trunk release button .......................................................................................... page 3-19
Steering column release lever ............................................................................ page 3-34
Outside mirror switch ........................................................................................ page 3-34
Rearview mirror ................................................................................................. page 3-35
Ignition switch ..................................................................................................... page 5-2
Parking brake ....................................................................................................... page 5-5
MT shift lever ...................................................................................................... page 5-8
AT shift lever (Sport AT) ................................................................................... page 5-10
Instrument cluster .............................................................................................. page 5-23
Lighting control/Turn signals ............................................................................ page 5-38
Wiper and washer lever ..................................................................................... page 5-40
Hazard warning flasher switch .......................................................................... page 5-44
Climate control system ........................................................................................ page 6-2
Audio system ..................................................................................................... page 6-16
Interior light ....................................................................................................... page 6-43
Map light ........................................................................................................... page 6-44
Glove box .......................................................................................................... page 6-52
Center console ................................................................................................... page 6-52
Storage pocket ................................................................................................... page 6-52
Sunvisor ............................................................................................................. page 6-43
Vanity mirror ...................................................................................................... page 6-43
Lighter ............................................................................................................... page 6-48
Ashtray ............................................................................................................... page 6-49
Cup holder ......................................................................................................... page 6-50
Information display ............................................................................................ page 6-46
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda6_8T56-EC-04G_Edition2 Page9
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (78,1)
Keys
WARNING
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
NOTE
Refer to Immobilizer System (page
3-29) for information regarding keys
and engine starting on vehicles
equipped with the immobilizer system.
Your Mazda has two kinds of keys.
Valet key
(Gray) Master key
(Black)
Key code number plate
Here's what the keys are used for:
Lock Operates Master key Valet key
Ignition switch and
steering column lockYe s Ye s
Driver's door Yes Yes
Glove box Yes No
Trunk lid Yes No
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box and trunk lid with the master
key. Keep that key and give the other
person only the valet key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.
3-2
Knowing Your Mazda
Doors and Locks
Mazda6_8T56-EC-04G_Edition2 Page78
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (81,1)
NOTE
After unlocking with the transmitter, all
doors and the hatch/liftgate will
automatically lock if one of the doors or
the hatch/liftgate is not opened within
about 30 seconds.
Trunk button
To open the trunk, press the trunk button.
NOTE
The trunk button is disabled when the
glove box-mounted trunk lid release
lock-out button is in the OFF position.
Refer to Remote Trunk Lid Release
Lock-Out on page 3-20.
Panic button
You can use the panic button to turn on
the alarm, which allows you to signal for
attention in an emergency.
NOTE
The alarm will work whether any door
is open or closed.
Turning on the alarm
Pressing the panic button once will trigger
the alarm for about 2 minutes and 30
seconds, and the following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitter Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR2025 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
and/or water.
lNever deform or crush.
Knowing Your Mazda
Doors and Locks
3-5
Mazda6_8T56-EC-04G_Edition2 Page81
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

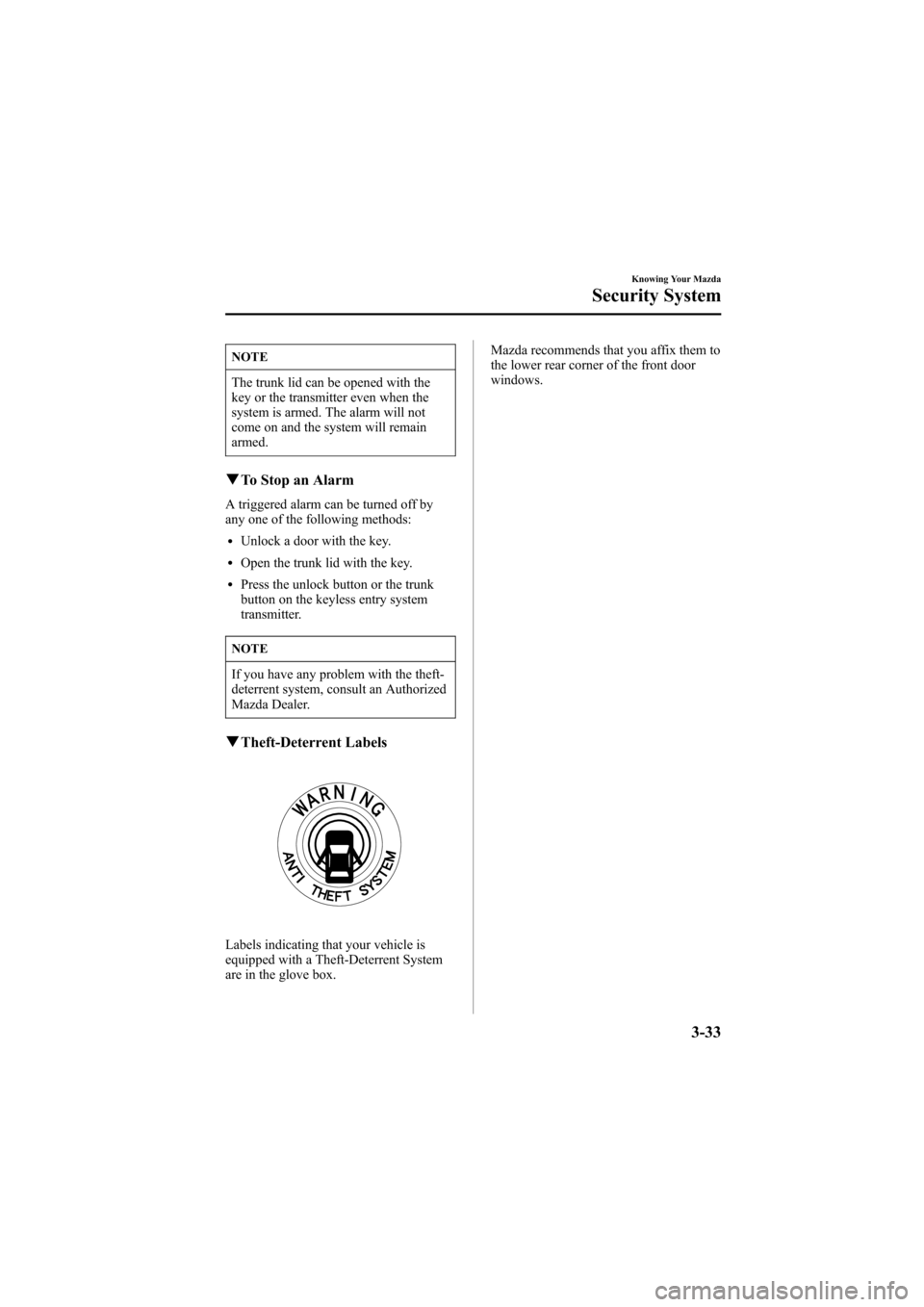

Black plate (109,1)
NOTE
The trunk lid can be opened with the
key or the transmitter even when the
system is armed. The alarm will not
come on and the system will remain
armed.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.
lOpen the trunk lid with the key.
lPress the unlock button or the trunk
button on the keyless entry system
transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
Labels indicating that your vehicle is
equipped with a Theft-Deterrent System
are in the glove box.Mazda recommends that you affix them to
the lower rear corner of the front door
windows.
Knowing Your Mazda
Security System
3-33
Mazda6_8T56-EC-04G_Edition2 Page109
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

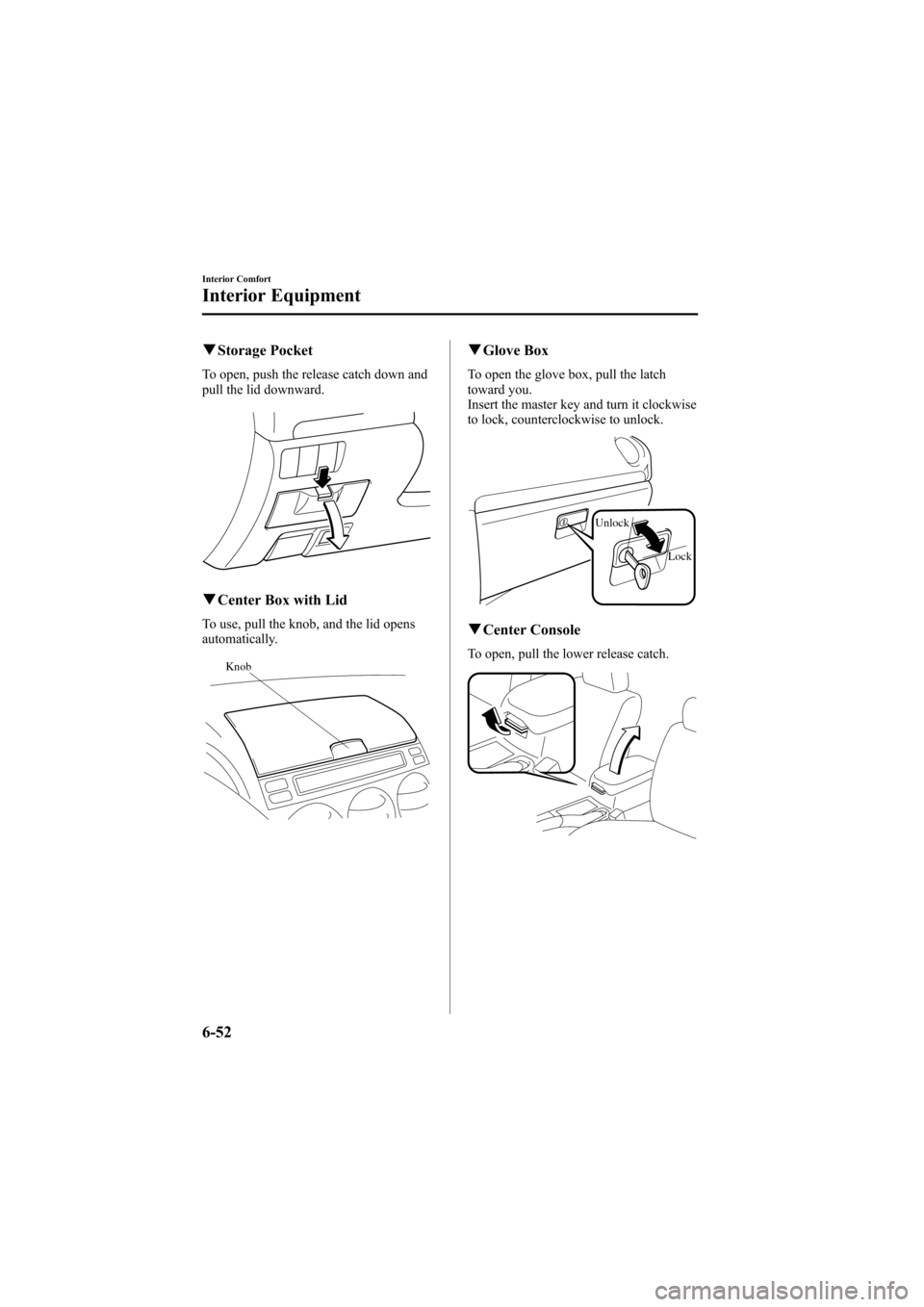

Black plate (224,1)
qStorage Pocket
To open, push the release catch down and
pull the lid downward.
qCenter Box with Lid
To use, pull the knob, and the lid opens
automatically.
Knob
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.
Unlock
Lock
qCenter Console
To open, pull the lower release catch.
6-52
Interior Comfort
Interior Equipment
Mazda6_8T56-EC-04G_Edition2 Page224
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (239,1)
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure
to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don't use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Removing Dirt and Grime fromWheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
2. Mount the spare tire.
In Case of an Emergency
Flat Tire
7-11íSome models. Mazda6_8T56-EC-04G_Edition2 Page239
Monday, November 15 2004 4:35 PM
Form No.8T56-EC-04G

Black plate (335,1)
D
Dashboard Illumination .................... 5-26
Daytime Running Lights ................... 5-39
Defroster
Rear window .............................. 5-42
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-15
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-13
Exhaust gas .................................. 4-5
Hood release .............................. 3-26
Oil .............................................. 8-10
Overheating ................................ 7-14
Starting ......................................... 5-3
Engine Compartment Overview .......... 8-9
Engine Coolant
Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-25
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-49
F
Flasher
Hazard warning .......................... 5-44
Headlights .................................. 5-38
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ..................... 8-7
Fog Lights ......................................... 5-40
Foot Brake .......................................... 5-4
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-24
Gauge ......................................... 5-26
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42
Panel description ........................ 8-44
Replacement ............................... 8-42
G
Glove Box ......................................... 6-52
H
Hatch ................................................. 3-10
Luggage compartment cover ...... 3-11
Luggage strap ............................. 3-11
Hazard Warning Flasher .................... 5-44
Hazardous Driving .............................. 4-8
Index
11-3
Mazda6_8T56-EC-04G_Edition2 Page335
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (338,1)
S
Storage Compartments ...................... 6-51
Cargo securing loops .................. 6-53
Cargo sub-compartment ............. 6-54
Center box .................................. 6-52
Center console ............................ 6-52
Glove box ................................... 6-52
Overhead console ....................... 6-51
Storage box ................................ 6-53
Storage pocket ............................ 6-52
Storage Pocket .................................. 6-52
Sunshade ........................................... 3-28
Sunvisors .......................................... 6-43
T
Tachometer ........................................ 5-25
Temporary Spare Tire ....................... 8-31
Theft-Deterrent System ..................... 3-32
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-30
Replacement ............................... 8-31
Rotation ...................................... 8-30
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-7
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-3
Towing
Description ................................. 7-20
Emergency towing ..................... 7-20
Recreational towing ................... 7-21
Trailer towing ............................. 4-11
T
Traction Control System (TCS) ........ 5-20
TCS indicator light ..................... 5-21
TCS OFF indicator light ............ 5-21
TCS OFF switch ........................ 5-21
Trailer Towing ................................... 4-11
Trip Meter ......................................... 5-24
Trunk Lid .......................................... 3-18
Trunk Light ....................................... 3-20
Turn and Lane-Change Signals ......... 5-39
V
Vanity Mirrors ................................... 6-43
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-27
seat belt ...................................... 5-32
ABS ............................................ 5-31
Air bag system ........................... 5-31
Automatic transaxle ................... 5-33
Brake system .............................. 5-29
Charging system ......................... 5-30
Check engine .............................. 5-30
Door-ajar .................................... 5-33
Engine oil pressure ..................... 5-30
Front seat belt pretensioner
system ........................................ 5-31
Low fuel ..................................... 5-32
Low washer fluid level ............... 5-33
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-20
Weights ............................................. 10-6
Wheel Replacement .......................... 8-32
Windows
Power windows .......................... 3-22
Windshield Washer ........................... 5-41
11-6
Index
Mazda6_8T56-EC-04G_Edition2 Page338
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G
