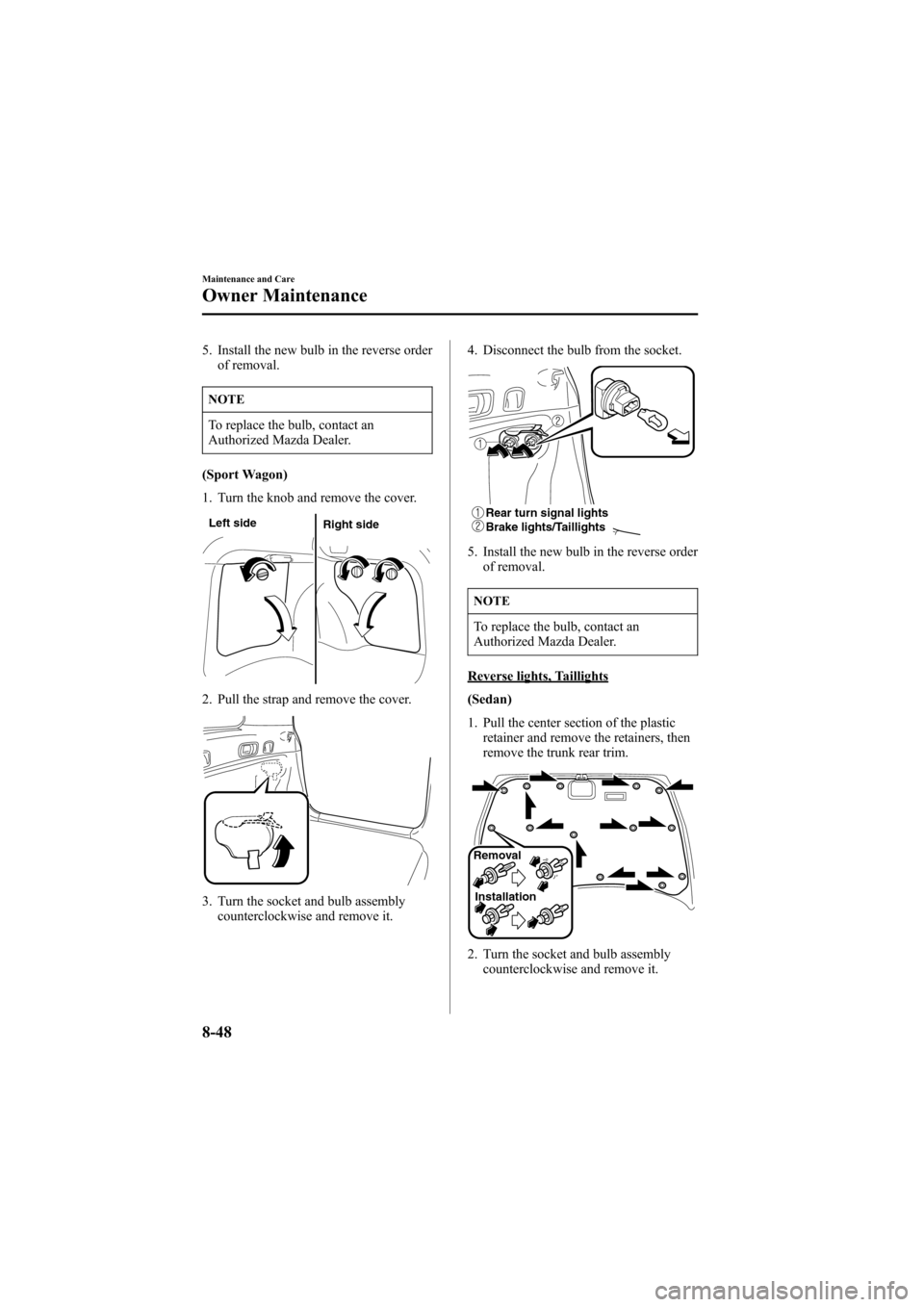

Black plate (314,1)
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side
Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plastic
retainer and remove the retainers, then
remove the trunk rear trim.
Installation Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
8-48
Maintenance and Care
Owner Maintenance
Mazda6_8U66-EA-05F_Edition1 Page314
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F

Black plate (315,1)
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse order
of removal.
(5-Door/Sport Wagon)
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse order
of removal.
High-mount brake light
(Sedan)
1. Remove the high-mount brake light
component.2. Detach the electrical connector from
the socket.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
(5-Door)
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-49
Mazda6_8U66-EA-05F_Edition1 Page315
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F

Black plate (316,1)
(Sport Wagon)
1. Remove the liftgate upper trim and
high-mount brake light component.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens.2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Withoverhead console)
1. Remove the screws.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
8-50
Maintenance and Care
Owner Maintenance
Mazda6_8U66-EA-05F_Edition1 Page316
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F

Black plate (317,1)
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Overhead light/Map lights (Withoutoverhead console)
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it.3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Courtesy lights, Vanity mirror lights,and Luggage compartment light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.
2. Disconnect the bulb by pulling it out.
Edge Courtesy lights
Maintenance and Care
Owner Maintenance
8-51
Mazda6_8U66-EA-05F_Edition1 Page317
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F

Black plate (318,1)
Vanity mirror lights
Edge (Type A)
Edge
Vanity mirror lights
(Type B)
(5-Door)Luggage compartment light
Luggage compartment light
(Sport Wagon)
Edge
3. Install the new bulb in the reverse order
of removal.
Trunk light (Sedan)
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
8-52
Maintenance and Care
Owner Maintenance
Mazda6_8U66-EA-05F_Edition1 Page318
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F

Black plate (380,1)
qWeights
Specification Item Weight
2.3-liter engineGVWR (Gross Vehicle Weight Rating) 1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating)Front 1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engineGVWR (Gross Vehicle Weight Rating) 2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating)Front 1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECER SAE
HeadlightsHigh beam 55 H1―
Low beamHalogen 55 H1―
Xenon
fusion35 D2S―
Front turn signal lights 27―#2357A
Parking lights 5 W5W―
Fog lights
í55 H11 H11
Side-marker lights 5 W5W―
High-mount brake lightSedan 18.4 W16W #921
5-Door/Sport Wagon 21 W21W #7440
Rear turn signal lightsSedan/5-Door 21 WY21W―
Sport Wagon 21 W21W #7440
Brake lights/Taillights 21/5 W21/5W #7443
Taillights 5
*1W21/5W #7443
Reverse lights 18.4 W16W #921
License plate lights 5 W5W―
*1 Use a 21/5W type bulb.
10-6íSome models.
Specifications
Mazda6_8U66-EA-05F_Edition1 Page380
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F

Black plate (381,1)
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (Sedan) 3―
Overhead light/Map lights 5 W5W
Courtesy lights 5 W5W
Vanity mirror lights
*Type A 1.2―
Type B 3―
Luggage compartment light5-Door 5―
Sport Wagon 10―
* Vanity mirror lights
Type B Type A
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-39.
Standard tire
Tire sizeInflation pressure
Front Rear
P205/60R16 91V
220 kPa
(2.2 kgf/cm
2, 32 psi or lb/po2)220 kPa
(2.2 kgf/cm2, 32 psi or lb/po2)
P215/50R17 93V
215/45R18 93W240 kPa
(2.4 kgf/cm
2, 35 psi or lb/po2)240 kPa
(2.4 kgf/cm2, 35 psi or lb/po2)
Specifications
10-7
Mazda6_8U66-EA-05F_Edition1 Page381
Friday, June 3 2005 8:50 AM
Form No.8U66-EA-05F

Black plate (384,1)
A
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-45
Air Filter ............................................ 8-30
Ambient Temperature Display .......... 6-51
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-6
Warning light ............................... 5-7
Appearance Care ............................... 8-58
Audio System ................................... 6-16
Audio control switch .................. 6-43
Audio set .................................... 6-27
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-46
Automatic Transaxle
Driving tips ................................ 5-17
Fluid ........................................... 8-26
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
Battery
Emergency starting .................... 7-17
Maintenance ............................... 8-37
Specifications ............................. 10-4
Beep sounds
Ignition key reminder ................. 5-40
Lights-on reminder ..................... 5-40
Seat belt warning beep ............... 5-40
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-30
Bottle Holder ..................................... 6-53
B
Brake/Clutch
Fluid ........................................... 8-24
Brakes
Anti-lock brake system (ABS) ..... 5-6
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-43
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-56
Cargo Sub-Compartment .................. 6-57
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Box ........................................ 6-54
Center Console .................................. 6-55
Child Restraint
Installing child-restraint
systems ....................................... 2-33
LATCH child-restraint
systems ....................................... 2-40
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-51
Courtesy Lights ................................. 6-49
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-52
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-28
11-2
Index
Mazda6_8U66-EA-05F_Edition1 Page384
Friday, June 3 2005 8:50 AM
Form No.8U66-EA-05F

Black plate (386,1)
H
Headlights
Control ....................................... 5-41
Flashing ...................................... 5-41
High-low beam .......................... 5-41
Leveling ..................................... 5-42
On reminder ............................... 5-41
HomeLink Wireless Control
System .............................................. 5-47
Hood Release .................................... 3-32
Horn .................................................. 5-46
I
Ignition
Switch .......................................... 5-2
Illuminated Entry System ................. 6-47
Immobilizer System .......................... 3-36
Indicator Lights ................................. 5-30
Cruise Main ................................ 5-39
Cruise set .................................... 5-39
Headlight high-beam .................. 5-38
Security ...................................... 5-37
Shift position .............................. 5-38
TCS ............................................ 5-39
TCS OFF .................................... 5-39
Turn-signal/hazard warning ....... 5-40
Information Display .......................... 6-50
Ambient temperature display ..... 6-51
Audio display ............................. 6-52
Climate control display .............. 6-52
Clock .......................................... 6-51
Information display functions .... 6-50
Instrument Cluster ............................. 5-25
Interior Care ...................................... 8-63
Interior Lights ................................... 6-47
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ......................... 3-3
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-42
Trunk Release lever ........................... 3-22
Liftgate .............................................. 3-14
Luggage compartment cover ...... 3-15
Luggage compartment net .......... 3-16
Light Bulbs
Replacement ............................... 8-43
Specifications ............................. 10-6
Lighting Control ............................... 5-41
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-49
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9
Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-48
Mirrors
Outside mirrors .......................... 3-41
Rearview mirror ......................... 3-42
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-33
11-4
Index
Mazda6_8U66-EA-05F_Edition1 Page386
Friday, June 3 2005 8:50 AM
Form No.8U66-EA-05F
