Black plate (11,1)
Trunk lid ............................................................................................................ page 3-20
Hatch ................................................................................................................. page 3-12
Antenna ............................................................................................................. page 6-16
Rear window defroster ....................................................................................... page 5-45
Power windows ................................................................................................. page 3-23
Tires ................................................................................................................... page 8-38
Light bulbs ......................................................................................................... page 8-43
Hood .................................................................................................................. page 3-32
Windshield wiper blades .................................................................................... page 8-32
Moonroof ........................................................................................................... page 3-34
Child safety locks .............................................................................................. page 3-11
Fuel-filler lid ...................................................................................................... page 3-31
Doors and keys .................................................................................................... page 3-9
Outside mirror .................................................................................................... page 3-41
Your Vehicle at a Glance
Exterior Overview
1-5
Mazda6_8U66-EA-05F_Edition1 Page11
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F
Page 13 of 390
Black plate (13,1)
Liftgate .............................................................................................................. page 3-14
Antenna ............................................................................................................. page 6-16
Rear window defroster ....................................................................................... page 5-45
Power windows ................................................................................................. page 3-23
Tires ................................................................................................................... page 8-38
Light bulbs ......................................................................................................... page 8-43
Hood .................................................................................................................. page 3-32
Windshield wiper blades .................................................................................... page 8-32
Moonroof ........................................................................................................... page 3-34
Child safety locks .............................................................................................. page 3-11
Fuel-filler lid ...................................................................................................... page 3-31
Doors and keys .................................................................................................... page 3-9
Outside mirror .................................................................................................... page 3-41
Your Vehicle at a Glance
Exterior Overview
1-7
Mazda6_8U66-EA-05F_Edition1 Page13
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F
Page 174 of 390
Black plate (174,1)
qLight-On Indicator Light (Black-
out meter)
This indicator light comes on when the
exterior lights and dashboard illumination
are on.
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-42).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-47).
NOTE
If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, one of the turn signal bulbs
may be burned out.
Beep Sounds
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
If the driver or the front passenger's seat
belt is not fastened and the vehicle is
driven at a speed faster than about 20
km/h (12 mph), a beep sound will be
heard again for about 90 seconds (the
beep sound speeds up as time elapses).
Refer to Seat Belt Warning Light/Beep on
page 5-35.
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda6_8U66-EA-05F_Edition1 Page174
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F
Page 176 of 390
Black plate (176,1)
qHeadlight Levelingí
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the following chart.
Front seat
Rear
seatLoadSwitch
Position
Driver Passenger
×―――0
××――0
×× ×―1
×× ×× 2
×――×3
×: Yes
―:No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
5-42
Driving Your Mazda
íSome models.
Switches and Controls
Mazda6_8U66-EA-05F_Edition1 Page176
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F
Page 267 of 390
Black plate (267,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15
Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-18
Engine Coolant ....................................................................... 8-21
Brake/Clutch Fluid .................................................................. 8-24
Power Steering Fluid ............................................................... 8-25
Automatic Transaxle Fluid (ATF) ........................................... 8-26
Washer Fluid ........................................................................... 8-29
Body Lubrication .................................................................... 8-30
Air Filter .................................................................................. 8-30
Wiper Blades ........................................................................... 8-32
Battery ..................................................................................... 8-37
Tires ........................................................................................ 8-38
Light Bulbs ............................................................................. 8-43
Fuses ....................................................................................... 8-53
Appearance Care ........................................................................ 8-58
How to Minimize Environmental Paint Damage .................... 8-58
Exterior Care ........................................................................... 8-60
Interior Care ............................................................................ 8-63
8-1
Mazda6_8U66-EA-05F_Edition1 Page267
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F
Page 309 of 390
Black plate (309,1)
Light Bulbs
Luggage compartment
light (Hatchback)
High-mount brake light
(Sedan)
Headlights
(High beam)Headlights
(Low beam) Overhead light/
Map lights
Luggage compartment light Sport Wagon
Taillights
Side-marker lights
License plate lightsCourtesy lights
Front turn signal lightsParking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights
High-mount brake light Fog lights Sedan/5-Door
Taillights Side-marker lights
License plate lightsCourtesy lights
Front turn signal lightsParking lights
Reverse lights Rear turn signal lights Brake lights/TaillightsTrunk light
Fog lights
High-mount brake light (Hatchback)Headlights
(High beam)(Low beam) HeadlightsMap lights Overhead light/
Maintenance and Care
Owner Maintenance
8-43
Mazda6_8U66-EA-05F_Edition1 Page309
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F
Page 310 of 390
Black plate (310,1)
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing the headlight, and parkinglight bulbs
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Fog lights
1. If you are changing the left fog light
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right fog light bulb, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and
remove them.
3. Turn the center section of the plastic
retainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise, and carefully pull it
backward.
8-44
Maintenance and Care
Owner Maintenance
Mazda6_8U66-EA-05F_Edition1 Page310
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F
Page 311 of 390
Black plate (311,1)
5. Disconnect the socket and bulb
assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
6. Install the new socket and bulb
assembly in the reverse order of
removal.
Front turn signal lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.2. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse order
of removal.
Side-marker lights
1. If you are changing the left side-maker
light, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and
remove them.
Maintenance and Care
Owner Maintenance
8-45
Mazda6_8U66-EA-05F_Edition1 Page311
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F
Page 312 of 390
Black plate (312,1)

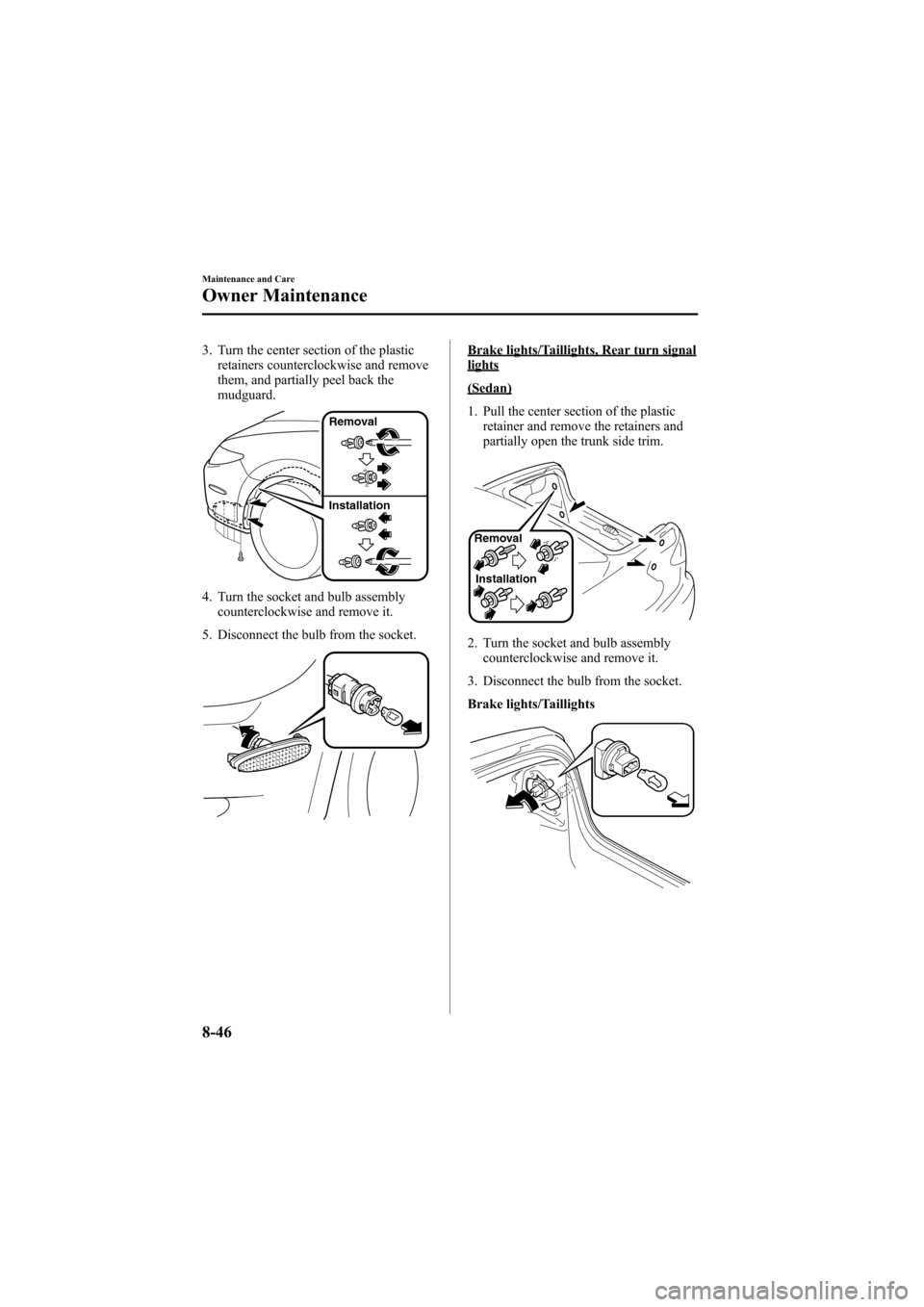

3. Turn the center section of the plastic
retainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights
8-46
Maintenance and Care
Owner Maintenance
Mazda6_8U66-EA-05F_Edition1 Page312
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F
Page 313 of 390
Black plate (313,1)

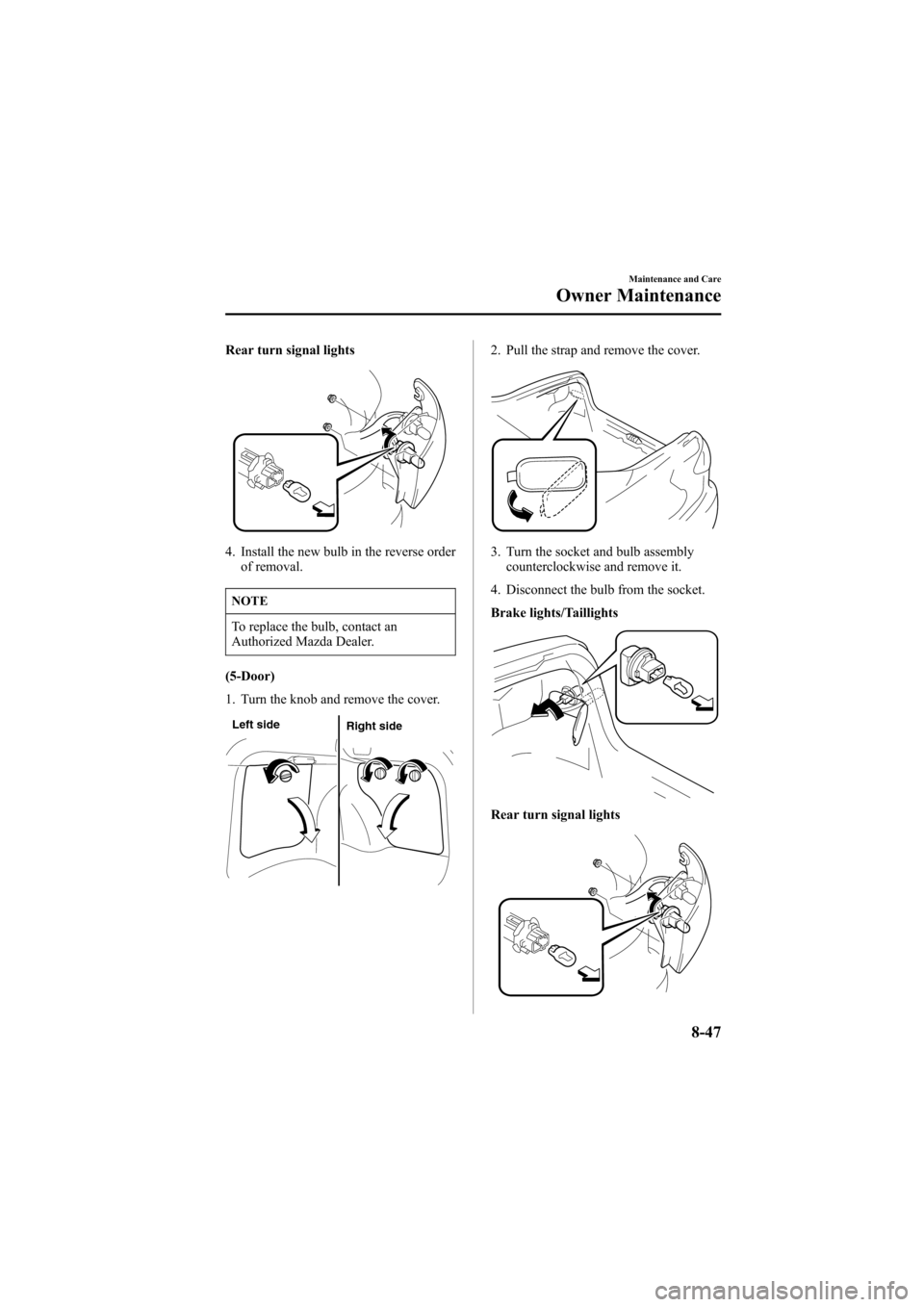

Rear turn signal lights
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(5-Door)
1. Turn the knob and remove the cover.
Left side
Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights
Rear turn signal lights
Maintenance and Care
Owner Maintenance
8-47
Mazda6_8U66-EA-05F_Edition1 Page313
Friday, June 3 2005 8:49 AM
Form No.8U66-EA-05F
