Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's sidekick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding
the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off.3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Maintenance and Care
Owner Maintenance
8-49
Mazda6_8W89-EA-06K_Edition1 Page313
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (320,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
lScratches are more noticeable on
vehicles with darker paint finishes.To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
lDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
lTo prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
8-56
Maintenance and Care
Appearance Care
Mazda6_8W89-EA-06K_Edition1 Page320
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (321,1)
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
Maintenance and Care
Appearance Care
8-57
Mazda6_8W89-EA-06K_Edition1 Page321
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (322,1)
CAUTION
Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
8-58
Maintenance and Care
Appearance Care
Mazda6_8W89-EA-06K_Edition1 Page322
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (323,1)

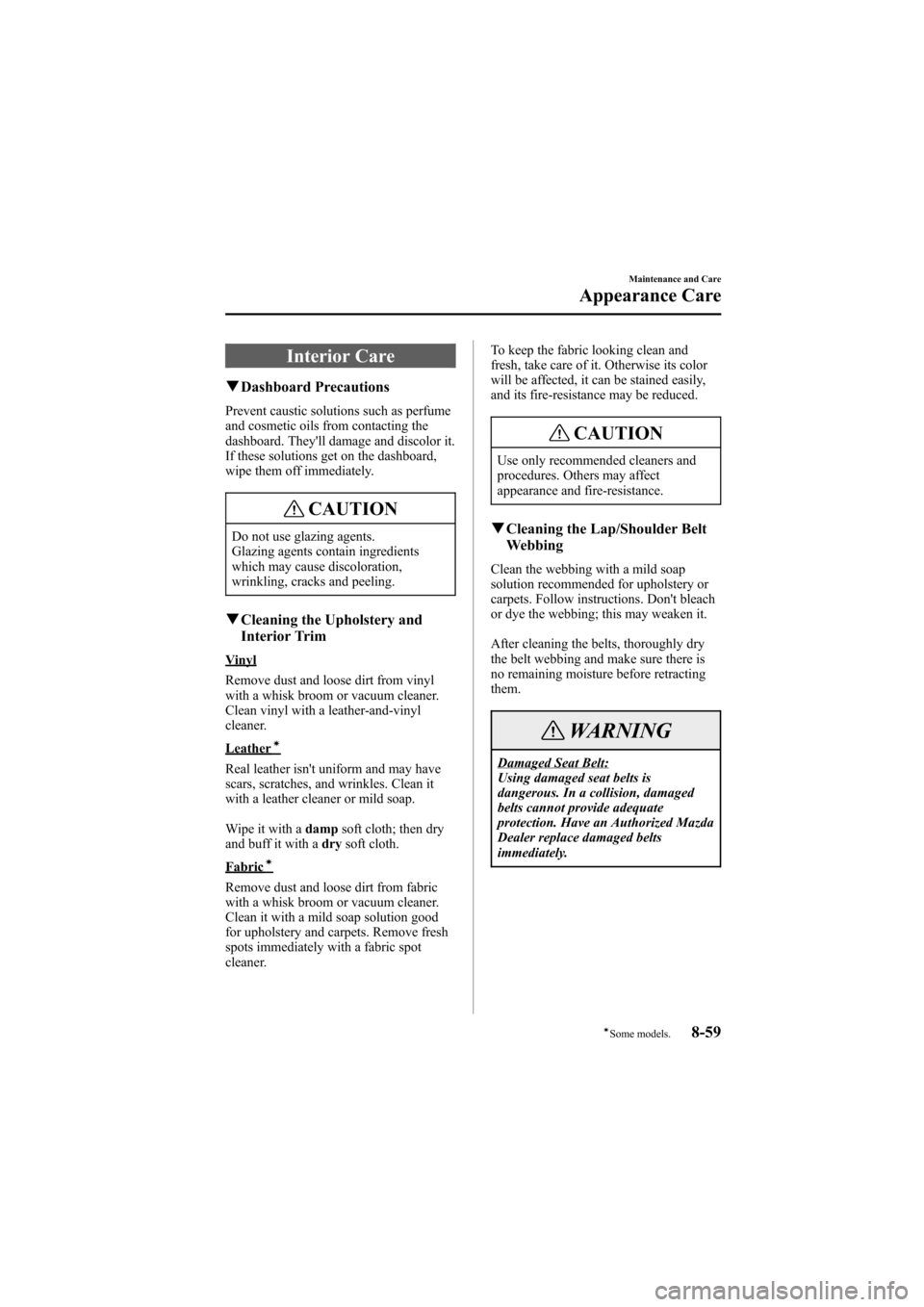

Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with adampsoft cloth; then dry
and buff it with adrysoft cloth.
Fabricí
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
Maintenance and Care
Appearance Care
8-59íSome models. Mazda6_8W89-EA-06K_Edition1 Page323
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (325,1)
9Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 9-2
Customer Assistance (U.S.A.) ............ 9-2
Customer Assistance (Canada) ........... 9-4
Customer Assistance (Puerto Rico) .... 9-7
Customer Assistance (Mexico) ........... 9-8
Mazda Importer/Distributors ............... 9-10
Importer/Distributor .......................... 9-10
Distributor in Each Area ................... 9-10
Warranty ................................................ 9-12
Warranties for Your Mazda ............... 9-12
Outside the United States .................. 9-13
Outside Canada ................................. 9-14
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 9-15
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Cell Phones ............................................. 9-17
Cell Phones Warning ......................... 9-17
Type Approval of Equipment ............... 9-18
Type Approval of Equipment ............ 9-18
Uniform Tire Quality Grading System
(UTQGS) ................................................ 9-20
Uniform Tire Quality Grading System
(UTQGS) .......................................... 9-20Tire Information (U.S.A.) ..................... 9-22
Tire Labeling ..................................... 9-22
Location of the Tire Label
(Placard) ............................................ 9-28
Tire Maintenance .............................. 9-31
Vehicle Loading ................................ 9-34
Steps for Determining the Correct Load
Limit: ................................................ 9-41
Reporting Safety Defects ....................... 9-42
Reporting Safety Defects (U.S.A.) .... 9-42
Reporting Safety Defects (Canada) ... 9-43
Service Publications .............................. 9-44
Service Publications .......................... 9-44
9-1
Mazda6_8W89-EA-06K_Edition1 Page325
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (340,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of injuries
in an accident. Always consult an Authorized Mazda Dealer before you install non-
genuine parts or accessories.
Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
9-16
Customer Information and Reporting Safety Defects
Warranty
Mazda6_8W89-EA-06K_Edition1 Page340
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (341,1)
Cell Phones Warning
WARNING
Use of Cell Phones and Other Devices by Driver:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous.
Dialing a number on a cell phone while driving also ties-up the driver's hands. Use of
these devices will cause the driver to be distracted and could lead to a serious accident.
If a passenger is unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this warning, use a hands-free
system to at least leave the hands free to drive the vehicle. Never use a cell phone or
other electrical devices while the vehicle is moving and, instead, concentrate on the
full-time job of driving.
Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your country.
Customer Information and Reporting Safety Defects
Cell Phones
9-17
Mazda6_8W89-EA-06K_Edition1 Page341
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (344,1)
Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National
Highway Traffic Safety Administration for grading tires by tread wear, traction, and
temperature performance.
qTread Wear
The tread wear grade is a comparative rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.
qTraction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent
the tire's ability to stop on wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt and concrete. A tire marked C may have poor
traction performance.
WARNING
The traction grade assigned to this tire is based on braking (straight ahead) traction
tests and does not include acceleration cornering (turning), hydroplaning, or peak
traction characteristics.
qTemperature-A, B, C
The temperature grades A (the highest), B, and C, represent the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory test wheel than the minimum required by
law.
9-20
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
Mazda6_8W89-EA-06K_Edition1 Page344
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (345,1)
WARNING
The temperature grade for this tire is established for a tire that is properly inflated and
not overloaded. Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible tire failure.
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
qUniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR 200 TRACTION AA
TEMPERATURE A
UTQGS MARK (example)
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
9-21
Mazda6_8W89-EA-06K_Edition1 Page345
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K
