CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fitØWheel and bearing lifeØGround clearanceØSpeedometer calibrationØHeadlight aimØBumper heightØTire Pressure Monitoring
System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-29.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-37
Mazda6_8X47-EA-07G_Edition1 Page301
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (302,1)
Light Bulbs
Luggage compartment
light (Hatchback)
High-mount brake light
(Sedan)
Headlights
(High beam) Headlights
(Low beam)
Overhead light/
Map lights
Luggage compartment light
Sport Wagon
Taillights
Side-marker lights License plate lights Courtesy lights
Front turn signal lights Parking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights
High-mount brake light
Fog lights
Sedan/5-Door
Taillights
Side-marker lights
License plate lights
Courtesy lights
Front turn signal lights Parking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights Trunk light
Fog lights
High-mount brake light (Hatchback) Headlights
(High beam) (Low beam)
Headlights Map lights
Overhead light/
8-38
Maintenance and Care
Owner Maintenance
Mazda6_8X47-EA-07G_Edition1 Page302
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (303,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing the headlight, and parkinglight bulbs
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Fog lights
1. If you are changing the left fog light
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right fog light bulb, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and remove them.
3. Turn the center section of the plastic retainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise, and carefully pull it
backward.
Maintenance and Care
Owner Maintenance
8-39
Mazda6_8X47-EA-07G_Edition1 Page303
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (304,1)
5. Disconnect the socket and bulbassembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
NOTElIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
6. Install the new socket and bulbassembly in the reverse order of
removal.
Front turn signal lights
1. Turn the socket and bulb assemblycounterclockwise and remove it. 2. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse orderof removal.
Side-marker lights
1. If you are changing the left side-maker
light, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and remove them.
8-40
Maintenance and Care
Owner Maintenance
Mazda6_8X47-EA-07G_Edition1 Page304
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (305,1)
3. Turn the center section of the plasticretainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order of removal.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plasticretainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights
Maintenance and Care
Owner Maintenance
8-41
Mazda6_8X47-EA-07G_Edition1 Page305
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (306,1)
Rear turn signal lights
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
(5-Door)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights
Rear turn signal lights
8-42
Maintenance and Care
Owner Maintenance
Mazda6_8X47-EA-07G_Edition1 Page306
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (307,1)
5. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it. 4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plastic retainer and remove the retainers, then
remove the trunk rear trim.
Installation
Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-43
Mazda6_8X47-EA-07G_Edition1 Page307
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (308,1)
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse orderof removal.
(5-Door/Sport Wagon)
1. Remove the cover.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse order of removal.
High-mount brake light
(Sedan)
1. Remove the high-mount brake light
component. 2. Detach the electrical connector from
the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
(5-Door)
1. Remove the cover.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
8-44
Maintenance and Care
Owner Maintenance
Mazda6_8X47-EA-07G_Edition1 Page308
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (309,1)

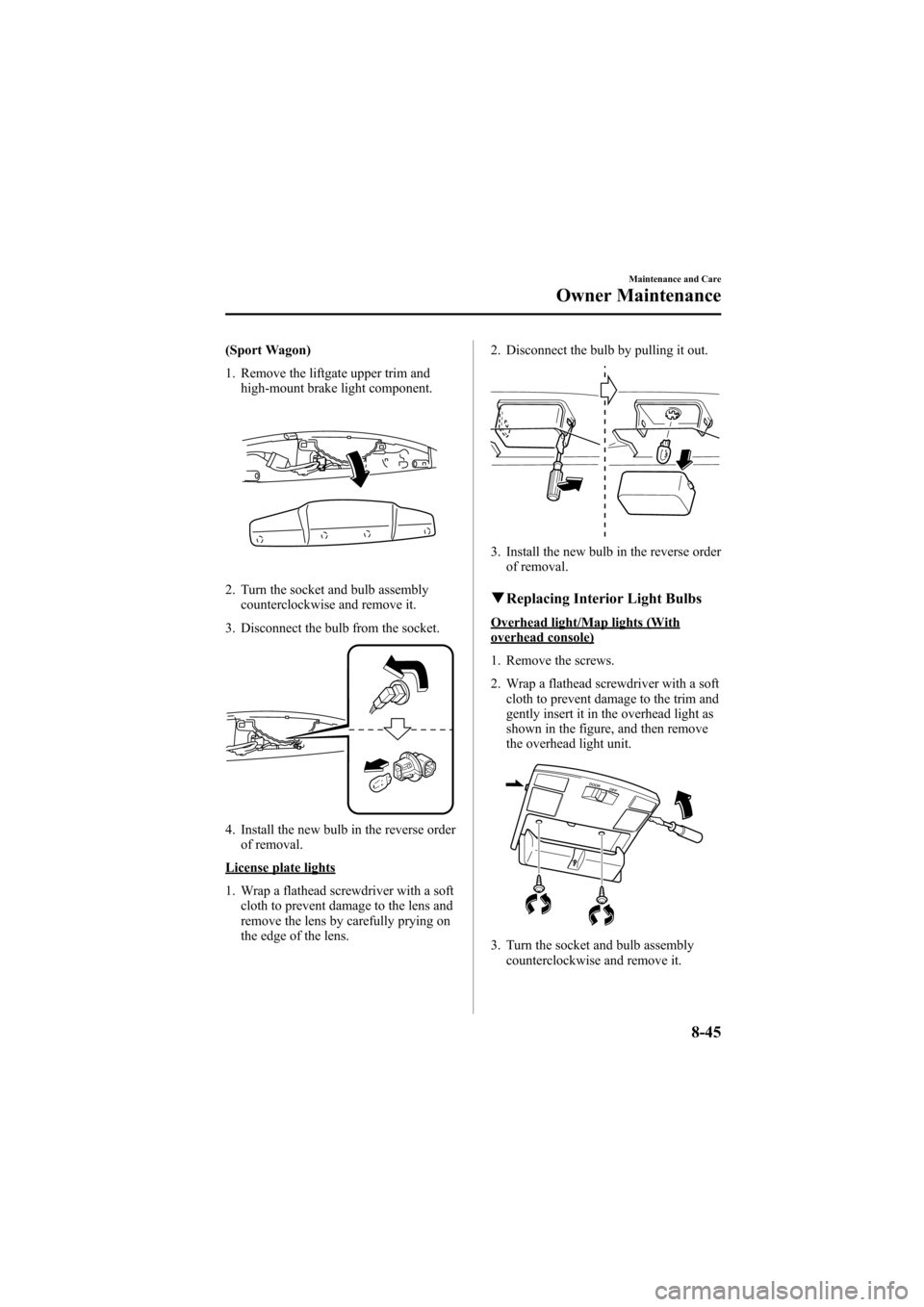

(Sport Wagon)
1. Remove the liftgate upper trim andhigh-mount brake light component.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
License plate lights
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens. 2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Withoverhead console)
1. Remove the screws.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-45
Mazda6_8X47-EA-07G_Edition1 Page309
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (310,1)
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse orderof removal.
Overhead light/Map lights (Withoutoverhead console)
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it. 3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Courtesy lights, Vanity mirror lights,and Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.
2. Disconnect the bulb by pulling it out.
Edge
Courtesy lights
