Page 91 of 124
91
Audio Operation
On-screen buttons other than those specified in the above figure are not functional.
nWhat is Bluetooth Audio?
By programming portable audio devices equipped with the Bluetooth communication function
to the vehicle’s Bluetooth unit, you can listen to music or audio recorded on these audio
devices from the vehicle’s speakers.
After programming, operate the audio system’s control panel or the navigation system to play/
stop the music or audio.
Bluetooth version : Ver. 2.0 or higher Profile Audio profile
• HFP (Hands Free Profile) Ver. 1.5
• DUN (Dial-up Networking Profile) Ver. 1.1
Audio profile
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0
A2DP is a profile which transmits only audio to the Bluetooth unit. If your Bluetooth audio
device corresponds only to A2DP, but not AVRCP, you cannot operate it using the control
panel of the vehicle’s audio or navigation systems. In this case, the Bluetooth audio device
can be operated by controlling the device itself, the same as when a portable audio system
without the Bluetooth communication function is connected to the AUX terminal.
Operating the Bluetooth Audio
Always program audio devices to the Bluetooth audio system while the vehicle is
stopped.
Because only specified Bluetooth audio devices can be used, consult an
Authorized Mazda Dealer when purchasing or changing devices.
Bluetooth audio devices which correspond to specified Bluetooth versions and
profiles can be Bluetooth-connected to the vehicle’s Bluetooth unit, however, even
among these devices are ones which cannot be Bluetooth-connected or have
limited functionality. Each device to be used with the vehicle’s Bluetooth unit
needs to be checked individually for compatibility. Consult an Authorized Mazda
Dealer concerning device compatibility.
•Phone : 800-430-0153
•Web : www.MazdaUSA.com/bluetooth
LOAD /
PUSHPOWERPUSHAUDIO
VOL
SOURCE
SCAN
SEEK
TRACK
MAP
DISP
MENU
VOICE RETURN
TUNE
Source button
Device name
on-screen button
on-screen button
on-screen button
SOUND
SETTINGS
Caution
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
Page 92 of 124
92
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Yes: Available
No: Not available
Bluetooth is the registered trademark of Bluetooth SIG. Inc.
Note
l
It may not be possible to play a Bluetooth audio device if it is placed anywhere transmission
is compromised, such as inside a metal container or the trunk. Move the Bluetooth audio
device to a location where transmission is possible.
l Battery consumption of Bluetooth audio devices is higher while Bluetooth-connected.
l If a non-Bluetooth device is to be used, a commercially-available Bluetooth adapter is
required. When playing an audio device with a Bluetooth adapter installed, programming of
the audio device may not be possible or audio may not be heard from the vehicle speakers
if the connection of the adapter and the device is poor. If this happens, check if the
Bluetooth adapter is properly connected.
nBluetooth audio device programming
Any Bluetooth audio device must be programmed to the vehicle’s Bluetooth unit before it can
be listened to over the vehicle’s speakers.
A maximum of seven devices including Bluetooth audio devices and hands-free mobile
phones can be programmed to one vehicle.
Note
lAlways perform Bluetooth audio device programming while the vehicle is stopped.
l If a Bluetooth device has already been programmed to the vehicle as a hands-free mobile
phone, it does not need to be programmed again when using the device as a Bluetooth
audio device. Conversely, it does not need to be programmed again as a hands-free mobile
phone if it has already been programmed as a Bluetooth audio device.
l The transmission range of a Bluetooth audio device is about 10 m (32 ft).
l Therefore, if there is another Bluetooth audio device within a 10 m (32 ft) radius of the
vehicle, the device may be identified and programmed instead.
Concerning the operation of a Bluetooth audio device itself, refer to its instruction manual.
Some Bluetooth audio devices have PIN codes (four digits). Refer to the audio device’s
instruction manual because the programming procedure differs depending on whether it has
a PIN code or not. Function A2DP A2DP+AVRCP
Playback No Yes
Pause No Yes
File(Track)
up/down No Yes
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1

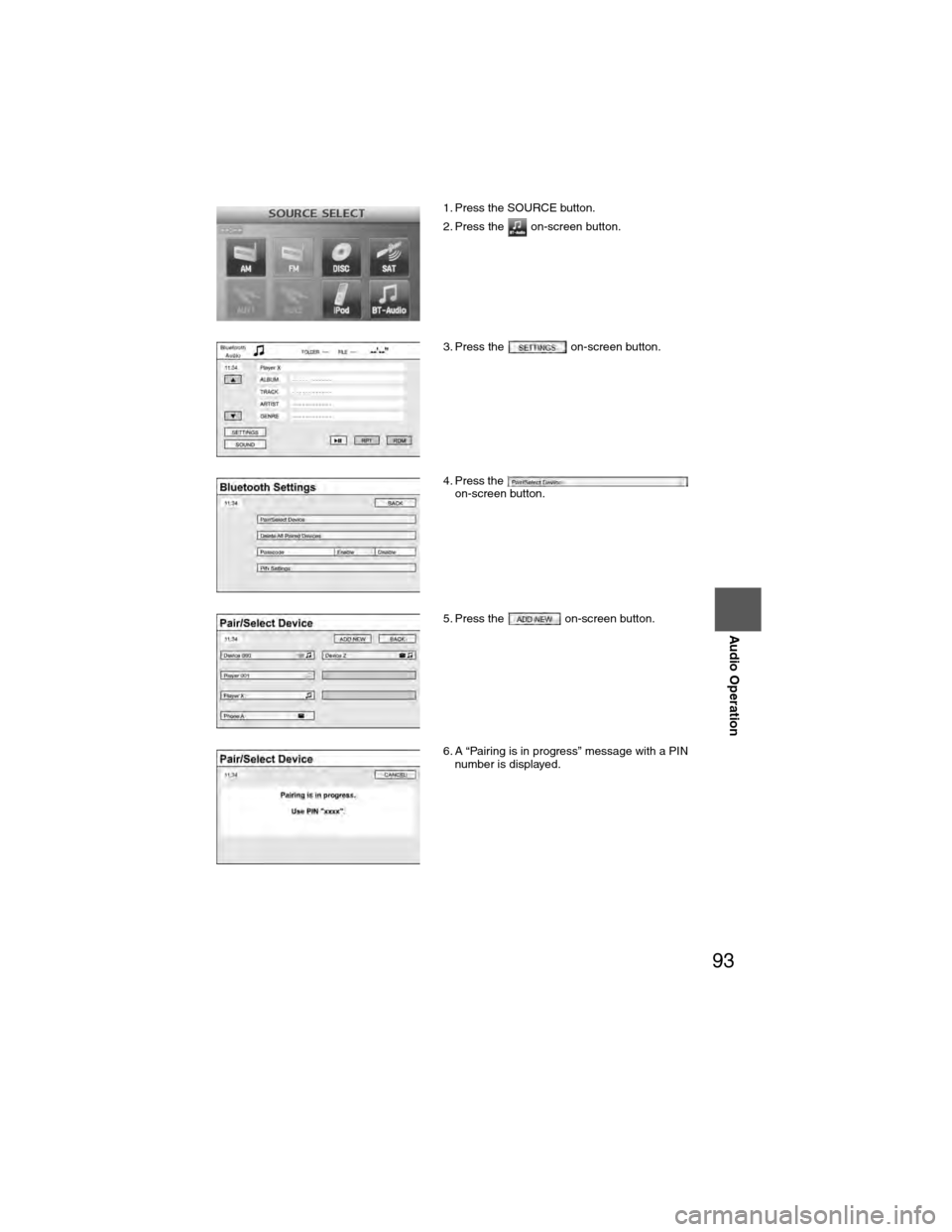

Page 93 of 124
93
Audio Operation
1. Press the SOURCE button.
2. Press the on-screen button.
3. Press the on-screen button.
4. Press the
on-screen button.
5. Press the on-screen button.
6. A “Pairing is in progress” message with a PIN number is displayed.
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
Page 94 of 124
94
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Note
l
If the programming failed, a message indicating a programming error is displayed for three
seconds then the screen returns to the normal display.
l Programming cannot be performed while the vehicle is moving. When the vehicle starts to
move, the buttons other than the on-screen button are grayed out.
l If seven Bluetooth audio devices have been already programmed, additional programming
cannot be performed. Delete one programmed Bluetooth audio device to program another
one.
nDeleting the link to a Bluetooth audio device
7. If the programming is successful, the
Bluetooth audio name is displayed with a
message “PAIRING COMPLETE” for three
seconds.
1. Press the SOURCE button.
2. Press the on-screen button.
3. Press the on-screen button.
4. Press the on-screen button.
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
Page 95 of 124
95
Audio Operation
Note
lA Bluetooth audio device cannot be deleted while it is being connected.
l If the programmed Bluetooth audio device deletion failed, a message indicating a deletion
failure is displayed for three seconds then the screen returns to the normal display.
l Programming cannot be performed while the vehicle is moving. When the vehicle starts to
move, the buttons other than the on-screen button are grayed out. 5. Press the on-screen button of the Bluetooth
audio device you would like to delete from the
programmed Bluetooth audio devices.
6. Press the on-screen button.
7. A confirmation screen is displayed to ask if the device is deleted. If the on-screen
button is pressed, the programmed Bluetooth
audio device can be deleted
On-screen buttons for programmed
Bluetooth audio divices
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
Page 96 of 124
96
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nChanging programmed Bluetooth device
1. Press the SOURCE button.
2. Press the on-screen button.
3. Press the on-screen button.
4. Press the
on-screen button.
5. Press the on-screen button of the Bluetooth device you would like to choose from the
programmed Bluetooth devices.
• : Completed pairing as Hands-free mobile phone. Highlighted while
connected.
• : Completed pairing as Bluetooth audio device. Highlighted while connected.
6. The Bluetooth Device Setting screen is displayed.
• DEVICE NAME: Name of the Bluetooth device
• PHONE: Status as Hands-free mobile phone
• AUDIO: Status as Bluetooth audio device
7. If the PHONE or AUDIO on-screen button is pressed, the selected phone or audio
function becomes operable.
On-screen buttons for programmed
Bluetooth audio divices
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
Page 97 of 124
97
Audio Operation
Note
lIf “Not supported” is displayed on the Bluetooth Device Setting screen, the device is not
supported for use with a Hands-free mobile phone or Bluetooth audio device.
l If “Disconnected” is displayed on the Bluetooth Device Setting screen, the device is
supported for use with a Hands-free mobile phone or Bluetooth audio device, but cannot be
used because it is not connected. If the on-screen button is pressed, the device
is connected and becomes enabled.
l If “Connected” is displayed, the device is supported for use with a Hands-free mobile phone
or Bluetooth audio device, and is currently being enabled.
nHow to use the Bluetooth Audio system
Switching to Bluetooth audio modeTo listen music or voice audio recorded to a Bluetooth audio device, switch to the Bluetooth audio
mode to operate the audio device using the audio system or navigation system control panels.
Any Bluetooth audio device must be programmed to the vehicle’s Bluetooth unit before it can
be used. Refer to “Bluetooth audio device programming”. ( page 92)
Note
lIf playback is not possible, press the on-screen button after checking the Bluetooth
device settings.
l If the mode is switched from Bluetooth audio mode to another mode (radio mode), audio
playback from the Bluetooth audio device stops.
l If a call is received on a hands-free mobile phone during playback from the Bluetooth audio
device, the playback is stopped. Playback from the Bluetooth audio device resumes after
the call ends.
Playback 1. Press the SOURCE button.
2. Press the on-screen button.
3. The audio recorded to the Bluetooth audio
device begins playback.
1. Press the SOURCE button.
2. To listen to a Bluetooth audio device over the vehicle’s speaker system, switch the mode to
Bluetooth audio mode. ( page 97)
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
Page 98 of 124
98
Before
UseGetting
started
RoutingAddress
Book
Voice Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nSetting the PasscodeThe system cannot be activated unless the previously set passcode is inp\
ut.
Note
l
If the Passcode on-screen button is pressed while Passcode has been
enabled, Passcode is disabled. 3. To stop playback, press the on-screen
button.
Press the button again to resume playback.
1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed. Press the on-screen button to scroll
down the menu.
Press the
on-screen button to switch to the Bluetooth
Phone screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to scroll down the menu.
Press the Passcode on-screen
button to switch to the Input Bluetooth
Passcode screen.
• Press the on-screen button to return to the Bluetooth Phone screen.
5. After inputting the 4-digit passcode, press the on-screen button.
• Press the on-screen button to return to the Bluetooth Setting screen.
) 9 C 2 % : - C ) 2 F S S O 4 E K I * V M H E ] % T V M P 4 1
Page 99 of 124
99
Audio Operation
nSetting the PIN code
Note
lThe default PIN code is “0000”. 1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu.
Press the
on-screen button to switch to the Bluetooth
Phone screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to scroll down the menu.
Press the
on-screen button to switch to the Input
Bluetooth PIN screen.
• Press the on-screen button to return to the Bluetooth Phone screen.
5. After inputting the 4-digit PIN code, press the on-screen button.
• Press the on-screen button to return to the Bluetooth Settings screen.
) 9 C 2 % : - C ) 2 F S S O 4 E K I * V M H E ] % T V M P 4 1
Page 100 of 124
100
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nInserting the CDThe display must be open (lowered) to insert the CD.The CD must be label-side up when inserting. The auto-loading mechanism will set the CD and begin
play. There will be a short lapse before play begins while the player reads the digital signals on the CD.
Note"IN" is displayed on the tray number for a CD that is inserted.
nDuring CD playbackThe disc title, the track title, and the artist name will be displayed.
nDuring MP3 CD playbackThe album title, the track title, the folder name, the file number, and the artist name will be displayed.
NoteThe CD will begin playback automatically after insertion. A CD cannot be inserted while the display reads "WAIT".
Operating the In-Dash CD Changer
LOAD /
PUSHPOWERPUSHAUDIO
VOL
SOURCE
SCAN
SEEK
TRACK
MAP
DISP
MENU
VOICE RETURN
TUNE
Disc on-screen button
Track down button Scan button
Track up button
Folder search on-screen button
on-screen button
RPTon-screen buttonRDM on-screen buttonSCAN
) 9 C 2 % : - C ) 2 F S S O 4 E K I 8 L Y V W H E ] % T V M P 4 1
