Black plate (91,1)
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-trunk
Warning Beep
If the advanced key is left in the trunk
compartment with all doors locked and
the trunk lid closed, a beep sound is heard
for about 10 seconds to remind the driver
the advanced key has been left in the
trunk compartment. If this happens, open
the trunk lid by pressing the request
switch and remove the advanced key. An
advanced key removed from the trunk
may not function because its functions
may have been temporarily suspended. To
restore the advanced key function,
perform the applicable procedure (page
3-19).
The system can be set not to open the
trunk.
Refer to Personalization Features on page
10-8.
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and all the doors are locked using a
separate advanced key, a beep sound is
heard for about 10 seconds to remind the
driver that the advanced key has been left
in the vehicle cabin. If this happens, the
doors lock but the functions of the
advanced key left in the vehicle cabin
may be temporarily suspended. Perform
the following procedure to restore the
functions of the advanced key (page
3-19).
The volume of the beep sound can be
changed.
Refer to Personalization Features on page
10-8.
NOTE
The warning beep does not sound while the
trunk is open. The warning beep sounds after
the trunk is closed.
qAuxiliary Key Removed Warning
Beep
If the auxiliary key is removed under the
following conditions while it is in use and
in the ACC or ON position, the warning
beep sounds three times.
lThe advanced key is not in the vehicle.lThe battery for the advanced key is
dead.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-21
Mazda6_8Z64-EA-08H_Edition1 Page91
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (92,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-19).
WarningHow to check
When a door is open, a continuous beep sound will be
heard. Check whether the push button start has been switched
off.
When a door is open, 3 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes. Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes. Check whether the advanced key has been removed
from the vehicle.
When locking the doors or closing the trunk, the chime
sounds for about ten seconds. Check whether the advanced key has been left in the
vehicle or the trunk.
When attempting to lock the doors by pressing the
request switch on the front doors, and six beep sounds
are heard. Check whether the push button start has been switched
off.
Check whether a door is open.
When the KEY indicator light (green) flashes in the
instrument cluster. The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster. The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
3-22
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda6_8Z64-EA-08H_Edition1 Page92
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (93,1)
Keys
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-53) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-55)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
lWrite down the code number and keep it in
a separate safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
lSome types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.
Key ring
Knowing Your Mazda
Doors and Locks
3-23
Mazda6_8Z64-EA-08H_Edition1 Page93
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (94,1)
Key extend/retract method (Retractabletype key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry Systemí
This system remotely locks and unlocks
the doors and opens the trunk lid, and
opens the power windows and the
moonroof.
It can also help you signal for attention.
Operating the theft-deterrent system with
the keyless entry system transmitter is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
3-24
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page94
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (95,1)

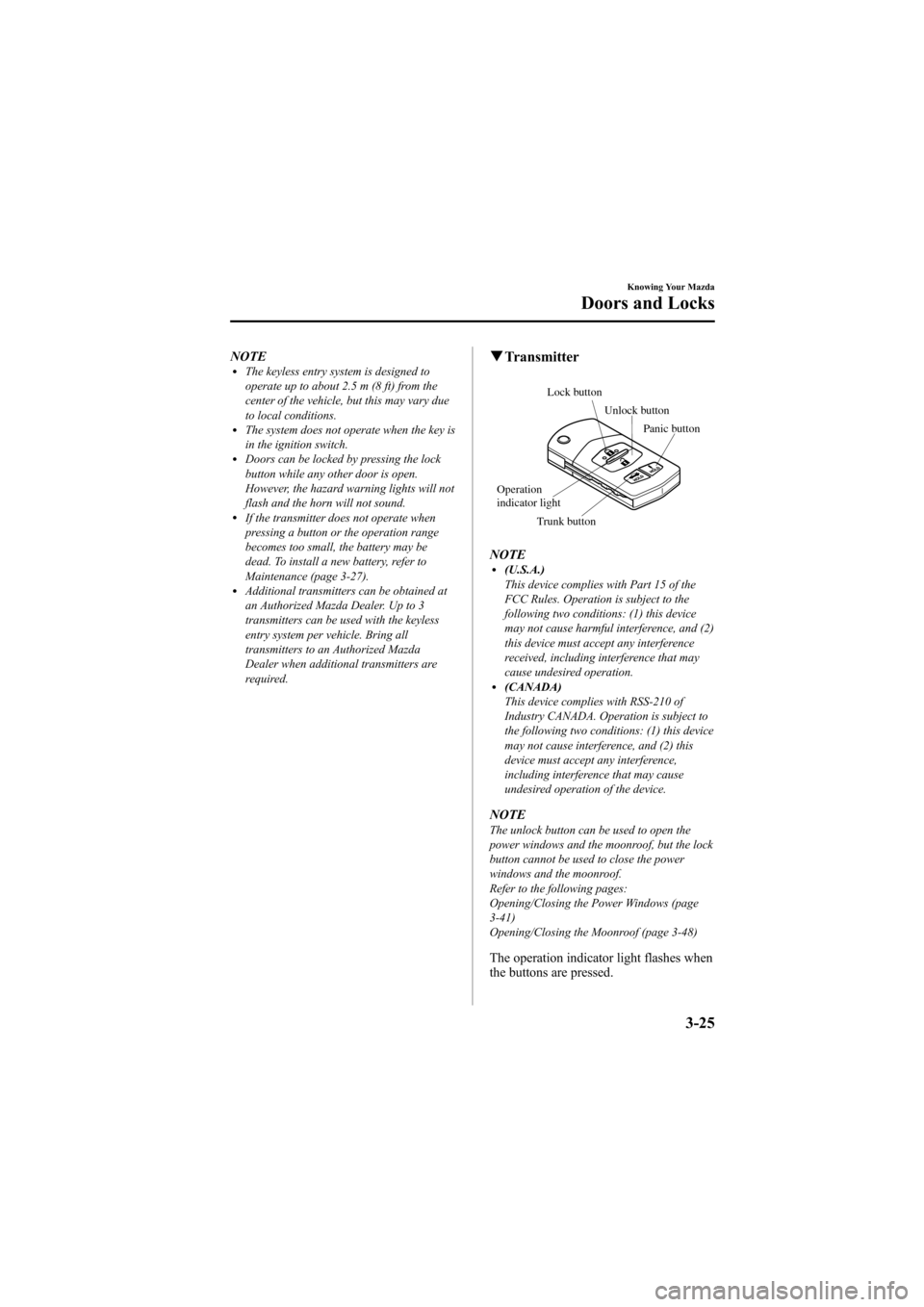

NOTElThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lDoors can be locked by pressing the lock
button while any other door is open.
However, the hazard warning lights will not
flash and the horn will not sound.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-27).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
qTransmitter
Lock button
Unlock button
Trunk button Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTEThe unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-41)
Opening/Closing the Moonroof (page 3-48)
The operation indicator light flashes when
the buttons are pressed.
Knowing Your Mazda
Doors and Locks
3-25
Mazda6_8Z64-EA-08H_Edition1 Page95
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (96,1)
Lock button
To lock the doors, press the lock button.
To confirm that all doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
The system can be set not to sound the
horn.
Refer to Personalization Features on page
10-8.
NOTE
lPressing the transmitter lock button to lock
the doors while any door is open does not
sound the horn.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors are locked.
l(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors are locked before the theft-
deterrent system is properly armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to the theft-deterrent system on page
3-55.
NOTElAll doors cannot be locked when the key is
in the ignition switch.
lConfirm that all doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button.To unlock all doors, press the unlock
button again within 5 seconds.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors are unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to the theft-deterrent system on page
3-55.
The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.
NOTEAuto re-lock function
After unlocking with the transmitter, all doors
will automatically lock if one of the doors or
the trunk lid is not opened within about 30
seconds.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-8.
Trunk button
To open the trunk, press and hold the
trunk button until the trunk lid opens.
NOTE
To open the trunk when the ignition is switched
to a position other than off, use the remote
release button inside the vehicle (page 3-33).
3-26
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page96
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (97,1)
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the trunk lid is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
q Transmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
Ø Install the battery with the positive
pole () facing up. Battery
leakage could occur if it is not
installed correctly.
Ø When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR1620 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-23).
Knowing Your Mazda
Doors and Locks
3-27
Mazda6_8Z64-EA-08H_Edition1 Page97
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (98,1)
2. Insert a small flathead screwdriver intothe slot and push the tab to remove the
key from the transmitter.
Ta b
3. Insert a small flathead screwdriver intothe slot and gently pry open the
transmitter.
4. Press the tab outward and remove thebattery slowly and carefully using a
small flathead screwdriver.
Ta b
5. Install a new battery (CR1620 orequivalent) by inserting it under the
retainer tabs with the positive pole
facing up.
Retainer tab
6. Align the front and back covers andsnap the transmitter shut.
3-28
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page98
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (99,1)
7. Align the key with the transmitter asshown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
Knowing Your Mazda
Doors and Locks
3-29
Mazda6_8Z64-EA-08H_Edition1 Page99
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (100,1)
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to lock,
toward the back to unlock.
Lock Unlock
q
Locking with Request Switch
(with Advanced Key)
The doors can be locked by operating the
request switch while carrying the
advanced key outside the vehicle, refer to
Operations Using Advanced Keyless
Functions (page 3-7).
qUnlocking with Door Handle
(With Advanced Key)
The doors can be unlocked by operating
the door handle on the front doors while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-16).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-24).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, push the
door-lock knob.
To unlock, pull it out.
This does not operate the other door
locks.
Lock
Unlock
3-30
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page100
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H
